Pendant Ceiling Light Hanging Steel Cable Slings

Product Description

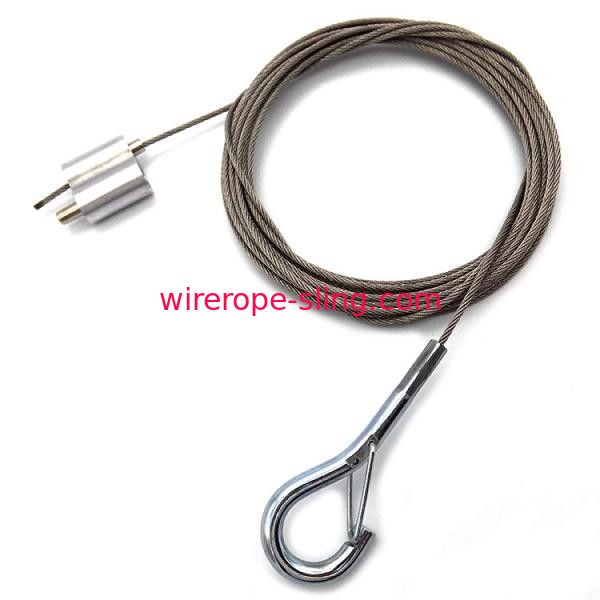

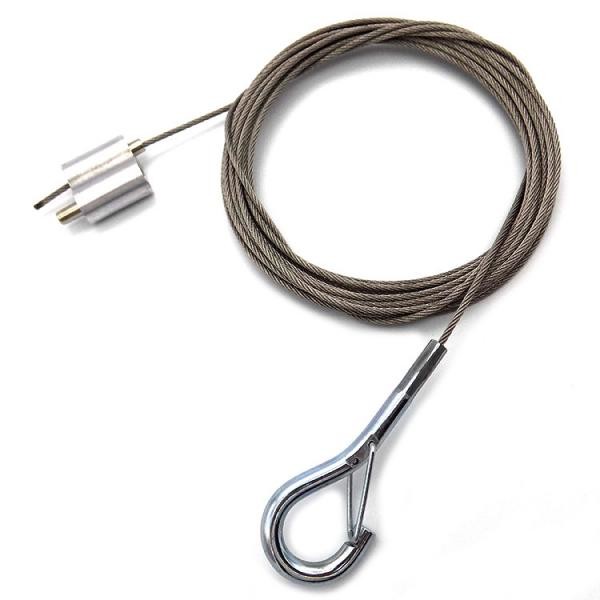

Pendant Lights Ceiling Light Hanging Steel Cable Assembly With Self Locking Looper



Overview



Inspection, thorough examination and
discard criteria
General
During service, slings are subjected to conditions which affect their safe working characteristics. It is necessary therefore to ensure, as far as is reasonably practicable, that the sling is safe for continued use.
The sling shall be inspected for damage or deterioration before each period of use and thereafter shall be checked for obvious defects at suitable intervals during service.
In addition, thorough routine examinations shall be carried out by a competent person.
If at any time there is the reason to doubt the safe condition of the sling, it shall be withdrawn from service and subjected to a thorough examination





1.Diameter	1.0mm,etc	Custom-made available
2.construction	7*7,7X19, etc
3.material	galvanized or stainless
4.MOQ	500pcs
5.length	100mm-5000mm or as the requirement
6.type	steel cable for lightings or industrial
7.end parts of fittings	Loops ,eyelet terminals ,hooks ,etc Flemish eye Pressed thimble eye Pressed Soft eye Spelter Socket Hand spliced eye Pressed solid thimble eye wire ropes clips Hooks Adjustable locking bolster
8.Lead time	7days if there were enough material in stock
9.sample	Free sample available if all of the dimensions same as our existing one, if not, contact me, to get a cost effective solution.
10application	for industrial
11specification	steel cable with hooks and adjustable locking bolsters



Products show;











FQA:

please help us confirm these specific questions:

a. Purpose: For which rope will be used.

b. Size: Diameter of the rope in millimeter or inches

c. Construction: Number of strands, number of wires per strand and type of strand construction.

d. Type of Core: Fiber core( FC), independent wire rope core(IWRC) or independent wire strand core(IWSC).

e. Lay: Right regular lay, left regular lay,etc.

f. Coating: Bright(ungalvanized), galvanized or stainless, PVC or Grease.

g. Grade of wire: Tensile strength of wires.

h. Breaking Load: Minimum or calculated breaking load in tones or pounds.

i. Lubrication: Whether lubrication is desired or not, and required lubricant.

j. Length: Length of wire rope.

k. Packing: In coils wrapped with oil paper and hessian(orp.p) cloth, or on wooden reels.

l. Quantity: By number of coils or reels, by length or weight.

m. Remarks: Shipping marks and any other special requirement.

tensile strength technical table:

Nominal Diameter	Approximate Mass	Minimum breaking loads - 1770 Mpa
[mm]	[kg/m]	[kN]	[Kg]
3	0.034	5.77	588
4	0.061	10.25	1,045
5	0.095	16.02	1,633
6	0.137	23.07	2,352
7	0.187	31.40	3,202
8	0.244	41.01	4,182
9	0.309	51.90	5,293
10	0.381	64.07	6,535
11	0.461	77.53	7,908
12	0.549	92.27	9,411
13	0.644	108.29	11,045
14	0.747	125.59	12,809
16	0.975	164.03	16,731
18	1.234	207.60	21,175
20	1.524	256.30	26,142

Steel Wire Rope Knowledge:

1. wire rope definition

Wire rope is a type of cable which consists of several strands of steel wire laid into a helix.

Wire ropes are used dynamically for lifting and hoisting in cranes and elevators, and for transmission of mechanical power. Wire rope is also used to transmit force in mechanisms, such as a Bowden cable or the control surfaces of an airplane connected to levers and pedals in the cockpit. Static wire ropes are used to support structures such as suspension bridges or as guy wires to support towers. An aerial tramway relies on wire rope to support and move cargo overhead.

2. Wire rope construction

a. Wires: steel wires for wire ropes are normally made of non-alloy carbon steel with a carbon content of 0.4 to 0.95%. The tensile forces and to run over sheaves with relatively small diameters.

b. Strand: the strand is a component of wire rope usually consisting of an assembly of wires of appropriate diamsions laid helically in one or more layers around a central element.

c. Core: the core is the central element, of fiber or steel, around which are laid helically the outer strands of wire rope. The core provides proper support for the strands under normal bending and loading conditions.

3. Lays of wire rope

The lays of wire ropes, with few exceptions, are roughly divided into two kinds-Lang's Lay and Regular Lay.

The Lang's Lay rope offers a better wearing surface when in use and can be expected to serve for a longer priod than the Regular rope, which, meanwhile, is more flexible than Lang's Lay rope and easily spliced.

4. How to measure rope size

The size of a wire rope is the diameter of the circle which will just enclose all of the strands, The correct method is to measure over any pair of opposite strands.

5. Cores for wire ropes

a. Steel

IWRC (Independent Wire Rope Core) the main core is an independent wire rope, normally having the construction 7x7.

IWRC (Independent Wire Rope Core) the main core is an independent wire strand, normally having the same construction as the outer strands of the rope.

b. Fiber

Fiber cores are stranded and comprise either:

Natural fibres such as sisal, help, jute, and cotton.

Synthetic fibres such as polyamide, polyethylene, and polypropylene.

Asbestos fibres (heat resistant)

6. Preformed ropes

In the preforming process the wires and strands are given their final helical pitch before being laid up into rope.

Ropes made in this way show no tendency to untwist when cut.

7. Lubrication

Lubrication reduces internal friction of the wires and strands and protects against corrosion.

Grease is applied to all ropes.

If special lubricants are required this must be specifically stated at time of ordering.

8. Classification of ropes according to usage

a. Running ropes (stranded ropes) are bent over sheaves and drums. They are therefore stressed mainly by bending and secondly by tension.

b. Stationary ropes, stay ropes (spiral ropes, mostly full-locked) have to carry tensile forces and are therefore mainly loaded by static and fluctuating tensile stresses. Ropes used for suspension are often called cables.

c. track ropes (full locked ropes) have to act as rails for the rollers of cabins or other loads in aerial ropeways and cable cranes.

d. Wire rope slings (stranded ropes) are used to harness various kinds of goods. These slings are stressed by the tensile forces but first of all by bending stresses when bent over the more or less sharp edges of the goods.

9. How to select wire ropes

In the working life of a wire rope are involved a lot of factors. In order to make the best selection, it should be considered the following:

a. adequate load capacity

b. fatigue resistance

c. abrasion resistance

d. corrosion resistance

e. crushing resistance

10. Steel wire rope periodic inspection

Regular inspections will help to determinate when a wire rope must be replaced.

Inspection frequency in the wire rope will be established according to environment conditions, specific use, frequency of use, and so on.

The most common characters to verify in a wire rope are shown in the next table.

Concept	General Recommendations
wear	7.5% maximum from nominal diameter
diameter reduction	7.5% maximum from nominal diameter
corrosion	if corrosion present, replace immediately
crushing	mechanical damage, remove immediately
core exposures	remove immediately
Rust	clean and lubricant wire rope to prevent corrosion

steel wire rope structure :

1) Main Construction: 1X7, 1X19, 7X7, 7X19, 6X7+FC/IWS, 6X19+FC/IWRC, 6X19S(W)+FC/IWRC, 6X37+FC/IWRC, 6X36WS+FC/IWRC, 19X7, 18X7+FC etc.

2) Length: 10m—2000m / reel

3) Lay: right hand regular lay or left hand regular lay

4) Core: fiber core & steel core

5) Package: soft coil, carton, wooden or plastic reels, wooden case

6) Nominal tensile strength: 1270Mpa -- 1570Mpa
