5K Wire Rope Sling Choker 6 Ft PVC Coated Wire Rope With Thimble Eyes

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: WRSEE0
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: USD1-100 PER SET
Packaging Details: Wooden Box
Delivery Time: 10-15 days
Payment Terms: L/C, T/T
Supply Ability: 50000SETS Monthly

Detail Information

Model:E/EWire Rope Size:1/8"
Type:Single Leg Eye & EyeConstruction:6x19 Class
Length (ft):10,20,30,40,50...Safety Factor:5:1
High Light:

wire rope slings with hooks

,

steel wire sling

Product Description

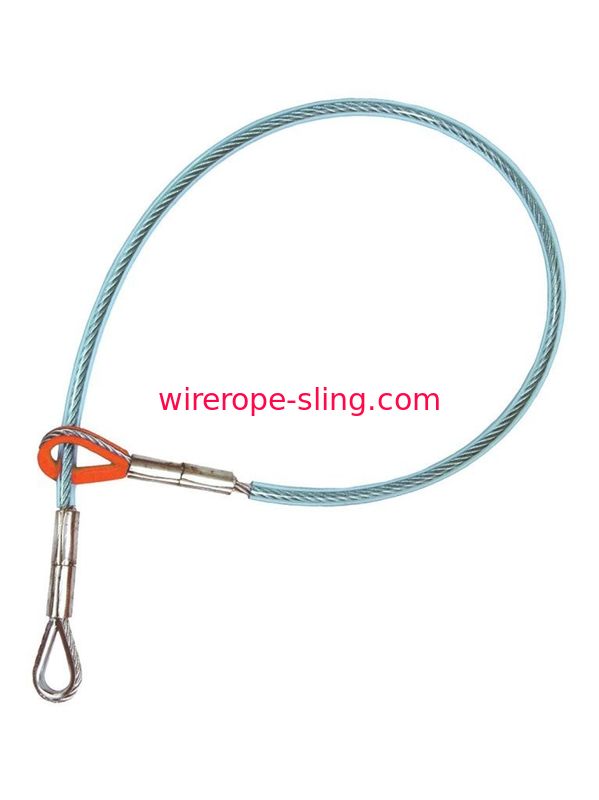

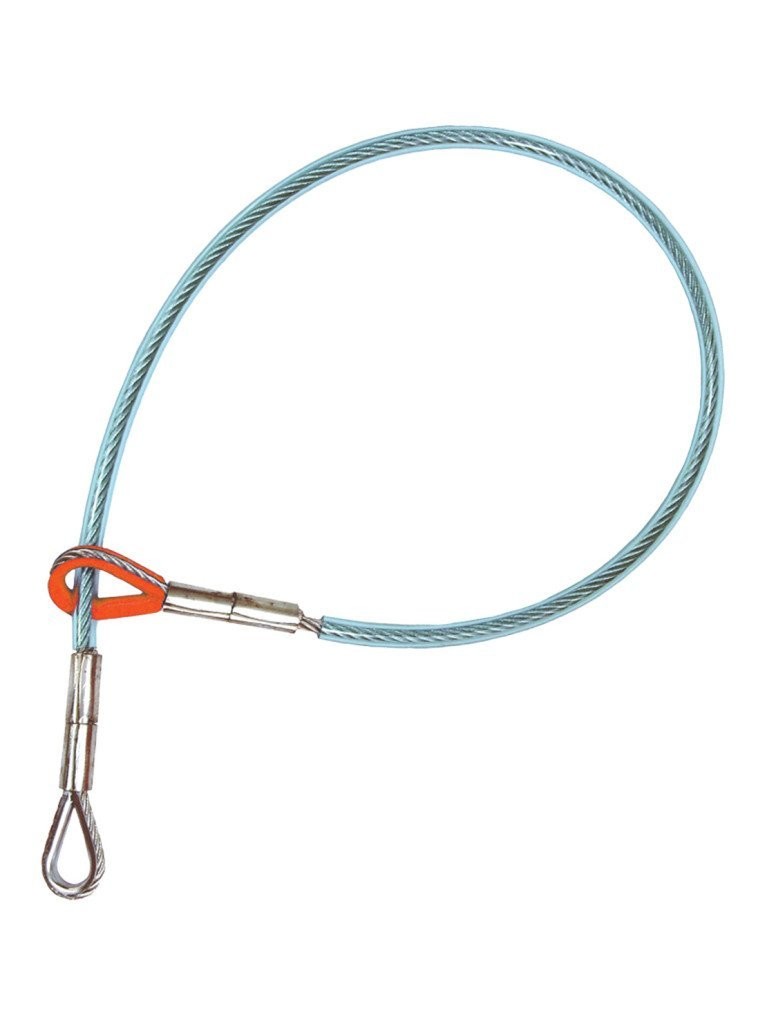

5K Wire Rope Sling Choker - PVC coated Wire Rope with thimble eyes 6ft







Product features



  • Breaking Strength: 5,000 lbf / 22kn
  • Durable & easy to use
  • Cable resists wear around sharp edges
  • Compliance: ANSI Z359
  • Product Weight: 1.3 lbs.



Product description



The 5K Wire Rope Sling - 6ft is an ANSI Z359 certified anchorage connector with iridescent blue tubing for easier cable inspections. Sling can be used in a basket configuration. Cable slings are excellent temporary and semi-permanent ANSI certified anchors. They are available in 3 and 6 foot lengths with various terminations for versatility on the job or in a rescue kit.





Use method



When wire rope Sling is used in workplaces such as damp or open air, galvanized steel wire rope can be used as raw material to enhance rust resistance.
In addition to the wear of the steel wire in the outer layer, the wire rope is mainly caused by the repeated bending of the hook and the suspended material to cause metal fatigue and gradually broken. Therefore, the ratio of the hook or the diameter of the hoist to the wire rope is an important factor in determining the service life of the wire rope.
The wear and corrosion degree of the surface layer of the wire rope Sling or the number of broken wires within each screwing distance shall exceed the prescribed value and be scrapped.
Wire rope Sling is mainly used in the transportation of high strength rope, such as hoisting, pulling, and so on. During the use of the rope, it is strictly prohibited to stop or stop on the object.

Specification



Fiber Core



Fibre Core - 6x19 and 6x36, ferrule-secured eye terminations
ONE LEG SLING (Direct) - Angle to Vertical 0°
Rope Diameter Working Load Limits (Tones)
8 mm⌀ 0.7
9 mm⌀ 0.85
10 mm⌀ 1.05
11 mm⌀ 1.3
12 mm⌀ 1.55
13 mm⌀ 1.8
14 mm⌀ 2.12
16 mm⌀ 2.7
18 mm⌀ 3.4
20 mm⌀ 4.35
22 mm⌀ 5.2
24 mm⌀ 6.3
26 mm⌀ 7.2
28 mm⌀ 8.4
32 mm⌀ 11
36 mm⌀ 14
40 mm⌀ 17
44 mm⌀ 21
48 mm⌀ 25
52 mm⌀ 29
56 mm⌀ 33.5
60 mm⌀ 39
Leg Factor KL 1



Steel Core





Steel Core - 6x19, 6x36 and 8x36 ferrule-secured eye terminations
ONE LEG SLING (Direct) - Angle to Vertical 0°
Rope Diameter Working Load Limits (Tones)
8 mm⌀ 0.75
9 mm⌀ 0.95
10 mm⌀ 1.15
11 mm⌀ 1.4
12 mm⌀ 1.7
13 mm⌀ 2
14 mm⌀ 2.25
16 mm⌀ 3
18 mm⌀ 3.7
20 mm⌀ 4.6
22 mm⌀ 5.65
24 mm⌀ 6.7
26 mm⌀ 7.8
28 mm⌀ 8.4
32 mm⌀ 11.8
36 mm⌀ 15
40 mm⌀ 18.5
44 mm⌀ 22.5
48 mm⌀ 26
52 mm⌀ 31.5
56 mm⌀ 36
60 mm⌀ 42
Leg Factor KL 1
