Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | CCS,DNV,BV |
| Model Number: | WRSEE0 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1Set |
| Price: | USD1-100 PER SET |
| Packaging Details: | Wooden Box |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000SETS Monthly |
|
Detail Information |
|||
| Model: | E/E | Wire Rope Size: | 1/8" |
|---|---|---|---|
| Type: | Single Leg Eye & Eye | Construction: | 6x19 Class |
| Length (ft): | 10,20,30,40,50... | Safety Factor: | 5:1 |
| High Light: |
wire rope slings with hooks,steel wire sling |
||
Product Description

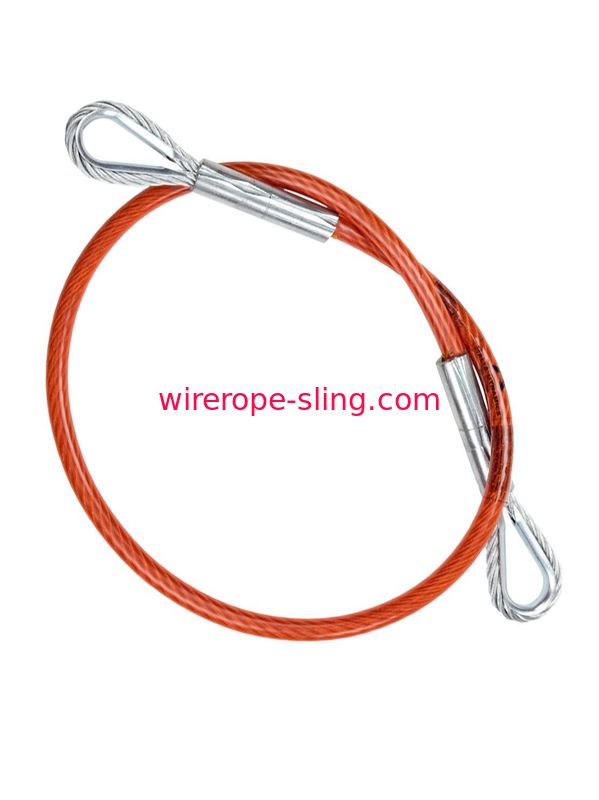

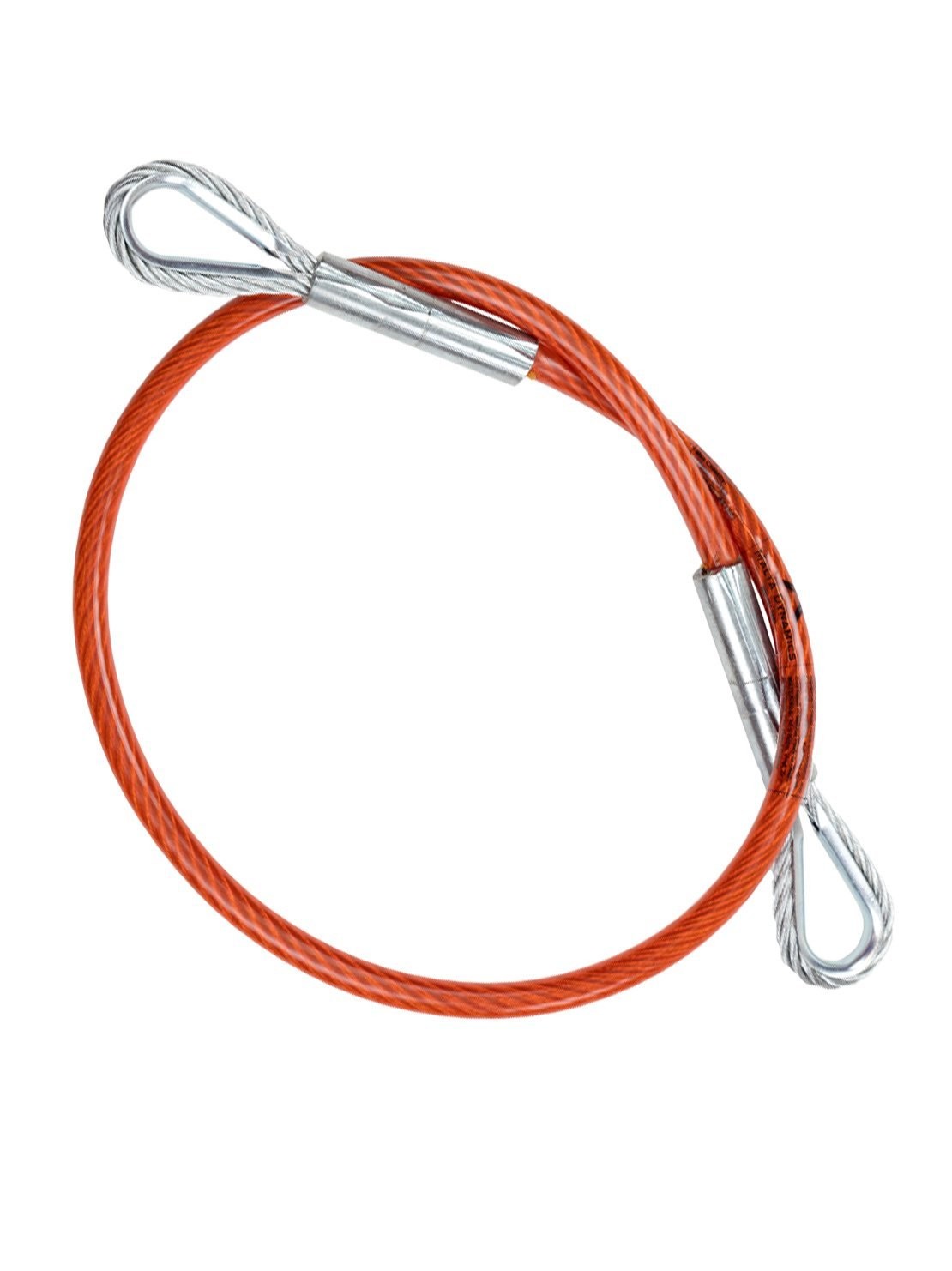

Red color PVC coated Wire Rope Sling with various terminations for versatility is an ANSI Z359 certified anchorage connector with iridescent blue tubing for easier cable inspections. The sling can be used in a basket configuration. Cable slings are excellent temporary and semi-permanent ANSI certified anchors. They are available in 3 and 6-foot lengths with various terminations for versatility on the job or in a rescue kit.
A) if a single leg wire rope sling, the hanging point must be located directly above the center of gravity of the suspended object.
B) if the 2legswire rope sling, the hanging points should be on both sides of the goods and the hooks are above the center of gravity of the suspended objects.
C) if it is three legs or four legs wire rope sling, the hanger must be proportioned on the plane around the cargo and the hook is located directly above the center of gravity of the suspended object.
Fiber Core
| Fibre Core - 6x19 and 6x36, ferrule-secured eye terminations | |
| ONE LEG SLING (Direct) - Angle to Vertical 0° | |
| Rope Diameter | Working Load Limits (Tones) |
| 8 mm⌀ | 0.7 |
| 9 mm⌀ | 0.85 |
| 10 mm⌀ | 1.05 |
| 11 mm⌀ | 1.3 |
| 12 mm⌀ | 1.55 |
| 13 mm⌀ | 1.8 |
| 14 mm⌀ | 2.12 |
| 16 mm⌀ | 2.7 |
| 18 mm⌀ | 3.4 |
| 20 mm⌀ | 4.35 |
| 22 mm⌀ | 5.2 |
| 24 mm⌀ | 6.3 |
| 26 mm⌀ | 7.2 |
| 28 mm⌀ | 8.4 |
| 32 mm⌀ | 11 |
| 36 mm⌀ | 14 |
| 40 mm⌀ | 17 |
| 44 mm⌀ | 21 |
| 48 mm⌀ | 25 |
| 52 mm⌀ | 29 |
| 56 mm⌀ | 33.5 |
| 60 mm⌀ | 39 |
| Leg Factor KL | 1 |
Steel Core
| Steel Core - 6x19, 6x36 and 8x36 ferrule-secured eye terminations | |
| ONE LEG SLING (Direct) - Angle to Vertical 0° | |
| Rope Diameter | Working Load Limits (Tones) |
| 8 mm⌀ | 0.75 |
| 9 mm⌀ | 0.95 |
| 10 mm⌀ | 1.15 |
| 11 mm⌀ | 1.4 |
| 12 mm⌀ | 1.7 |
| 13 mm⌀ | 2 |
| 14 mm⌀ | 2.25 |
| 16 mm⌀ | 3 |
| 18 mm⌀ | 3.7 |
| 20 mm⌀ | 4.6 |
| 22 mm⌀ | 5.65 |
| 24 mm⌀ | 6.7 |
| 26 mm⌀ | 7.8 |
| 28 mm⌀ | 8.4 |
| 32 mm⌀ | 11.8 |
| 36 mm⌀ | 15 |
| 40 mm⌀ | 18.5 |
| 44 mm⌀ | 22.5 |
| 48 mm⌀ | 26 |
| 52 mm⌀ | 31.5 |
| 56 mm⌀ | 36 |
| 60 mm⌀ | 42 |
| Leg Factor KL | 1 |
