Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | LKS |
Certification: | CCS,DNV,BV |
Model Number: | WRSLAMP |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1Set |
Price: | USD1-100 PER SET |
Packaging Details: | Wooden Box |
Delivery Time: | 10-15 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 50000SETS Monthly |
Detail Information |
|||
Material: | Stainless Steel | Load Capacity: | 50kg / 110lb |
---|---|---|---|
Type: | Single Leg Eye-and-Eye | Construction: | 6x19 Class |
Length (ft): | 5,,10,20,30,40,50... | Safety Factor: | 5:1 |
High Light: |
wire rope slings with hooks,steel wire sling |
Product Description

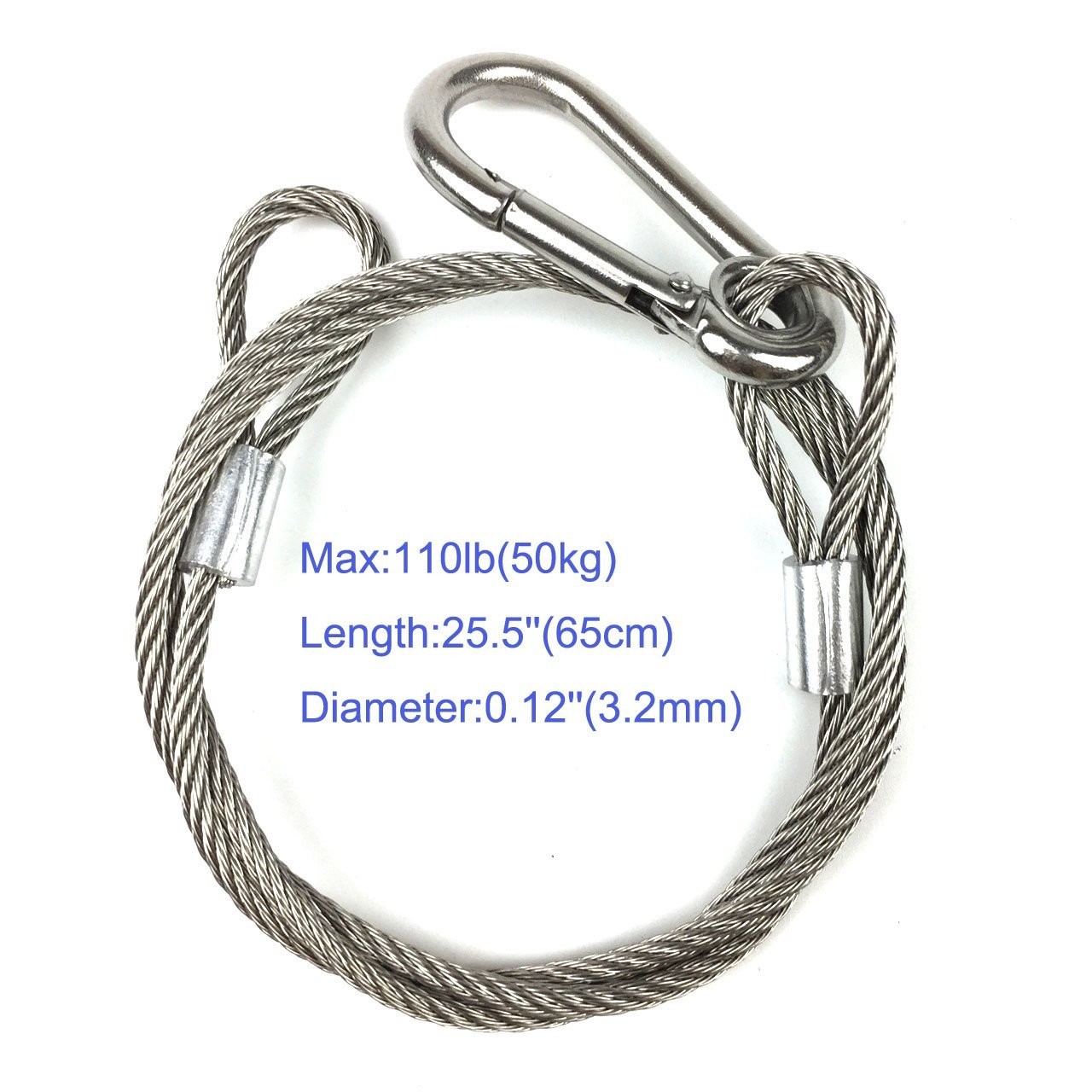

Specifications:
Material: Stainless Steel
Load Capacity: 50kg / 110lb
Diameter: 3.2mm
Length: 65cm / 25.5"
Weight: 42g
Notes:
Please do a max load capacity test before use

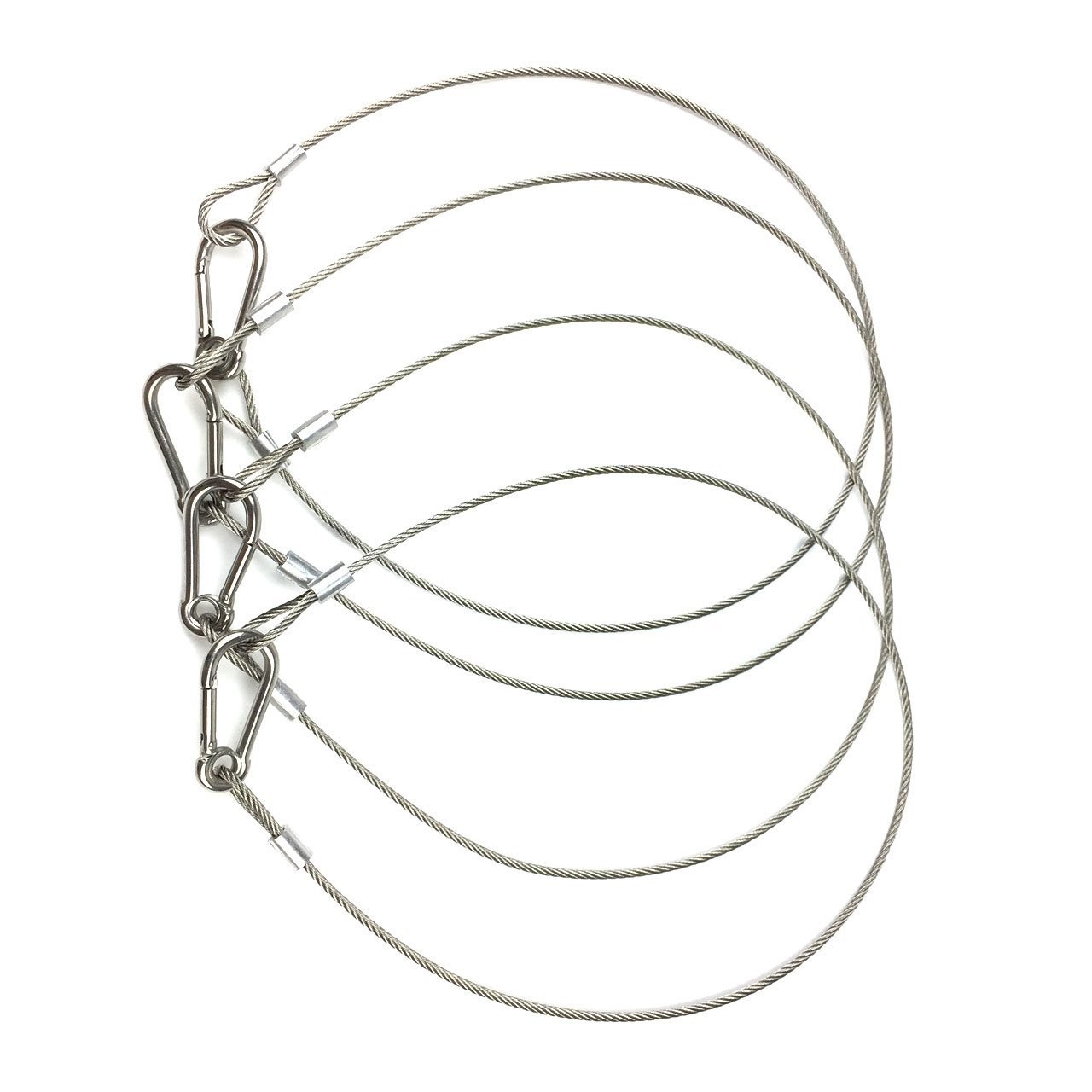

Package Includes:
Stainless Steel Safety Wire cable
Steel Core - 6x19, 6x36 and 8x36 ferrule-secured eye terminations | |
ONE LEG SLING (Direct) - Angle to Vertical 0° | |
Rope Diameter | Working Load Limits (Tones) |
8 mm⌀ | 0.75 |
9 mm⌀ | 0.95 |
10 mm⌀ | 1.15 |
11 mm⌀ | 1.4 |
12 mm⌀ | 1.7 |
13 mm⌀ | 2 |
14 mm⌀ | 2.25 |
16 mm⌀ | 3 |
18 mm⌀ | 3.7 |
20 mm⌀ | 4.6 |
22 mm⌀ | 5.65 |
24 mm⌀ | 6.7 |
26 mm⌀ | 7.8 |
28 mm⌀ | 8.4 |
32 mm⌀ | 11.8 |
36 mm⌀ | 15 |
40 mm⌀ | 18.5 |
44 mm⌀ | 22.5 |
48 mm⌀ | 26 |
52 mm⌀ | 31.5 |
56 mm⌀ | 36 |
60 mm⌀ | 42 |
Leg Factor KL | 1 |
A) if a single leg wire rope sling, the hanging point must be located directly above the center of gravity of
the suspended object.
B) if the 2 legs wire rope sling, the hanging points should be on both sides of the goods and the hooks are
above the center of gravity of the suspended objects.
C) if it is three legs or four legs wire rope sling, the hanger must be proportioned on the plane around the
cargo and the hook is located directly above the center of gravity of the suspended object.
