Galvanized Pvc Coated Steel Wire Rope Custom Cut Clear Safe Reliable Anti Seismic

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: WRSPVC
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: USD1-100 PER SET
Packaging Details: Wooden Box
Delivery Time: 10-15 days
Payment Terms: L/C, T/T
Supply Ability: 50000SETS Monthly

Detail Information

Material:Galvanized SteelLoad Capacity:480lbs
Diameter:1/16" Core Diameter 1/8" Clear Vinyl Coated Overall DiameterWeight:275g (30g Per Piece)
Length:3ftSafety Factor:5:1
High Light:

wire rope slings with hooks

,

steel wire sling

Product Description

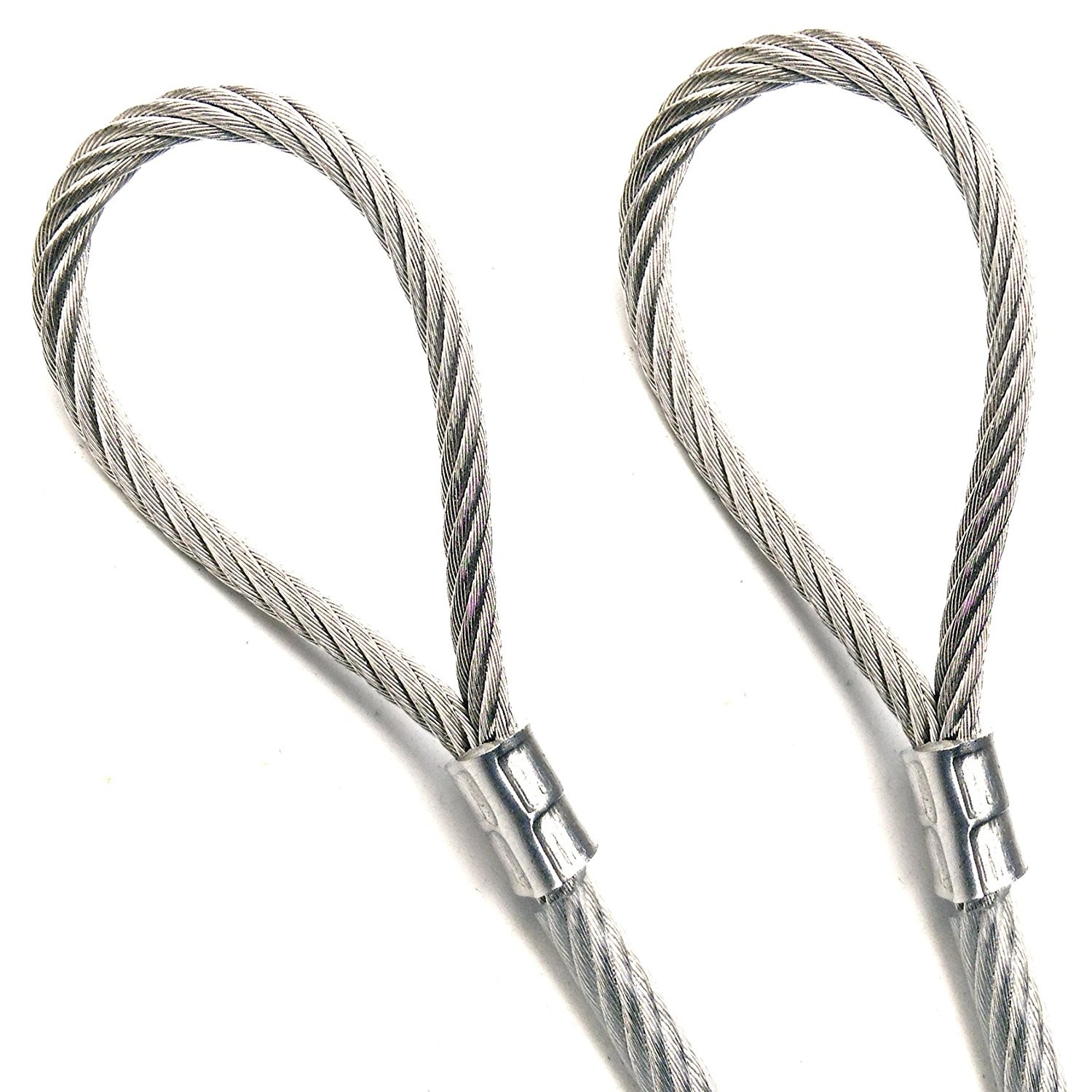

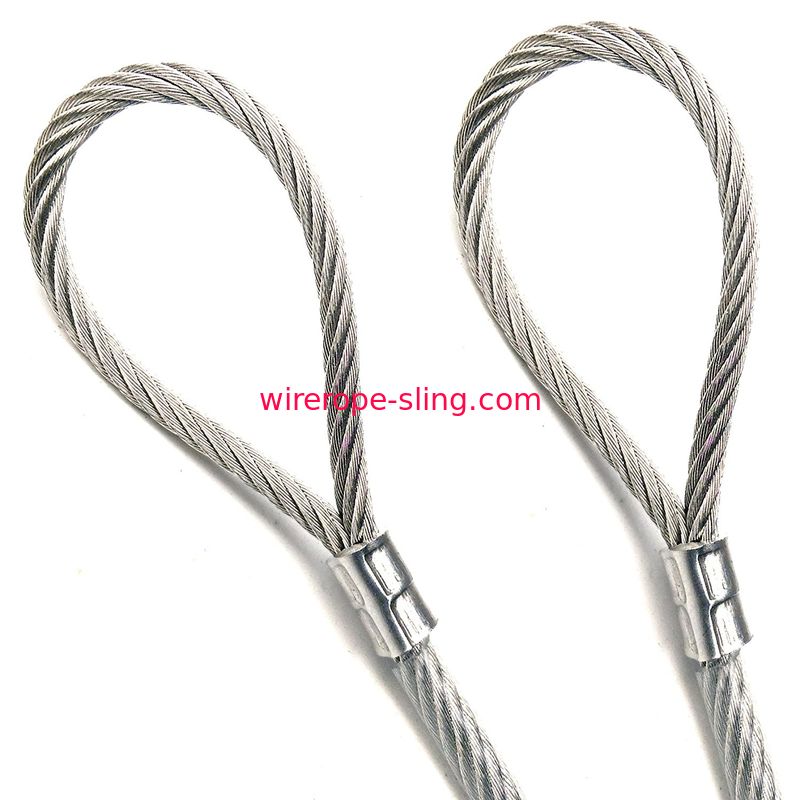

Custom Cut Clear PVC Coated GALVANIZED Steel Wire Rope Sling 1/16 inch 7x7 Strand















Product features



  • Cable Specification: Galvanized Steel • 1/16" Core Diameter • PVC Clear 3/16" Overall Diameter • 7x7 Construction • Double Loop with Aluminum Sleeve
  • Moderate Corrosion Resistance. Flexible and Wear Resistant.
  • Common Usage: Dog Leads, Sailboat Lifeline Cable, Hanging Bird Feeders, Lanyards, Hanging Clear Vintage Light Bulbs, Decorations, Christmas Light Decorations, String Lights, LED Lights, Cable Organizer, Winch Lines, Railings, Clothes line, Slings, Irrigation, Agriculture Industry
  • •••DUE TO CUSTOMIZATION AND SAFETY RISKS THIS ITEM CANNOT BE RETURNED••• DO NOT USE cable breaking strength FOR DESIGN OR RATING PURPOSES. USE WORKING LOAD LIMIT INSTEAD. PHAT SATELLITE INTL assumes no responsibility for the use, misuse or misapplication of its products. Products are sold with the specific understanding that the purchaser and/or user are thoroughly familiar with their proper use.



Product Description



Size Name:3ft with Double Sleeve 7x7 construction | Color:Galvanized Steel Clear 1/16" Core 1/18" OD


Wire rope, also called wire cable, is an assembly of wire strands formed hectically around a center core. The construction includes 7 strands and 7 wires per strand in galvanized steel resulting in a small diameter that is both flexible and offers resistance to corrosion.

Note: cable breaking strength ratings are listed for comparison purposes only. Actual operating loads may vary, but should never exceed the recommended design factor or 6:1 and 3:1 depending on application.

These cables are not designed for overhead lifting or aircraft use.

  • CABLE SPECIFICATION
  • 1/16" Core Diameter 1/8" Clear Vinyl Coated Overall Diameter
  • Galvanized Steel
  • Double Loop with Aluminum Sleeve
  • cable breaking strength: 480lbs
  • loop breaking strength: N/A



  • •••DUE TO CUSTOMIZATION AND SAFETY RISKS THIS ITEM CANNOT BE RETURNED•••
    Do not use cable breaking strength for design or rating purposes. Use working load limit instead. PHAT SATELLITE INTL assumes no responsibility for the use, misuse, or misapplication of its products. Products are sold with the specific understanding that the purchaser and/or user are thoroughly familiar with their proper use.




  •
  •
  •







Steel Core - 6x19, 6x36 and 8x36 ferrule-secured eye terminations
ONE LEG SLING (Direct) - Angle to Vertical 0°
Rope Diameter Working Load Limits (Tones)
8 mm⌀ 0.75
9 mm⌀ 0.95
10 mm⌀ 1.15
11 mm⌀ 1.4
12 mm⌀ 1.7
13 mm⌀ 2
14 mm⌀ 2.25
16 mm⌀ 3
18 mm⌀ 3.7
20 mm⌀ 4.6
22 mm⌀ 5.65
24 mm⌀ 6.7
26 mm⌀ 7.8
28 mm⌀ 8.4
32 mm⌀ 11.8
36 mm⌀ 15
40 mm⌀ 18.5
44 mm⌀ 22.5
48 mm⌀ 26
52 mm⌀ 31.5
56 mm⌀ 36
60 mm⌀ 42
Leg Factor KL 1
Galvanized Pvc Coated Steel Wire Rope Custom Cut Clear Safe Reliable Anti Seismic 0

Legal Disclaimer



Disclaimer: Weights and figures are for reference only. Consultation of an independent engineer or other qualified persons for your usage is highly recommended. Breaking strength provided for wire rope are approximate only. Information on wire rope should only be used as a guide; information may vary according to manufacturing specifications, and usage applications. Check tensile strength (Grade) and MBS (Minimum Breaking Strain) at time of order and receiving of the order to confirm appropriateness of information, and before product usage or application. Additional sizes of wire rope of commercial rigging fittings and sleeves are not rated and must not be used for any tensioning, suspension, load-bearing/lifting applications, or other purposes subject to control by statutory requirements. Rigging screws are batch tested only. Lifting applications require an individual certificate of proof test to be supplied by qualified professional and or organization for your specific usage applications. Hardware chain and braided cables of commercial quality is suitable for general use only. Not suitable for lifting, suspension, under load, or any application subject to control by statutory authorities/requirements.
