China Wire Rope Sling manufacturer

Nylon Coated Wire Rope Galvanized Light Weight With Eye Stake Cable Assembly

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: WRSPVC
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: USD1-100 PER SET
Packaging Details: Wooden Box
Delivery Time: 10-15 days
Payment Terms: L/C, T/T
Supply Ability: 50000SETS Monthly

Detail Information

Config:Loop To Stake Eye LanyardDiameter:3/16"
Width:0.25 FeetWeight:275g (30g Per Piece)
Length:48.0 FeetSafety Factor:5:1
High Light:

wire rope slings with hooks

,

steel wire sling

Product Description

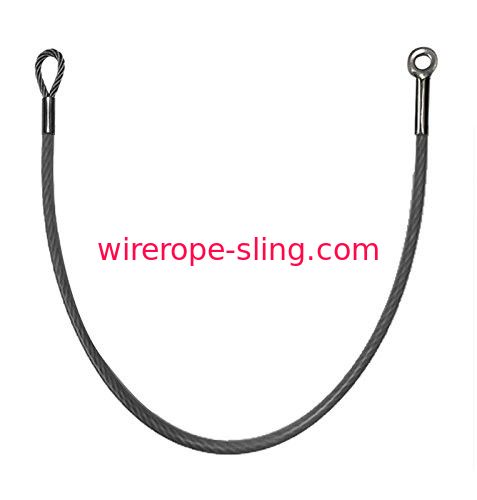

Galvanized, 3/16" Nylon Coated Wire Rope Sling Loop and Eye Stake Cable Assembly





Product features



  • Loop to Stake Eye Lanyard
  • Measures 4 feet Bearing Point to Center of Eye
  • Galvanized Steel Cable, Nylon Jacketed for Chemical/Fatigue Resistance
  • 3/16" Diameter Cable; Nylon Jacketed to 1/4", 7x19 Construction
  • Manufactured to meet Full Break strength of cable.



Product Description



With nearly 50 years of experience, LKING STEEL LIMITED is the market leader for critical assembly applications. We maintain large inventories of both bare and coated cable as well as fittings to satisfy your needs. LKING STEEL LIMITED electrically cuts the mechanical cable at high speed, fusing all end wires together, reducing waste, cutting inventory and greatly improving your product. We maintain a large inventory of hardware to produce a wide variety of assembly combinations. Why use multiple vendors for your cable and fittings when you can get it all from Loos & Co.? Wire rope, also called wire cable, is an assembly of wire strands formed helically around a central core. It is used for pulling, lifting, rigging, hoisting, and motion-control applications most commonly found in the manufacturing, marine, oil, mining, fiber-optics, aircraft, automotive accessory, and construction industries. A combination of characteristics including material, finish, construction, diameter, length, and breaking strength combines to give each rope its performance ability. Wire rope materials are selected for properties such as strength, elasticity, conductivity, and chemical- and weather-resistance. For strength purposes, most wire rope is made of bright (uncoated or bare) wire. However, it is also produced in a variety of finishes, such as polypropylene (PE), vinyl (PVC), or nylon. These coatings can increase overall durability and strength, and allow for specific use. The breaking strength for wire rope is the strength at which new wire rope will fail under a stationary load. Breaking strength is not considered safe working load (SWL) limit.



  • •••DUE TO CUSTOMIZATION AND SAFETY RISKS THIS ITEM CANNOT BE RETURNED•••
    Do not use cable breaking strength for design or rating purposes. Use working load limit instead. PHAT SATELLITE INTL assumes no responsibility for the use, misuse, or misapplication of its products. Products are sold with the specific understanding that the purchaser and/or user are thoroughly familiar with their proper use.







Specifications for this item



Part Number G64NAAC-0480
Brand Name LKS
Exterior Finish nylon_coated
Length 48.0 feet
Model Number G64NAAC-0480
Number of Items 1
Width 0.25 feet

Nylon Coated Wire Rope Galvanized Light Weight With Eye Stake Cable Assembly 0

  •
