Flexible Crane Wire Rope Superior Fatigue Resistance With Long Service Life

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE, CCS, Lloyd’s, ABS,DNV
Model Number: 6 x K26WS-EPIWRC
Payment & Shipping Terms:
Minimum Order Quantity: 1000mtrs
Price: USD1200 per Ton
Packaging Details: Wooden Reel or as request
Delivery Time: 10-15days
Payment Terms: L/C, T/T
Supply Ability: 1000tons monthly

Detail Information

Alloy Or Not:Non-alloyTensile Strength:1570,1670,1770,1870,1960MPA
Surface:Galvanized/UngalvanizedLength:500mtrs/1000mtrs/2000mtrs Available
Packing:Wooden Reel,Steel ReelLay:RHOL, LHOL
Standard:ASTM, BS, GB, JISMaterial:Steel
High Light:

crane pendant cable

,

overhead crane wire rope

Product Description

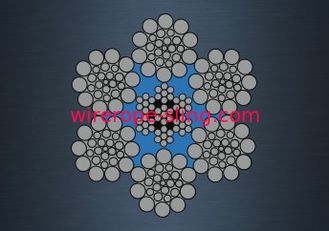

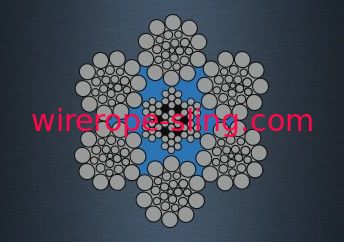

6 x K26WS-EPIWRC Tower Crane Steel Wire Rope for Drilling Operations





Product Details





Highest reliability of the platform is the main target! This LKING STEEL LIMITED high performance steel wire rope with PLASTFILL® insert for permanent lubrication of the core delivers into high resistance to wear..



►MULTILAYER SPOOLING

►SUPERFILL®

►PLASTFILL®







Specifications



  • 6 x K26WS-EPIWRC, RCN 06
  • Ordinary lay, right or left lay
  • Use without rope swivel



The minimum diameter ratio of the diameter steel rope  and  the drum



Wire Rope Construction Minimum drum dia. (mm) Wire Rope Construction Minimum drum dia. (mm)
(d=Wire Rope dia.) (d=Wire Rope dia.)
6&8 strands wire rope 6×7 6T×7 6×10TS 42×d Micro rotating wire rope 18×7 34×d
6×19 6×19S 6×19W 30×d 18×19S 18×19W 26×d
6×26WS 6×21Fi 28×d 18×26WS 24×d
6×25Fi 6×31WS 25×d 4V×39S 4V×48S 4×36WS 26×d
6×29Fi 6×37 6×36WS 22×d Micro non rotating wire rope 24W×7 30×d
6×41WS 6×49SWS 19×d 35W×7 30×d
8×19S 8×19W 25×d Compacted Wire Rope 6×K19S 6×K26WS 30×d
8×26WS 24×d 6×K31WS 6×K41WS
8×25Fi 8×31WS 20×d 8×K25Fi 8×K29Fi 30×d
8×36WS 18×d 8×K36WS 8×K41WS
6V×30 6×34 6×37 30×d 15×K7 18×K7 35W×K7 36×d



Applications



  • Tower Crane



Pay attention to your Crane Wire Rope



First of all, no matter what type of wire rope, must pay attention to the effect of lubrication; if the crane wire rope is not lubricated in place, oil can not effectively permeate the wire rope between the wire and rope, then the long wear and corrosion of the wire rope will cause early broken wire, especially the inner rope core.
Second, the crane wire rope should pay strict attention to the phenomenon of kink. If the crane is not installed in place, if the crane is not in place, there is a stress phenomenon when the crane is installed at first. In the process of lifting the crane, the non rotating wire rope will also twist, and some steel rope will bite on the rope reel on the 35W*7/4V*39S+5FC,6 x K26WS-EPIWRC .
So what if we want to deal with the rope head of the crane? When installing a new wire rope for the crane, the two ends of the new rope should be fastened with thin soft wires to prevent loose ends and loose stock.
Then how to eliminate the phenomenon of rope twisting and biting? In general, when the new wire rope is unrolled, we should let the wire rope in the horizontal natural state, thus eliminate the stress, so that the kink phenomenon can be avoided and the service life of the wire rope can be avoided when the wire rope is replaced.


Technical Table

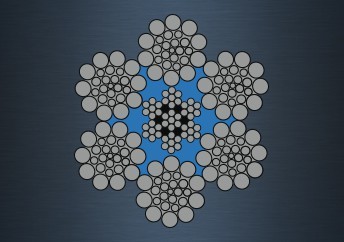

Flexible Crane Wire Rope Superior Fatigue Resistance With Long Service Life 0

Breaking Loads
Nominal Diameter Weight Minimum Breaking Loads
1960 Mpa 2160 Mpa
[mm] [inch] [kg/m] [kN] [Kg] [kN] [Kg]
34.9 1 ⅜ 5.00 881 89,837 920 93,814
38.1 1 ½ 5.90 1,048 106,866 1,092 111,761
44.45 1 ¾ 8.70 1,426 145,412 1,492 152,142
47.6 1 ⅞ 9.22 1,636 166,825 1,710 174,371
50.8 2 10.72 1,862 189,871 1,948 198,641
