Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | CE / ISO 9001 : 2008 |
| Model Number: | 7x19SAC |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1MTRS |
| Price: | USD1600/TON |
| Packaging Details: | Plastic Reels |
| Delivery Time: | 15 days after the order confirmation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100TONS monthly |
|
Detail Information |
|||
| Length: | 500 Ft | Standard: | ASTM, BS, DIN, GB, JIS |
|---|---|---|---|

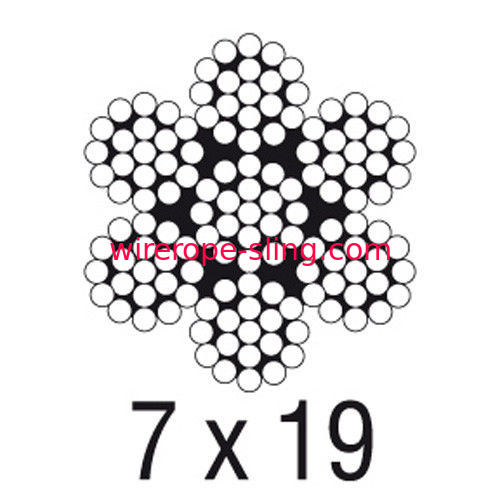

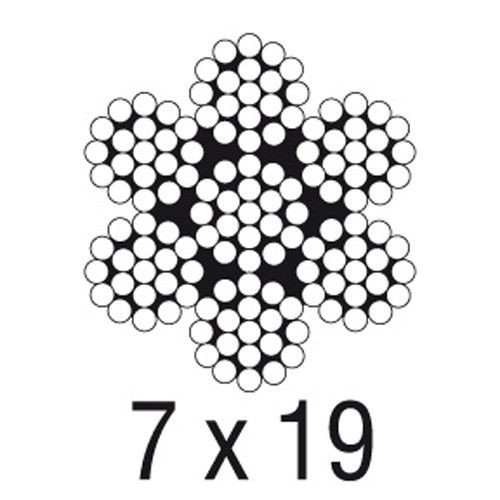

| Construction: | 7 X 19 | Finish: | Stainless |
| Diameter: | 3/16" | HS Code: | 73121000 |
| Alloy Or Not: | Non-alloy | Steel Grade: | Carbon Steel |
| High Light: |
aircraft wire cable,aircraft wire rope |
||
Product Description

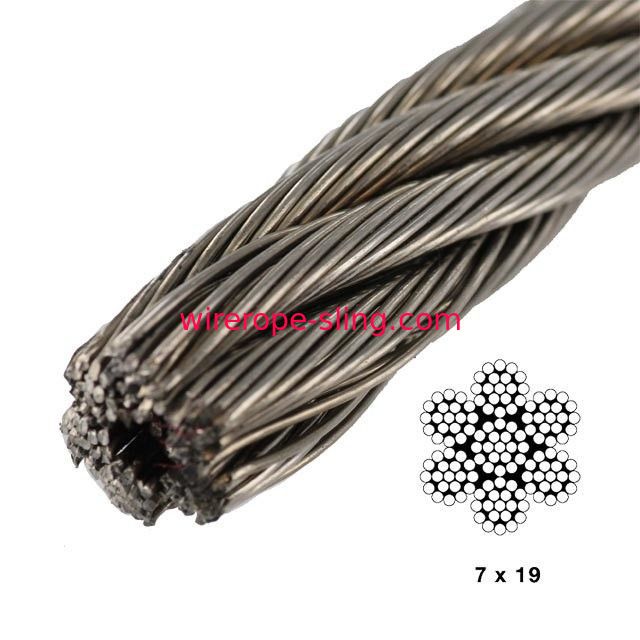

3/16" (7x19) Break Strength 4200lb Galvanized Aircraft Cable Vinyl Coated to 1/4"
Aircraft Cable is mainly used to control the rudder, aileron, engine, landing gear, compass needle corrector and so on. Aircraft Cable has a higher performance requirement than ordinary steel wire rope because of its special use environment, safety and reliability and long time use. For example, the tensile strength requirement is more than 1865MPa; the fatigue tests under different tension are required according to the structure and specifications. After fatigue test, the worn parts should have enough strength, that is, breaking force (see wire rope inspection) can not be less than 50% of the breaking force specified by the wire rope. Aircraft Cable also requires high corrosion resistance.
Adheres to Federal Specification RR-W-410, Type VI, Class 2
Please inform your Lexco Salesperson if you wish to quote MIL-Spec MIL-DTL-83420 or commercial grade domestic.
Warnings: Wire rope & aircraft cable should nenver be used at breaking strength. 10:1 safety factor minimum is recommende for critical/overhead application. Do not use for overhead lifting without consulting a wire rope rigging professional. End fittings may not hold to 100% of strength efficiency so safety factor such as 5:1 should be divided into the assembly actual strength. A pull test is recommended for quality assurance.
Technical Table
| 7x19 Aircraft & Utility Cable | |||
|---|---|---|---|
| Rope Dia. (in) | Approx. Wt/100 ft (lb) | Minimum Breaking Force (lb) Galvanized Stainless | |
| 1/16 | .75 | 480 | 480 |
| 3/32 | 1.7 | 1,000 | 920 |
| 1/8 | 2.9 | 2,000 | 1,760 |
| 5/32 | 4.5 | 2,800 | 2,400 |
| 3/16 | 6.5 | 4,200 | 3,700 |
| 7/32 | 8.6 | 5,600 | 5,000 |
| 1/4 | 11.0 | 7,000 | 6,400 |
| 9/32 | 13.9 | 8,000 | 7,800 |
| 5/16 | 17.3 | 9,800 | 9,000 |
| 3/8 | 24.3 | 14,400 | 12,000 |
Details | |
Wire rope construstion | 7*7, 7*19 |
Wire rope material | Carbon steel #60 |
Coat material | PVC/Nylon |
Diameter | 2.0 mm, coat to 3.0 mm |
Color | Transparent, or as your requirement |
Application | Lifting, loading, fishing and marine industries |
Advantages of Nylon Coated Wire Rope | Abrasion resistant, Resilient, pleat retentive, Resists damage from oil and many chemicals |
Packing | Coil, Wooden case, Carton |
MOQ | 1000 meters |
Q:How do we control the quality?
A: 100% of the products will be tested and test its quality reliability ,
from raw material to half assembling until finishing products,
Each product should pass all these QC procedures before shipping to customer.
Q: What is your trading and payment terms?
A:1. Payment term: T/T 30% deposit after order confirmed, 70% balance before shipment or paypal for small amount .
2. Lead time : normally 15-25days after deposit received.
3. Sample policy : Samples are always available for each model . Samples can be ready in 3-10 days once payment received .
4. Shipping port: Shenzhen/Guangzhou China
5. Discounts : We offer discount for big quantity.
Q: How can I delivery the goods?
A: 1.By Express: such as DHL, UPS, TNT, FEDEX etc. The dispatch time is about 3-5 days
2.Sea Freight: we will update sea freight once we know your sea port where goods will be delivered.
3.Agent designated by client: please tell us the contact detail of your shipping agent and we will arrange to deliver the items.
