Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | CE/ ISO9001:2008 |
| Model Number: | LKS-JJ-RS |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | USD5-25 per set |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 days after the order confirmation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000 Sets monthly |
|
Detail Information |
|||
| Name: | Wire Rope Terminal | HS Code: | 7326901900 |
|---|---|---|---|
| Design: | OEM Services Provided | Material: | Stainless Steel |
| Type: | European Type, US Open | Usage: | Rigging Hardware,marine Hardware |
| Surface: | Polish | Color: | Silver |
| High Light: |
stainless rigging hardware,boat rigging hardware |
||
Product Description

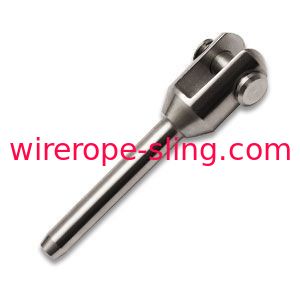

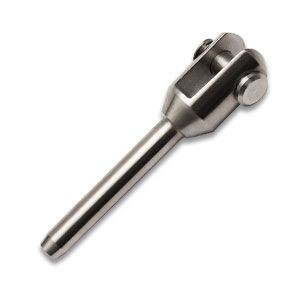

Stainless Swage Fork Terminal - MT Form Marine Rigging Hardware AISI316 Steel
LKS supply a wide range of stainless steel rigging components and stainless steel wire rope fittings. Within the range, we offer high-quality swage terminals such as swage studs, swage forks, swage eyes, swage toggles and swage rigging screws.
All fittings are manufactured to the highest standards, produced from marine grade AISI 316 and after correct installations, these swage fittings maintain 90% of the breaking load of stainless steel wire ropes and strands whilst achieving aesthetically pleasing finishes.
Stainless steel Jaw swage terminal
AISI 304, AISI 316, Carbon steel, Malleable steel etc
Jaw type
Stainless steel Jaw swage terminal
1.Terminal: Terminal with thread, eye swage terminal, jaw swage terminal, eye screw etc.
2.Material:stainless steel AISI 304,AISI 316,carbon steel,malleable steel etc.
3.Surface: pickle or electrolysis and polish, hot dipped galvanized, electro galvanized, phosphate and self-colored etc.
4.Arts and crafts: hot stamping, forging(also including carbon steel)
5. Special specifications can also be produced according to drawing and sample.
We are a leading rigging hardware manufacturer in China, with an annual output of 10 million pieces weighing more than 2,000 tons. We specialize in the production of various types of rigging hardware, stainless steel products, accessories of outdoor activities and pieces of metal stamping parts in various fields. The main products cover shackles, turnbuckles, thimbles, wire rope clips, hooks, snap hooks, quick links, eye nuts, eye bolts, chain accessories and swing accessories. There are over 10 categories, more than 2000 kinds of specifications (including stainless steel rigging).

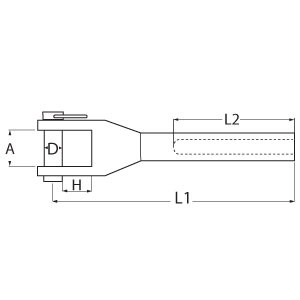

| Dimensions | ||||||
| Part Code | Wire | L1 | L2 | A | D | H |
| mm | mm | mm | mm | mm | mm | |
| SSSF0003M | 3 | 73 | 39 | 7.5 | 6 | 10 |
| SSSF0004M | 4 | 86 | 45 | 11 | 8 | 11 |
| SSSF0005M | 5 | 100 | 52 | 12 | 9 | 14 |
| SSSF0006M | 6 | 128 | 64 | 14 | 12 | 20 |
| SSSF0007M | 7 | 135 | 70 | 15 | 12 | 22 |
| SSSF0008M | 8 | 155 | 80 | 17 | 16 | 26 |
| SSSF0010M | 10 | 176 | 92 | 20 | 19 | 32 |
AISI 316 Marine Grade Stainless Steel Machined Swage Fork for metric sized wire rope
AISI 316 Marine Grade Stainless Steel Swage Toggle Terminal for metric sized wire rope
AISI 316 Marine Grade Stainless Steel Welded Swage Fork for metric sized wire rope
AISI 316 Marine Grade Stainless Steel Swage Eye for metric sized wire rope
AISI 316 Marine Grade Stainless Steel Swage Stud with Nut, with metric thread for metric sized wire rope
AISI 316 Marine Grade Stainless Steel Open Body Swage Stud UNF Thread. Larger threads are machine cut, for metric sized wire rope. *Right Hand Thread Only. Manufactured in China.
AISI 316 Marine Grade Stainless Steel closed Body Swage Stud Metric Thread. Lager threads are machine cut, for metric sized wire rope. *Right/Left Hand Threads available. Manufactured in China.
AISI 316 Marine Grade Stainless Steel. 3 - 10mm are Forged style, 12 - 26mm are machined from solid stainless steel, for metric sized wire rope. Manufactured in China.
AISI 316 Marine Grade Stainless Steel Strap Toggle. Full Articulation in two planes, while reducing wire fatigue and failure in nonrigid applications, for metric sized wire rope. Manufactured in China
AISI 316 Marine Grade Stainless Steel Machined Swage Fork for metric sized wire rope. Manufactured in China.
