Mechanical Spliced Wire Rope Sling Soft Loop Single Leg With Thimbled Eye
Mechanical Spliced Wire Rope Sling Soft Loop Single Leg With Thimbled Eye Mechanical Spliced Wire Rope Sling Soft Loop Single Leg With Thimbled Eye

Mechanical Spliced Wire Rope Sling Soft Loop Single Leg With Thimbled Eye

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: Lloyd’s/CCS/ABS/BV/DNV
Model Number: WRSEE014X05
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: USD1-100 PER SET
Packaging Details: Wooden Box
Delivery Time: 10-15 days
Payment Terms: L/C, T/T
Supply Ability: 50000SETS Monthly
Contact Now

Detail Information
Product Name:Machine Swaged Soft Loop Wire Rope SlingSurface:Galvanized/Ungalvanized
Type:Single Leg Eye & EyeConstruction:6x19 Class
Size:5mm-52mmSafety Factor:5:1
Material:SteelHS Code:73129000
High Light:

wire rope slings with hooks

,

steel wire sling

Product Description



Michanical Spliced Soft Loop Wire Rope Slings Set wth Thimbled Eye







About Wire Rope Slings

Wire rope slings are a basic material handling tool and are the most frequently used type of sling in industry today. They offer a strong, dependable and economical option for most lifting applications. Their popularity is enhanced by the numerous sling configurations available to support a broad range of applications. These configurations include single and multi-part slings (such as round braids, flat braids, Tri-Flex and cable laid slings), grommets, single leg slings, multiple leg bridles, and a wide variety of fittings and attachments.

Relative to other types of slings, wire rope slings are average in strength/weight ratio, average in abrasion and cut resistance, poorest in elongation and flexibility, and average for high temperatures (IWRC only).



Features

A mechanical (or flemish) splice sling is most frequently used and is fabricated by unlaying the rope body into two parts, one having three strands, the other having the remaining three strands and core. The rope is unlayed far enough back to allow the eye to be formed by looping one part in one direction and the other part in the opposite direction and laying the rope back together.
The strands are rolled back around the rope body and a metal sleeve is slipped over the ends and pressed (or swaged) to secure the ends to the sling body. A hydraulic swaging press with special dies is used to bond the sleeve in place. Extreme pressure forces the steel sleeve to flow into the voids between the wires and strands, creating an assembly that maintains most of the wire rope's nominal breaking strength.

Why LKS?

As a professional wholesaler and manufacturer for wire rope slings and assemblies, LKS has been the No.1 wire rope and sling supplier in Shanghai,China. Our customers include ship building, military, construction and lifting service providers. With swaging machine up to size 120mm and experienced splicing workers, we provide strongest and safest wire rope slings. Also our sales staffs are professional with lifting equipment, and could provide with customer correct wire rope and slings for their equipment or lifting requirements.



Applications

1.Steel wire ropes with diameters from ǿ5 to ǿ60 are 6x37+FC-1670N/mm2 type complying to GB/T20118 standard.

2.Values "A" or "B" can be customized. Otherwise, the values in the table apply.3."L" value meets client requirements; n=5 and n=6 are safety factors, determined by users.



Specifications



Rope Dia(mm) Soft loop dimensions(mm) MBL(t) Working load limit(t) Rope Dia(mm) Soft loop dimensions(mm) MBL(t) Working load limit(t)
A B n=5 n=6 A B n=5 n=6
5 130 65 1.25 0.25 0.2 54 1000 500 146 29.4 24.5
6 150 75 1.8 0.36 0.3 56 1000 500 157.04 31.4 26.2
7 150 75 2.46 0.5 0.4 58 1200 600 169.27 33.9 28.2
8 200 100 3.21 0.6 0.5 60 1200 600 180.49 36.1 30.1
9 200 100 4.07 0.8 0.7 62 1200 600 185.59 37.1 31
10 200 100 5.06 1 0.8 64 1300 650 197.82 40 33
11 230 115 6.08 1.2 1 66 1300 650 210.06 42 35
12 230 115 7.23 1.5 1.2 68 1400 700 223.32 44.7 37.2
13 230 115 8.49 1.7 1.4 70 1400 700 236.57 47.3 39.4
14 250 125 9.85 2 1.6 72 1400 700 249.93 50 41.6
16 300 150 12.85 2.6 2.1 74 1500 750 264.01 52.8 44
18 300 150 16.32 3.3 2.7 76 1500 750 278.38 55.7 46.4
20 350 175 20.09 4 3.4 78 1600 800 293.69 58.7 49
22 350 175 24.27 4.9 4.1 80 1600 800 307.95 61.1 51.3
24 450 225 28.96 5.8 4.8 82 1600 800 324.27 64 54
26 450 225 33.96 6.8 5.7 84 1700 850 339.57 67.9 56.6
28 500 250 39.36 7.9 6.6 86 1700 850 356.9 71.4 59.5
30 500 250 45.17 9 7.5 88 1800 900 373.22 74.6 62.2
32 550 275 51.39 10.3 8.6 90 1800 900 390.55 78.1 65.1
34 600 300 58.12 11.6 9.7 92 1800 900 407.89 81.6 68
36 600 300 65.06 13 10.8 94 1900 950 426.24 85.3 71
38 600 300 72.5 14.5 12.1 96 1900 950 444.6 88.9 74.1
40 700 350 80.35 16.1 13.4 98 2000 1000 462.95 92.6 77.2
42 800 400 88.61 17.7 14.8 100 2000 1000 482.33 96.5 80.4
44 800 400 97.28 19.5 16.2 102 2000 1000 501.1 100.4 83.6
46 900 450 106.05 21.2 17.7 104 2100 1050 521.07 104.2 86.9
48 900 450 116.26 23.3 19.4 106 2100 1050 541.47 108.3 90.3
50 1000 500 125.43 25.1 21 108 2200 1100 561.86 112.4 93.6
52 1000 500 135.62 27.1 22.7 110 2200 1100 583.28 116.7 97.2



Product Show

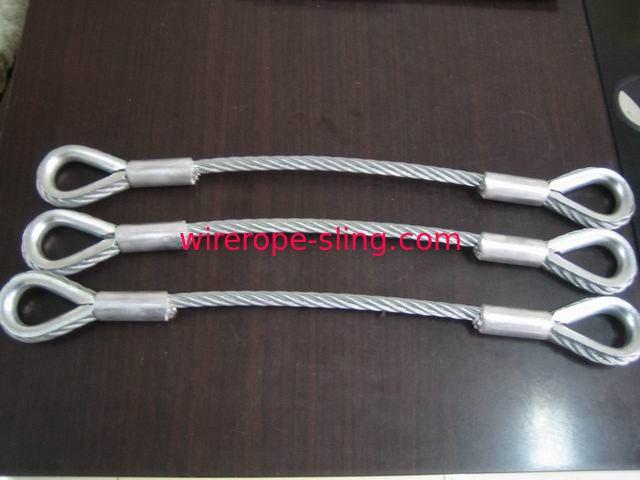

Mechanical Spliced Wire Rope Sling Soft Loop Single Leg With Thimbled Eye 0

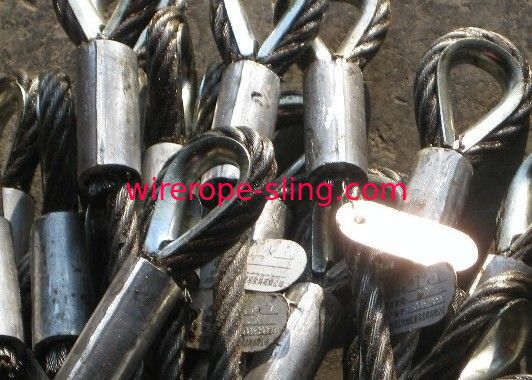

Mechanical Spliced Wire Rope Sling Soft Loop Single Leg With Thimbled Eye 1



Mechanical Spliced Wire Rope Sling Soft Loop Single Leg With Thimbled Eye 2
