Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | ISO9001 |
| Model Number: | WRS-LUSC |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 500 Pieces |
| Price: | US $0.50-US $1 / Piece |
| Packaging Details: | Wooden Cases |
| Delivery Time: | 15 working days |
| Payment Terms: | MoneyGram, Western Union, L/C, T/T |
| Supply Ability: | 50000PCS monthly |
|
Detail Information |
|||
| Steel Grade: | Stainless Steel Or Galvanized Steel | Standard: | AISI, ASTM, BS, DIN, GB, JIS |
|---|---|---|---|
| Wire Gauge: | 0.3-11mm | Type: | Suspended Hanging Steel Cable |
| Application: | Construction | Alloy Or Not: | Non-alloy |
| Special Use: | Free Cutting Steel | End Parts: | Screw Clamp |
| High Light: |
wire rope slings with hooks,steel wire sling |
||
Product Description
| Selling Units: | Single item |
| Single package size: | 41X41X17 cm |
| Single gross weight: | 24.0 KG |
| Package Type: | Lighting Use Steel Wire Rope with Screw Clamp in the standard export carton |
| Lead Time: | 15 |

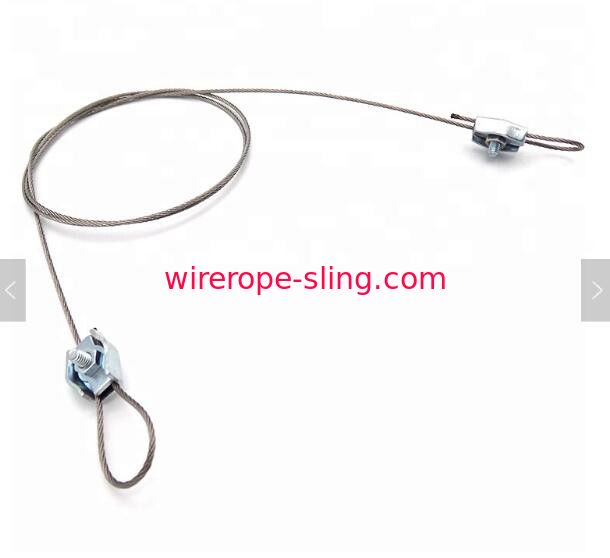

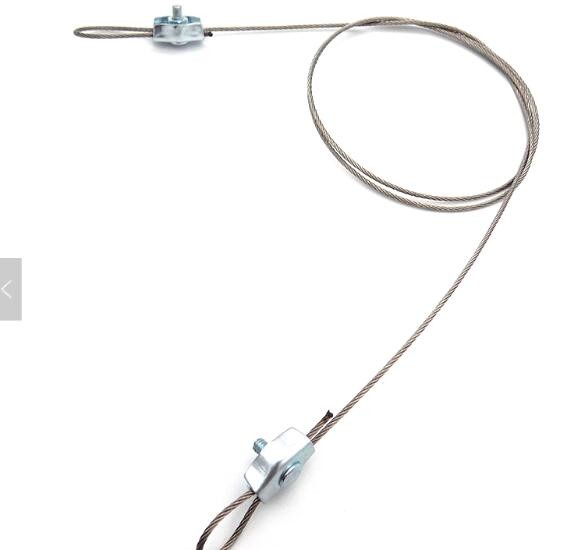

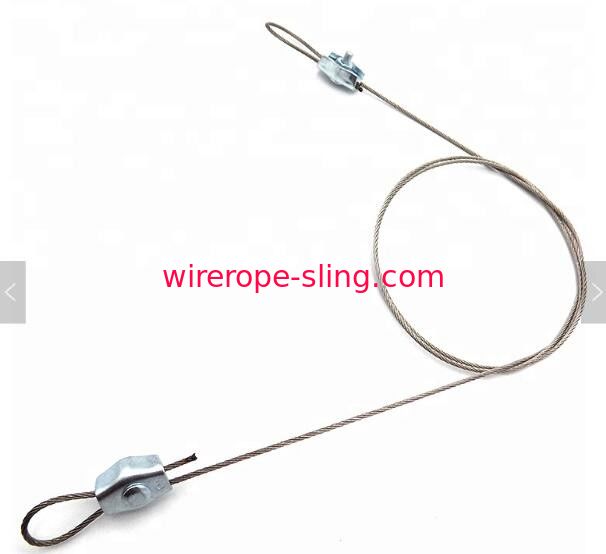

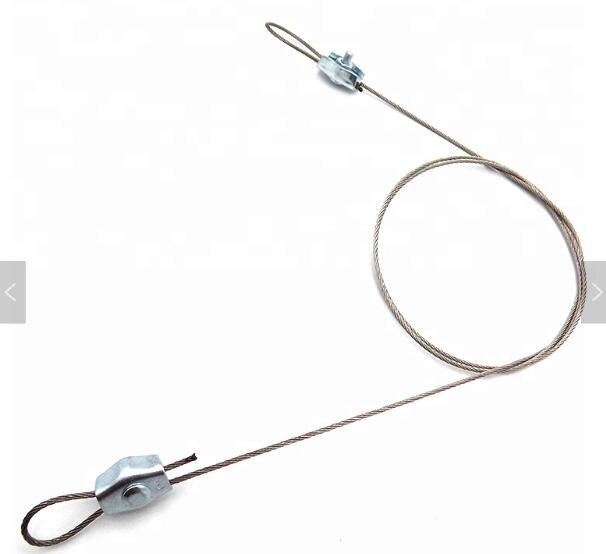

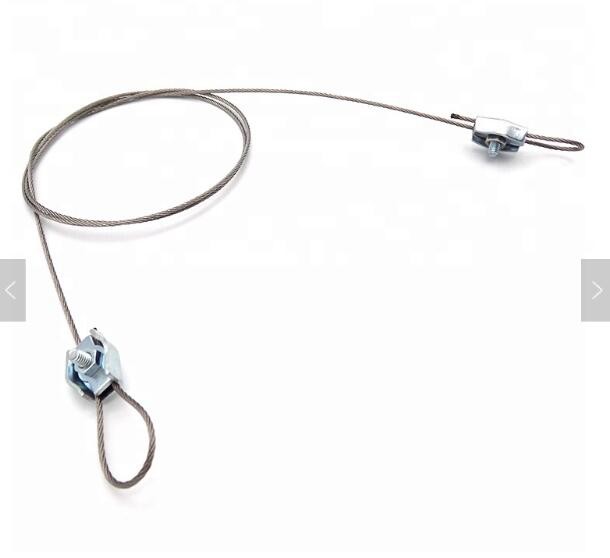

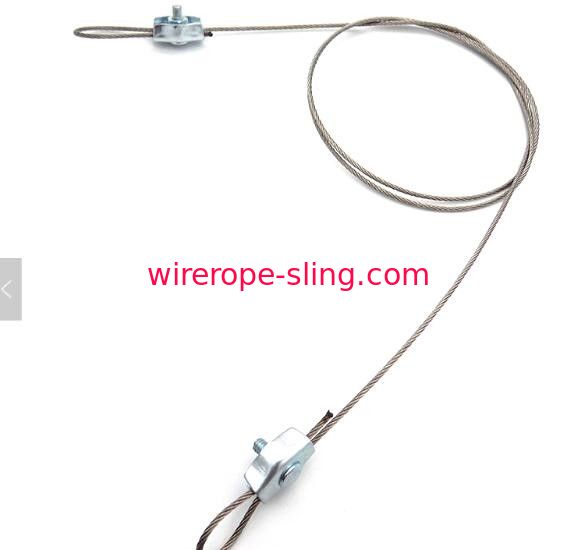

Lighting Use Steel Wire Rope with Screw Clamp
| 1.Diameter | 1.5mm | Custom-made available |
| 2.construction | 7X7,etc | |
| 3.material | galvanized steel or other | |
| 4.MOQ | 500pcs | |
| 5.length | 2m | |
| 6.type | steel cable for all kinds of lights | |
| 7.coating
|
no | |
| 8.end parts of fittings | screw clamp | |
| 9.Lead time | 7days if there were enough material in stock | |
| 10.sample | Free sample available if all of the dimensions same as our existing one, if not, contact me, to get a cost-effective solution. | |
| application | ||
| specification |
Refer to the drawing as below: All of specification custom-made available. the tighter tolerance, the higher the cost of the cost.
|
|
how to choose material:1stain1.1.1.
1.stainless steel :
providing good corrosion resistance and strength comparable to galvanized carbon steel grades.
2.galvanized steel:
Zinc coated carbon steel offers some corrosion resistance. It remains ductile over long periods of working. Usually higher break strengths than stainless steels.
| Diameter | construction | weight(100m) | Minimum Breaking load(N) |
| 1.0mm | 1*19 | 0.495 | 950(95kg) |
| 7*7 | 0.393 | 650 (65kg) | |
| 1.2mm | 1*19 | 0.713 | 1440(144kg) |
| 7*7 | 0.566 | 950(95kg) | |
| 1.5mm | 1*19 | 1.114 | 2200(220kg) |
| 7*7 | 0.884 | 1500(150kg) | |
| 1.8mm | 1*19 | 1.604 | 3200(320kg) |
| 7*7 | 1.273 | 2100(210kg) | |
| 2.0mm | 1*19 | 1.98 | 3900(390kg) |
| 7*7 | 1.527 | 2650(265kg) | |
| 2.4mm | 1*19 | 2.851 | 5650(565kg) |
| 7*7 | 2.264 | 3800(380)kg | |
| 2.5mm | 1*19 | 3.094 | 6100(610kg) |
| 7*7 | 2.381 | 4100(410kg) | |
| 3.2mm | 7*7 | 4.024 | 6850(685kg) |
| 7*19 | 3.901 | 6800(680kg) | |
| 3.8mm | 7*19 | 5.675 | 9650(965kg) |
| 7*7 | 5.502 | 9600(960kg) | |
| 4.0mm | 7*19 | 6.609 | 12500(1250kg) |
| 4.2mm | 7*7 | 6.933 | 13000(1300kg) |
| 4.5mm | 7*7 | 7.958 | 13500(1350kg) |
| 4.8mm | 7*19 | 8.778 | 15300(1530kg) |
| 6.0mm | 7*19 | 8.716 | 23900(2390kg) |
