Portable 9.5mm Heavy Wire Rope Choker Sling Galvanized Coated For Cargo Boat

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: LKS-WRS121
Payment & Shipping Terms:
Minimum Order Quantity: 500sets
Price: USD15 PER SET
Packaging Details: Standard export carton
Delivery Time: 10-15 days
Payment Terms: L/C, T/T
Supply Ability: 10000pcs/week

Detail Information

Dia.:9.5mmStandard:AISI, ASTM, BS, DIN, GB, JIS
Breaking Load:More Than 2000kg-6000kgPacking:Wooden Case
Alloy Or Not:NoSafety Factor:5:1
Application:Pull, Push Or Drag Cars ,buses Or BoatHS Code:73129000
High Light:

wire rope slings with hooks

,

steel wire sling

Product Description

Portable 9.5mm Coated Galvanized Steel Heavy Sling Wire Rope For Cargo Boat



Instruction;



4.1.1 It is necessary to ensure that the load is suitable for lifting with a wire rope sling. The sling shall not be allowed to damage the load nor shall the sling itself be damaged. If the sling is to be attached to the load, the points used for attachment, e.g. lugs and eyebolts, should be suitable and adequate for the purpose of lifting the load.
4.1.2 The mass of the load to be lifted shall be assessed (see annex BI. If the gross mass is not marked, the information may be obtained from the consignment notes, manuals, plans, etc. If there is no information, the mass should be assessed by the person responsible for the lifting.
4.1.3 Once the slinging method has been decided on, a suitable sling shall be chosen and the working load limit (WLL) shall be adequate for the load to be lifted.
As far as is reasonably practicable, the effective diameters of pins, hooks or other components over which soft eyes are used shall not be less than twice the rope diameter.
4.1.4 It is necessary to ensure that the sling is in good con­dition. Slings found to be damaged or to have deteriorated to such an extent that they are considered not safe for use shall be withdrawn from service immediately (see clause 5).
4.1.5 It is necessary to ensure that the load will be balanced when lifted. The slings shall be attached to designed lifting points, where provided. If lifting points are not marked on the load, the position of the centre of gravity shall be assessed. The type of sling and the slinging methods used shall ensure that the load will not topple or slip. The supporting hook shall be positioned directly above the centre of gravity. Where this is not practicable, particular care shall be taken when lifting the load (see 4.31.
4.1.6 It is necessary to ensure that the load contains no loose accessories. If the load comprises a number of pieces, for instance a bundle of pipes, a slinging method shall be chosen which will secure all the pieces.
The sling shall not be attached to banding or strapping unless
they are designed for lifting purposes.
4.1.7 If a sling leg is likely to rotate during lifting of the load, handsplices shall not be used.







Features:



  • High breaking load
  • Brand fittings
  • Advance equipment and experience staffs made



Technical data



1.Diameter

9.5mm

2.construction

7*19

3.material

Galvanized

4.MOQ

500pcs

5.length

6M or as requirement

6.type

wire rope slings

7.color of coating

Black/ Blue/ Clear PVC/ PE or as required

8.end parts of fittings

Turnbuckels ,shackels ,bolts ,wire ropes clips ,hook,etc

9.Lead time

7days if there were enough material in stock

10.sample

Free sample available if all of dimensions same as our existing one ,if not ,

contact me

to get a cost efficient solution.

application

For drag cars

boats

for use at gas station for all kings of vechile

carring capacity:1/1.5/2.0/3.0tons

advatage

1.long life cycle if with PVC/ PU /PE coating

2.easy to attach to cars when in using

3.portable





FAQ



1.Q:How do you control the quality?

A: 100% of the products will be tested and test its quality reliability ,

from raw material to half assembling until finishing products,

Each product should pass all these QC procedures before shipping to customer.


2.Q: What is your trading and payment terms?

A:
1. Payment term: T/T 30% deposit after order confirmed, 70% balance before shipment

or paypal for small amount .

2. Lead time : normally 15-25days after deposit received.

3. Sample policy : Samples are always available for each model . Samples can be ready in 5- 10 days once payment received .

4. Shipping port: Shanghai, China

5. Discounts : We offer discount for big quantity.



 Products show

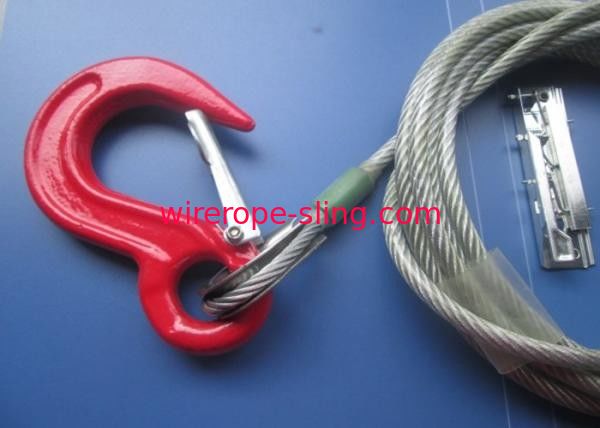

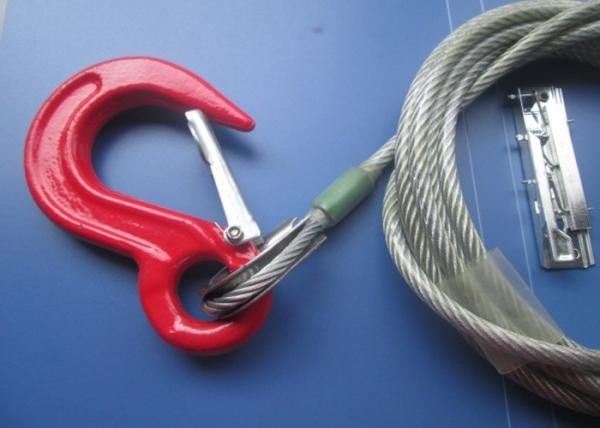

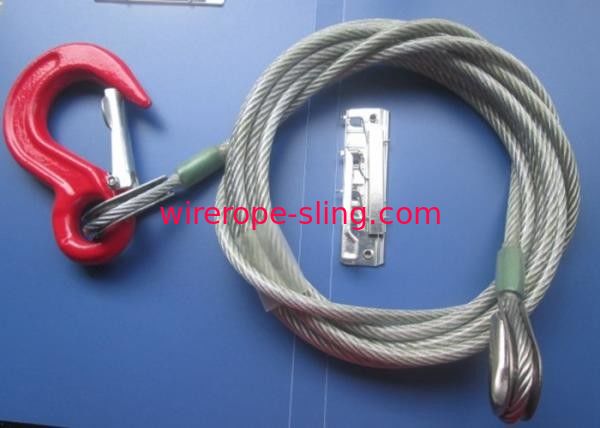

Portable 9.5mm Heavy Wire Rope Choker Sling Galvanized Coated For Cargo Boat 0
