Din Aisi Standard Wire Rope Sling 800 - 1500mm With High Breaking Load

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: LKS-WRS125
Payment & Shipping Terms:
Minimum Order Quantity: 500sets
Price: USD1.5 PER SET
Packaging Details: Standard export carton
Delivery Time: 10-15 days
Payment Terms: L/C, T/T
Supply Ability: 10000pcs/week

Detail Information

Dia.:5.0mmStandard:AISI, ASTM, BS, DIN, GB, JIS
Breaking Load:More Than 300kgPacking:Wooden Case
Alloy Or Not:NoSafety Factor:5:1
Application:Pull, Push Or Drag Cars ,buses Or BoatHS Code:73129000
High Light:

wire rope slings with hooks

,

steel wire sling

Product Description

800 - 1500 mm Wire Rope Sling With Loop at One End For Safety Use



Instruction;



4.1.1 It is necessary to ensure that the load is suitable for lifting with a wire rope sling. The sling shall not be allowed to damage the load nor shall the sling itself be damaged. If the sling is to be attached to the load, the points used for attachment, e.g. lugs and eyebolts, should be suitable and adequate for the purpose of lifting the load.
4.1.2 The mass of the load to be lifted shall be assessed (see annex BI. If the gross mass is not marked, the information may be obtained from the consignment notes, manuals, plans, etc. If there is no information, the mass should be assessed by the person responsible for the lifting.
4.1.3 Once the slinging method has been decided on, a suitable sling shall be chosen and the working load limit (WLL) shall be adequate for the load to be lifted.
As far as is reasonably practicable, the effective diameters of pins, hooks or other components over which soft eyes are used shall not be less than twice the rope diameter.
4.1.4 It is necessary to ensure that the sling is in good con­dition. Slings found to be damaged or to have deteriorated to such an extent that they are considered not safe for use shall be withdrawn from service immediately (see clause 5).
4.1.5 It is necessary to ensure that the load will be balanced when lifted. The slings shall be attached to designed lifting points, where provided. If lifting points are not marked on the load, the position of the centre of gravity shall be assessed. The type of sling and the slinging methods used shall ensure that the load will not topple or slip. The supporting hook shall be positioned directly above the centre of gravity. Where this is not practicable, particular care shall be taken when lifting the load (see 4.31.
4.1.6 It is necessary to ensure that the load contains no loose accessories. If the load comprises a number of pieces, for instance a bundle of pipes, a slinging method shall be chosen which will secure all the pieces.
The sling shall not be attached to banding or strapping unless
they are designed for lifting purposes.
4.1.7 If a sling leg is likely to rotate during lifting of the load, handsplices shall not be used.







Features:



  • High breaking load
  • Brand fittings
  • Advance equipment and experience staffs made



Technical data



1.Diameter

5.0mm

2.construction

1*7,7*7,1*19,7*19,etc

3.material

stainless cable or galvanzied steel

4.MOQ

500pcs

5.length

as requirement

6.type

wire rope slings /steel cable slings

7.coating

balck /clear PVC/PU/PA

8.end parts of fittings

these are all the fittings & fixings you need to tension, hook, divert,

swivel & anchor. Shackles, Eyeplates, Eye Bolts, Eye Nuts, Screw Eyes,

Turnbuckles, Rigging Screws, Swivels.

9.Lead time

7days if there were enough material in stock

10.application advantage

1.Wire rope slings are a basic material handling tool and are the most

frequently used type of sling in industry today.

2.They offer a strong, dependable and economical option for most lifting

applications.

3.Their popularity is enhanced by the numerous sling configurations

available to support a broad range of applications.

4.These configurations include single and multi part slings (such as round

braids, flat braids, Tri-Flex and cable laid slings).

grommets, single leg slings, multiple leg bridles, and a wide variety of fittings

and attachments.

5.A mechanical (or flemish) splice sling is most frequently used and is

fabricated by unlaying the rope body into two parts, one having

three strands, the other having the remaining three strands and core.

application

Lighting , Machinery, Medical, Security, Sporting Goods, Toys, Window ,

Lawn &

Garden Etc.



When designing a cable assembly, a number of factors need to be

considered

such as,

work load, abrasion,cycle life, and flexibility, environment, cost, safety .etc.

the larger the diameter the greater the work load capacity and the less

flexible it will be.

WARNING :Breaking strength should never be considered the rope's

working load ,

safety factor 5:1 ,

Coating must be removed from installation area when attaching fittings



FAQ



1.Q:How do you control the quality?

A: 100% of the products will be tested and test its quality reliability ,

from raw material to half assembling until finishing products,

Each product should pass all these QC procedures before shipping to customer.


2.Q: What is your trading and payment terms?

A:
1. Payment term: T/T 30% deposit after order confirmed, 70% balance before shipment

or paypal for small amount .

2. Lead time : normally 15-25days after deposit received.

3. Sample policy : Samples are always available for each model . Samples can be ready in 5- 10 days once payment received .

4. Shipping port: Shanghai, China

5. Discounts : We offer discount for big quantity.



 Products show

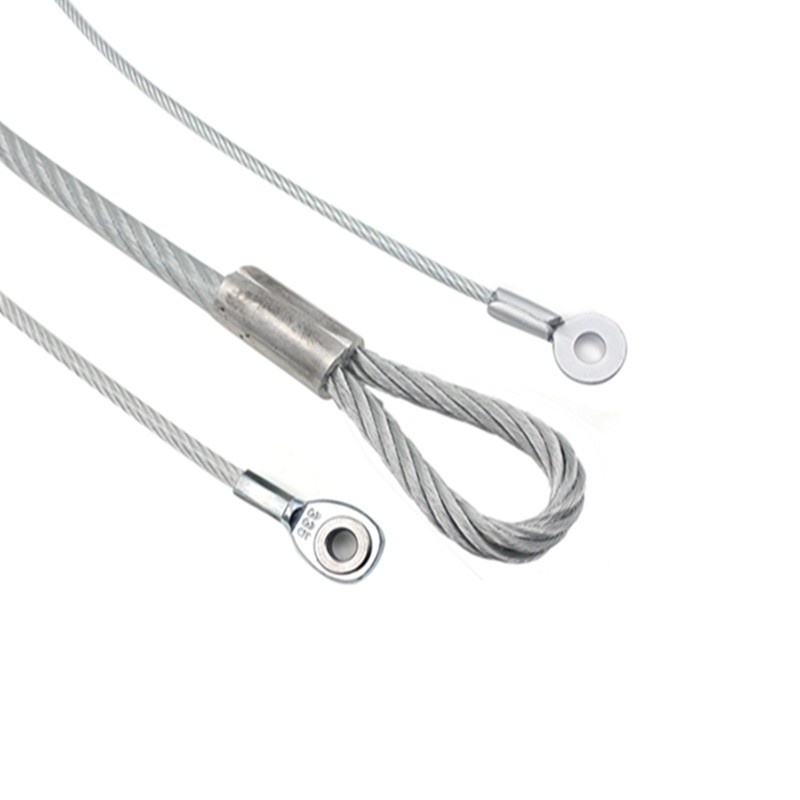

Din Aisi Standard Wire Rope Sling 800 - 1500mm With High Breaking Load 0

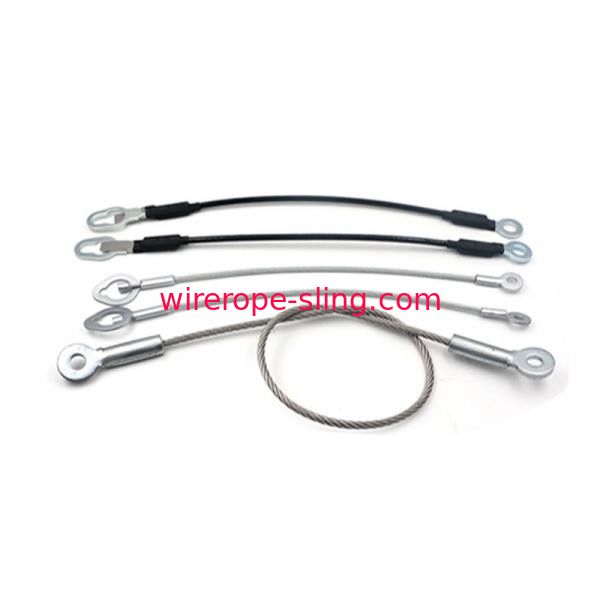

Din Aisi Standard Wire Rope Sling 800 - 1500mm With High Breaking Load 1

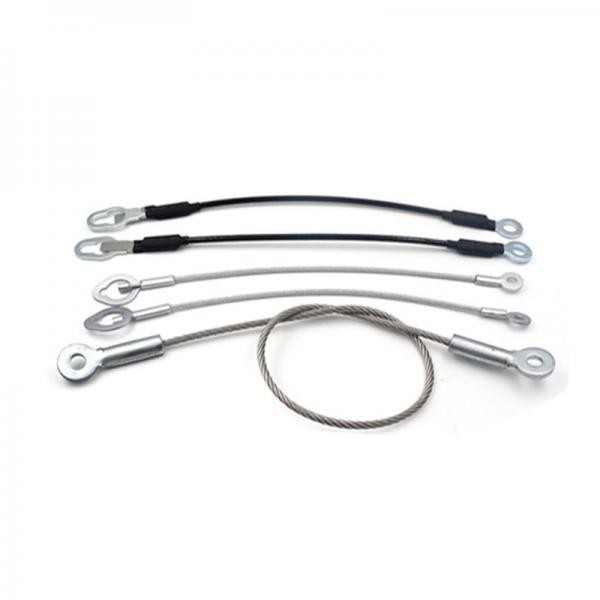

Din Aisi Standard Wire Rope Sling 800 - 1500mm With High Breaking Load 2
