China Wire Rope Sling manufacturer

3.0mm - 11mm Diameter Wire Rope Sling Stainless With Shackels / Turnbuckels

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: LKS-WRS129
Payment & Shipping Terms:
Minimum Order Quantity: 500sets
Price: USD15 PER SET
Packaging Details: Standard export carton
Delivery Time: 10-15 days
Payment Terms: L/C, T/T
Supply Ability: 10000pcs/week

Detail Information

Dia.:3.0mm -11mmStandard:AISI, ASTM, BS, DIN, GB, JIS
Length:4m Or OtherPacking:Wooden Case
Alloy Or Not:NoSafety Factor:5:1
Application:Pull, Push Or Drag Cars ,buses Or BoatHS Code:73129000
High Light:

wire rope slings with hooks

,

steel wire sling

Product Description



Galvanzied steel Cable Wire Ropes Slings With Shackels And Turnbuckels



1.Diameter 0.3-10mm
2.construction 1*7,7*7,1*19,7*19,etc
3.material stainless cable
4.MOQ 500pcs
5.length as requirement
6.type wire rope slings

7.coating

clear PVC/PU/PA
8.end parts of fittings

these are all the fittings & fixings you need to tension, hook, divert,

swivel & anchor. Shackles, Eyeplates, Eye Bolts, Eye Nuts, Screw Eyes,

Turnbuckles, Rigging Screws, Swivels.

9.Lead time 7days if there were enough material in stock
10.advantage

Wire rope slings are a basic material handling tool and are the most

frequently used type of sling in industry today. They offer a strong, dependable

and economical option for most lifting applications. Their popularity is

enhanced by the numerous sling configurations available to support a

broad range of applications. These configurations include single and

multi-part slings (such as round braids, flat braids, Tri-Flex and cable laid slings),

grommets, single leg slings, multiple leg bridles, and a wide variety of fittings

and attachments.A mechanical (or flemish) splice sling is most frequently

used and is fabricated by unlaying the rope body into two parts, one having

three strands, the other having the remaining three strands and core.

application

Lighting , Machinery, Medical, Security, Sporting Goods, Toys, Window ,

Lawn & Garden Etc. When designing a cable assembly, a number of

factors need to be considered such as, work load, abrasion, cycle life,

and flexibility, environment, cost, safety .etc. the larger the diameter

the greater the work load capacity and the less flexible it will be.

WARNING :Breaking strength should never be considered the

rope's working load ,safety factor 5:1 ,Coating must be removed from

installation area when attaching fittings





Significant distortion of the rope
The wire rope sling shall be discarded when distortion due to kinking, crushing, core collapse, or knotting is identified. However, in certain circumstances, permanent deformation may occur without necessarily affecting the strength of the sling, e.g. flat­tening when the rope is bent around a small diameter under heavy loading.
In cases where it is difficult to distinguish between detrimental distortion and acceptable deformation, the sling shall be withdrawn from service and referred to a competent person for examination.



Technical data



Diameter construction weight(100m) Minimum Breaking load(N)
1.0mm 1*19 0.495 950(95kg)
  7*7 0.393 650 (65kg)
1.2mm 1*19 0.713 1440(144kg)
  7*7 0.566 950(95kg)
1.5mm 1*19 1.114 2200(220kg)
  7*7 0.884 1500(150kg)
1.8mm 1*19 1.604 3200(320kg)
  7*7 1.273 2100(210kg)
2.0mm 1*19 1.98 3900(390kg)
  7*7 1.527 2650(265kg)
2.4mm 1*19 2.851 5650(565kg)
  7*7 2.264 3800(380)kg
2.5mm 1*19 3.094 6100(610kg)
  7*7 2.381 4100(410kg)
3.2mm 7*7 4.024 6850(685kg)
  7*19 3.901 6800(680kg)
3.8mm 7*19 5.675 9650(965kg)
  7*7 5.502 9600(960kg)
4.0mm 7*19 6.609 12500(1250kg)
4.2mm 7*7 6.933 13000(1300kg)
4.5mm 7*7 7.958 13500(1350kg)
4.8mm 7*19 8.778 15300(1530kg)
6.0mm 7*19 8.716 23900(2390kg)



Product show

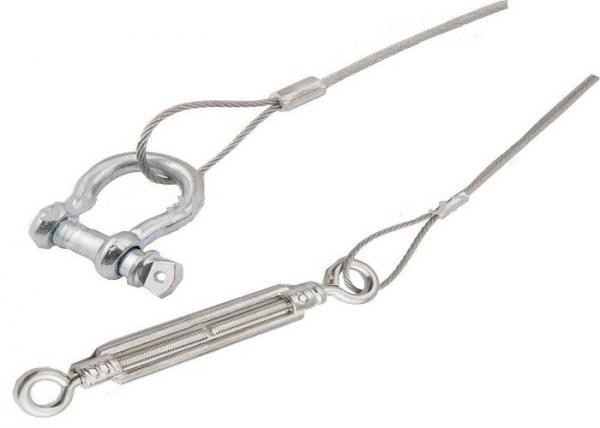

3.0mm - 11mm Diameter Wire Rope Sling Stainless With Shackels / Turnbuckels 0

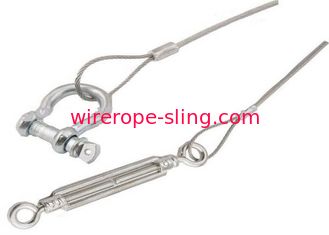

3.0mm - 11mm Diameter Wire Rope Sling Stainless With Shackels / Turnbuckels 1



FAQ:



Q:How do you control the quality?

A: 100% of the products will be tested and test its quality reliability ,

from raw material to half assembling until finishing products,

Each product should pass all these QC procedures before shipping to customer.

Q: What is your trading and payment terms?

A:

1. Payment term: T/T 30% deposit after order confirmed, 70% balance before shipment or paypal for small amount .

2. Lead time : normally 15-25days after deposit received.

3. Sample policy : Samples are always available for each model . Samples can be ready in 3-10 days once payment received .

4. Shipping port: Shanghai, China

5. Discounts : We offer discount for big quantity.



Q: How I can delivery the my goods?



A:



1,By Express: such as DHL, UPS, TNT, FEDEX etc. The dispatch time is about 3-5 days

2,Sea Freight: we will update sea freight once we know your sea port where goods will be delivered.

3,Agent designated by client: please tell us the contact detail of your shipping agent and we will arrange to deliver the items
