Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | LKS |
Certification: | CCS,DNV,BV |
Model Number: | LKS-WRS1154 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 500sets |
Price: | USD0.5-2.5PER SET |
Packaging Details: | Standard export carton |
Delivery Time: | 10-15 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 10000pcs/week |
Detail Information |
|||
Dia.: | 0.3-11mm | Standard: | AISI, ASTM, BS, DIN, GB, JIS |
---|---|---|---|
Length: | 1000mm Or As Required | Packing: | Wooden Case |
Alloy Or Not: | No | Safety Factor: | 5:1 |
Application: | Industrial Or Lighting Or Hanging Or Other | HS Code: | 73129000 |
High Light: |
wire rope slings with hooks,steel wire sling |
Product Description

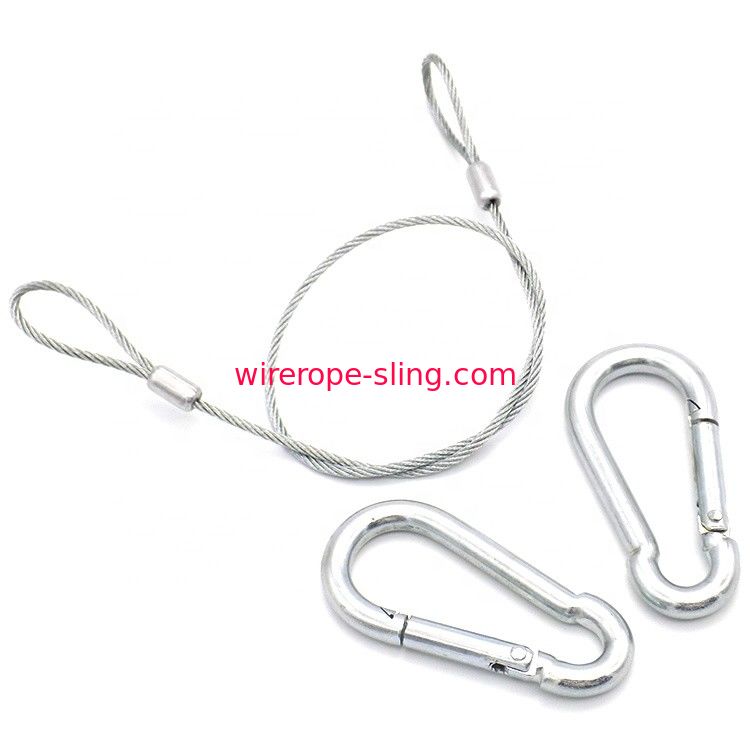

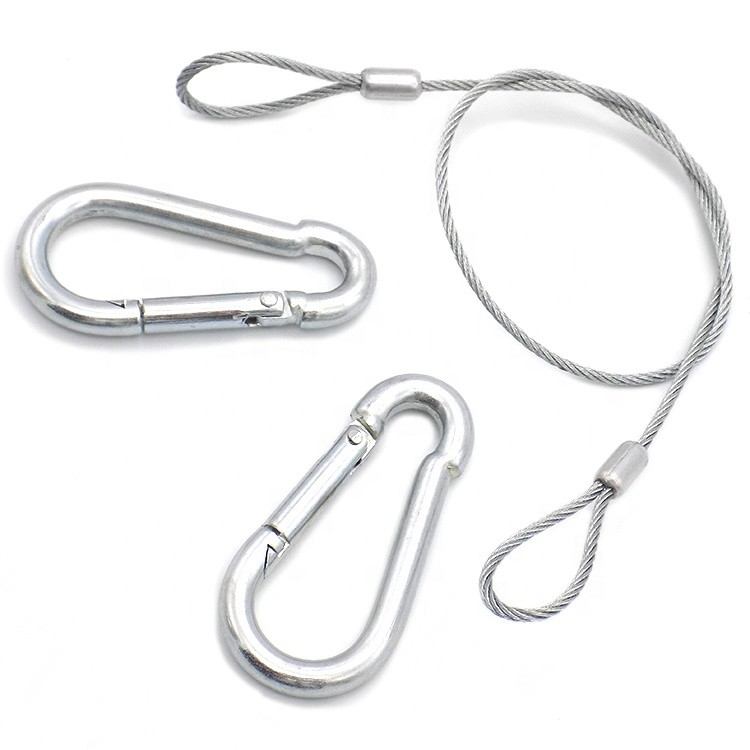

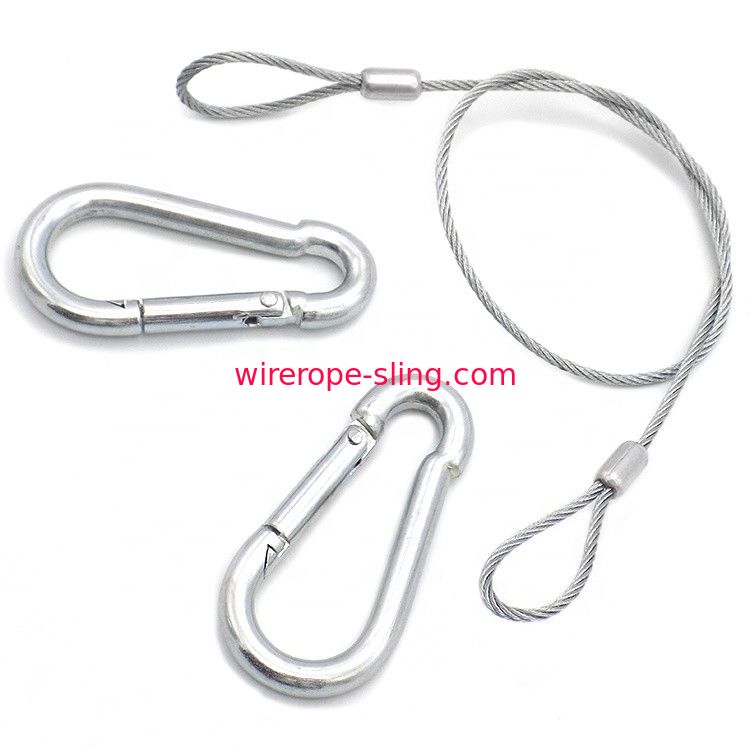

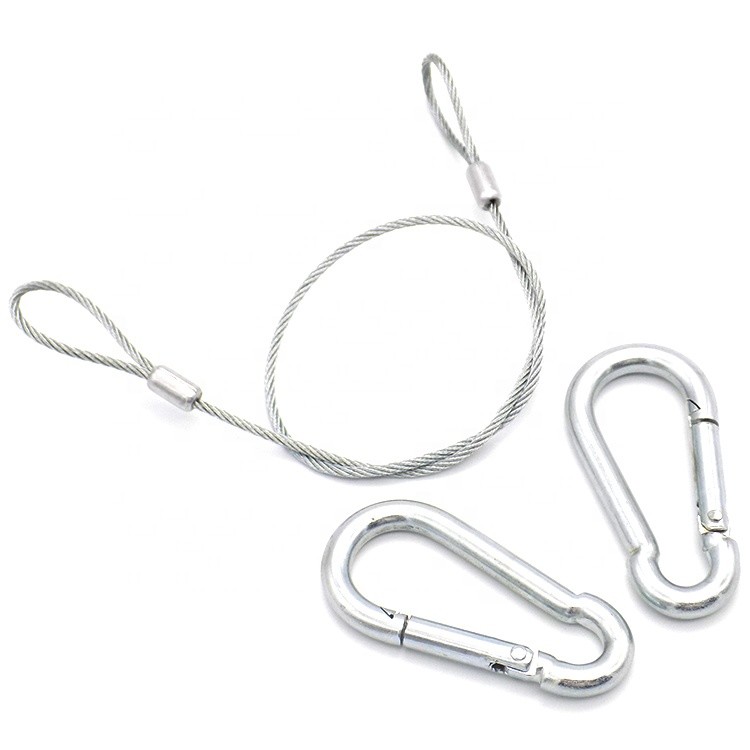

High Quality Security Lanyard Line 430 Stainless Steel Wire Sling With Eye & Hook
1.Diameter | 1.5~2.0mm | Custom-made available |
2.construction | 7*7,7*19 | |
3.material | Galvanized or stainless steel | |
4.MOQ | 500pcs | |
5.Material of fitting(hook) | Carbon steel with zinc plating | |
6.Lead time | Usually 20 days, 7days is necessary if there were enough material in stock | |
7.sample | Free sample available if all of dimensions same as our existing one ,if not ,contact me to get a cost efficient solution. | |
application |
Lighting , home appliances Etc. When designing a cable assembly, a number of factors need to be considered such as, work load, abrasion, cycle life, and flexibility, environment, cost, safety .etc. the larger the diameter ,the greater the work load capacity and the less flexible it will be. WARNING :Breaking strength should never be considered the rope's working load ,safety factor 5:1 ,Coating must be removed from installation area when attaching fittings |
|
specification |
Refer to the drawing as below: All of specification custom-made available. the tighter tolerance ,the higher the cost of the cost. |
please help us confirm these specific questions:
a. Purpose: For which rope will be used.
b. Size: Diameter of the rope in millimeter or inches
c. Construction: Number of strands, number of wires per strand and type of strand construction.
d. Type of Core: Fiber core( FC), independent wire rope core(IWRC) or independent wire strand core(IWSC).
e. Lay: Right regular lay, left regular lay,etc.
f. Coating: Bright(ungalvanized), galvanized or stainless, PVC or Grease.
g. Grade of wire: Tensile strength of wires.
h. Breaking Load: Minimum or calculated breaking load in tones or pounds.
i. Lubrication: Whether lubrication is desired or not, and required lubricant.
j. Length: Length of wire rope.
k. Packing: In coils wrapped with oil paper and hessian(orp.p) cloth, or on wooden reels.
l. Quantity: By number of coils or reels, by length or weight.
m. Remarks: Shipping marks and any other special requirement.
Nominal Diameter | Approximate Mass | Minimum breaking loads - 1770 Mpa | |
[mm] | [kg/m] | [kN] | [Kg] |
3 | 0.034 | 5.77 | 588 |
4 | 0.061 | 10.25 | 1,045 |
5 | 0.095 | 16.02 | 1,633 |
6 | 0.137 | 23.07 | 2,352 |
7 | 0.187 | 31.40 | 3,202 |
8 | 0.244 | 41.01 | 4,182 |
9 | 0.309 | 51.90 | 5,293 |
10 | 0.381 | 64.07 | 6,535 |
11 | 0.461 | 77.53 | 7,908 |
12 | 0.549 | 92.27 | 9,411 |
13 | 0.644 | 108.29 | 11,045 |
14 | 0.747 | 125.59 | 12,809 |
16 | 0.975 | 164.03 | 16,731 |
18 | 1.234 | 207.60 | 21,175 |
20 | 1.524 | 256.30 | 26,142 |
