Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | CCS,DNV,BV |
| Model Number: | LKS-WRS1156 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 500sets |
| Price: | USD0.5-1.5PER SET |
| Packaging Details: | Standard export carton |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000pcs/week |
|
Detail Information |
|||
| Dia.: | 3-10mm | Standard: | AISI, ASTM, BS, DIN, GB, JIS |
|---|---|---|---|
| Length: | 0.5-5m As Requirement | Item: | Whipcheck Hose To Hose Safety Cable |
| Alloy Or Not: | No | Safety Factor: | 5:1 |
| Application: | Manufacturing | HS Code: | 73129000 |
| High Light: |
wire rope slings with hooks,steel wire sling |
||
Product Description

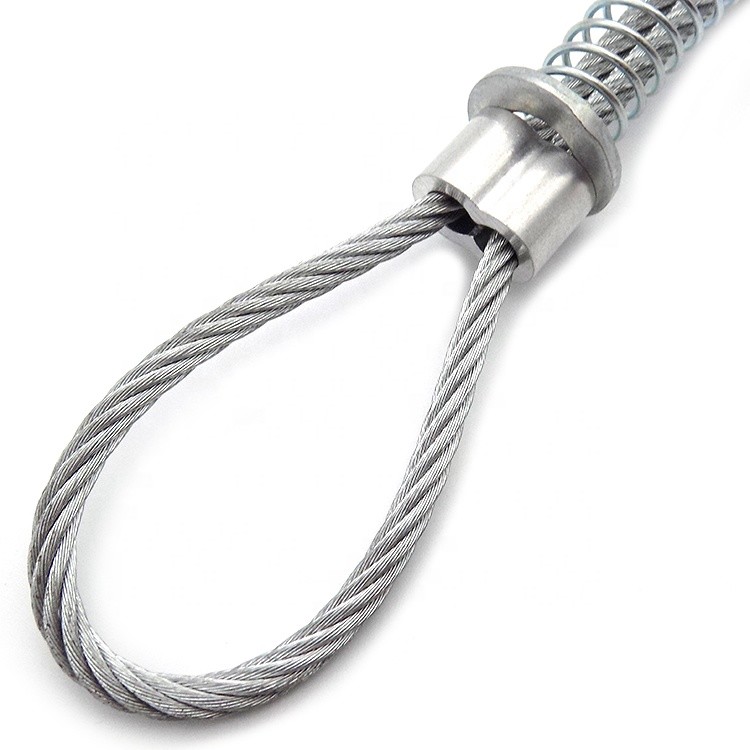

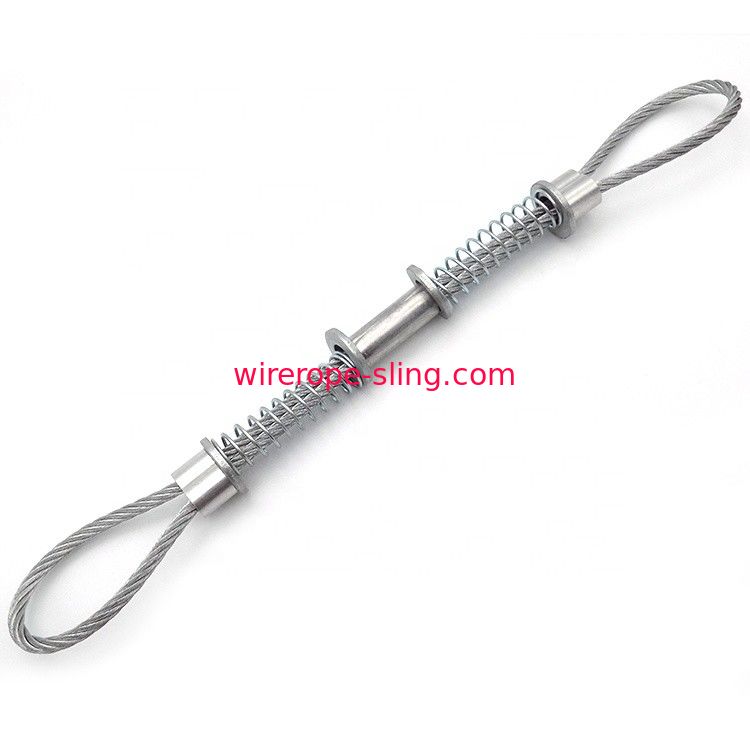

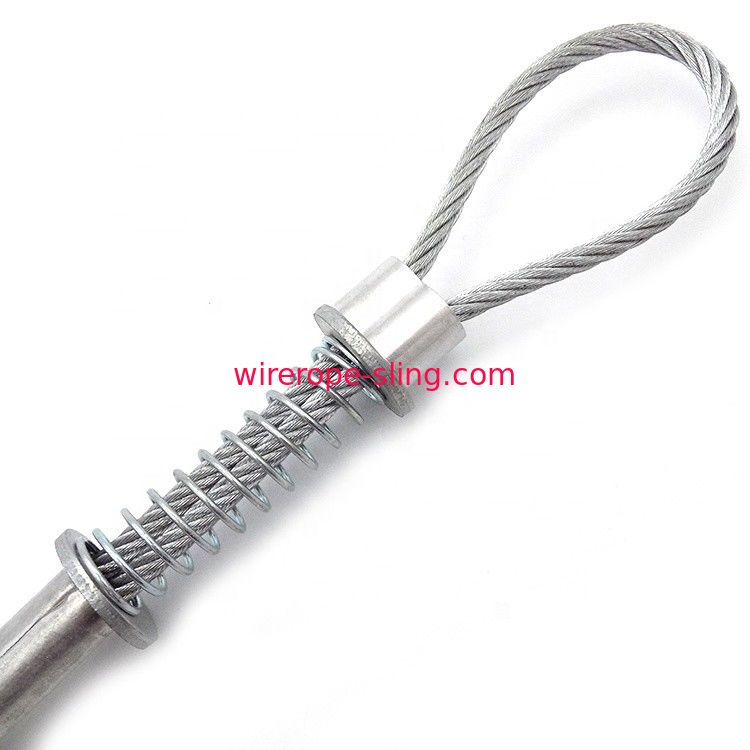

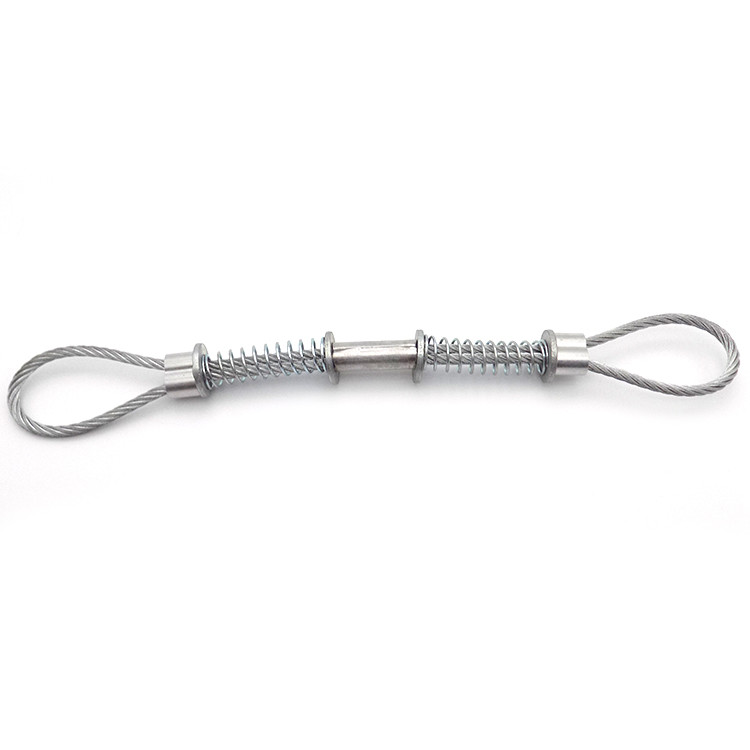

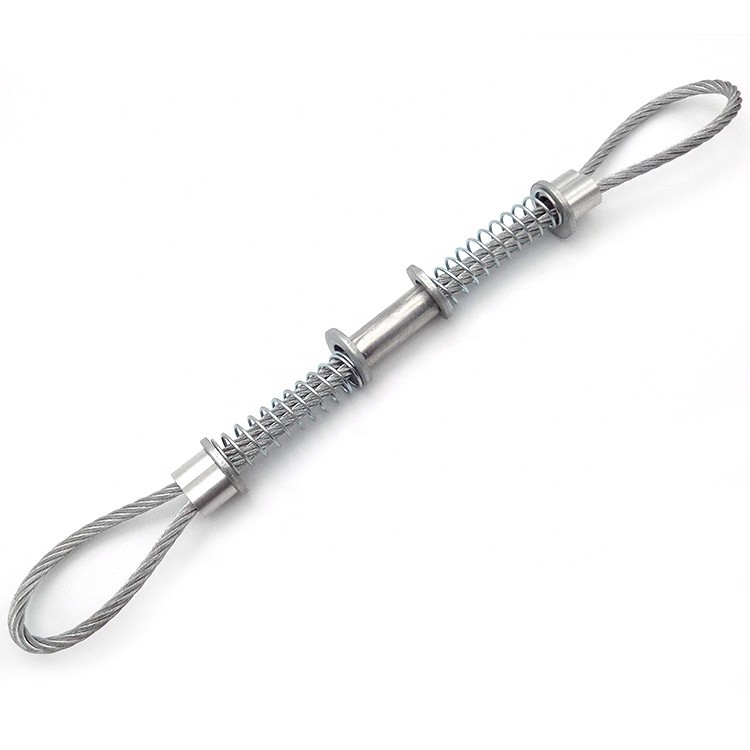

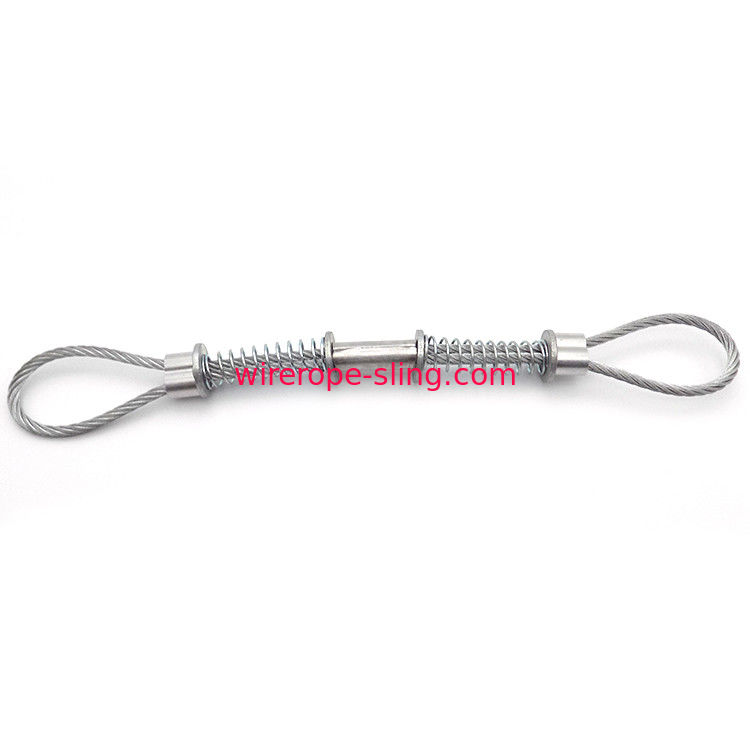

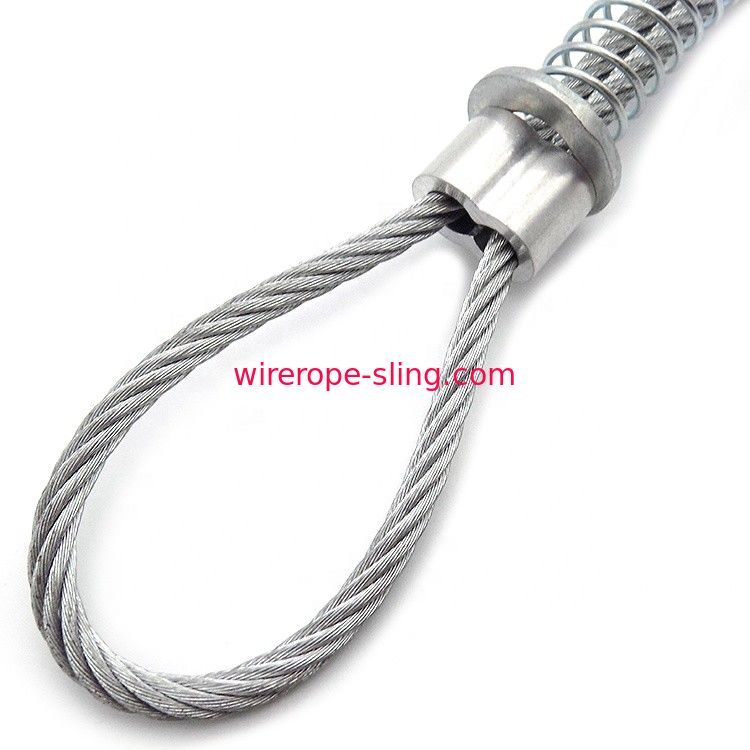

3.2mm Hose Whipcheck Steel Wire Rope Sling With Aluminium Ferrules
A pressurized air hose in case of hose failure or accidental uncoupling could cause the hose assembly to whip violently due to the sudden release of energy. The lethal whipping hose lethal can create a potentially dangerous situation. In such a scenario Superex whipcheck safety cables ensure safety from injury and property damage.
Whipchecks are hose arrestors made of corrosion resistant, high strength – steel, aluminum, copper or stainless steel which on installation diverts strain from the coupling to the whip check.
Installation of whipcheck is easy and requires no tools- the spring loaded loops of the whipcheck are opened and slipped over each hose providing a firm grip on the hose and avoiding it from whipping in case of accidents. Whipchecks are commonly used on hose for air, water blast, drilling, steam, concrete, sandblast or other high pressure applications.
Selling Units:
Single item
Single package size:
414X41X17 cm
Single gross weight:
22.0 kg
Package Type:
Whipcheck Steel Safety Cables And Plated Springs With Aluminium Ferrules
standard export carton or as customer requirement
Lead Time :
| Quantity(Piece) | 1 - 10000 | >10000 |
| Est. Time(days) | 25 | To be negotiated |
| 1.Diameter | 3-10mm | Custom-made available |
| 2.construction | 1*7,7*7,1*19,7*19,etc | |
| 3.material | galvanized steel or stainless | |
| 4.MOQ | 500pcs | |
| 5.length | 0.5-5m as request | |
| 6.eyelet | as requirement | |
| 8.end parts of fittings | a large selection of end fittings,including eye bolts,links,springs,hooks,thimble,clips,stops,ball ,ball shanks ,sleeve ,stamped eye,handles,etc | |
| 9.Lead time | 7days if there were enough material in stock | |
| 10.sample | Free sample available if all of dimensions same as our existing one ,if not ,contact me ,to get a cost efficient solution. | |
|
application |
|
|
| specification |
Refer to the drawing as below: All of specification custom-made available. the tighter tolerance ,the higher the cost of the cost. |
|
how to choose material:1stain1.1.1.
1.stainless steel :
providing good corrosion resistance and strength comparable to galvanized carbon steel grades.
2.galvanized steel:
Zinc coated carbon steel offers some corrosion resistance. It remains ductile over long periods of working. Usually higher break strengths than stainless steels.
| Nominal Diameter | Approximate Mass | Minimum breaking loads - 1770 Mpa | |
| [mm] | [kg/m] | [kN] | [Kg] |
| 3 | 0.034 | 5.77 | 588 |
| 4 | 0.061 | 10.25 | 1,045 |
| 5 | 0.095 | 16.02 | 1,633 |
| 6 | 0.137 | 23.07 | 2,352 |
| 7 | 0.187 | 31.40 | 3,202 |
| 8 | 0.244 | 41.01 | 4,182 |
| 9 | 0.309 | 51.90 | 5,293 |
| 10 | 0.381 | 64.07 | 6,535 |
| 11 | 0.461 | 77.53 | 7,908 |
| 12 | 0.549 | 92.27 | 9,411 |
| 13 | 0.644 | 108.29 | 11,045 |
| 14 | 0.747 | 125.59 | 12,809 |
| 16 | 0.975 | 164.03 | 16,731 |
| 18 | 1.234 | 207.60 | 21,175 |
| 20 | 1.524 | 256.30 | 26,142 |
