Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | LKS |
Certification: | CCS,DNV,BV |
Model Number: | LKS-WRS1157 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 500sets |
Price: | USD0.5-1.5PER SET |
Packaging Details: | Standard export carton |
Delivery Time: | 10-15 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 10000pcs/week |
Detail Information |
|||
Dia.: | 5-20mm Or As Requirement | Standard: | AISI, ASTM, BS, DIN, GB, JIS |
---|---|---|---|
Length: | 4m Or As Requirement | Item: | 7*7 316 Stainless Steel Wire Rope Sling Cable With Stainless Tab |
Alloy Or Not: | No | Safety Factor: | 5:1 |
Lifting Capacity: | More Than 3 Ton | HS Code: | 73129000 |
High Light: |
wire rope slings with hooks,steel wire sling |
Product Description

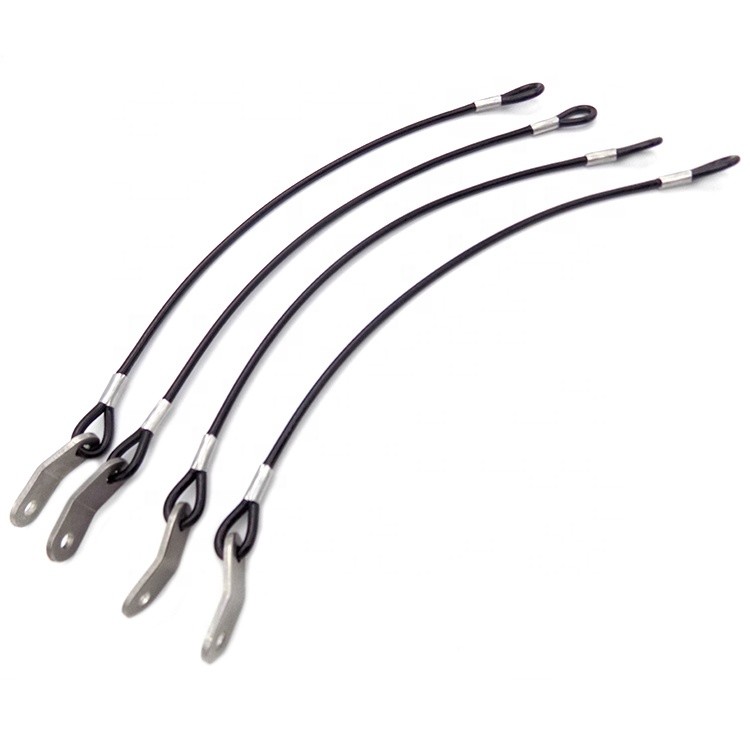

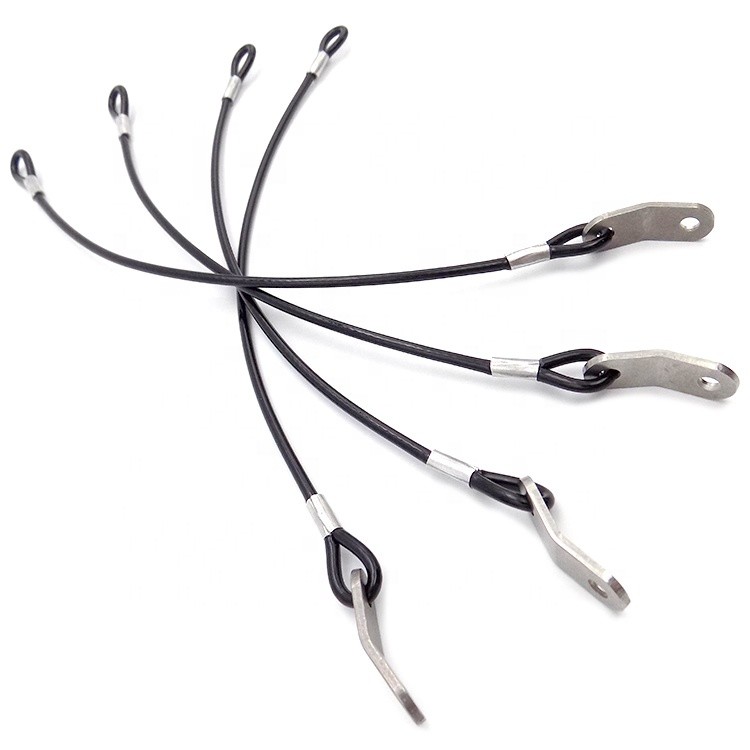

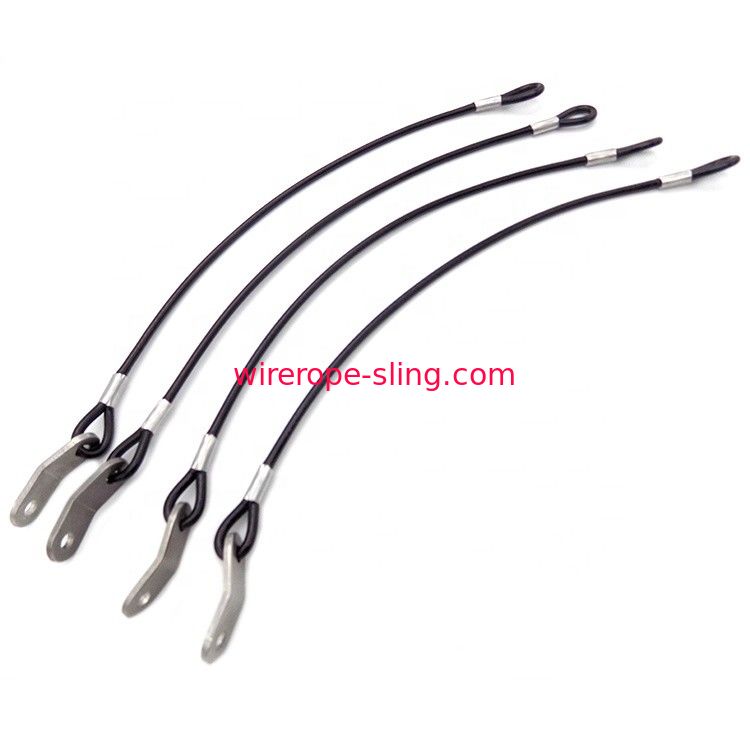

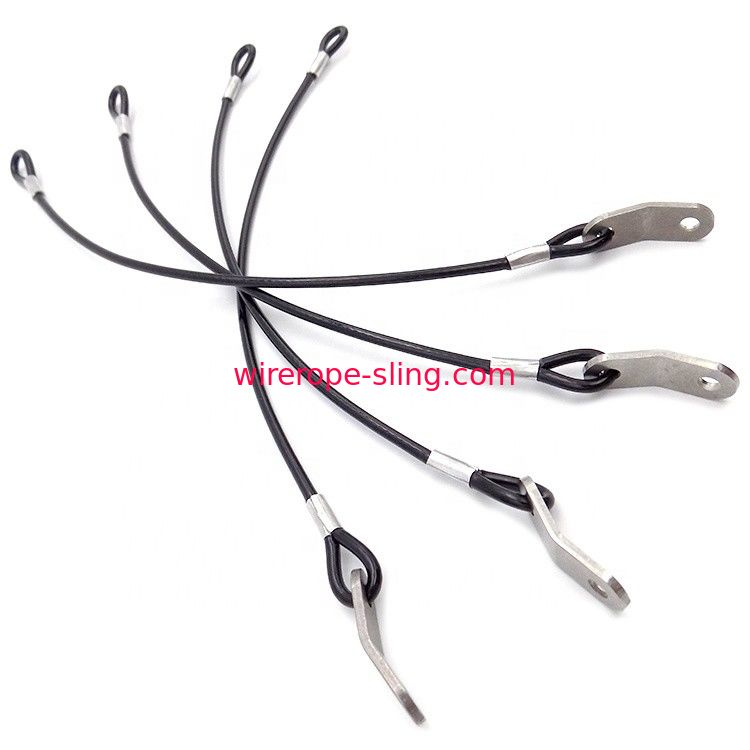

7*7 316 Stainless Steel single leg wire rope sling With Stainless Tab
10000 Piece/Pieces per Week Tow Rope
Packaging Details
standard export carton or as customer requirement
for China Manufacture Pull a Cart Rope tow Car Emergency Tools Wire High Quality Tow Rope
Port Shanghai
Lead Time :
Quantity(Pieces) | 1 - 20000 | >20000 |
Est. Time(days) | 25 | To be negotiated |
7*7 316 Stainless Steel Wire Rope Sling Cable With Stainless Tab
1.Diameter | 5-20mm | Custom-made available |
2.Construction | 1*7,7*7,1*19,7*19,etc | |
3.Material | Galvanized/stainless steel | |
4. Capacity | More Than 3 Ton | |
5.Length | 4m or other | |
6.End | Hook,stops.etc | |
7.End parts of fittings | A large selection of end fittings,including eye bolts,links,springs,hooks,thimble,clips,stops,ball ,ball shanks ,sleeve ,stamped eye,handles,etc | |
8.Lead time | 7days if there were enough material in stock | |
9.Sample | Free sample available if all of dimensions same as our existing one ,if not ,contact me ,to get a cost efficient solution. | |
Application |
Vehicle, Machinery, Security,Etc. When designing a cable assembly, a number of factors need to be considered such as, work load, abrasion, cycle life, and flexibility, environment, cost, safety .etc. the larger the diameter ,the greater the work load capacity and the less flexible it will be. WARNING :Breaking strength should never be considered the rope's working load ,safety factor 5:1 ,Coating must be removed from installation area when attaching fittings |
|
specification |
Refer to the drawing as below: All of specification custom-made available. the tighter tolerance ,the higher the cost of the cost. |
How to choose material:1stain1.1.1.
1.Stainless steel :
Providing good corrosion resistance and strength comparable to galvanized carbon steel grades.
2.Galvanized steel:
Zinc coated carbon steel offers some corrosion resistance. It remains ductile over long periods of working.
Usually higher break strengths than stainless steels.
how to choose material:1stain1.1.1.
1.stainless steel :
providing good corrosion resistance and strength comparable to galvanized carbon steel grades.
2.galvanized steel:
Zinc coated carbon steel offers some corrosion resistance. It remains ductile over long periods of working. Usually higher break strengths than stainless steels.
Nominal Diameter | Approximate Mass | Minimum breaking loads - 1770 Mpa | |
[mm] | [kg/m] | [kN] | [Kg] |
3 | 0.034 | 5.77 | 588 |
4 | 0.061 | 10.25 | 1,045 |
5 | 0.095 | 16.02 | 1,633 |
6 | 0.137 | 23.07 | 2,352 |
7 | 0.187 | 31.40 | 3,202 |
8 | 0.244 | 41.01 | 4,182 |
9 | 0.309 | 51.90 | 5,293 |
10 | 0.381 | 64.07 | 6,535 |
11 | 0.461 | 77.53 | 7,908 |
12 | 0.549 | 92.27 | 9,411 |
13 | 0.644 | 108.29 | 11,045 |
14 | 0.747 | 125.59 | 12,809 |
16 | 0.975 | 164.03 | 16,731 |
18 | 1.234 | 207.60 | 21,175 |
20 | 1.524 | 256.30 | 26,142 |
