Galvanized Steel Wire Lifting Slings With Safety Steel Bottom And US Type Shackle

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: LKS-WRS1158
Payment & Shipping Terms:
Minimum Order Quantity: 500sets
Price: USD0.5-1.5PER SET
Packaging Details: Standard export carton
Delivery Time: 10-15 days
Payment Terms: L/C, T/T
Supply Ability: 10000pcs/week

Detail Information

Dia.:3-20mm Or As RequirementStandard:AISI, ASTM, BS, DIN, GB, JIS
Length:4m Or As RequirementConstruction:1*7,7*7,1*19,7*19,etc
Alloy Or Not:NoSafety Factor:5:1
Applications:IndustrialHS Code:73129000
High Light:

wire rope slings with hooks

,

steel wire sling

Product Description

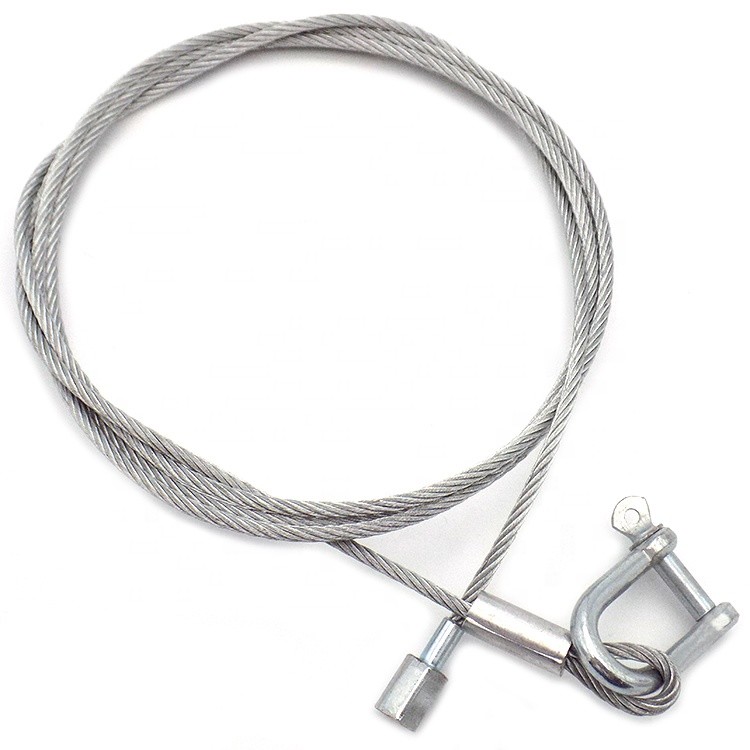

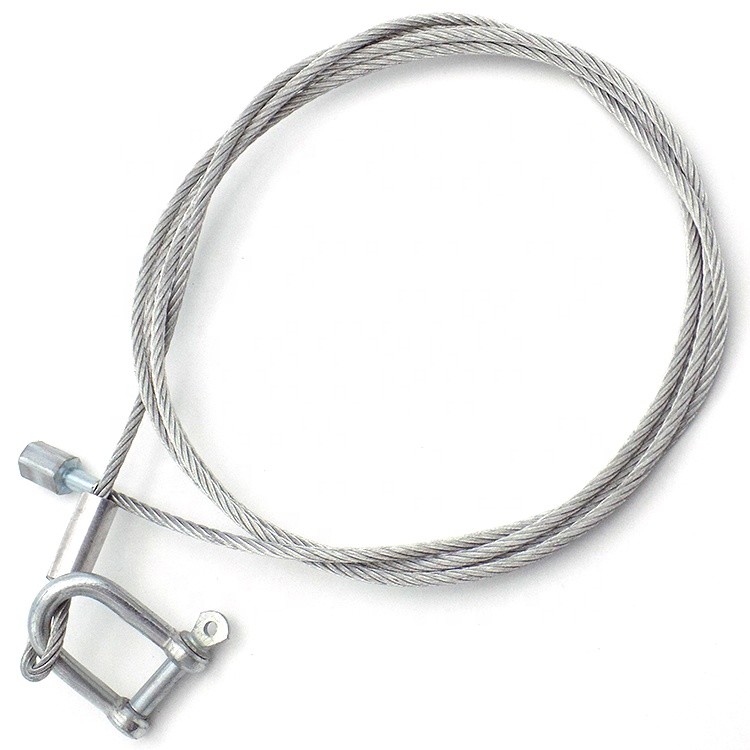

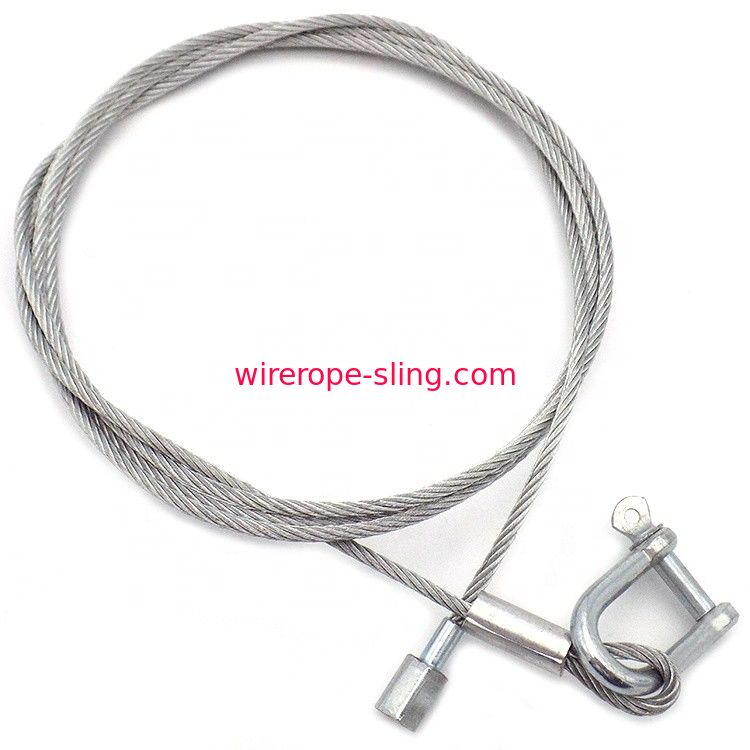

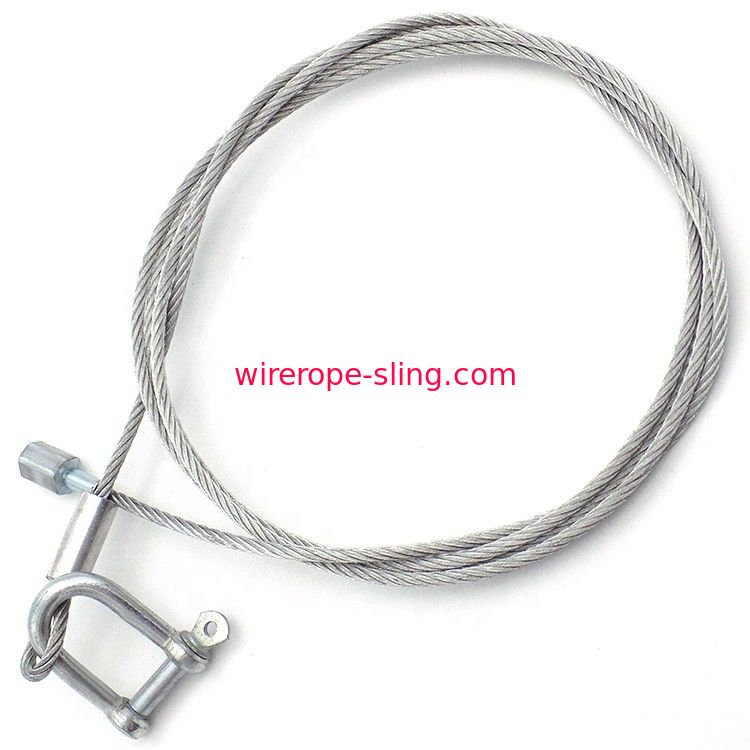

Galvanized Steel Wire Rope Slings With Safety Steel bottom And US Type Shackle

Wire rope slings are extremely strong and an excellent choice for heavy duty jobs involving not only lifting, but also hoisting, towing, or anchoring loads. The fabrication of wire slings also offers excellent abrasion-resistance and heat resistance so it can be used in extreme conditions and temperatures. Its pliable design can conform to the shape of a load for a more secure application.

Wire rope slings are manufactured in a variety of configurations, with 6x19 and 6x36, being two of the most common. The numbers represent the number of wires making up the strand and the number of strands wrapped around the core. For example, a 6x19 indicates that there are 19 wires making up a strand, and 6 strands are wrapped around the core.
Galvanized Steel Wire Lifting Slings With Safety Steel Bottom And US Type Shackle 0

Packaging & Delivery

Packaging Details

Galvanized Steel Cable Slings With Snap Hook And America Type Turnbuckle,standard export carton

Port

Shanghai



Product Description

Galvanized Steel Cable Slings With Snap Hook And America Type Turnbuckel



1.Diameter 9.5mm or other Custom-made available
2.Construction 1*7,7*7,1*19,7*19,etc
3.Material Galvanized steel or stainless
4.MOQ 500pcs
5.Length 1M or as requirement
6.Color Transparent or red
7.Coating



As requirement
8.End parts of fittings A large selection of end fittings,including eye bolts,links,springs,hooks,thimble,clips,stops,ball ,ball shanks ,sleeve ,stamped eye,handles,etc
9.Lead time 7days if there were enough material in stock
10.Sample Free sample available if all of dimensions same as our existing one ,if not ,contact me ,to get a cost efficient solution.
Application

1.Wire rope slings are a basic material handling tool and are the most

frequently used type of sling in industry today.

2.They offer a strong, dependable and economical option for most lifting applications.

3.Their popularity is enhanced by the numerous sling configurations available to support a

broad range of applications.

4.These configurations include single and

multi-part slings (such as round braids, flat braids, Tri-Flex and cable laid slings)

grommets, single leg slings, multiple leg bridles, and a wide variety of fittings and attachments.

WARNING :Breaking strength should never be considered the rope's working load ,safety factor 5:1 ,Coating must be removed from installation area when attaching fittings

Specification

Refer to the drawing as below:

All of specification custom-made available. the tighter tolerance ,the higher the cost of the cost.





Diameter Construction Weight(100m) Minimum Breaking load(N)
1.0mm 1*19 0.495 950(95kg)
  7*7 0.393 650 (65kg)
1.2mm 1*19 0.713 1440(144kg)
  7*7 0.566 950(95kg)
1.5mm 1*19 1.114 2200(220kg)
  7*7 0.884 1500(150kg)
1.8mm 1*19 1.604 3200(320kg)
  7*7 1.273 2100(210kg)
2.0mm 1*19 1.98 3900(390kg)
  7*7 1.527 2650(265kg)
2.4mm 1*19 2.851 5650(565kg)
  7*7 2.264 3800(380)kg
2.5mm 1*19 3.094 6100(610kg)
  7*7 2.381 4100(410kg)
3.2mm 7*7 4.024 6850(685kg)
  7*19 3.901 6800(680kg)
3.8mm 7*19 5.675 9650(965kg)
  7*7 5.502 9600(960kg)
4.0mm 7*19 6.609 12500(1250kg)
4.2mm 7*7 6.933 13000(1300kg)
4.5mm 7*7 7.958 13500(1350kg)
4.8mm 7*19 8.778 15300(1530kg)
6.0mm 7*19 8.716 23900(2390kg)



How to choose material:1stain1.1.1.

1.Stainless steel :

Providing good corrosion resistance and strength comparable to galvanized carbon steel grades.

2.Galvanized steel:

Zinc coated carbon steel offers some corrosion resistance. It remains ductile over long periods of working. Usually higher break strengths than stainless steels.



Nominal Diameter Approximate Mass Minimum breaking loads - 1770 Mpa
[mm] [kg/m] [kN] [Kg]
3 0.034 5.77 588
4 0.061 10.25 1,045
5 0.095 16.02 1,633
6 0.137 23.07 2,352
7 0.187 31.40 3,202
8 0.244 41.01 4,182
9 0.309 51.90 5,293
10 0.381 64.07 6,535
11 0.461 77.53 7,908
12 0.549 92.27 9,411
13 0.644 108.29 11,045
14 0.747 125.59 12,809
16 0.975 164.03 16,731
18 1.234 207.60 21,175
20 1.524 256.30 26,142

Our products had exported to many regions like North America, South America, Europe, Africa, Asia, Middle East, etc. Our factory professional made steel wire rope ,steel cable ,aircraft ,china,hardware over 20 years experience .20000tons annual yeild are a solid gurantee of qualified products for you. Guarantee excellent quality. We also could do OEM services, can well meet clients' needs and requests.



Welcome to visit our factory!

contact person:Rocky

Phone/whatsapp:+86 13801785300

Skype:rockyyao79
