China Wire Rope Sling manufacturer

6x25 IWR Single Leg Wire Rope Sling Flemish Loop To Eye Hook With Safety Latch

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: LKS-WRS1161
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: USD1-100 PER SET
Packaging Details: Wooden Box
Delivery Time: 10-15 days
Payment Terms: L/C, T/T
Supply Ability: 50000SETS Monthly

Detail Information

Model:T/TWire Rope Size:1/4"
Type:Flemish Loop-to-Eye Hook With Safety LatchConstruction:6x19 Class
Length (ft):5,,10,20,30,40,50...Safety Factor:5:1
Applications:Any Industry Including Oil & Gas, Construction, Manufacturing, And Mining...HS Code:73129000
High Light:

wire rope slings with hooks

,

steel wire sling

Product Description

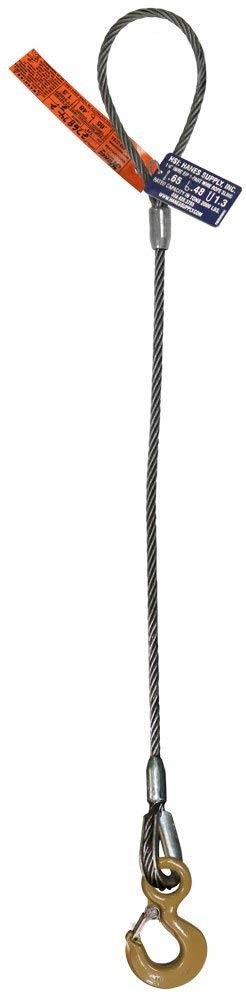

1/4" Single-Leg Wire Rope Sling 6x25 IWR Flemish Loop-to-Eye Hook with Safety Latch

  • FLEMISH LOOP AND EYE HOOK WITH SAFETY LATCH - This attachment style offers versatility and an additional level of safety with the latch positioned on the Eye Hoist Hook for a more secure connection.

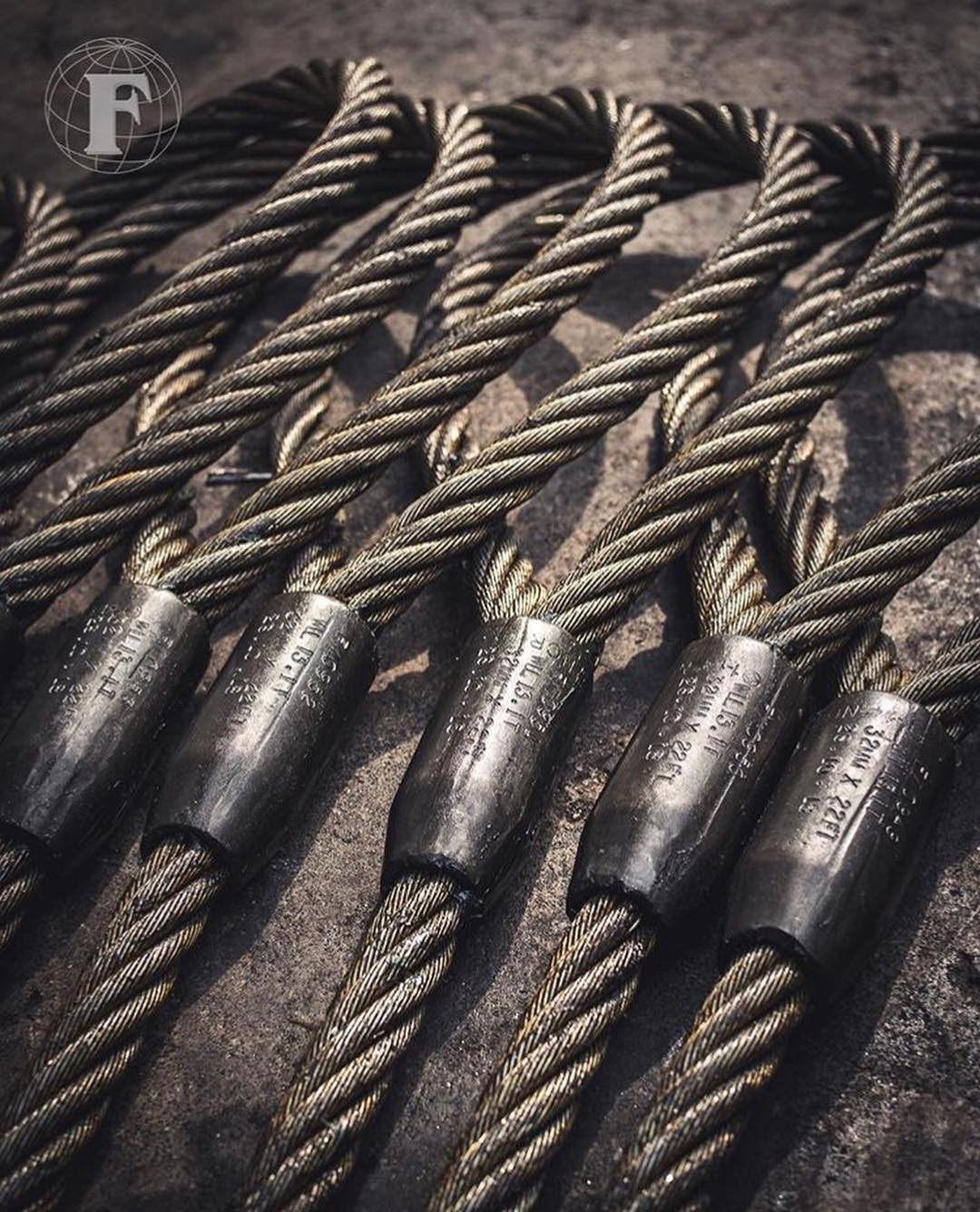

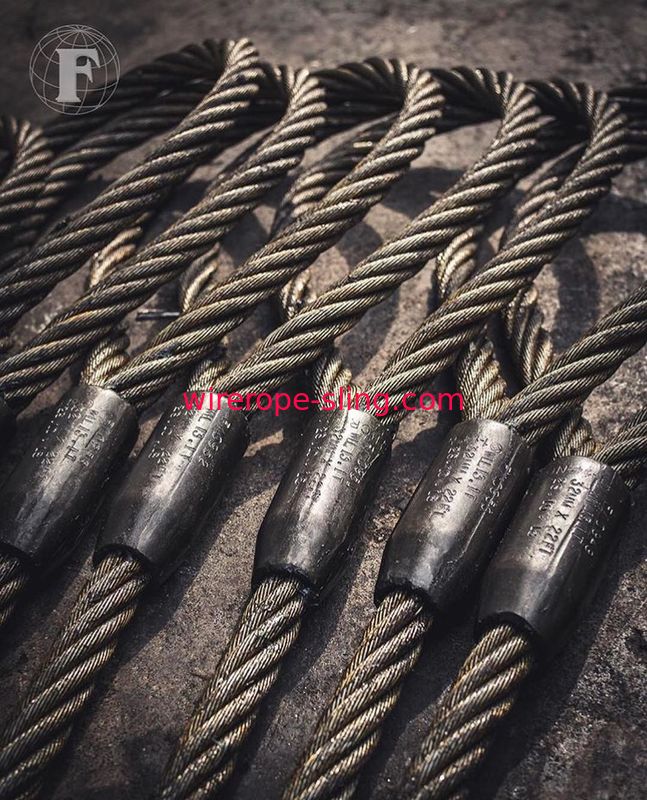

  • FLEMISH EYE SPLICED SWAGING - The ends of the sling are mechanically formed allowing for larger load capacities than hand-laid wire rope. Loops are secured with a forged metal sleeve and go over the spliced area.
  • DOUBLE TAGGED FOR SAFETY - Two tags are used on LKS slings to identify WLL (Working Load Limits). Riggers can reference critical information for safe sling application and OSHA compliance.
  • GREATER WEAR RESISTANCE - A 6 x 25 IWRC (Independent Wire Rope Core) classification for wire rope slings offer large outer wires that provide a balance between fatigue and wear resistance.
  • CHINA MADE RIGGING - LKS is proud to be the industry-leading CHINA based manufacturer of hoisting solutions for industrial construction and building projects since 197630. All slings are manufactured in a certified ISO 9001 facility.
Product Specifications
Part Number LKS-WRS1161
Load Capacity 1300.00 pounds
Color Flemish Eye Loop-to-Eye Hook with Safety Latch
Item Weight 1.25 pounds
Number of Items 1
Size 3-Foot Length
Specification for this product family
Brand Name LKS

6x25 IWR Single Leg Wire Rope Sling Flemish Loop To Eye Hook With Safety Latch 0





Product description

Size:3-Foot Length  |  Color:Flemish Eye Loop-to-Eye Hook with Safety Latch



Description:

When looking for strength and durability on that next big rigging job, look no further than our array of HSI Wire Rope Slings. A wide-variety of sizes are available whether working on a small-load lift or preparing to maneuver a massively heavy element. Our slings are there to solve your hoisting, lifting and towing problems.

HSI slings are assembled in an ISO 9001:2015 certified facility where quality, safety and efficiency are priority. Audits are conducted every year by an independent third-party to determine if a manufacturer is compliant with standards before re-registration.

The wide offering of Single Leg Wire Rope Slings will surely meet your rigging needs on the jobsite. Each eye on these slings is formed using the mechanical Flemish Eye Splice. This process allows for the most efficient use of the rope capacity with top-quality steel as the pull is directly along the centerline of the rope and eye.



Wire Rope Diameter - 1/4-Inch

Terminal Fittings - Flemish Loop-to-Eye Hook with Safety Latch

Sling Legs - 1

Sling Length - 3-Feet

Single Leg Vertical Rated Capacity - 0.65 Ton

Choker Hitch Rated Capacity - 0.48 Ton

60-Degree Basket Rated Capacity - 1.1 Ton

45-Degree Basket Rated Capacity - .91 Ton

30-Degree Basket Rated Capacity - 0.65 Ton

Loop Dimensions:

  • Width - 2-Inch
  • Length - 4-Inch


Safety Compliance:

  • OSHA: Sling Safety, Title 29 Code of Federal Regulations, Part 1910.184
  • ISO 8792:1986, Wire Rope Slings -- Safety criteria and inspection procedures for use
  • ISO 7531:1987, Wire rope slings for general purposes -- Characteristics and specifications
  • ASME B30.9-2018 Standards for Sling



Wire Rope Slings

The wire rope sling is not quite as durable. The wire rope sling is not as flexible as chain but its greater stiffness can be an advantage if it has to be inserted through a small opening or beneath a load. However, when wrapped around a load, the wire rope sling often tends to deform permanently to the shape of the load. Wire rope suitable for slings comes in a variety of grades and constructions. In most cases looping back and securing the loop with a metal sleeve terminates the rope. This forms a loop or soft eye, the simplest form of sling end. Thimbles are used to support and protect the eye from abrasion. Wire rope is generally cheaper and lighter than chain which can be a plus, particularly for applications that require long sling lengths.
