China Wire Rope Sling manufacturer

Sliding Choker Hook Steel Lifting Slings Flemish Eye Loop To Heavy Duty Thimble

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: LKS-WRS1162
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: USD1-100 PER SET
Packaging Details: Wooden Box
Delivery Time: 10-15 days
Payment Terms: L/C, T/T
Supply Ability: 50000SETS Monthly

Detail Information

Model:Single Leg Wire Rope SlingWire Rope Size:7/8”
Type:Sliding Choker Hook Wire Rope Sling Flemish Eye Loop To Heavy-Duty ThimbleConstruction:6x19 Class
Length (ft):5,,10,20,30,40,50...Safety Factor:5:1
Applications:Any Industry Including Oil & Gas, Construction, Manufacturing, And Mining...HS Code:73129000
High Light:

wire rope slings with hooks

,

steel wire sling

Product Description

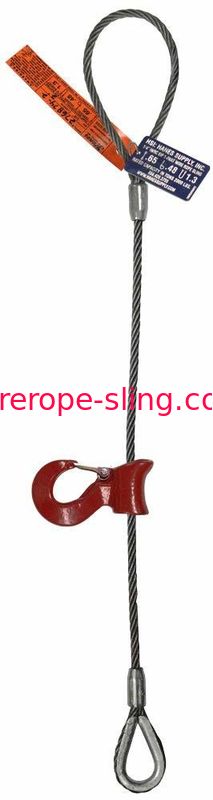

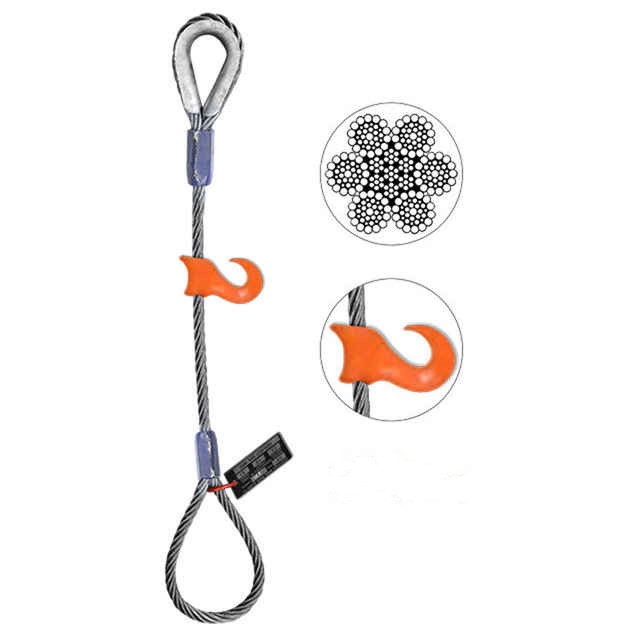

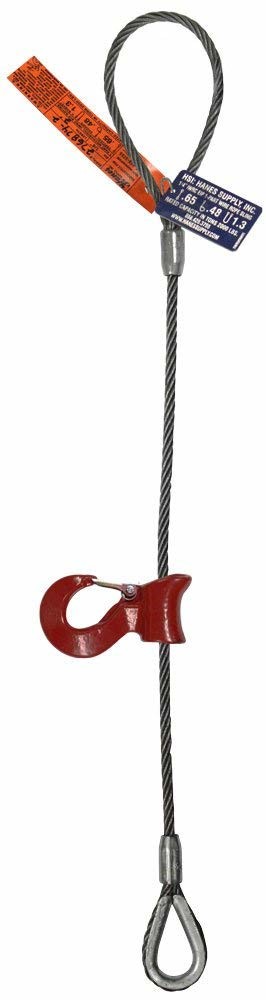

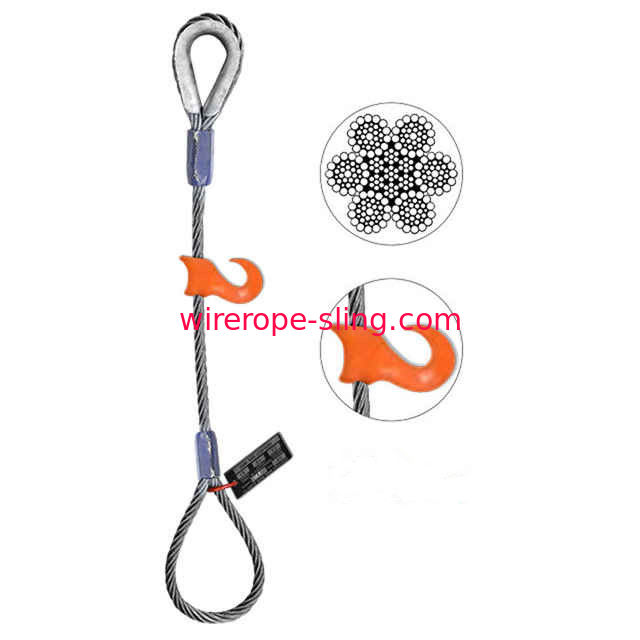

7/8” Sliding Choker Hook Wire Rope Sling Flemish Eye Loop to Heavy-Duty thimble

  • GREATER WEAR RESISTANCE - A 6 x 25 IWRC (Independent Wire Rope Core) classification for wire rope slings offer large outer wires that provide a balance between fatigue and wear resistance.
  • DOUBLE TAGGED FOR SAFETY - Two tags are used on LKSslings to identify WLL (Working Load Limits). Riggers can reference critical information for safe sling application and OSHA compliance.
  • CHINA MADE RIGGING - LKS is proud to be the industry-leading CHINA based manufacturer of hoisting solutions for industrial construction and building projects since 1976. All slings are manufactured in a certified ISO 9001: 2015 facility.
Product Specifications
Part Number LKS-WRS1162
Load Capacity 15200.00 pounds
Color Flemish Eye Loop to Heavy-Duty Thimble with Sliding Choker
Item Weight 26.6 pounds
Number of Items 1
Size 4-Foot Length
Specification for this product family
Brand Name LKS

Sliding Choker Hook Steel Lifting Slings Flemish Eye Loop To Heavy Duty Thimble 0







Product description

Size:4-Foot Length  |  Color:Flemish Eye Loop to Heavy-Duty Thimble with Sliding Choker

LKS 7/8” Diameter Single-Leg Sliding Choker Hook Wire Rope Sling | EIPS 6x25 IWRC | 4’ Length | Flemish Eye Loop to Heavy-Duty Thimble | 7.6 Ton Vertical Rated Capacity



Wire Rope Slings

The wire rope sling is not quite as durable. The wire rope sling is not as flexible as chain but its greater stiffness can be an advantage if it has to be inserted through a small opening or beneath a load. However, when wrapped around a load, the wire rope sling often tends to deform permanently to the shape of the load. Wire rope suitable for slings comes in a variety of grades and constructions. In most cases looping back and securing the loop with a metal sleeve terminates the rope. This forms a loop or soft eye, the simplest form of sling end. Thimbles are used to support and protect the eye from abrasion. Wire rope is generally cheaper and lighter than chain which can be a plus, particularly for applications that require long sling lengths.
