1 Inch Diameter 2 Leg Wire Rope Sling Thimble To Bolt Anchor Shackle Oblong Master Link

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: LKS-WRS1166
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: USD1-100 PER SET
Packaging Details: Wooden Box
Delivery Time: 10-15 days
Payment Terms: L/C, T/T
Supply Ability: 50000SETS Monthly

Detail Information

Model:2 Leg Wire Rope SlingWire Rope Size:1"
Type:2-Leg Wire Rope SlingConstruction:6x19 Class
Length (ft):5,,10,20,30,40,50...Safety Factor:5:1
Applications:Any Industry Including Oil & Gas, Construction, Manufacturing, And Mining...HS Code:73129000
High Light:

wire rope slings with hooks

,

steel wire sling

Product Description

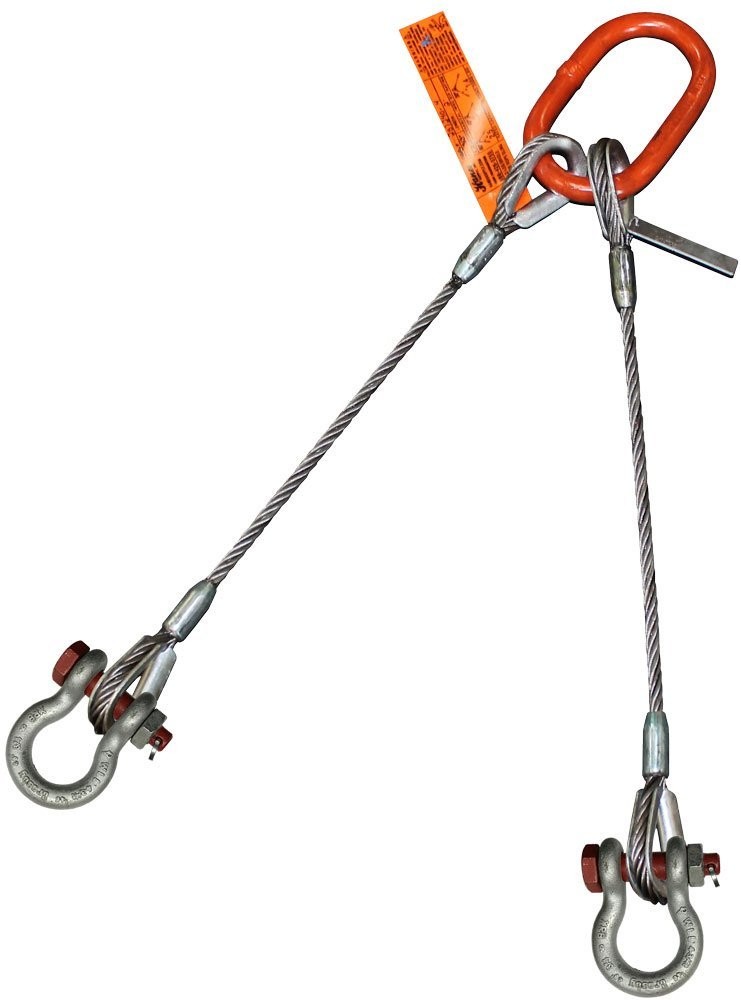

1" Diameter Two-Leg Wire Rope Sling Thimble-to-Bolt Anchor Shackle Oblong Master link

Wire rope slings are extremely strong and an excellent choice for heavy duty jobs involving not only lifting, but also hoisting, towing, or anchoring loads. The fabrication of wire slings also offers excellent abrasion-resistance and heat resistance so it can be used in extreme conditions and temperatures. Its pliable design can conform to the shape of a load for a more secure application.



  • THIMBLE AND BOLT ANCHOR SHACKLE - Best for permanent or long-term installations where the load may slide on the shackle pin. Bolt-type system stays in place with a nut and cotter pin for secondary securement.

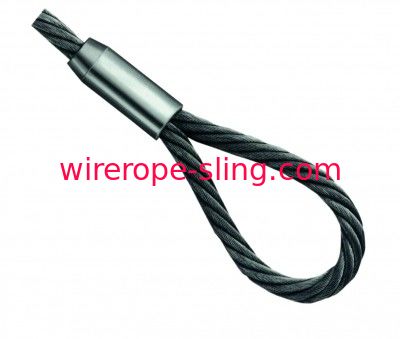

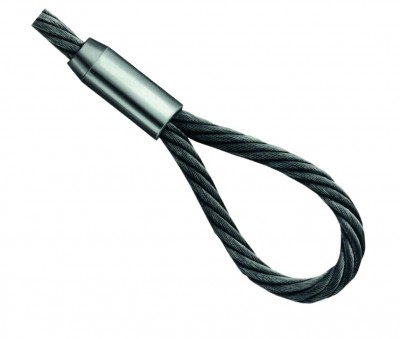

  • FLEMISH EYE SPLICED SWAGING - The sling ends are mechanically formed allowing for larger load capacities. Loops are secured with a forged metal sleeve over the spliced area along with heavy-duty thimbles to protect the ends of the sling.
  • DOUBLE TAGGED FOR SAFETY - Two tags are used on HSI slings to identify WLL (Working Load Limits). Riggers can reference critical information for safe sling application and OSHA compliance.
  • GREATER WEAR RESISTANCE - A 6 x 25 IWRC (Independent Wire Rope Core) classification for wire rope slings offer large outer wires that provide a balance between fatigue and wear resistance.
  • CHINA MADE RIGGING - LKS is proud to be the industry-leading CHINA based manufacturer of hoisting solutions for industrial construction and building projects since 1976. All slings are manufactured in a certified ISO 9001: 2015 facility.
Product Specifications
Part Number LKS-WRS1166
Load Capacity 34000.00 pounds
Color Thimble-to-Bolt Anchor Shackle
Item Weight 92.6 pounds
Number of Items 1
Size 5-Foot Length
Specification for this product family
Brand Name LKS

1 Inch Diameter 2 Leg Wire Rope Sling Thimble To Bolt Anchor Shackle Oblong Master Link 0



Product description

Size:5-Foot Length | Color:Thimble-to-Bolt Anchor Shackle



Description:

When looking for strength and durability on that next big rigging job, look no further than our array of LKS Wire Rope Slings. A wide-variety of sizes and styles are available whether working on a small-load lift or preparing to maneuver a massively heavy element. Our slings are there to solve your hoisting, lifting and towing problems.

LKS slings are assembled in an ISO 9001:2015 certified facility where quality, safety and efficiency are priority. Audits are conducted every year by an independent third-party to ensure manufacturer compliance with the set standards.

Two leg slings are multi-purposed and designed for lifts where the attachments may be made directly to the load. This would include situations such as hooking into lifting eyes of placing loops over lugs. Each eye on these slings is formed using the mechanical Flemish Eye Splice. This process allows for the most efficient use of the rope capacity with top-quality steel as the pull is directly along the centerline of the rope and eye.


  • Wire Rope Diameter - 1 In.
  • Terminal Fittings – Thimble-to-Bolt Anchor Shackle
  • Sling Legs - 2
  • Sling Length - 5-Feet
  • 60-Degree Basket Rated Capacity - 17 Ton
  • 45-Degree Basket Rated Capacity - 14 Ton
  • 30-Degree Basket Rated Capacity - 9.8 Ton

Alloy Oblong Master Link Specs:
  • Diameter – 1-1/2 Inch
  • Weight – 18.6 Pounds
  • Opening Width – 5.9 Inches
  • Opening Length – 10.50 Inches


Safety Compliance:

  • OSHA: Sling Safety, Title 29 Code of Federal Regulations, Part 1910.184
  • ISO 8792:1986, Wire Rope Slings -- Safety criteria and inspection procedures for use
  • ISO 7531:1987, Wire rope slings for general purposes -- Characteristics and specifications
    • ASME B30.9-2018 Standards for Slings

Wire Rope Slings

The wire rope sling is not quite as durable. The wire rope sling is not as flexible as chain but its greater stiffness can be an advantage if it has to be inserted through a small opening or beneath a load. However, when wrapped around a load, the wire rope sling often tends to deform permanently to the shape of the load. Wire rope suitable for slings comes in a variety of grades and constructions. In most cases looping back and securing the loop with a metal sleeve terminates the rope. This forms a loop or soft eye, the simplest form of sling end. Thimbles are used to support and protect the eye from abrasion. Wire rope is generally cheaper and lighter than chain which can be a plus, particularly for applications that require long sling lengths.
