China Wire Rope Sling manufacturer

3- Leg Wire Rope Sling Flemish Loop Ends Heavy Duty Top Thimbles Oblong Master Link

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: LKS-WRS1169
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: USD1-100 PER SET
Packaging Details: Wooden Box
Delivery Time: 10-15 days
Payment Terms: L/C, T/T
Supply Ability: 50000SETS Monthly

Detail Information

Model:3 Leg Wire Rope SlingWire Rope Size:1"
Type:3-Leg Wire Rope SlingConstruction:6x19 Class
Length (ft):5,,10,20,30,40,50...Safety Factor:5:1
Applications:Any Industry Including Oil & Gas, Construction, Manufacturing, And Mining...HS Code:73129000
High Light:

wire rope slings with hooks

,

steel wire sling

Product Description

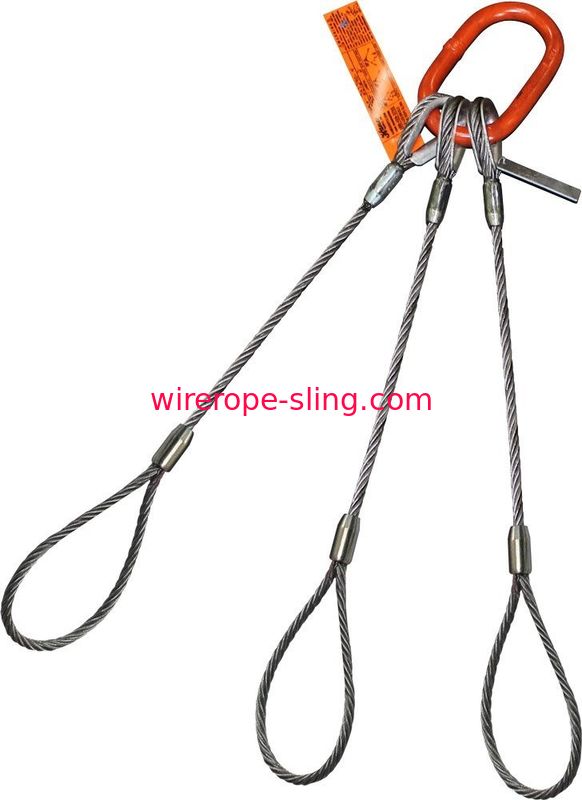

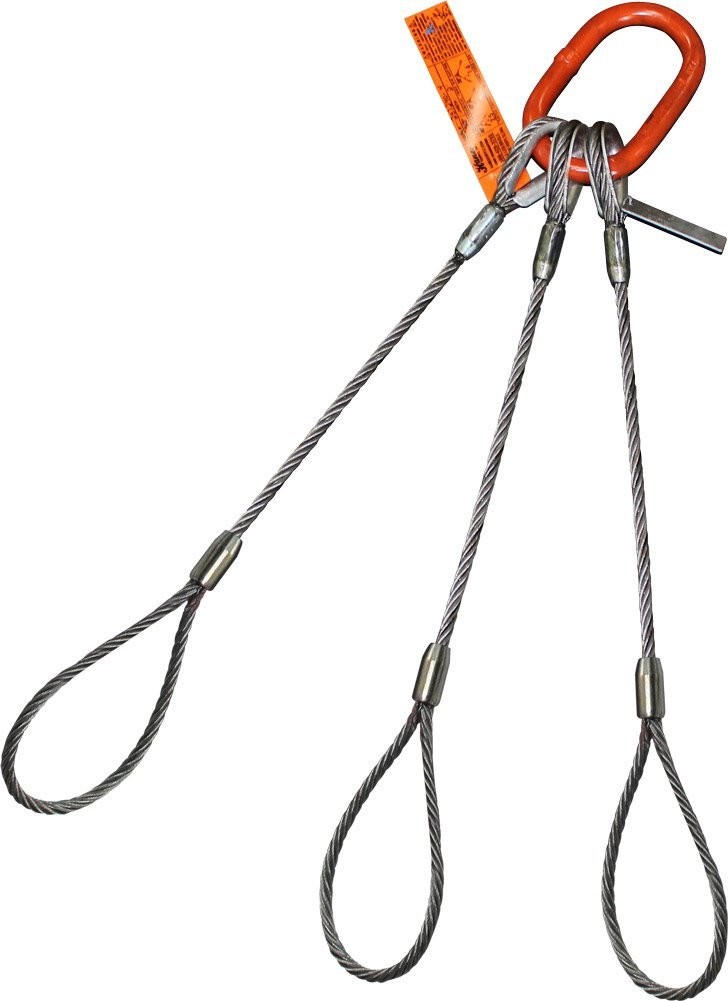

3-Leg Wire Rope Sling Flemish Loop Ends Heavy-Duty Top Thimbles Oblong Master Link


Our 3 leg wire rope slings are also known in the industry as a 3 leg bridle sling. Each is manufactured with a Flemish eye that’s spliced with a carbon steel sleeve for the ultimate in safety and strength. End options include latched eye hooks, eyes equipped with thimbles, and more, as customized options are always available. Our 3 leg wire rope slings are available in seven different diameters of rope.



  • FLEMISH LOOP ENDS - Bridle eye openings are available for lifts with multiple pick-points and connectors being used for multiple rigging projects.
  • FLEMISH EYE SPLICED SWAGING - The sling ends are mechanically formed allowing for larger load capacities. Loops are secured with a forged metal sleeve over the spliced area along with heavy-duty thimbles to protect the ends of the sling.
  • DOUBLE TAGGED FOR SAFETY - Two tags are used on HSI slings to identify WLL (Working Load Limits). Riggers can reference critical information for safe sling application and OSHA compliance.
  • GREATER WEAR RESISTANCE - A 6 x 25 IWRC (Independent Wire Rope Core) classification for wire rope slings offer large outer wires that provide a balance between fatigue and wear resistance.
  • CHINA MADE RIGGING - LKS is proud to be the industry-leading CHINA based manufacturer of hoisting solutions for industrial construction and building projects since 1976. All slings are manufactured in a certified ISO 9001: 2015 facility.
Product Specifications
Part Number LKS-WRS1169
Load Capacity 52000.00 pounds
Color Eye Hooks with Safety Latches - 52,000 Lbs. Vertical Rated Capacity
Item Weight 250.0 pounds
Number of Items 1
Size 24-Foot Length
Specification for this product family
Brand Name LKS

3- Leg Wire Rope Sling Flemish Loop Ends Heavy Duty Top Thimbles Oblong Master Link 0





Product description

Size:24-Foot Length  |  Color:Flemish-to-Flemish Ends - 52,000 Lbs. Vertical Rated Capacity

LKS 1" Diameter Three-Leg Wire Rope Sling | EIPS 6x25 IWRC | 24' Length | Flemish Loop Ends | Heavy-Duty Top Thimbles | 1-3/4" Oblong Master Link | 26 Ton Vertical Rated Capacity



Safety Compliance:

  • OSHA: Sling Safety, Title 29 Code of Federal Regulations, Part 1910.184
  • ISO 8792:1986, Wire Rope Slings -- Safety criteria and inspection procedures for use
  • ISO 7531:1987, Wire rope slings for general purposes -- Characteristics and specifications
  • ASME B30.9-2018 Standards for Slings

Each steel wire rope configuration will offer different benefits and will be better suited to certain applications. In general, a smaller number of large outer wires offers better wear and corrosion resistance, while a larger number of small wires provides a better level of flexibility and fatigue resistance.

We offer steel wire rope slings in both 6x19 and 6x36 configurations, depending on the diameter of the wire rope. All are in a bright (unfinished) wire rope, but other configurations are available by request. Our cable laid slings are manufactured in a 7x7x7 galvanized wire rope (composed of 7 strands of 7x7 cables), which make them extremely flexible and useful for more specialized applications.
