7X19 3mm Stainless Steel Wire Rope For Architecture And Transportation

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO9001:2008
Model Number: 7X19
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD5000/TON
Packaging Details: Seaworthy packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Steel Grade:300 SeriesStandard:AISI, ASTM, BS, DIN, GB, JIS
Wire Gauge:0.6mm-10mmType:Drawn Wire,Carbon Steel Wire
Alloy Or Not:Non-alloySpecial Use:Cold Heading Steel
Certificate:ISO, SGSPackaging:In Coil And Pallet
High Light:

coated stainless steel cable

,

stainless steel cable

Product Description

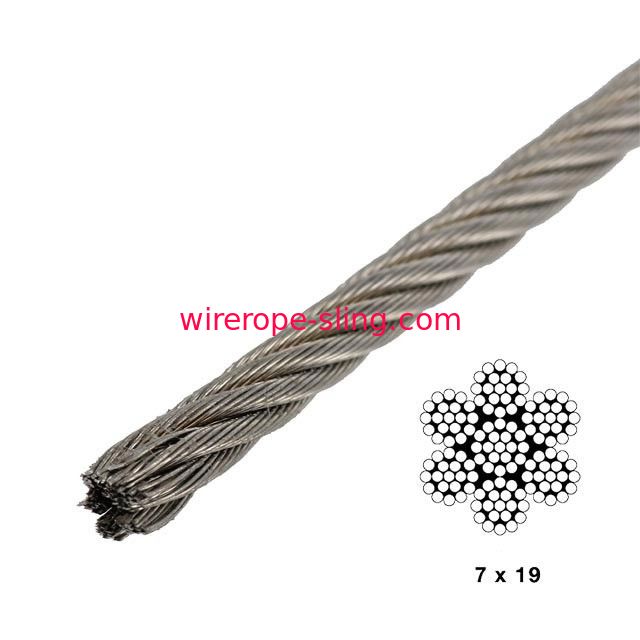

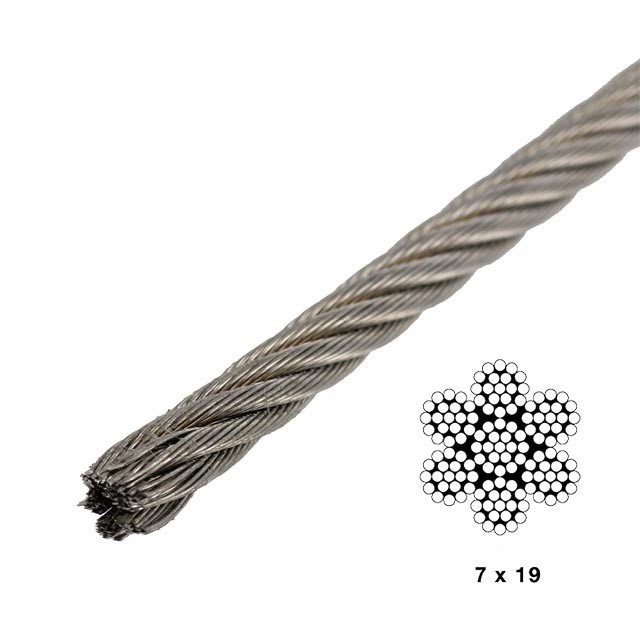

7X19 Stainless Steel Wire Rope for Architecture and Transportation

Product Details





1.Standard:DIN, GB, EN12385-4, AISI, BS, ASTM, JIS etc
2.Diameter:From 0.5 mm to 100mm
3.T/S:1470MPA, 1570MPA, 1670MPA, 1770MPA, 1870MPA, 1960MPA
4.Packing:Wooden box and bagging, or according to customers' request.
5.Delivery date:10-30days after the order confirmation.
6.We have ISO and SGS certificates





ROPE COMPONENTS

WIRE

The smallest component of a rope.

STRAND

The element of a rope that is composed of a construction of wires which are helically stranded in the same direction in one or more layers around a core.

7X19 3mm Stainless Steel Wire Rope For Architecture And Transportation 0

CORE

The element in the middle of a round rope, around which the strands of a stranded rope or the ropes of a cable laid rope are helically stranded.

Fibre core FC

  • Natural fibre core NFC
  • Synthetic fibre core SFC

Steel core WC

  • Wire strand core WSC
  • Independent wire rope core IWRC
ROPE

Combination of core and strands.

7X19 3mm Stainless Steel Wire Rope For Architecture And Transportation 1

1 - Rope
2 - Core strand/rope
3 - Strand
4 - Wire

CLASSIFICATION ACCORDING TO INTENDED USE

RUNNING ROPES

Ropes that run over rollers, discs or reels and thus assume their bend.
Examples: hoisting ropes, crane ropes, lift ropes, scraper ropes and haulage ropes for cable cars.

STANDING ROPES

Ropes which are for the most part firmly clamped and not moved over rollers.
Examples: anchoring ropes for masts and booms and guide cables for lifts.

CARRYING ROPES

Ropes on which rolls of conveying devices run.
Examples: carrying ropes for cable cars, cable cranes and gravity return scrapers.

LIFTING SLINGS

Approx.Weight



Diameter(mm)

1.2 1.5 1.8 2 2.5 3 4 5 6 7 8 10 12 14 16 18

kg/100m

0.54 0.85 1.23 1.52 2.38 3.42 6.09 9.52 13.71 18.66 24.38 38.1 54.86 74.67 97.53 123.44



Minimun Breaking Load



Diameter(mm)

1.2 1.5 1.8 2 2.5 3 4 5 6 7 8 10 12 14 16 18

MBL/KN

0.75 1.17 1.68 2.08 3.25 4.69 8.33 13.03 18.76 25.54 33.35 52.12 75.05 102.16 133.43 168.88



Stainless steel wire rope Mainly used for decoration, chemical metallurgy, petroleum machinery, port machinery, nuclear industry, the coal, metallurgy, chemicals, shipbuilding, bridges, electricity, rubber, military, tourism, water, light industry, aviation and aerospace industry.




Packaging


Packing: Export Package

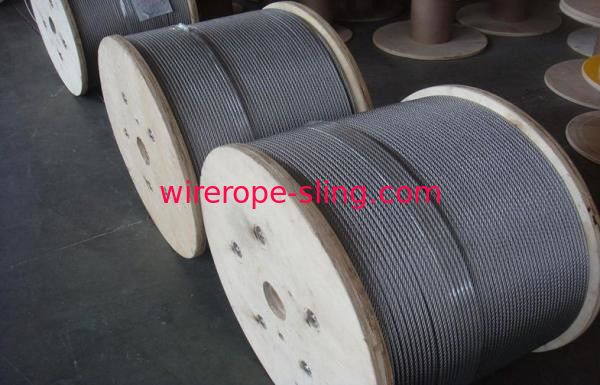

Inner packing:
Wooden reel and craft paper
Outer packing:
Wooden pallet or according to customer's request

7X19 3mm Stainless Steel Wire Rope For Architecture And Transportation 2




Strength:

1. The most powerful stainless steel wire rope manufacturer in Jiangsu Province,China.
2. More than 18 years' manufacture and export experience.
3. 80% products are sold to Europe and America.
4. Perfect electro polishing and annealing.

5. Attention on every details and good after-sale sevice.
