Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | CCS,DNV,BV |
| Model Number: | WL10100FSL |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 500sets |
| Price: | USD50-150PER SET |
| Packaging Details: | Standard export carton |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000pcs/week |
|
Detail Information |
|||
| Dia.: | 5/8" | Standard: | AISI, ASTM, BS, DIN, GB, JIS |
|---|---|---|---|
| Length: | 100FT,150FT,200FT,250FT | Construction: | 6 X 19 Fiber Core |
| Alloy Or Not: | No | Safety Factor: | 5:1 |
| Applications: | Industrial | HS Code: | 73129000 |
| High Light: |
wire rope slings with hooks,steel wire sling |
||
Product Description
All winch lines are right regular lay. Meets or exceeds all DOT requirements
Construction: 6 x 19 Fiber Core

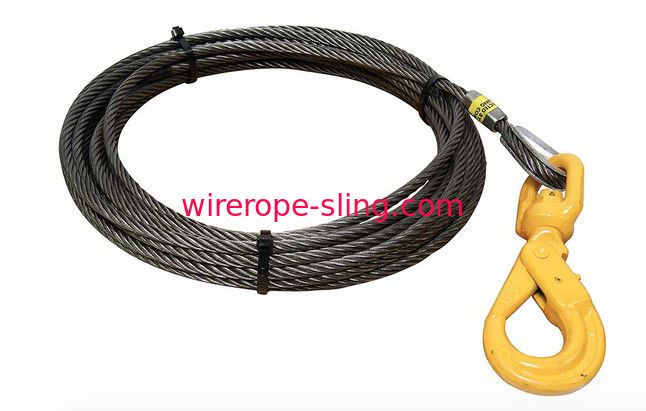

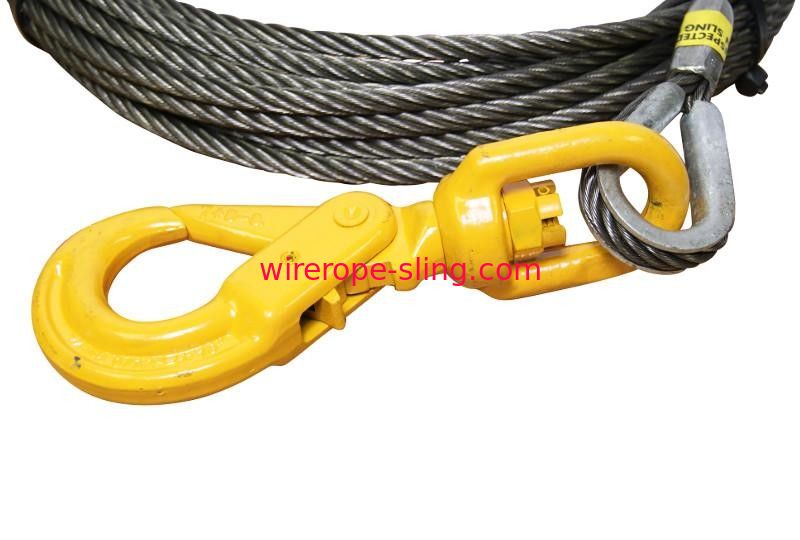

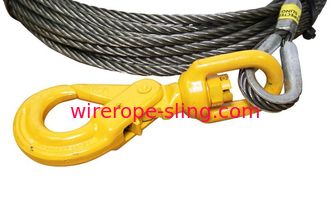

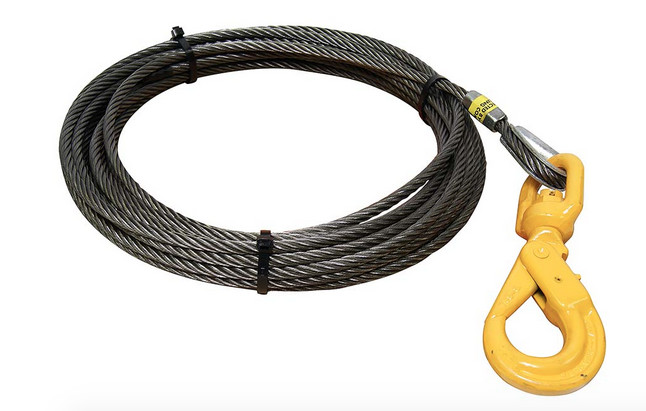

Hook Size: 6 Ton Hook - Swivel Self Locking Hook - Hook color may vary from picture
Breaking Strength: 36,600 LBS
Safety Note: Minimum Break Strength - apply to new unused wire rope assemblies. Always use the size and type of wire rope specified by the wrecker or winch manufacturer. Never exceed the working load limit.
| Wire Rope Size | Construction | Length (ft) | Breaking Strength (lbs) | Weight (lbs) |
| 5/16" | 6x19 Class | 50 | 10,540 | 12.09 |
| 5/16" | 6x19 Class | 75 | 10,540 | 16.59 |
| 5/16" | 6x19 Class | 100 | 10,540 | 21.09 |
| 5/16" | 6x19 Class | 125 | 10,540 | 25.59 |
| 5/16" | 6x19 Class | 150 | 10,540 | 30.09 |
| 3/8" | 6x19 Class | 50 | 15,100 | 16.25 |
| 3/8" | 6x19 Class | 75 | 15,100 | 22.75 |
| 3/8" | 6x19 Class | 100 | 15,100 | 29.25 |
| 3/8" | 6x19 Class | 125 | 15,100 | 35.75 |
| 3/8" | 6x19 Class | 150 | 15,100 | 42.25 |
| 7/16" | 6x19 Class | 50 | 20,400 | 23.49 |
| 7/16" | 6x19 Class | 75 | 20,400 | 32.24 |
| 7/16" | 6x19 Class | 100 | 20,400 | 40.99 |
| 7/16" | 6x19 Class | 125 | 20,400 | 49.74 |
| 7/16" | 6x19 Class | 150 | 20,400 | 58.49 |
| 1/2" | 6x19 Class | 50 | 26,600 | 29.27 |
| 1/2" | 6x19 Class | 75 | 26,600 | 40.77 |
| 1/2" | 6x19 Class | 100 | 26,600 | 52.27 |
| 1/2" | 6x19 Class | 125 | 26,600 | 63.77 |
| 1/2" | 6x19 Class | 150 | 26,600 | 75.27 |
| 1/2" | 6x19 Class | 175 | 26,600 | 86.77 |
| 1/2" | 6x19 Class | 200 | 26,600 | 98.27 |
| 9/16" | 6x19 Class | 50 | 33,600 | 40.37 |
| 9/16" | 6x19 Class | 75 | 33,600 | 55.12 |
| 9/16" | 6x19 Class | 100 | 33,600 | 69.87 |
| 9/16" | 6x19 Class | 125 | 33,600 | 84.62 |
| 9/16" | 6x19 Class | 150 | 33,600 | 99.37 |
| 9/16" | 6x19 Class | 175 | 33,600 | 114.12 |
| 9/16" | 6x19 Class | 200 | 33,600 | 128.87 |
| 5/8" | 6x19 Class | 50 | 41,200 | 47.15 |
| 5/8" | 6x19 Class | 75 | 41,200 | 65.15 |
| 5/8" | 6x19 Class | 100 | 41,200 | 83.15 |
| 5/8" | 6x19 Class | 125 | 41,200 | 101.15 |
| 5/8" | 6x19 Class | 150 | 41,200 | 119.15 |
| 5/8" | 6x19 Class | 175 | 41,200 | 137.15 |
| 5/8" | 6x19 Class | 200 | 41,200 | 155.15 |
| 5/8" | 6x19 Class | 225 | 41,200 | 173.15 |
| 5/8" | 6x19 Class | 250 | 41,200 | 191.15 |
| 3/4" | 6x19 Class | 50 | 58,800 | 72.37 |
| 3/4" | 6x19 Class | 75 | 58,800 | 98.37 |
| 3/4" | 6x19 Class | 100 | 58,800 | 124.37 |
| 3/4" | 6x19 Class | 125 | 58,800 | 150.37 |
| 3/4" | 6x19 Class | 150 | 58,800 | 176.37 |
| 3/4" | 6x19 Class | 175 | 58,800 | 202.37 |
| 3/4" | 6x19 Class | 200 | 58,800 | 228.37 |
| 3/4" | 6x19 Class | 225 | 58,800 | 254.37 |
| 3/4" | 6x19 Class | 250 | 58,800 | 280.37 |
| 3/4" | 6x19 Class | 275 | 58,800 | 306.37 |
| 3/4" | 6x19 Class | 300 | 58,800 | 332.37 |
How to choose material:1stain1.1.1.
1.Stainless steel :
Providing good corrosion resistance and strength comparable to galvanized carbon steel grades.
2.Galvanized steel:
Zinc coated carbon steel offers some corrosion resistance. It remains ductile over long periods of working. Usually higher break strengths than stainless steels.
| Nominal Diameter | Approximate Mass | Minimum breaking loads - 1770 Mpa | |
| [mm] | [kg/m] | [kN] | [Kg] |
| 3 | 0.034 | 5.77 | 588 |
| 4 | 0.061 | 10.25 | 1,045 |
| 5 | 0.095 | 16.02 | 1,633 |
| 6 | 0.137 | 23.07 | 2,352 |
| 7 | 0.187 | 31.40 | 3,202 |
| 8 | 0.244 | 41.01 | 4,182 |
| 9 | 0.309 | 51.90 | 5,293 |
| 10 | 0.381 | 64.07 | 6,535 |
| 11 | 0.461 | 77.53 | 7,908 |
| 12 | 0.549 | 92.27 | 9,411 |
| 13 | 0.644 | 108.29 | 11,045 |
| 14 | 0.747 | 125.59 | 12,809 |
| 16 | 0.975 | 164.03 | 16,731 |
| 18 | 1.234 | 207.60 | 21,175 |
| 20 | 1.524 | 256.30 | 26,142 |
