Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | ISO9001 |
| Model Number: | WB1 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 100sets |
| Price: | US$1-US$20 per Set |
| Packaging Details: | Polyster bag+ Standard Export Carton |
| Delivery Time: | 5-15 Working Days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000Sets Monthly |
|
Detail Information |
|||
| Name: | Whipcheck Safety Cable | Standard: | AISI, ASTM, BS, DIN, GB |
|---|---|---|---|
| Alloy Or Not: | Non-alloy | Diameter: | 1mm-5mm,or As Your Requirement |
| Process: | Die Casting,punching | Application: | Use Of Whip Checks |
| Keyword: | Hose Safety Cable | Steel Grade: | Carbon Steel & Stainless Steel |
| High Light: |
wire rope slings with hooks,steel wire sling |
||
Product Description
Hose fittings connect, control, change the direction of, and terminate the flow in piping and hose systems. They are made of brass, stainless steel, galvanized steel, and other materials that resist corrosion, pressure, and wear. Hose fittings have various types of connections, including threaded, barbed, push-to-connect, dry disconnect, and others including those based on internationally-accepted specifications. Hose fittings are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.

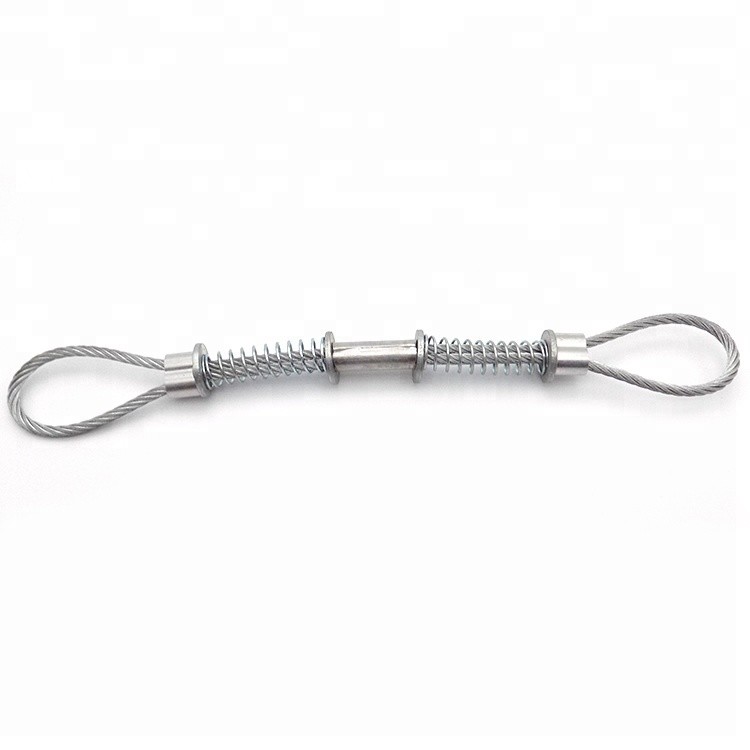

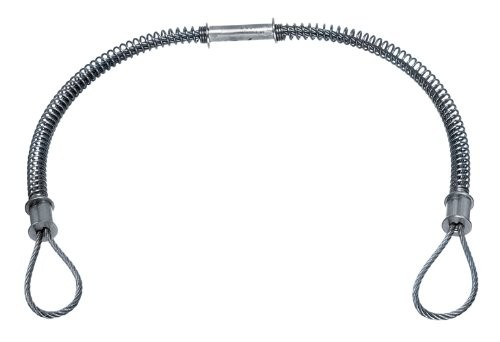

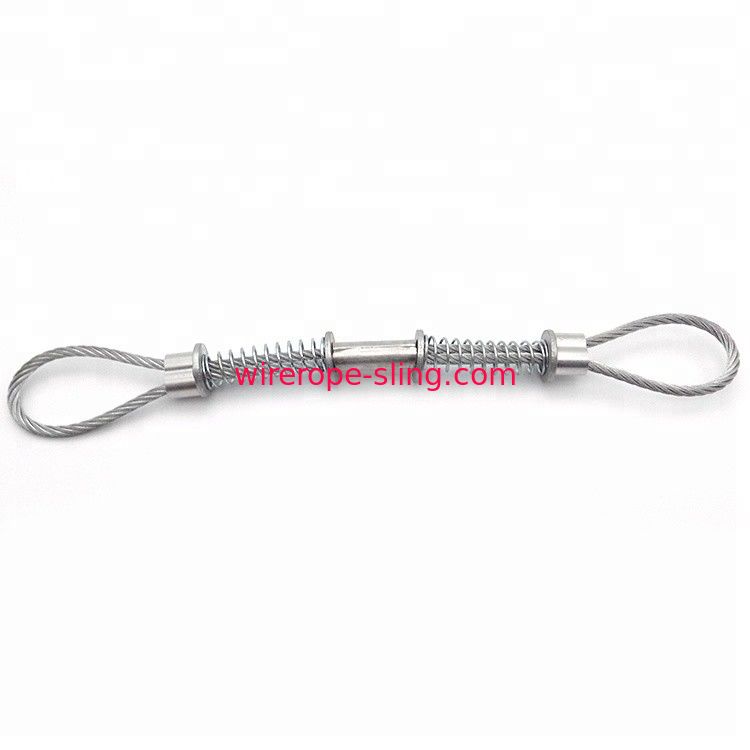

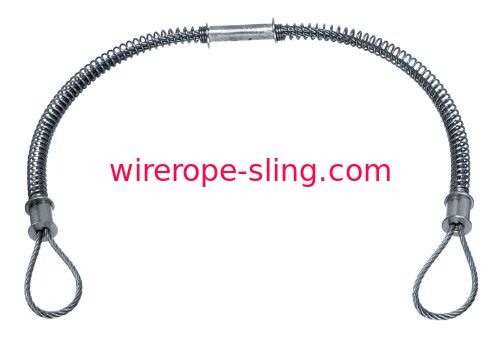

Whipcheck safety cable is made of ssteel cables and spring. In order to avoid separation of hose assembly, we could use whipcheck safety cable to connect them. When a hose is disconnected under pressure the hose will whip violently potentially causing injury to those nearby. People and equipments will be protected by whipcheck safty cable.
|
HOSE TO HOSE |
||||
|
PART NUMBER |
HOSE ID(IN.) |
CABLE(IN.) |
LENGTH(IN.) |
MAX. WORK.PRESS.(PSI) |
|
WB1 |
1/2"-1-1/4" |
1/8" |
20-1/4" |
200 |
|
WB3 |
1/2"-2" |
3/16" |
28" |
200 |
|
WA2 |
1-1/2"-3" |
1/4" |
38-1/4" |
200 |
|
WA4 |
4" |
3/8" |
44" |
200 |
|
|
|
|
|
|
|
|
|
|
|
|
|
HOSE TO TOOL |
||||
|
PART NUMBER |
HOSE ID(IN.) |
CABLE(IN.) |
LENGTH(IN.) |
MAX. WORK.PRESS.(PSI) |
|
WSR1 |
1/2"-1-1/4" |
1/8" |
20-1/4" |
200 |
|
WSR3 |
1/2"-2" |
3/16" |
28" |
200 |
|
WSR2 |
1-1/2"-3" |
1/4" |
38" |
200 |
|
WSR4 |
4" |
3/8" |
44" |
200 |
1. How do you design a Whipcheck Steel Safety Cables And Plated Springs With Aluminium Ferrules ?
Of course ,we have to know your application firstly and a number of factors have to be considered, such as work load, safety abrasion, environment ,cycle life, flexibility, cost, When we design the Whipcheck Steel Safety Cables And Plated Springs With Aluminium Ferrules .
2. How to place an order?
We produce according to customers’ specifications,so you’d better give us complete information as specified below:
Material,Diameter,Construction,Coating,Length,Packing,Quantity, Remarks
3. Are your products of good quality? How can I trust you?
Yes. We are a professional manufacturer of wire assemblies with 15 years producing experience in China .We have always been cooperating with domestic and overseas customers and partners with the first- class quality and service to make great achievements. If this is your first time to contact us, please trust us, we’ll not let you down.
4. What’s the lead time of my order?
It was largely depend on the size of your order .normally ,15days . if you are in urgent need of it ,we will try my best to met your requirement.
