China Wire Rope Sling manufacturer

Whipcheck Safety Cable Wire Rope Lifting Sling Hose To Tool 1/8" Diameter 125 PSI

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: ISO9001
Model Number: WB1
Payment & Shipping Terms:
Minimum Order Quantity: 100sets
Price: US$1-US$20 per Set
Packaging Details: Polyster bag+ Standard Export Carton
Delivery Time: 5-15 Working Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000Sets Monthly

Detail Information

Name:Whipcheck Safety CableStandard:AISI, ASTM, BS, DIN, GB
Alloy Or Not:Non-alloyDiameter:1mm-5mm,or As Your Requirement
Process:Die Casting,punchingApplication:Use Of Whip Checks
Keyword:Hose Safety CableSteel Grade:Carbon Steel & Stainless Steel
High Light:

wire rope slings with hooks

,

steel wire sling

Product Description



Whipcheck Safety Cable, Hose-to-tool, Wire Rope Sling, 1/8" Diameter, 125 PSI



Product features

  • Safety cable for reducing the chance of injury if a hose connection separates
  • Connects hose to equipment
  • Maximum hose pressure of 125 psi





Product description

Hose fittings connect, control, change the direction of, and terminate the flow in piping and hose systems. They are made of brass, stainless steel, galvanized steel, and other materials that resist corrosion, pressure, and wear. Hose fittings have various types of connections, including threaded, barbed, push-to-connect, dry disconnect, and others including those based on internationally-accepted specifications. Hose fittings are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.







Whipcheck Safety Cable Wire Rope Lifting Sling Hose To Tool 1/8" Diameter 125 PSI 0

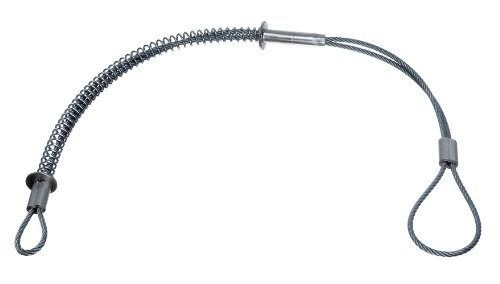

Whipcheck Safety Cable Wire Rope Lifting Sling Hose To Tool 1/8" Diameter 125 PSI 1



Whipcheck Safety Cables are used at all blast hoses for the safe holding of coupled connections in case of accidental separation. The Whipcheck Safety Cables relieve the couplings of the weight of the hose and reduce the danger caused by hose couplings failure. The Cables also help keeping the blast hose from whipping about in the event of a coupling failure.
Hose couplings may separate from air and blast hoses for a variety of reasons:
- Coupling screws may lose their holding power due to internal wear on the hose tubing
- Use of improper coupling screws may interfere with the proper fit between couplings and hose
- Hose outer diameter may be too small for the coupling
- The continual strain caused by pulling hoses around job sites can weaken the coupling’s grip on the hose
- Couplings can also have been damaged by vehicles or other equipment.
Whipcheck Safety Cables are strongly recommended by vertical applications, when air and blast hoses are suspended. Hose couplings are not designed to support the weight of the hose. Additional supports are required to relieve the added tension.
Constructed of corrosion resistant, high strength steel, Whipcheck Safety Cables may be installed on hose-to-hose and hose-to-fixed coupling connections.

Hose to Tool
Part Number Hose ID(in.) Cable(in.) Length(in.) Max.Work. Press.(PSI)
WSR1 1/2 - 1-1/4 1/8 20-1/4 200
WSR3 1/2 - 2 3/16 28 200
WSR2 1-1/2 - 3 1/4 38 200
WSR4 4 3/8 44 200



Hose to Hose
Part Number Hose ID(in.) Cable(in.) Length(in.) Max.Work. Press.(PSI)
WB1 1/2 - 1-1/4 1/8 20-1/4 200
WB3 1/2 - 2 3/16 28 200
WA2 1-1/2 - 3 1/4 38-1/4 200
WA4 4 3/8 44 200



FAQ

1. How do you design a Whipcheck Steel Safety Cables And Plated Springs With Aluminium Ferrules ?

Of course ,we have to know your application firstly and a number of factors have to be considered, such as work load, safety abrasion, environment ,cycle life, flexibility, cost, When we design the Whipcheck Steel Safety Cables And Plated Springs With Aluminium Ferrules .



2. How to place an order?

We produce according to customers’ specifications,so you’d better give us complete information as specified below:

Material,Diameter,Construction,Coating,Length,Packing,Quantity, Remarks



3. Are your products of good quality? How can I trust you?

Yes. We are a professional manufacturer of wire assemblies with 15 years producing experience in China .We have always been cooperating with domestic and overseas customers and partners with the first- class quality and service to make great achievements. If this is your first time to contact us, please trust us, we’ll not let you down.



4. What’s the lead time of my order?

It was largely depend on the size of your order .normally ,15days . if you are in urgent need of it ,we will try my best to met your requirement.
