Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | ISO9001 |
| Model Number: | WB10 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 100sets |
| Price: | US$1-US$20 per Set |
| Packaging Details: | Polyster bag+ Standard Export Carton |
| Delivery Time: | 5-15 Working Days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000Sets Monthly |
|
Detail Information |
|||
| Name: | Whipcheck Safety Cable | Standard: | AISI, ASTM, BS, DIN, GB |
|---|---|---|---|
| Alloy Or Not: | Non-alloy | Diameter: | 1mm-5mm,or As Your Requirement |
| Process: | Die Casting,punching | Application: | Use Of Whip Checks |
| Keyword: | Hose Safety Cable | Steel Grade: | Carbon Steel & Stainless Steel |
| High Light: |
wire rope slings with hooks,steel wire sling |
||
Product Description
WHIPCHECK
SIMPLE AND EFFECTIVE. AN ESSENTIAL SAFETY REQUIREMENT, WHIPCHECK SAFETY CABLES SHOULD BE USED ON ALL AIR HOSE AND BLAST HOSE CONNECTIONS TO GREATLY REDUCE THE DANGER CAUSED BY HOSE COUPLING FAILURE.
MANY SITES ARE NOW INSISTING ON THESE AS A BASIC RISK ASSESSMENT SAFETY REQUIREMENT
FOR 1/2" i.d. TO 1.1/4" i.d. HOSES.
COUPLINGS MAY SEPARATE FROM AIR & BLAST HOSES FOR A NUMBER OF REASONS........
* HOSE OUTER DIAMETER TOO SMALL FOR COUPLING.
* CONTINUAL STRESS & STRAIN CAUSED BY DRAGGING HOSES AROUND JOB SITES.
* COUPLING SCREWS LOSE GRIPPING POWER DUE TO INTERNAL HOSE WEAR.
* GENERAL CORROSION AND WEAR & TEAR.
* USE OF INCORRECT SIZE OR TENSILE STRENGTH SCREWS AND BOLTS.
Whipcheck Safety Cables are available in two cable diameters and a number of different configurations. Whipcheck offer additional safety for compressor hoses in enclosed or critical enviroments. A Whipcheck is also available. Whipcheck safety cables offer additional safety for compressor hoses in enclosed or critical environment.
Whipcheck safety cables have been used for many years on air compressor hoses to prevent hose ends from ‘whipping’ if the coupling blows out of the hose. Whipcheck safety cables are available in 1/8″ (3.2mm) and 1/4″ (6.35mm) cable diameters and in two basic configurations – hose to hose and hose to tool. Hose to Hose are used at the joint between two hose assemblies. Hose to Tool are used at the junction between the hose and the tool but are also very important at the compressor end. The compressed gas can be very hot causing the hose to soften which in turn can lead to an increased possibility of failure.

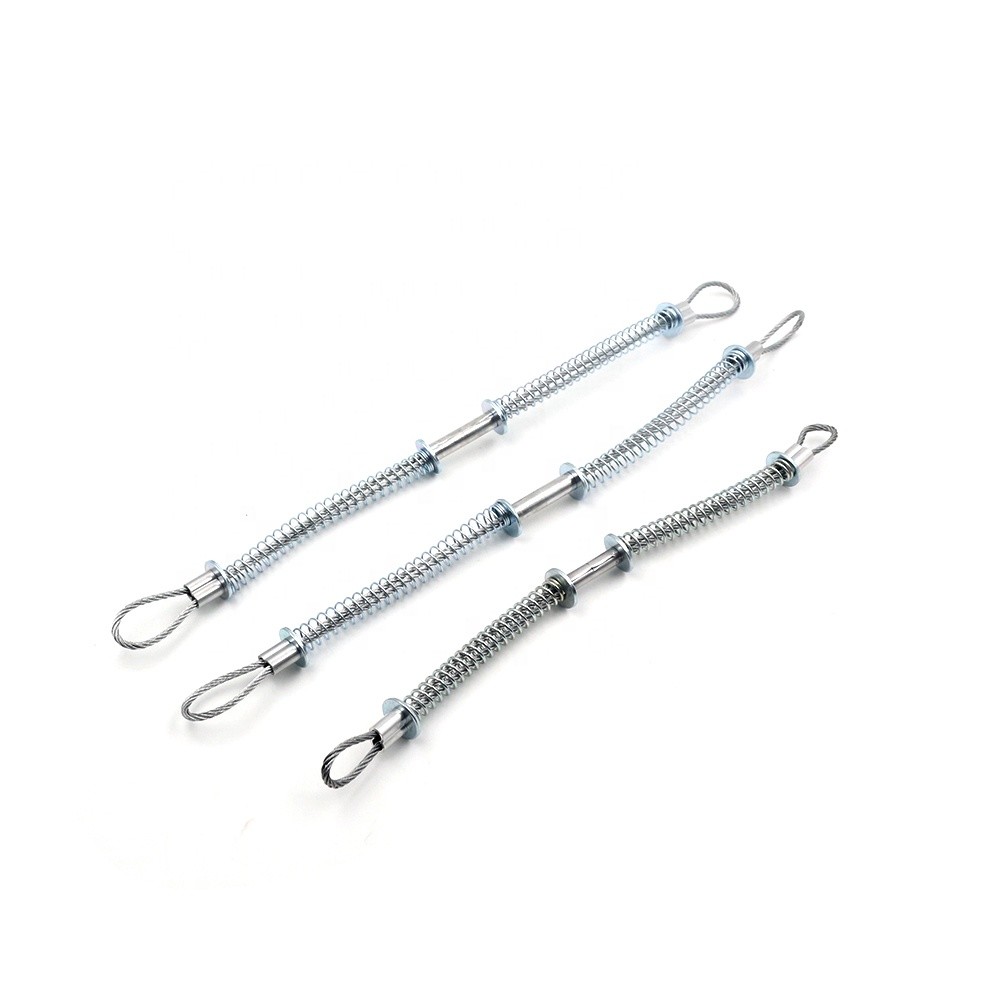

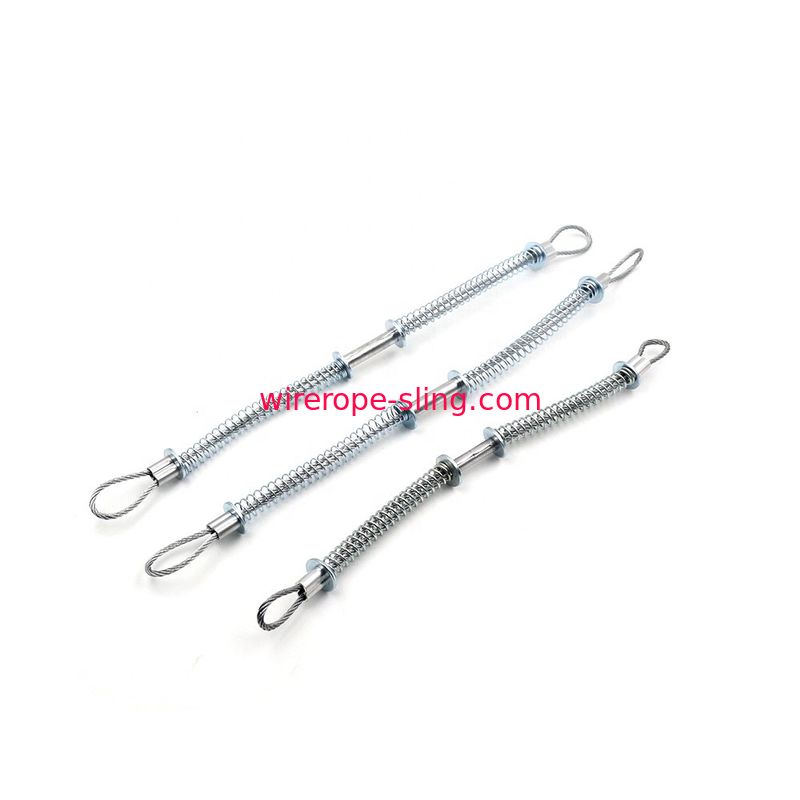

Whipcheck Hose To Hose
Safety Cable
Whipcheck Hose To Hose
Stainless Steel
Whipcheck Hose To Hose
Copper Ferrules
Whipcheck Hose To Tool
Safety Cable
A pressurized air hose in case of hose failure or accidental uncoupling could cause the hose assembly to whip violently due to the sudden release of energy. The lethal whipping hose lethal can create a potentially dangerous situation. In such a scenario Superex whipcheck safety cables ensure safety from injury and property damage.
Whipchecks are hose arrestors made of corrosion resistant, high strength – steel, aluminum, copper or stainless steel which on installation diverts strain from the coupling to the whip check.
Installation of whipcheck is easy and requires no tools- the spring loaded loops of the whipcheck are opened and slipped over each hose providing a firm grip on the hose and avoiding it from whipping in case of accidents. Whipchecks are commonly used on hose for air, water blast, drilling, steam, concrete, sandblast or other high pressure applications.
Use of whipchecks has been made mandatory by Workers Compensation Boards, Bureau of Mines, OSHA and various other government bodies.

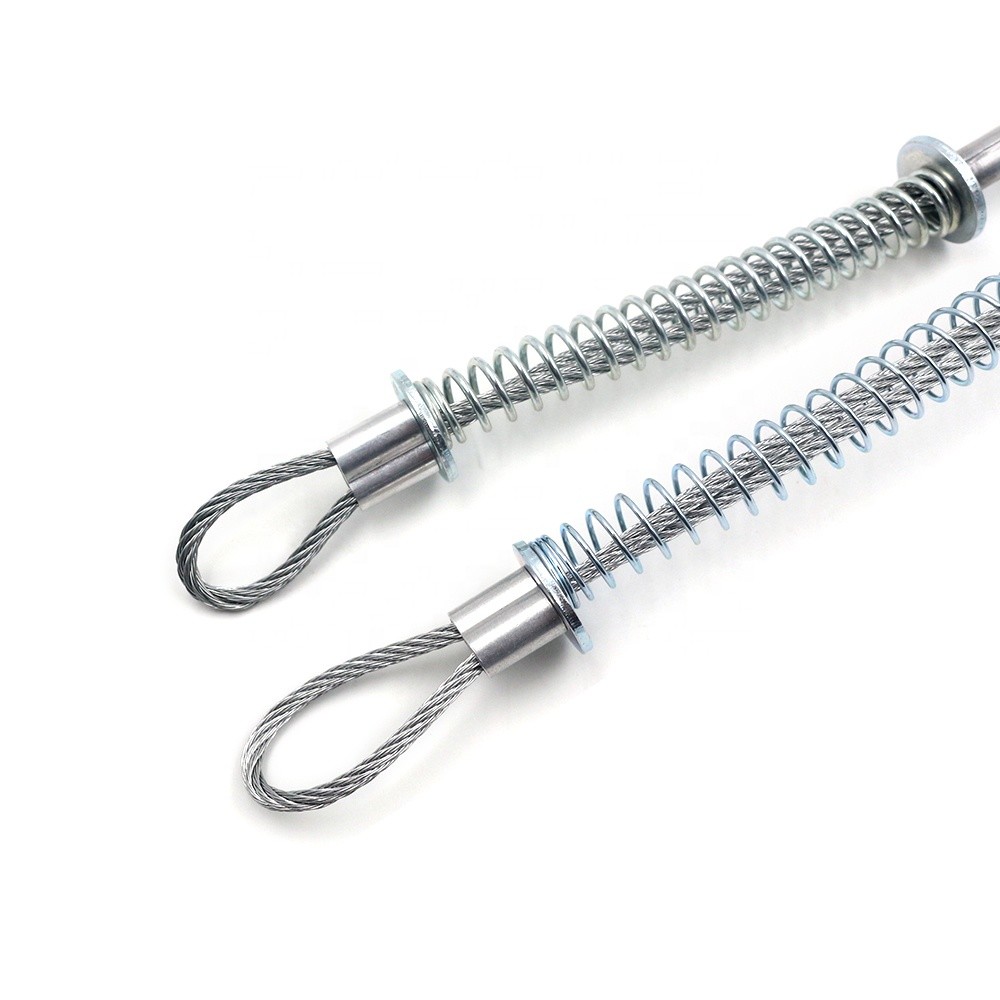

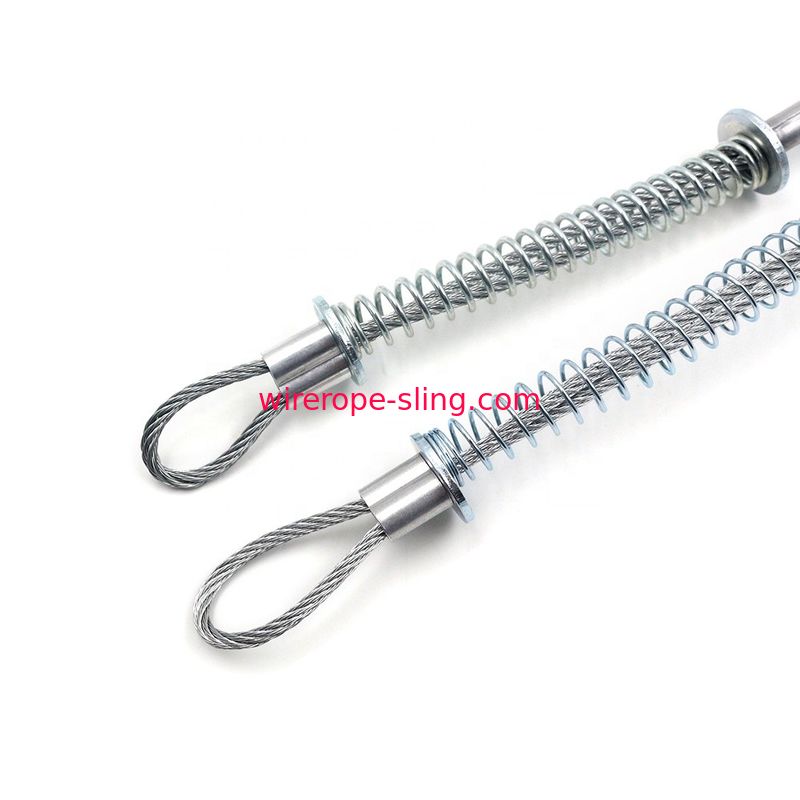

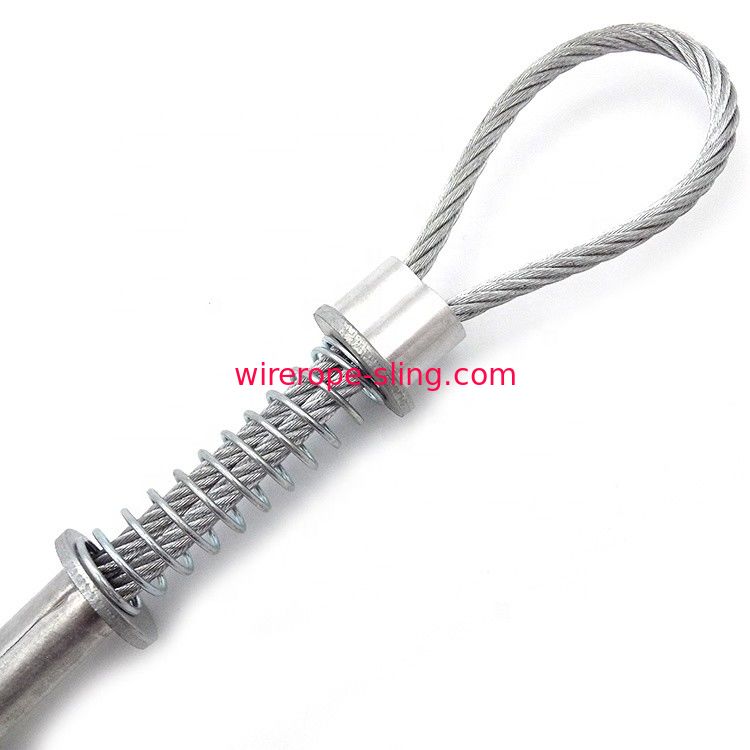

Whipcheck safety cables are strong steel cables with spring loaded loops. They are used on air and steam hoses for the safe holding of assemblies should they become accidently separated. When a hose is disconnected under pressure the hose will whip violently potentially causing injury to those nearby. Whipcheck safety cables prevent injury to operators and damage to plant and machinery.
For hose to hose service. Steel cables with steel ferrules.
| Product Code | Size (Cable Diameter) | Size (To Suit Hose Diameter) | Size (Length) |
|---|---|---|---|
| WCB1 | 1/8" | ½" - 1¼" | 21½" |
| WCA2 | ¼" | 1½" - 3" | 41¾" |
Stainless steel for hose to hose service where a high degree of corrosion resistance is needed such as the petrochemical industry.
| Product Code | Size (Cable Diameter) | Size (To Suit Hose Diameter) | Size (Length) |
|---|---|---|---|
| WCS1 | 1/8" | ½" - 1¼" | 21½" |
| WCS2 | ¼" | 1½" - 3" | 41¾" |
Copper ferrules with a steel cable for offshore and coal mining applications.
| Product Code | Size (Cable Diameter) | Size (To Suit Hose Diameter) | Size (Length) |
|---|---|---|---|
| WCC1 | 1/8" | ½" - 1¼" | 21½" |
| WCC2 | ¼" | 1½" - 3" | 41¾" |
