Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | ISO9001 |
| Model Number: | RA |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 5 Pieces |
| Price: | $15.00 - $50.00 / Pieces |
| Packaging Details: | Standard export package |
| Delivery Time: | 5-15 working Days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 80000 Piece/Pieces per Month |
|
Detail Information |
|||
| Type: | Cable Grip | Usage: | Insulation Protection |
|---|---|---|---|
| Name: | Lifting Ropes Slings | Packaging: | Plastic Bags And Carton Box |
| Color: | Gray,whith,etc | Duty: | Standard Duty |
| Head: | Single / Double Head | Application: | Cable System |
| High Light: |
wire rope slings with hooks,steel wire sling |
||
Product Description

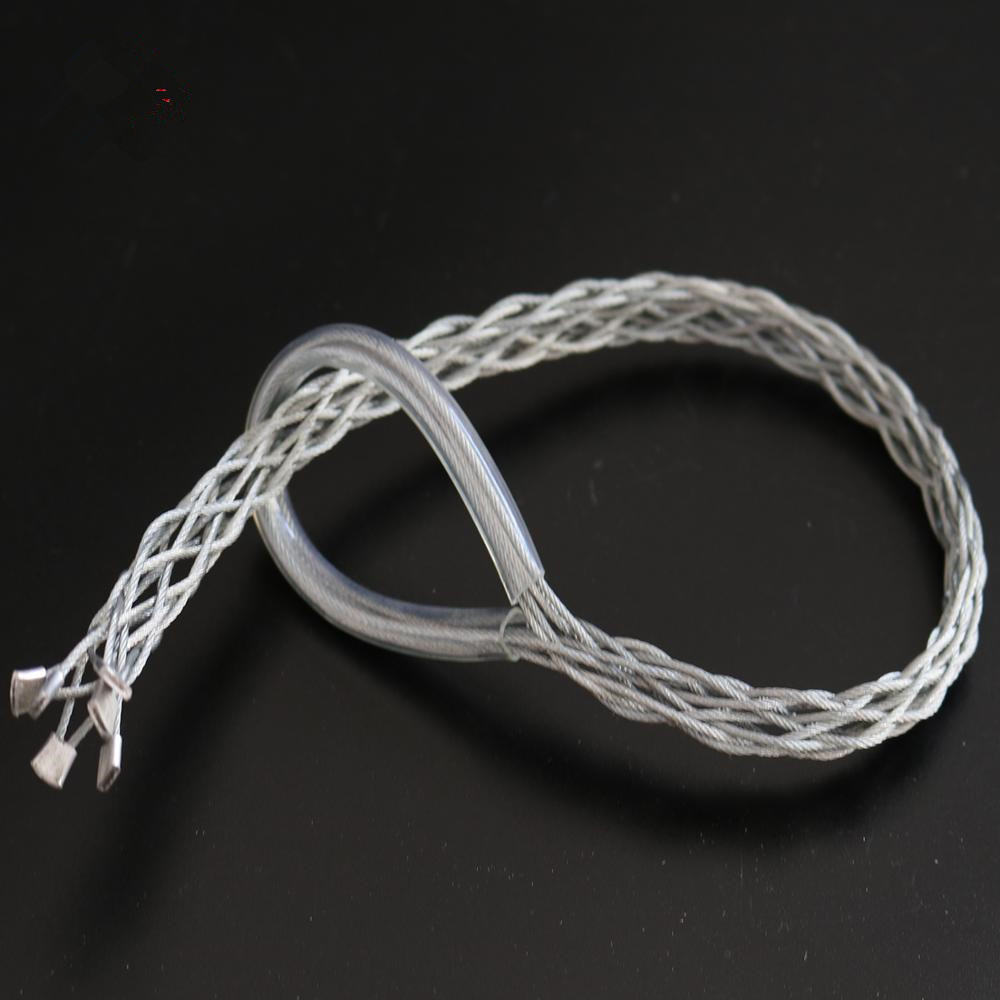

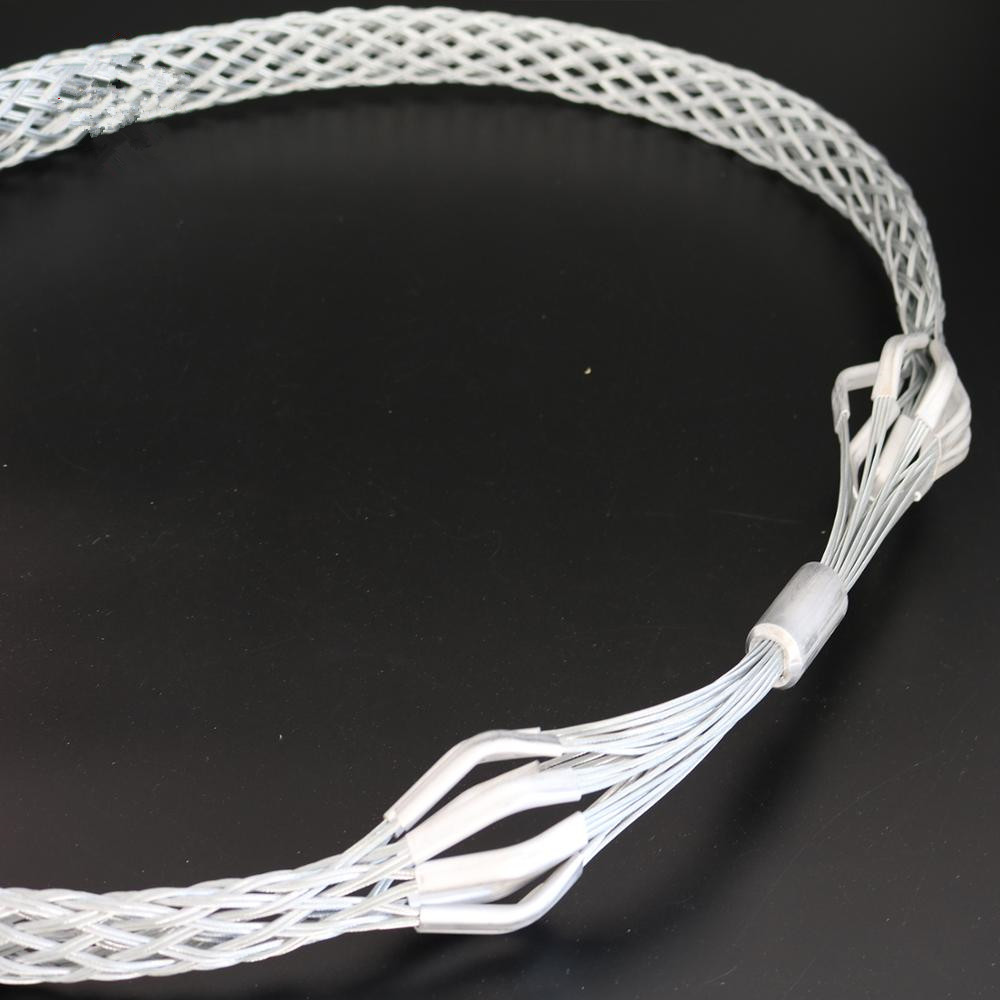

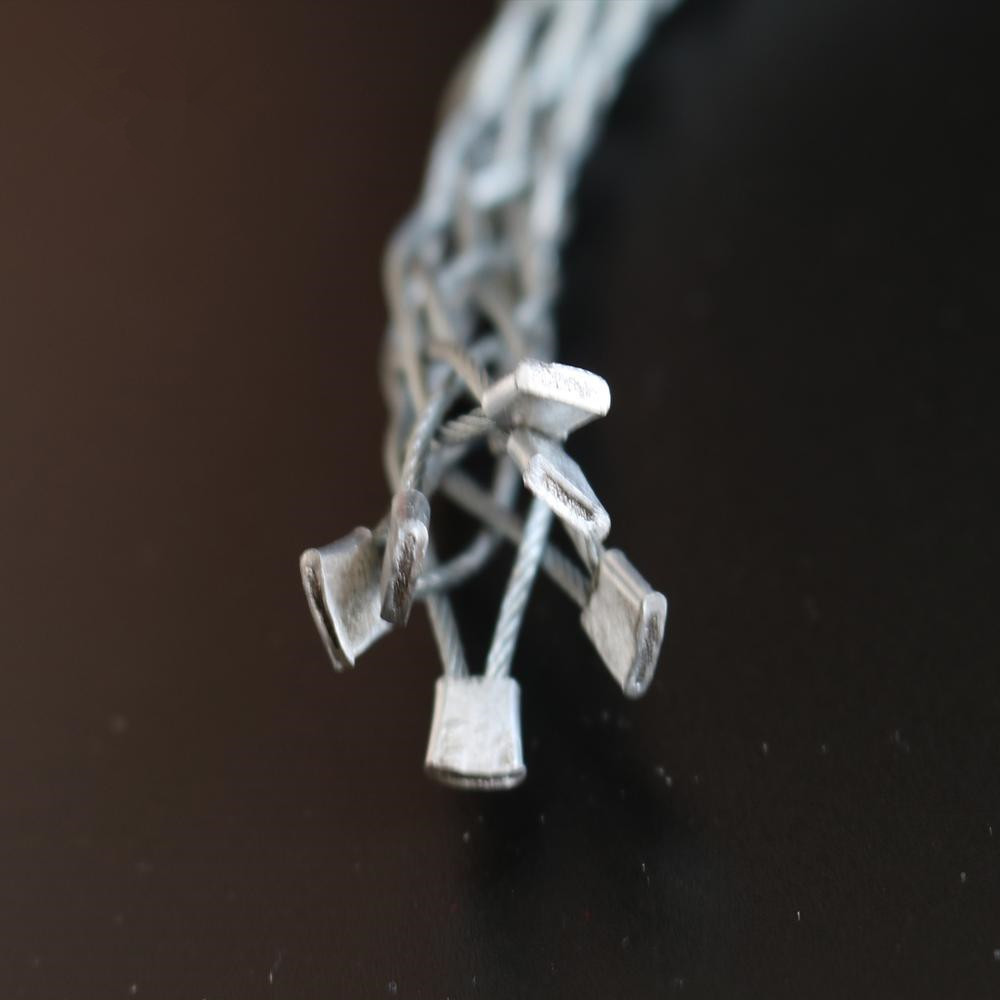

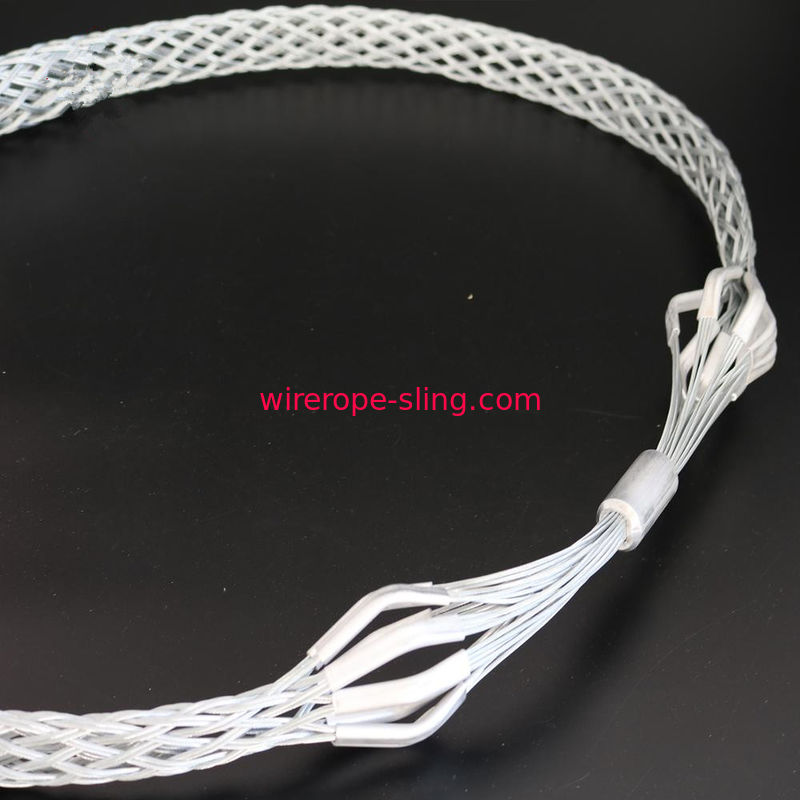

LKS Wire Mesh Cable Grips distribute stress over a large area to prevent damage to wire, cable and flexible conduit. They are built to perform their task over an extended period of time without loosening their hold. All LKS Wire Mesh Grips are available in a wide selection of cable ranges and eye styles where applicable, and can be used in conjunction with any RSR cord connector.
Remke’s line of Wire Mesh Cable grips includes:
1. with flexibility,moderate softness,high elasticity,wear resistance,corrosion resistance,closely mesh,the cable can easily set into the open mouth,passing the bend easily,will not hurt the cable,durable.
2. cable mesh grip is the mesh structure,more drawing and more tightly,only need to stay in the opposite direction to promote network,cable can be easily wear into or take out the cable.
3. using Swedish ALURIT hydraulic press to press at the pressure point of cable nets,smooth appearance,large tensile load strength.
4. the material can be hot dip galvanized high strength steel wire rope ,304,316 or 316L.Cable grip using composite weaving method of single strand,double strand,three strands or multi-strand multilayer.
The Cable Grip has two types of the material: stainless steel and hot galvanized steel.
| Model |
Size Range (mm) |
Total Length (mm) |
Breaking (KN) |
Strength (KG) |
| RA-18 | 13-18 | 1100 | 15.88 | 1600 |
| RA-25 | 18-25 | 1320 | 19.6 | 2000 |
| RA-30 | 25-34 | 1720 | 34.3 | 3500 |
| RA-40 | 35-42 | 1920 | 41.16 | 4200 |
| RA-50 | 42-50 | 2060 | 50.96 | 5200 |
| RA-55 | 50-60 | 2420 | 58.88 | 6000 |
| RA-70 | 60-75 | 2650 | 78.4 | 8000 |
| RA-80 | 75-90 | 3320 | 88.2 | 9000 |
| RA-100 | 90-110 | 3650 | 88.2 | 9000 |
| RA-120 | 110-130 | 3900 | 88.2 | 9600 |
The Cable Grip has many types like below.
The Cable Grip is usually packed by the carton.
1. How long is the warranty ?
Our products have 12 months warranty , and the product have high quality.
2. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings.
3. How to get a sample?
We can send you samples for free ,but you need pay the express charge.
4. Which payment terms is available?
We accept paypal,western union,visa,escrow, payment by T/T in advance or LC.
5. Are you a factory or trading company?
We are a trading company and have our own factory.
