Flexible Steel Towing Cable stainless steel wire rope for stainless steel cable railing kits

Product Description

7x19 AISI316 stainless steel wire rope is used for a wide range of applications. Extremely flexible when compared to both 1x19 and 7x7, the 7x19 construction is often used where a flexible stainless steel wire rope is particularly required. 7x19 performs well for running applications. Used extensively throughout the marine industry as well as for general engineering applications, 7x19’s excellent flexibility make it a favourite for control cable and a variety of marine rigging applications, examples of which are shown below:

In our Technical Guidance section on steel wire rope you’ll find the basic properties of a steel wire rope – how its constructed, different lay patterns different cores, the process of it being made, how to measure the width correctly and more.

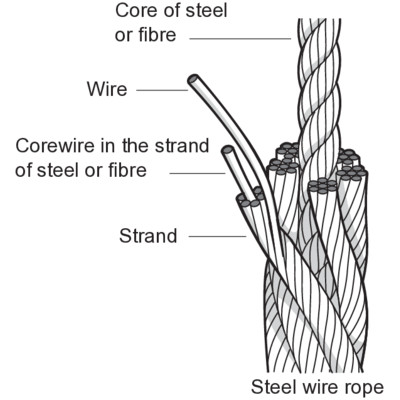

What is a Steel Wire Rope?

A steel wire rope is made up of individual steel wires spun into a strand. A number of strands are closed over a central core thus producing a rope. The number and size of wires must offer the best compromise possible between large wires for maximum corrosion protection and resistance to abrasion, and smaller wires for the necessary flexibility and handling.

The construction of a steel wire rope is expressed according to following:

e.g 6x36-FC      6 is the number of strands in the steel wire rope      36 is the number of wires in the strand      FC is the type of the core

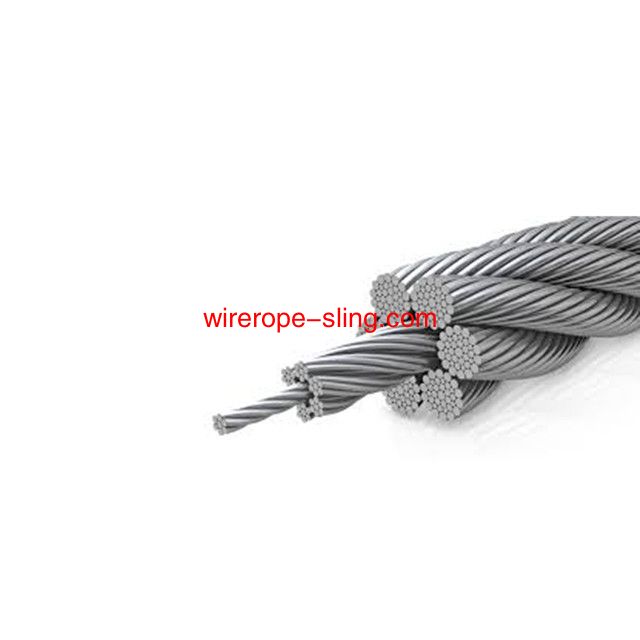

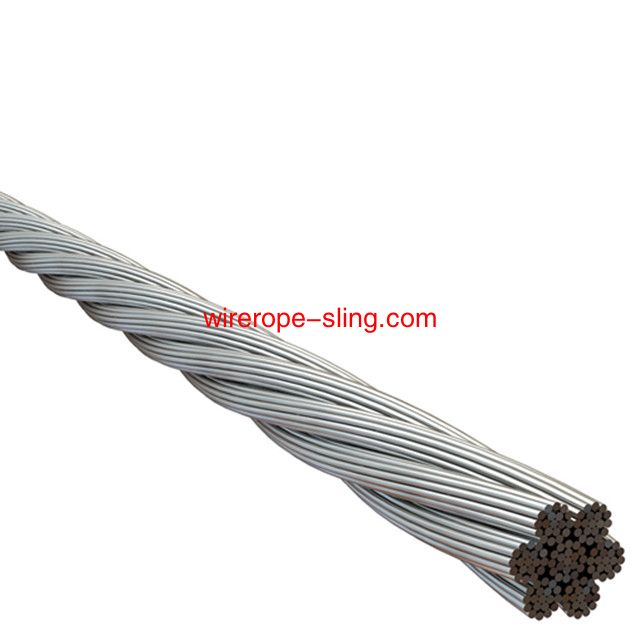

7 × 19 stainless steel wire rope

Features:

• Extremely flexible.

• Ideal for where flexible is particularly required.

• Suitable for serving as control cables.

• Available form 0.75mm to 16mm in diameter

Application:

• Marine industry such as rigging, sewage treatment work, steering cable and mast stay.

• Control cable, davit ropes, guardrail and wire rope slings.

7x19 Stainless Steel Wire Rope Specification:

inch to mm convert table ( 1 ft =12 inch ; 1 inch = 25.4 mm ) :

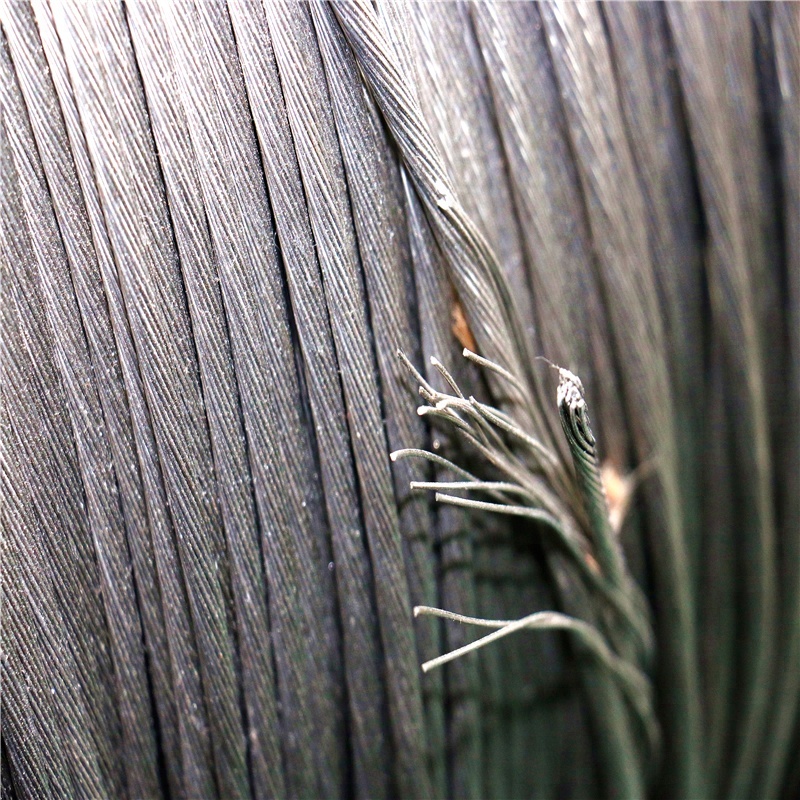

Detailed Images

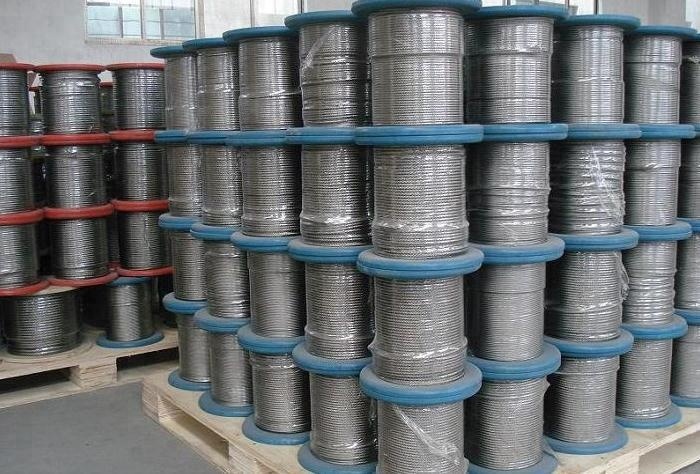

Packaging & Shipping

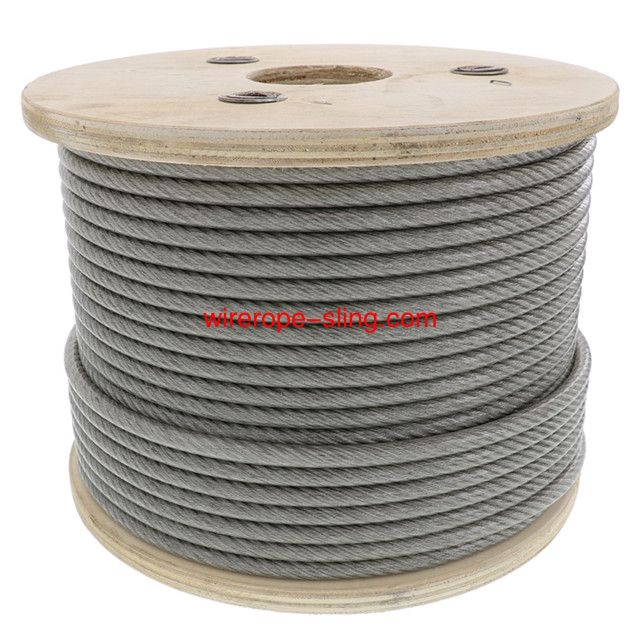

packed with hard strong plywood  spool , reel , bobbin . covered with clear plastic to aovid water or dirt

shipping mark as client requirement

1000m/reel 1500m/reel 2000m/reel 2500m/reel 3000m/reel and other length for your choice
