Product Details:
|
|
| Place of Origin: | SHANGHAI, CHINA |
|---|---|
| Brand Name: | LKS |
| Certification: | CE, ISO9001/SGS/ROHS |
| Model Number: | LKS-YW-86336 |
| Standard: | DIN, GB,JIS,ASTM |
| Length: | As customer's requested |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 600 PCS |
| Price: | Negotiable |
| Packaging Details: | 2pcs / PP bag, 35*25*18cm Carton |
| Delivery Time: | 8 - 15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 200,000 PCS a Month |
|
Detail Information |
|||

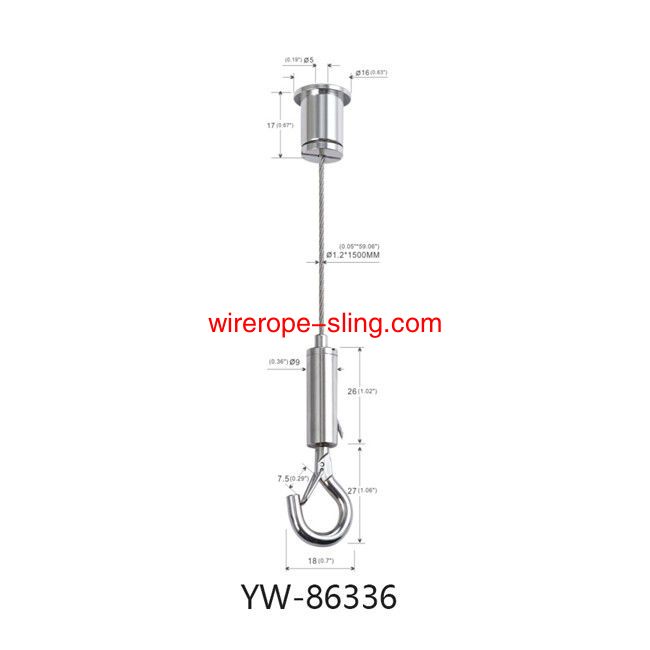

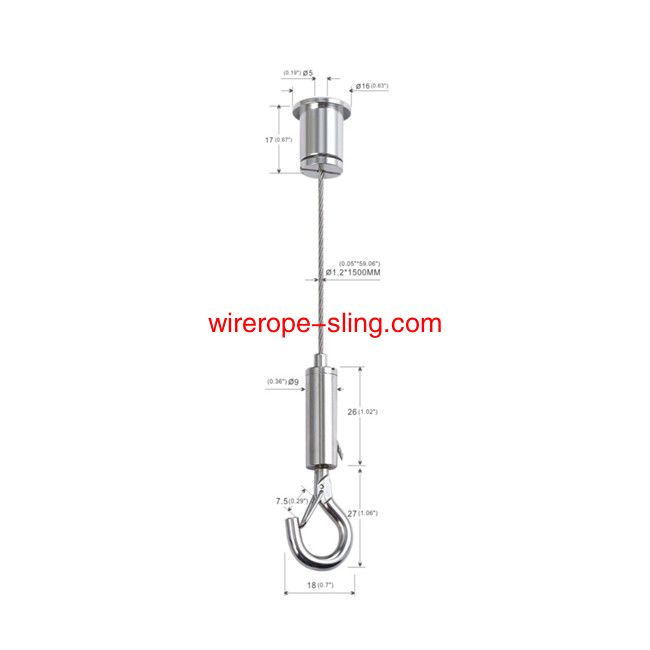

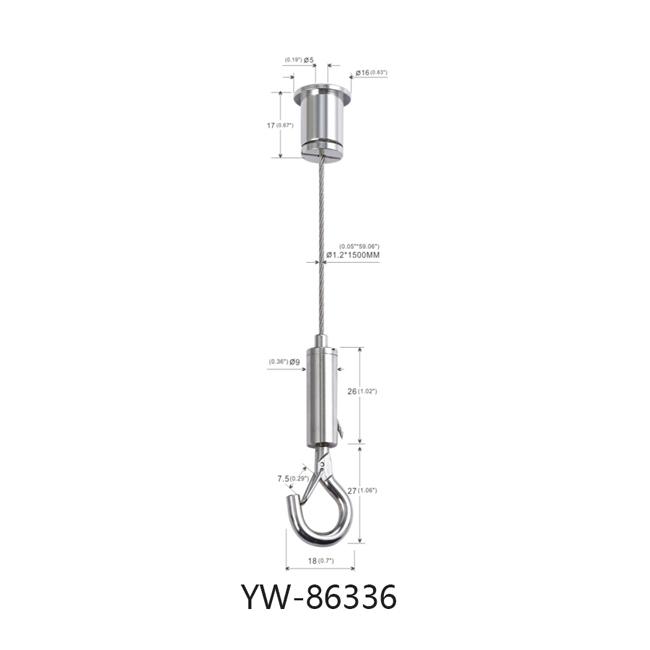

| Item Name | YW-86336 | Material | Brass |
|---|---|---|---|
| Wire Rope | Stainless Steel Wire Rope AISI304/316 | Wire Diameter | 1.2mm |
| Sample | Free Sample Available For Existing Dimension | Ceiling Size | 16*17mm |
| Wire Length | 1500mm, Customized | MOQ | 600pcs |
| Lead Time | 8-15 Business Days | Gripper Size | 9*26mm |
| High Light: |
Ceiling light Hanging kit,Light Hanging Kit |
||
Product Description
High quality wire cable display, sign and picture hanging systems. Innovative and fully expandable suspended displays offering incredible flexibility, so you can change shelving or layout configuration with ease.
Cable display systems are ideal for the home, museums, art galleries, public buildings, corporate identity, or wherever visual communication is important.
All display systems offer full range of mounting combinations: Floor to Ceiling, Floor to Wall, Ceiling to Wall, Wall to Wall and Ceiling Mount for Hanging Displays.
Our display systems are suited to current trends in interior design, offering elegance and transparency for cable suspension systems in the home or workplace.
Cable display supports and clamp accessories are designed to hold glass, acrylic and wooden shelving and display panels securely in place.
Please Note: Cable display systems are designed for interior use only.
All our cable display systems MUST only be used in conjunction with 7x7 construction stainless steel wire rope.
1.Main Wire Diameter | ∅1.2mm(0.047”) |
| 2.Construction | 1*7,7X7,1*19,7*19 etc |
| 3.Material | Stainless steel |
| 4.MOQ | 600pcs |
| 5.Length | 1500mm, as the requirement |
| 6.Type | Single leg |
| 7.Surface treatment | Chrome, Nickel, Black, White, and Silver |
| 8.End parts of fittings | Eyelets terminals Screws Clips Hooks All kinds of grippers Ceiling attachment locking screws A large selection of end fittings, including eye bolts, links, springs, hooks, thimble, clips, stops, ball, ball shanks, sleeve, stamped eye, handles, etc |
| 9.Lead time | 10-15 workdays if there were enough material in stock |
| 10.Sample | Free sample available if all of the dimensions same as our existing one |
We Have Wire Suspension Kits which allow you to fit our high quality LED panels to any flat surface, ceiling, or wall. Give Yourself The Benefits of LED Panel lighting Anywhere. A simple solution which compliments our panels and allows you to make a very neat and clean lighting solution.
The kit is supplied together with a 1m stop-end cable plus a suspension hook whose height can be set using the inbuilt self-locking clutch mechanism. Simply push the button to release the grip while fine adjustments are made.
Adjusting the position of the hook is as simple as pressing down the button on the top of the hook, then sliding it into the desired location and releasing the button.
Quick
Up to 6 times faster than traditional suspension systems.Safe
Can be pre-installed to channel using pre-fitted washer/nut or using retention clip reducing time working at height.Easy
The integral ergonomically designed release button allows for simple adjustment.
Versatile
Variety of foot attachments available to suit applications.
Secure
The button acts as a locking screw and the indicator clearly highlights the wire is locked in position for ultimate security.
Overall length tolerances required for cable assemblies and cut lengths of cable often dictate the production method to be used and thus the cost. Close tolerances frequently result in higher costs for both production and quality assurance. The allowable tolerance and inspection methods should be reviewed and agreed upon with our prior to production.
In determining the working load of a cable or wire rope, the direct stress plus the shock in bending loads must be considered. To assure long life, a reasonable safety factor should be applied to the working load. Standard industry practice is a 5:1 safety factor for many applications. Higher safety factors are used under certain conditions such as extreme shock loads, aircraft control cables, etc.
The fatigue life of the cable or wire rope will be greatly enhanced with properly designed pulleys. The root, or pulley tread diameter, is critical to the life of the cable.
1. Experience
10 years of experience specializing in manufacturing wire cable assembly and elastic ropes.
Our products have a wide range of applications inside the lighting fixture, flowerpot, billboards, vehicles such as brake, gear, window, and another hanging system.
2. High-quality direct manufacture
Our factory has advanced manufacturing equipment, including CNC high precision automatic lathes, Grinder and Polishing Machines, Automatic, Polishers, and ISO manage.
3.OEM
OEM, custom-made available, free samples available, we supply our customer with custom
designed fittings and terminals as per their specification.
4.High-efficient service
Our sales representatives are dedicated to guiding our clients through the entire assembly selection process.
We are willing and able to go the extra time to extend our clients' expectations.
FAQ
A: We are factory located in China Guangdong.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: 30% T/T in advance ,balance before shippment.
