China Wire Rope Sling manufacturer

Cable Wire Rope Sling Lanyard Loop And Small Size Stamped Eye And Snap Hooks

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: LKS-WRS2021
Payment & Shipping Terms:
Minimum Order Quantity: 500sets
Price: US$2.2-8.0 per set
Packaging Details: Standard export carton
Delivery Time: 10-15 days
Payment Terms: L/C, T/T, MoneyGram, Western Union
Supply Ability: 5000 sets per month

Detail Information

TypeGalvanized,Wire Rope SlingMaterialSteel,High Carbon Steel,PVC+Gal Wire,PVC Or PE Coated
ApplicationIndustrial,facility,equipment,liftingStandardAISI,DIN,ASTM,BS,JIS
Steel GradeStainless Steel,High Carbon SteelAlloy Or NotNon-alloy
End PartsReinforced Loop,steelyard HookServiceODM/OEM
High Light:

wire rope fittings

,

wire rope assemblies

Product Description


Cable Wire Rope Sling Lanyard Loop And Small Size Stamped Eye And Snap Hooks

Wire rope slings are popular in construction, automotive, oil and gas, and general manufacturing industries where a variety of heavy loads and rugged conditions exist. They’re also very popular in steel mills and forging facilities where the durability of the rope is really put to the test.



Specification:



 Material  Stainless steel Type  Lanyard button
 MOQ  2000 PCS  Construction  1x7;7X7;1x19 etc
 Wire Diameter  ∅1mm  Carton Size  35*25*18cm
 Wire Length Customized Lead Time  8-15 workdays
 Break load  10kg Payment Terms

  T/T,Western Union,Paypal





Features:



1. A safety cable is made of high-quality material, it can use for a long time.

2. Safety cables are suitable for various products of stage light: moving head light, par light.

3. Safety clamp lighting cable wires can connect different stage lights in parties, weddings, and other festivals.

4. Quick and easy to attach and remove.

5. Safe, shielding, and prevent transmission interference.





Description:



* 7×7: Six 1×7 outside strands are cabled around a 1×7 strand center. This is the most standard cable construction. This produces a very flexible cable with good cycle life and excellent breaking strength

* 1×7: Six wires are laid around one center wire. This strand is more flexible than a 1×3. This construction is commonly used for push-pull applications and for conductive needs with low flexibility.

* 1×19: Twelve wires are laid around a 1×7 center. This construction is used for more flexible needs than a 1×7 in push-pull and conductive applications. A 1×19 strand is almost as high a breaking strength as a 1×7 strand with the same diameter.

* 7×19: Six 1×19 strands are cabled around a 1×19 center strand. This is the most flexible standard construction for cable. This cable gives you a high cycle life but has a lower breaking strength and is more costly than a 7×7 cable.







How to choose material:


* Galvanized cables and wire ropes are a great economical choice. They offer corrosion resistance at an affordable price. Galvanized coating is available in most strands, cables, and wire ropes.

* Stainless Steel Type 304 is the most widely used of the stainless steel offerings. It offers good corrosion resistance and breaking strengths comparable to galvanized cable.

* Nylon Coated Cable: Nylon is suitable for applications involving pulleys, excellent coating for exercise equipment.



Application:



* Material Handling (hanging support lanyards, pulley cables)

* Specialized vehicles (security stainless steel lanyards for release pins, lid restraints)

* Lawn and garden equipment (security lanyards for release pins, lid restraints)

* Seats (seat restraint lanyard)

* Tailgates and Doors (latch lanyard, support lanyard, door restraint)

* Used for the lighting fixture protection.





Caution:


Rotate the reel periodically during long periods of storage, particularly in warm environments, to prevent migration of the lubricant from the rope.

Never store wire rope in areas subject to elevated temperatures as this may seriously affect its future performance. In extreme cases, its original as-manufactured strength may be severely reduced rendering it unfit for safe use.

Ensure that the rope does not make any direct contact with the floor and that there is a flow of air under the reel.

Failure to do so may result in the rope becoming contaminated with foreign matter and start the onset of corrosion before the rope is even put to work.

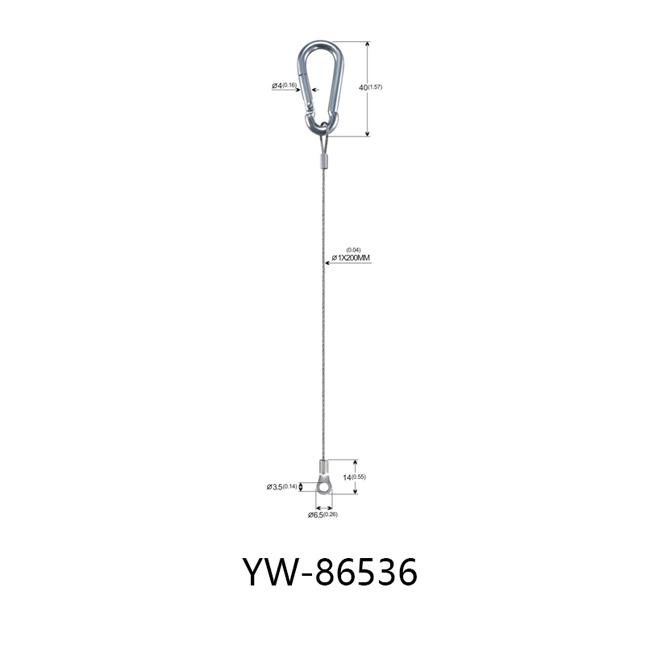

Steel Wire Rope Cable Lanyard With Stamped Eye And Snap Hooks YW86536 0
