Product Details:
|
|
| Product Name: | High Pressure Hose Restraint Safety Cable |
|---|---|
| Product Type: | Wire Rope Hose Restraint / Hose Whip Restraint |
| Material: | Galvanized Steel Wire Rope / Stainless Steel Wire Rope / PVC Coated Wire Rope |
| Wire Rope Diameter: | 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm or Customized |
| Overall Length: | 300 mm, 450 mm, 600 mm, 900 mm, 1200 mm, 1500 mm or Customized |
| Application: | Hydraulic Hose / High Pressure Hose / Mining Hose / Construction Machinery Hose / Industrial Hose |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 300–500 sets, negotiable for customized orders |
| Price: | Negotiable according to material, diameter, length, end fitting and quantity |
| Packaging Details: | Export carton, pallet, wooden case, bulk packing, barcode label or OEM packaging |
| Delivery Time: | 15–30 days after order confirmation; sample order usually 5–10 days |
| Payment Terms: | T/T, L/C, Alibaba Trade Assurance or negotiable |
| Shipping Method: | Express, air freight, sea freight or customer-designated forwarder |
|
Detail Information |
|||
| Type | High Pressure Hose Restraint / Hose Whip Restraint | Material | Galvanized Steel / Stainless Steel / PVC Coated Wire Rope |
|---|---|---|---|
| Diameter Range | 3 mm–10 mm or Customized | Length Range | 300 mm–1500 mm or Customized |
| Wire Rope Structure | 7×7 / 7×19 / 6×19 / 6×37 | End Type | Soft Eye / Thimble Eye / Ferrule Loop / Bolt Plate / Custom Fitting |
| Surface Finish | Galvanized / Stainless Steel / PVC Coated / Nylon Coated | Service | OEM / ODM / Sample Production / Custom Packaging |
| High Light: |
hydraulic hose restraint,high pressure hose restraint |
||
Product Description
High Pressure Hose Restraint Safety Cable is a custom wire rope assembly designed for hydraulic hoses, high pressure hoses and heavy-duty industrial hose connections. It is used as a secondary restraint device for hose systems installed on construction machinery, mining equipment, hydraulic power units, marine equipment, oilfield equipment and industrial maintenance systems.
The hose restraint cable is manufactured from high-strength steel wire rope and can be supplied with soft eyes, thimble eyes, ferrule loops, bolt plates, shackles, spring protection or customized end fittings. Galvanized steel, stainless steel and coated wire rope options are available according to different working environments.

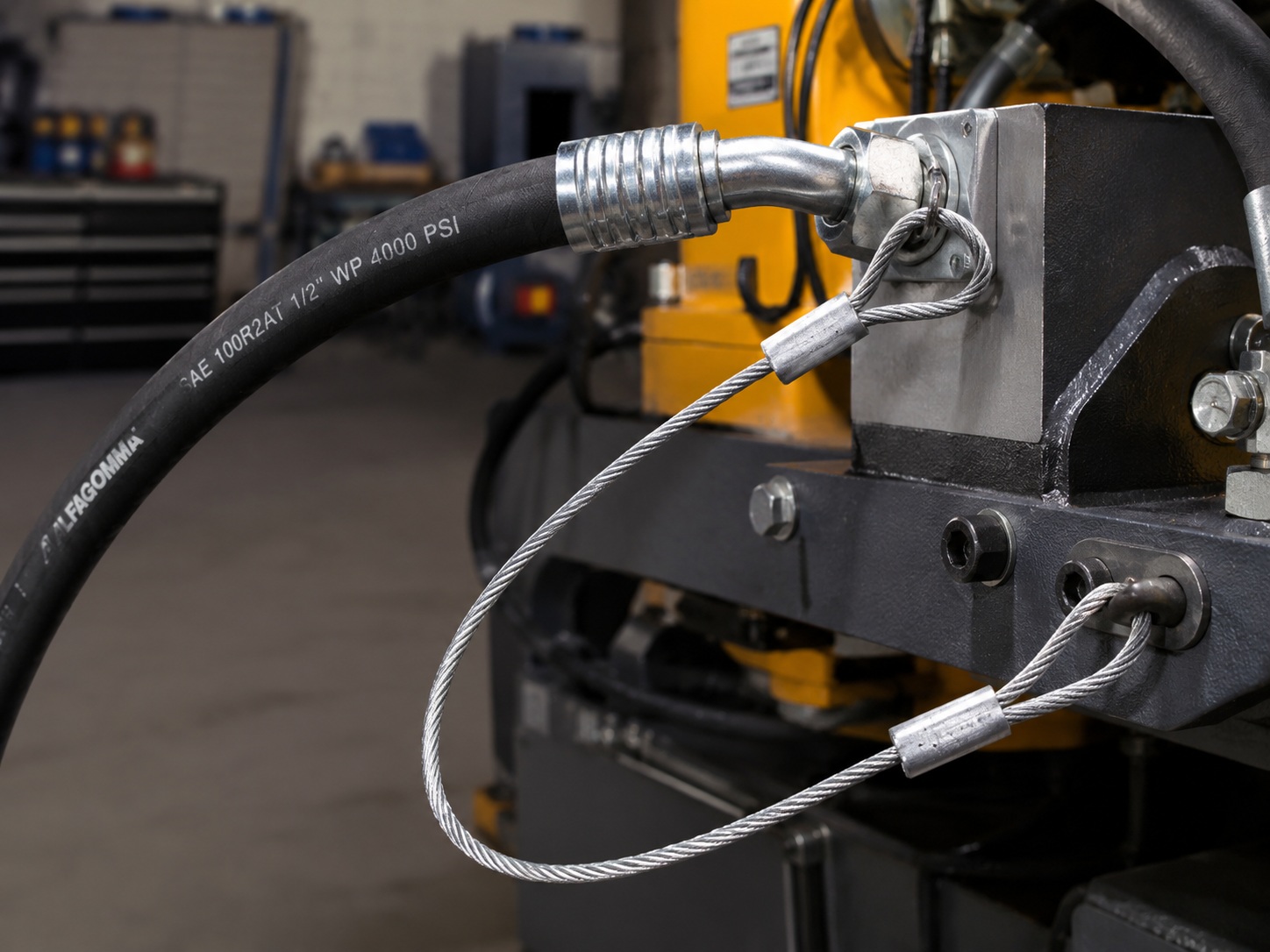

Custom high pressure hose restraint safety cable for hydraulic hose and industrial hose protection.
| Item | Standard Options | Custom Options |
|---|---|---|
| Wire Rope Diameter | 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm | Customized according to hose size and application |
| Overall Length | 300 mm, 450 mm, 600 mm, 900 mm, 1200 mm, 1500 mm | Customized length available |
| Wire Rope Construction | 7×7, 7×19, 6×19, 6×36, 6×37 | Selected according to flexibility and strength requirement |
| Material Grade | Galvanized carbon steel, stainless steel 304, stainless steel 316 | Other material available upon request |
| End Configuration | Soft eye, thimble eye, ferrule loop, bolt plate, shackle connection | Special terminal or customer drawing available |
| Sleeve / Ferrule | Aluminum sleeve, copper sleeve, steel ferrule | Customized sleeve size and material |
| Surface Treatment | Galvanized, stainless steel polished, PVC coated, nylon coated | Color coating and identification tag available |
| Optional Protection | Spring coil, PVC coating, nylon sleeve | Partial or full-length protection available |
| Production Method | Cutting, looping, hydraulic swaging, assembly | Manufactured according to sample, drawing or specification |
| Inspection | Dimension check, appearance check, sleeve crimping check | Optional tensile test and inspection report |
The correct hose restraint specification should be selected according to hose outside diameter, coupling size, installation distance, working environment and required connection method. The following table is for general product selection reference.
| Wire Rope Diameter | Typical Length | Suggested Hose Type | Common End Type | Recommended Application |
|---|---|---|---|---|
| 3 mm | 300–500 mm | Small air hose / light hydraulic hose | Soft loop / ferrule loop | Light-duty equipment and workshop use |
| 4 mm | 450–700 mm | Air hose / standard hydraulic hose | Soft loop / thimble eye | Compressor hose, hydraulic tools |
| 5 mm | 600–900 mm | High pressure hydraulic hose | Thimble eye / ferrule loop | Hydraulic power units, construction machinery |
| 6 mm | 700–1200 mm | Heavy-duty high pressure hose | Thimble eye / bolt plate | Mining equipment, drilling machines, sandblast hose |
| 8 mm and above | 900 mm or customized | Large industrial hose / heavy equipment hose | Bolt plate / shackle / custom terminal | Mining, marine, offshore and heavy-duty machinery |
The hose restraint assembly can be designed with different structures depending on installation requirements. Standard products usually include wire rope, ferrules and loop ends. Heavy-duty versions can be supplied with thimbles, bolt plates, shackles or spring coil protection.

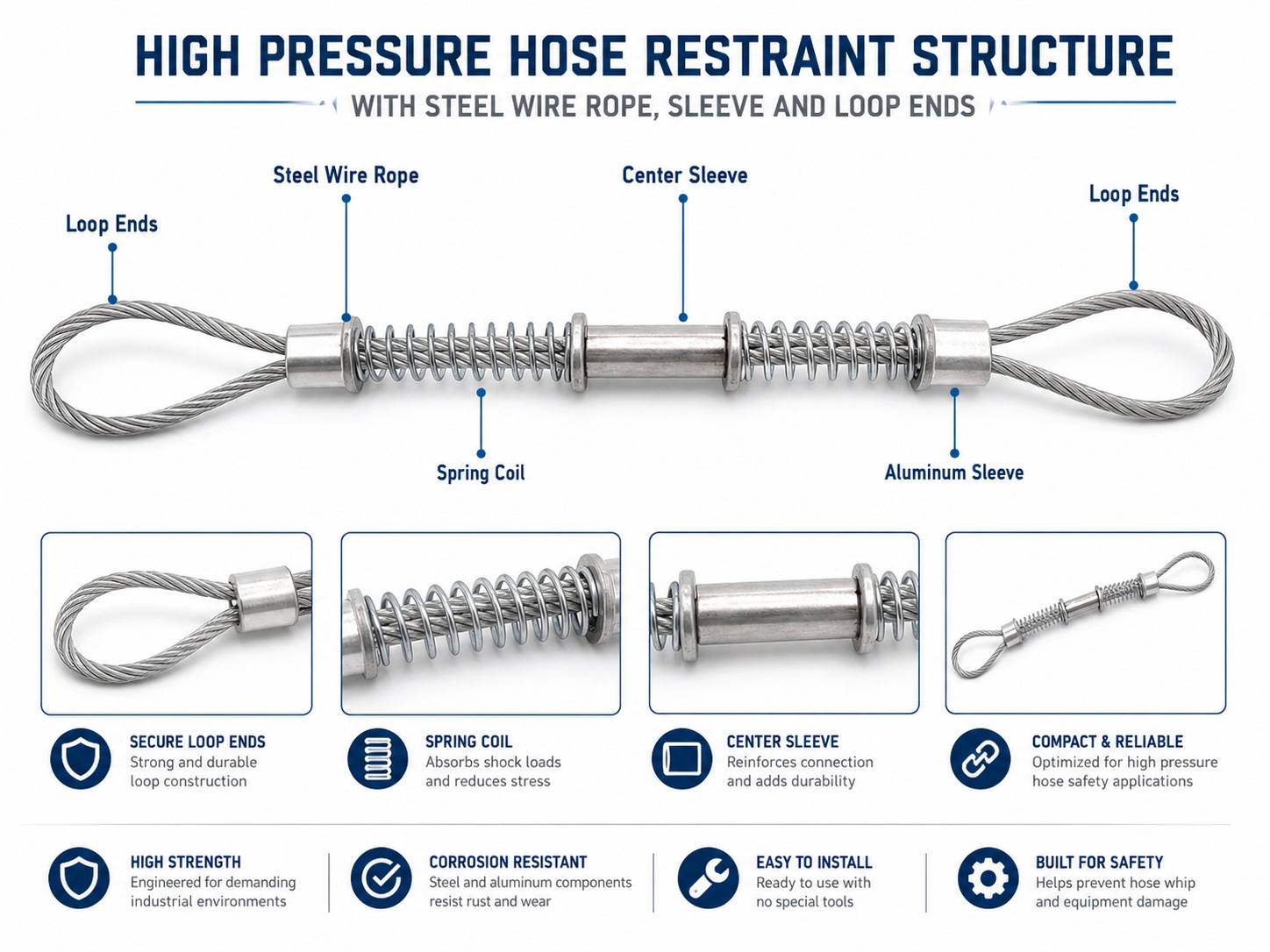

Main structure of high pressure hose restraint: wire rope, ferrule, loop end, thimble and optional spring protection.
| Component | Function | Available Options |
|---|---|---|
| Steel Wire Rope | Main cable body for restraint and connection | Galvanized steel, stainless steel 304, stainless steel 316, coated wire rope |
| Ferrule / Sleeve | Used for loop forming and end fixing | Aluminum sleeve, copper sleeve, steel ferrule |
| Loop End | Used for connecting to hose, coupling or fixed point | Soft eye, thimble eye, customized eye size |
| Thimble | Protects the loop from deformation and abrasion | Galvanized thimble, stainless steel thimble |
| Spring Coil | Improves cable bending and abrasion protection | Partial spring protection or full-length spring protection |
| Terminal Fitting | Used for special mounting requirements | Bolt plate, shackle, hook, eye plate, custom terminal |
| Material | Main Features | Recommended Working Environment |
|---|---|---|
| Galvanized Steel Wire Rope | Cost-effective, durable, suitable for general industrial use | Factories, construction machinery, hydraulic equipment, indoor and general outdoor use |
| Stainless Steel 304 Wire Rope | Good corrosion resistance and clean appearance | Outdoor, humid environment, marine maintenance, food or clean industrial environment |
| Stainless Steel 316 Wire Rope | Higher corrosion resistance than 304 stainless steel | Marine, offshore, chemical plants, high-humidity or corrosive environments |
| PVC / Nylon Coated Wire Rope | Surface protection, easier handling, optional color identification | Applications requiring cable surface protection or color-coded safety marking |

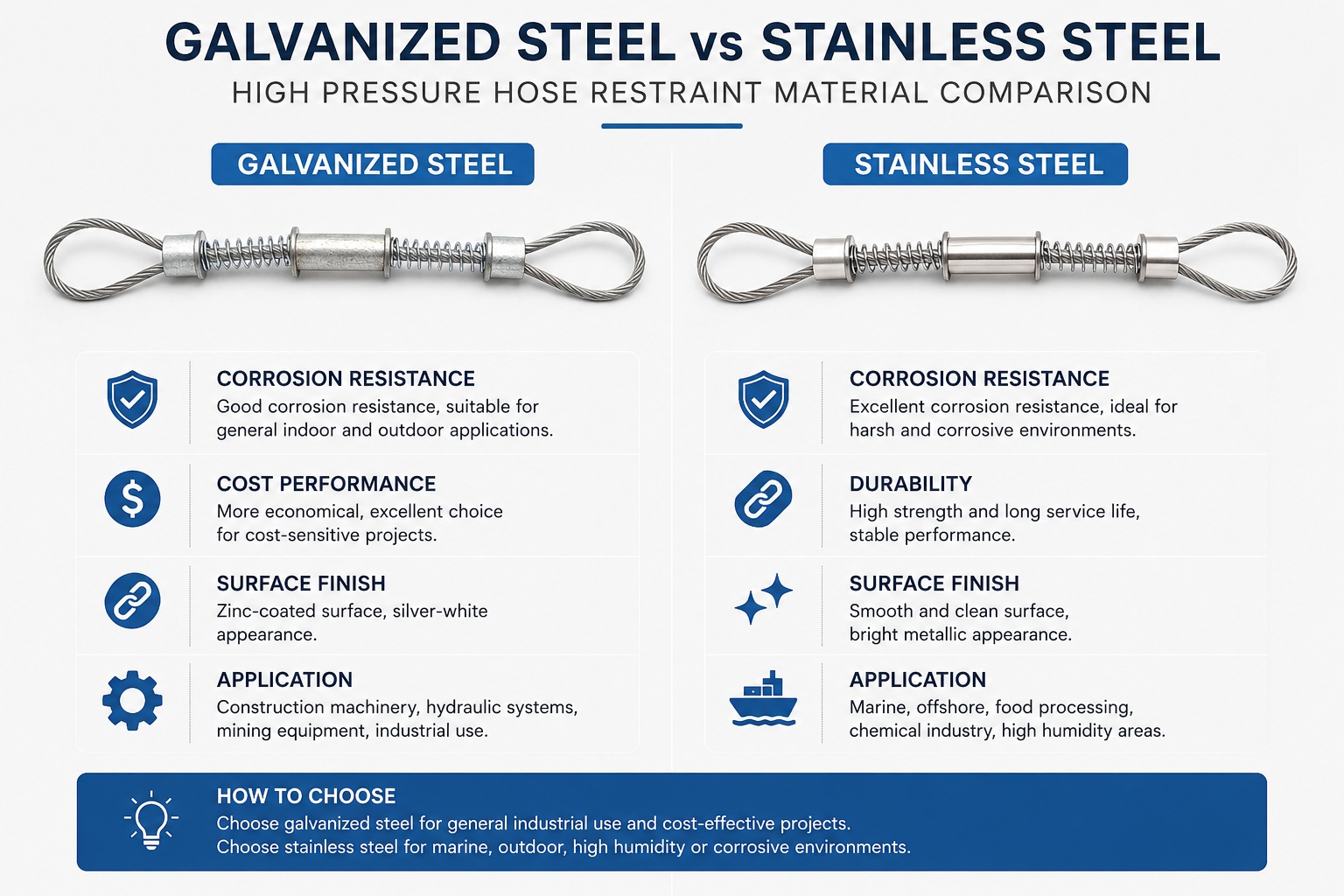

Galvanized steel, stainless steel and coated wire rope options for different working environments.

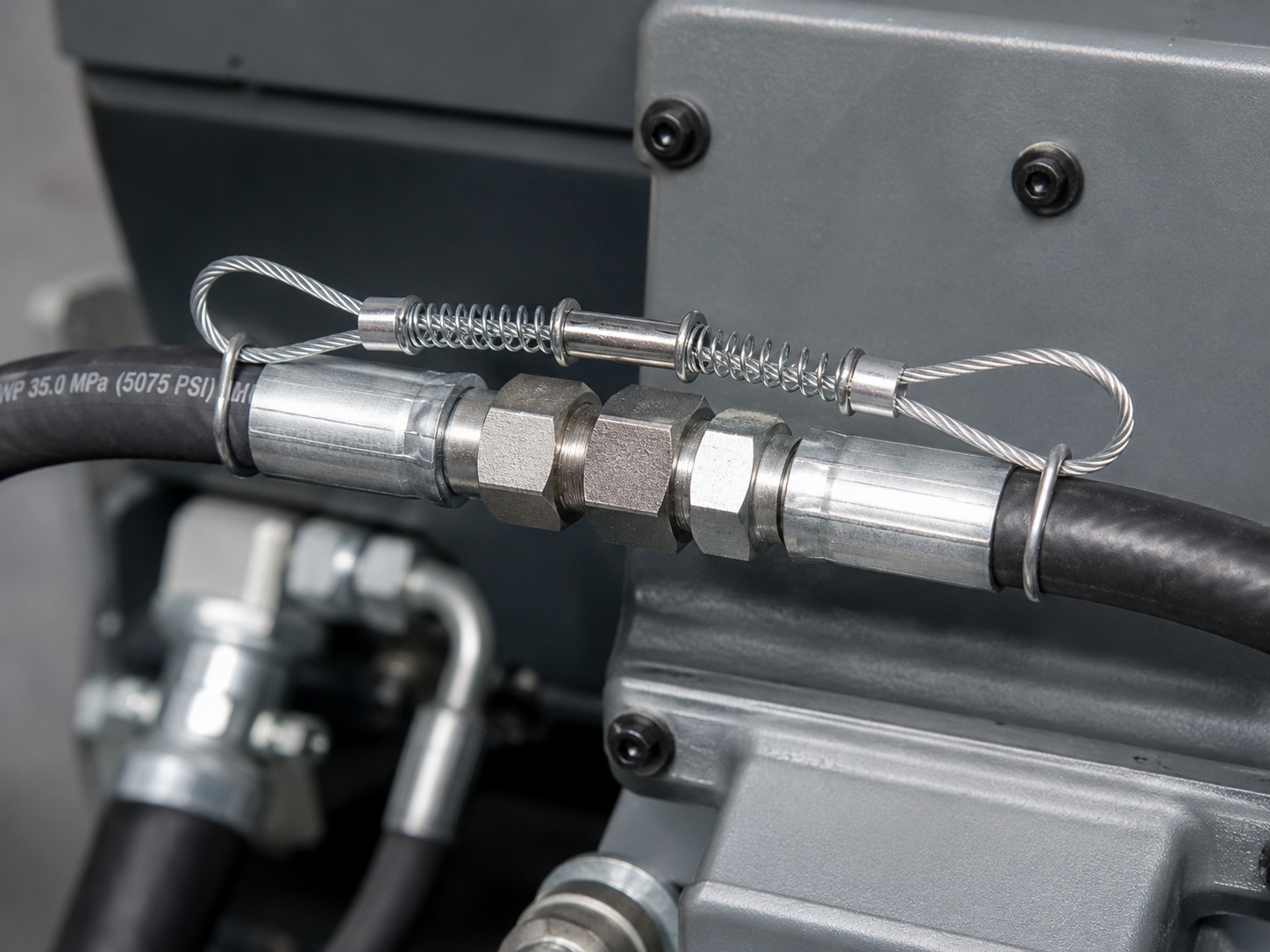

Hydraulic power units, hydraulic presses, hydraulic tools, lifting systems and industrial hydraulic lines.

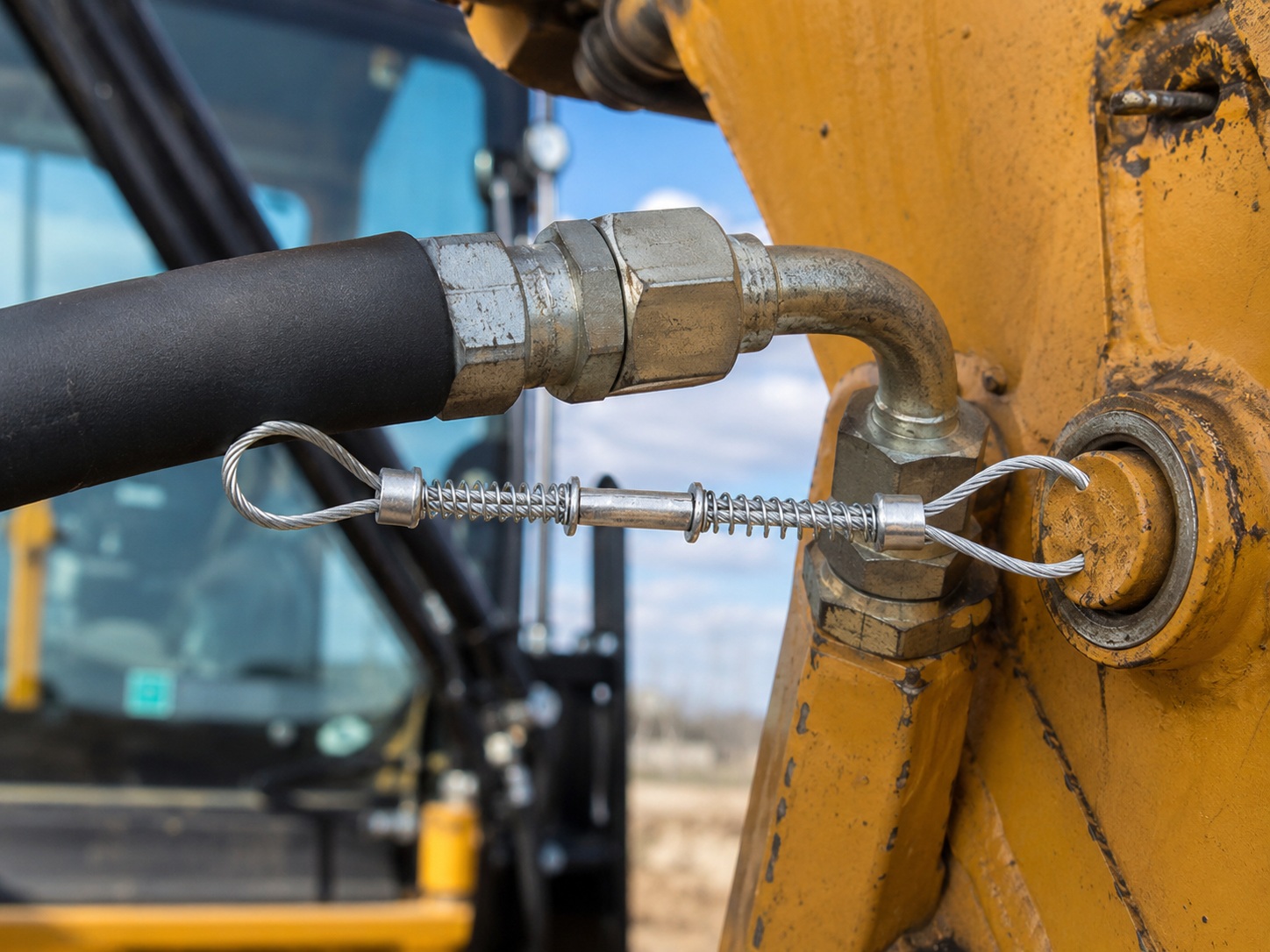

Excavators, loaders, cranes, drilling rigs, concrete equipment and mobile hydraulic machines.

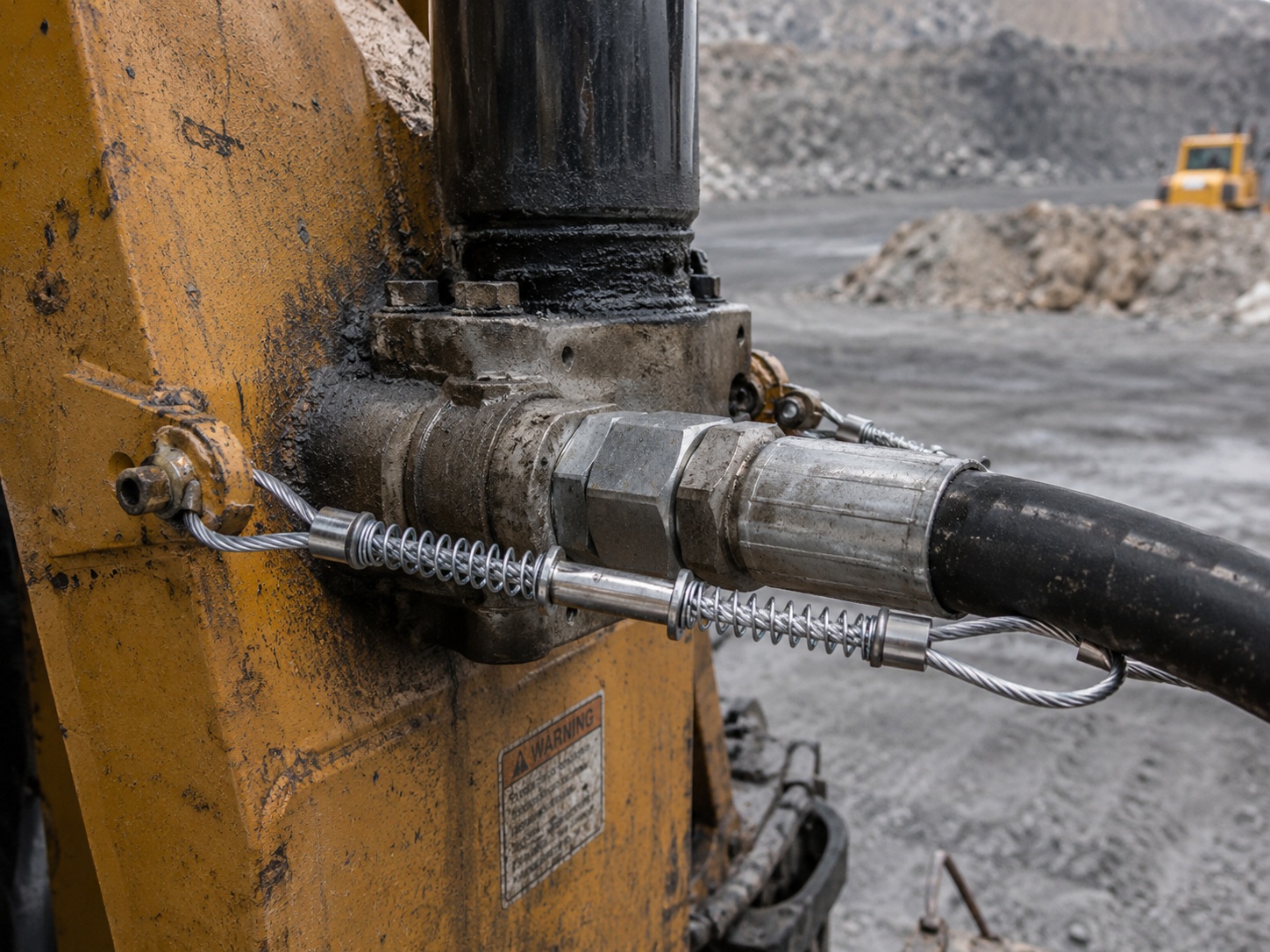

Mining hydraulic tools, rock drilling equipment, mining vehicles and heavy-duty maintenance systems.

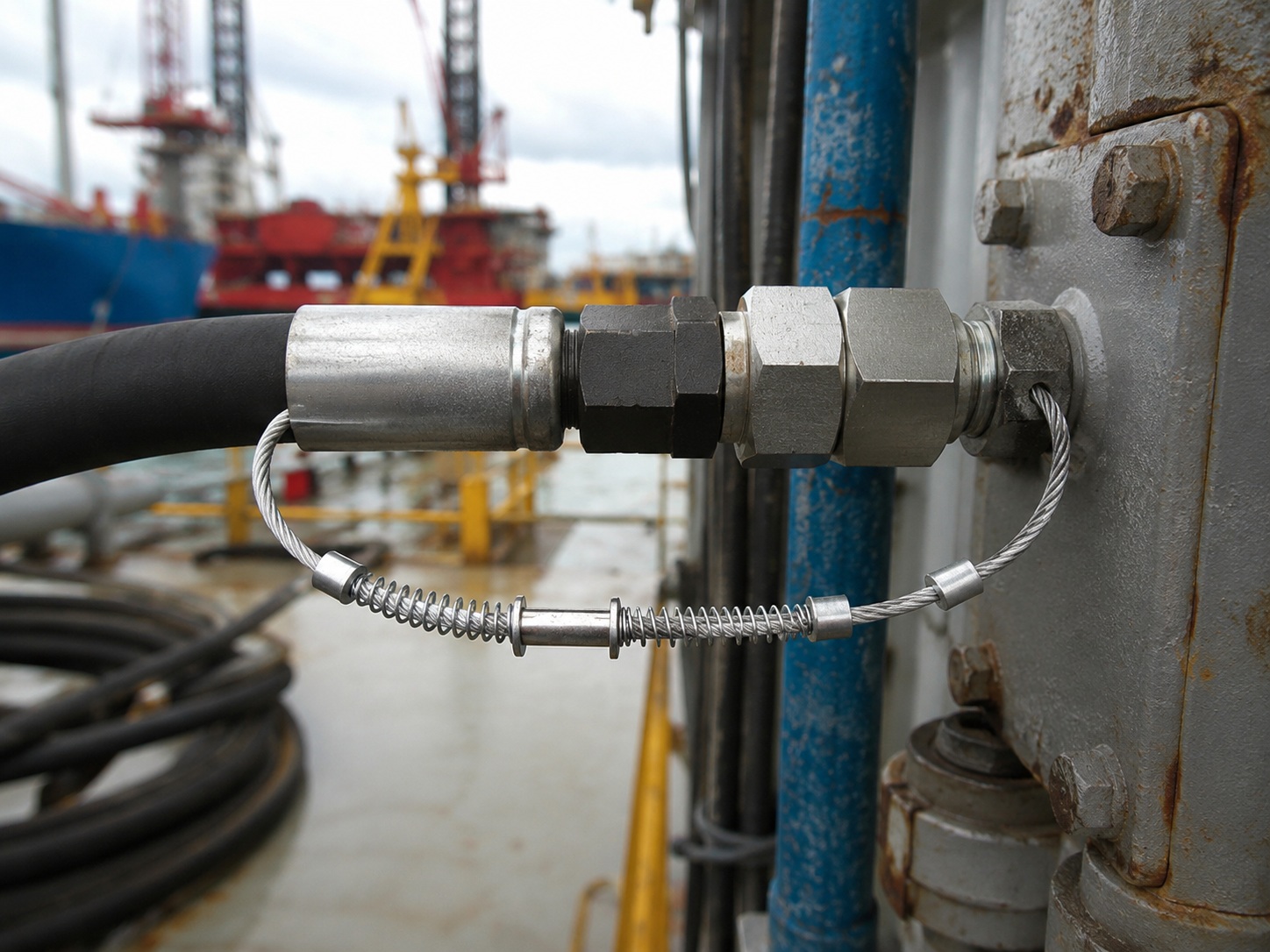

Shipyard equipment, offshore hydraulic systems, marine maintenance and humid working environments.
We can manufacture high pressure hose restraint assemblies according to customer drawings, samples or technical requirements. The following parameters can be customized for different hose systems:
| Custom Diameter | Wire rope diameter can be selected according to hose size and application severity. |
| Custom Length | Overall length can be made according to connection distance and installation position. |
| Custom End Fitting | Soft eye, thimble eye, bolt plate, shackle, hook or special terminal available. |
| Custom Protection | Spring coil, PVC coating, nylon sleeve or other surface protection available. |
| Custom Packaging | Bulk packing, carton packing, barcode label, private label and OEM packaging available. |
The production process includes wire rope cutting, loop forming, sleeve pressing, end fitting assembly, surface inspection and dimensional checking. For customized orders, sample confirmation can be arranged before mass production.
Wire rope assembly production with hydraulic swaging press and optional pull testing machine.
| Inspection Item | Inspection Content |
|---|---|
| Dimension Check | Overall length, loop size, wire rope diameter and sleeve position |
| Appearance Check | Wire rope surface, coating condition, burrs, deformation and sleeve finish |
| Swaging Check | Sleeve pressing position, crimping consistency and loop forming quality |
| Assembly Check | End fitting alignment, thimble position and terminal installation |
| Optional Test | Pull test or tensile performance test according to customer requirement |
For accurate quotation and specification recommendation, please provide the following information:
Hose outside diameter and coupling size
Connection distance or required overall length
Preferred wire rope diameter and construction
Required material: galvanized steel, stainless steel 304, stainless steel 316 or coated wire rope
End type: soft eye, thimble eye, bolt plate, shackle or custom terminal
Working environment: indoor, outdoor, marine, mining, construction or corrosive environment
Order quantity, packaging requirement and sample requirement
Drawing, sample photo or technical specification if available
Send us your hose size, cable length, material requirement and end fitting design. We can provide customized wire rope hose restraint solutions for hydraulic and industrial hose systems.
