Product Details:
|
|
| Product Name: | Oilfield Hose Safety Cable |
|---|---|
| Product Type: | Wire Rope Hose Restraint / Hose Whip Restraint |
| Material: | Galvanized Steel Wire Rope / Stainless Steel Wire Rope / PVC Coated Wire Rope |
| Wire Rope Diameter: | 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm or Customized |
| Overall Length: | 300 mm, 450 mm, 600 mm, 900 mm, 1200 mm, 1500 mm or Customized |
| Application: | Oilfield Hose / Drilling Hose / Hydraulic Hose / Mud Hose / High Pressure Hose |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 300–500 sets, negotiable for customized orders |
| Price: | Negotiable according to material, diameter, length, end fitting and quantity |
| Packaging Details: | Export carton, pallet, wooden case, bulk packing, barcode label or OEM packaging |
| Delivery Time: | 15–30 days after order confirmation; sample order usually 5–10 days |
| Payment Terms: | T/T, L/C, Alibaba Trade Assurance or negotiable |
| Shipping Method: | Express, air freight, sea freight or customer-designated forwarder |
|
Detail Information |
|||
| Type | Oilfield Hose Safety Cable / Hose Whip Restraint | Material | Galvanized Steel / Stainless Steel / PVC Coated Wire Rope |
|---|---|---|---|
| Diameter Range | 3 mm–10 mm or Customized | Length Range | 300 mm–1500 mm or Customized |
| Wire Rope Structure | 7×7 / 7×19 / 6×19 / 6×37 | End Type | Soft Eye / Thimble Eye / Ferrule Loop / Bolt Plate / Custom Fitting |
| Surface Finish | Galvanized / Stainless Steel / PVC Coated / Nylon Coated | Service | OEM / ODM / Sample Production / Custom Packaging |
| High Light: |
oilfield hose restraint cable,oilfield hose safety cable |
||
Product Description
Oilfield Hose Safety Cable is a custom wire rope restraint assembly designed for oilfield hose connections, drilling hoses, hydraulic hoses, mud hoses and other high pressure hose systems. It is installed across hose couplings or fixed connection points to provide secondary restraint support for demanding oilfield and industrial environments.
The product is manufactured from high-strength steel wire rope and can be supplied with loop ends, ferrule sleeves, thimble eyes, spring coil protection, bolt plates, shackles or customized terminal fittings. Galvanized steel, stainless steel and coated wire rope options are available for different field conditions.

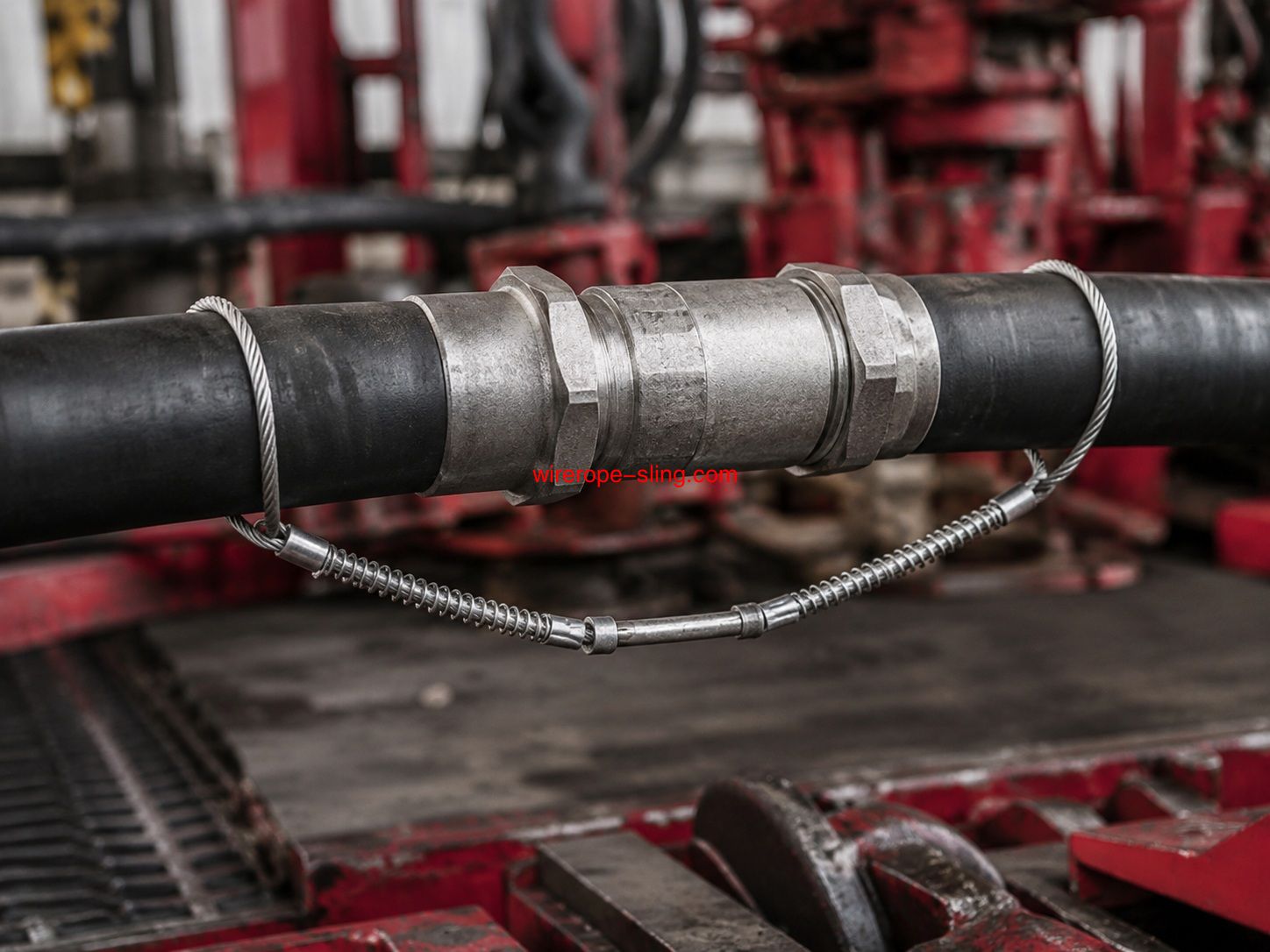

Custom oilfield hose safety cable for high pressure hose restraint and hose whip protection.
| Item | Standard Options | Custom Options |
|---|---|---|
| Product Type | Oilfield hose safety cable / hose restraint cable | Custom wire rope assembly according to sample or drawing |
| Wire Rope Diameter | 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm | Customized according to hose size and working condition |
| Overall Length | 300 mm, 450 mm, 600 mm, 900 mm, 1200 mm, 1500 mm | Customized length based on connection distance |
| Wire Rope Construction | 7×7, 7×19, 6×19, 6×36, 6×37 | Selected according to flexibility and strength requirement |
| Material Grade | Galvanized carbon steel, stainless steel 304, stainless steel 316 | Other materials available upon request |
| End Configuration | Soft eye, thimble eye, ferrule loop, bolt plate, shackle connection | Special terminal or customer drawing available |
| Sleeve / Ferrule | Aluminum sleeve, copper sleeve, steel ferrule | Customized sleeve size and material available |
| Surface Treatment | Galvanized, stainless steel polished, PVC coated, nylon coated | Color coating and identification tag available |
| Optional Protection | Spring coil, PVC coating, nylon sleeve | Partial or full-length protection available |
| Inspection | Dimension check, appearance check, sleeve crimping check | Optional tensile test and inspection report |
Oilfield hose safety cables should be selected according to hose outside diameter, coupling size, installation distance, working environment and end connection method. The following table is for general product selection reference.
| Wire Rope Diameter | Typical Length | Suggested Hose Type | Common End Type | Recommended Application |
|---|---|---|---|---|
| 3 mm | 300–500 mm | Small hydraulic hose / light service hose | Soft loop / ferrule loop | Workshop, light hydraulic equipment, service hose |
| 4 mm | 450–700 mm | Standard hydraulic hose / utility hose | Soft loop / thimble eye | Oilfield maintenance, hydraulic tools, equipment service |
| 5 mm | 600–900 mm | High pressure hydraulic hose | Thimble eye / ferrule loop | Hydraulic power units, drilling equipment, pump systems |
| 6 mm | 700–1200 mm | Heavy-duty oilfield hose | Thimble eye / bolt plate | Drilling hose, mud hose, mining and oilfield machinery |
| 8 mm and above | 900 mm or customized | Large industrial hose / heavy equipment hose | Bolt plate / shackle / custom terminal | Oilfield equipment, offshore equipment, heavy-duty hose systems |
The oilfield hose safety cable can be produced in different structures according to installation requirements. Standard products usually include steel wire rope, ferrules and loop ends. Heavy-duty versions can be supplied with thimbles, bolt plates, shackles, spring coils or special end fittings.

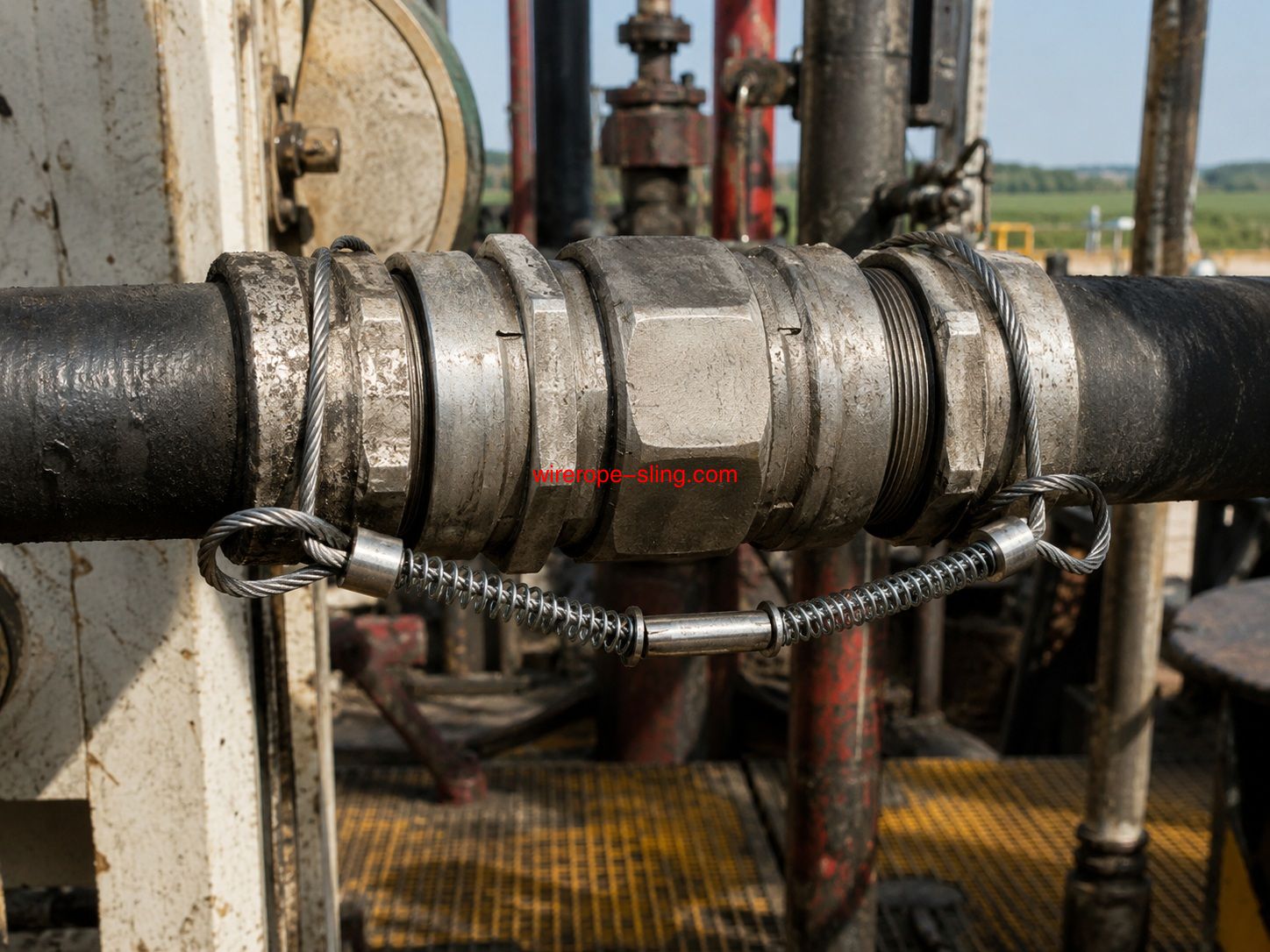

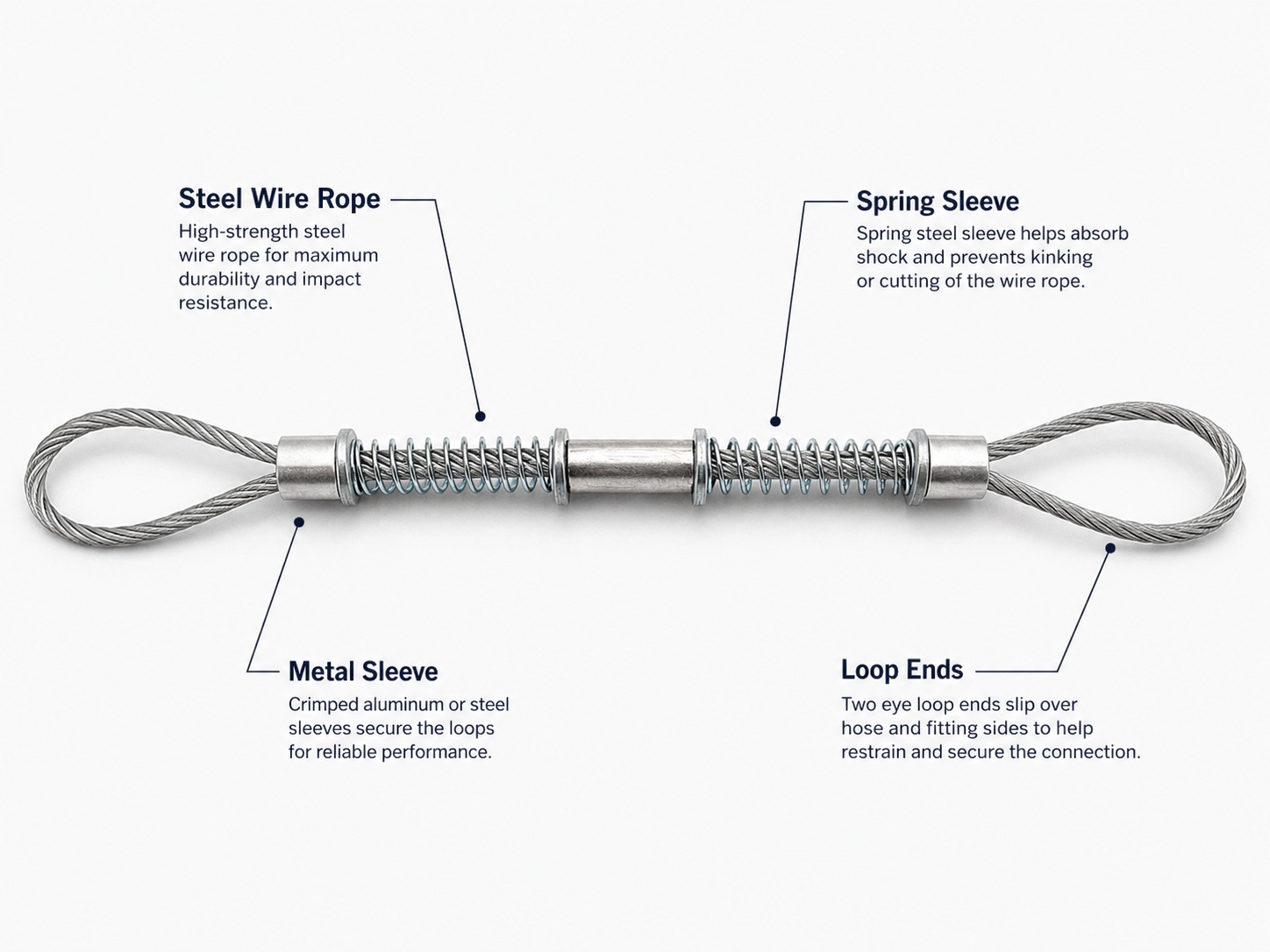

Main structure of oilfield hose safety cable: steel wire rope, ferrule, loop end, thimble and optional spring coil protection.
| Component | Function | Available Options |
|---|---|---|
| Steel Wire Rope | Main cable body for restraint and connection | Galvanized steel, stainless steel 304, stainless steel 316, coated wire rope |
| Ferrule / Sleeve | Used for loop forming and end fixing | Aluminum sleeve, copper sleeve, steel ferrule |
| Loop End | Used for connecting to hose, coupling or fixed point | Soft eye, thimble eye, customized eye size |
| Thimble | Protects the loop from deformation and abrasion | Galvanized thimble, stainless steel thimble |
| Spring Coil | Improves cable bending and abrasion protection | Partial spring protection or full-length spring protection |
| Terminal Fitting | Used for special mounting requirements | Bolt plate, shackle, hook, eye plate, custom terminal |
| Material | Main Features | Recommended Working Environment |
|---|---|---|
| Galvanized Steel Wire Rope | Cost-effective, durable, suitable for general industrial use | Oilfield maintenance, drilling equipment, hydraulic equipment, general outdoor use |
| Stainless Steel 304 Wire Rope | Good corrosion resistance and clean appearance | Outdoor, humid environment, marine maintenance and clean industrial environment |
| Stainless Steel 316 Wire Rope | Higher corrosion resistance than 304 stainless steel | Offshore platform, marine equipment, chemical plants and corrosive environments |
| PVC / Nylon Coated Wire Rope | Surface protection, easier handling and optional color identification | Applications requiring cable surface protection or color-coded safety marking |

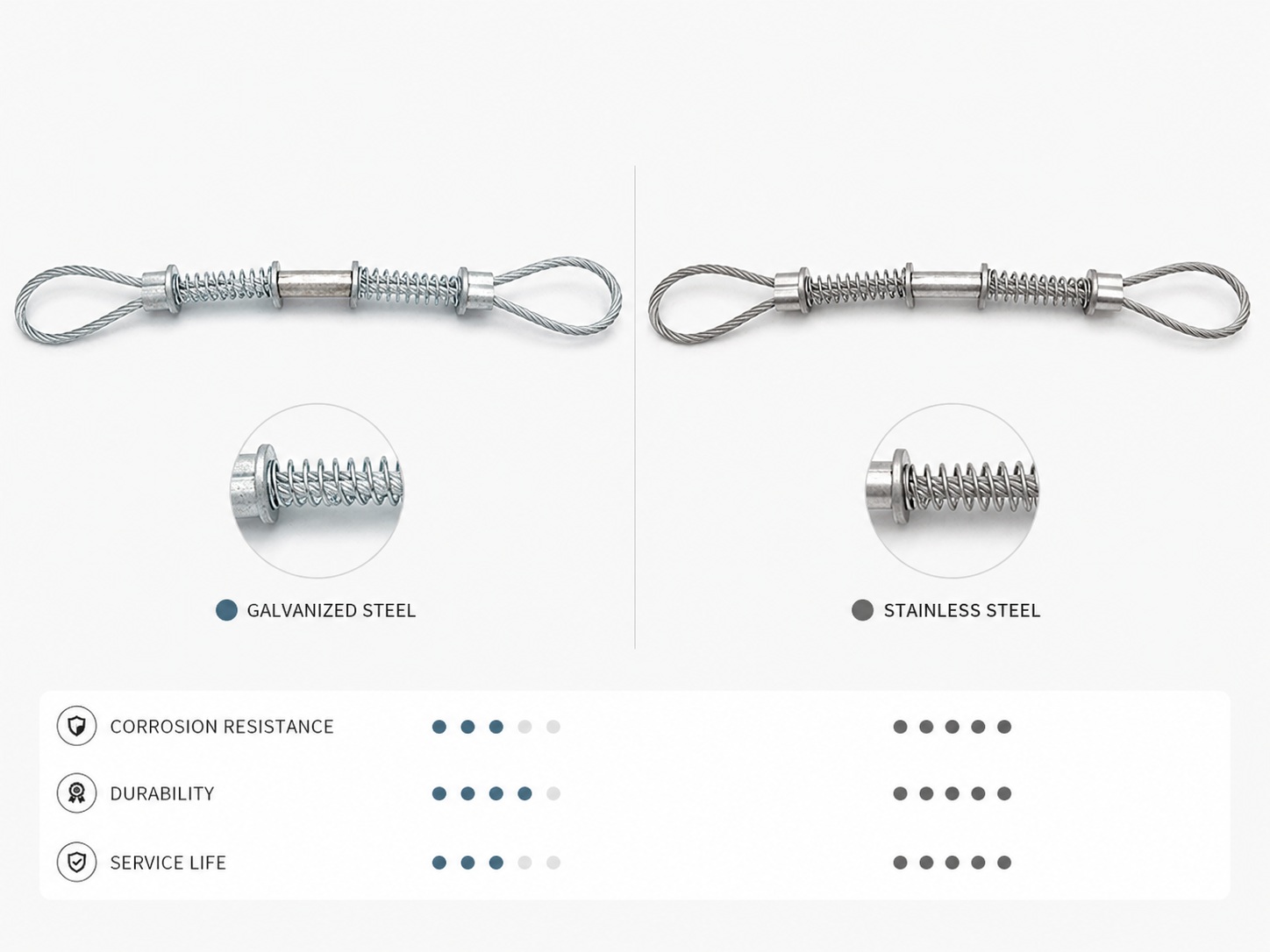

Galvanized steel, stainless steel and coated wire rope options for oilfield and offshore working environments.

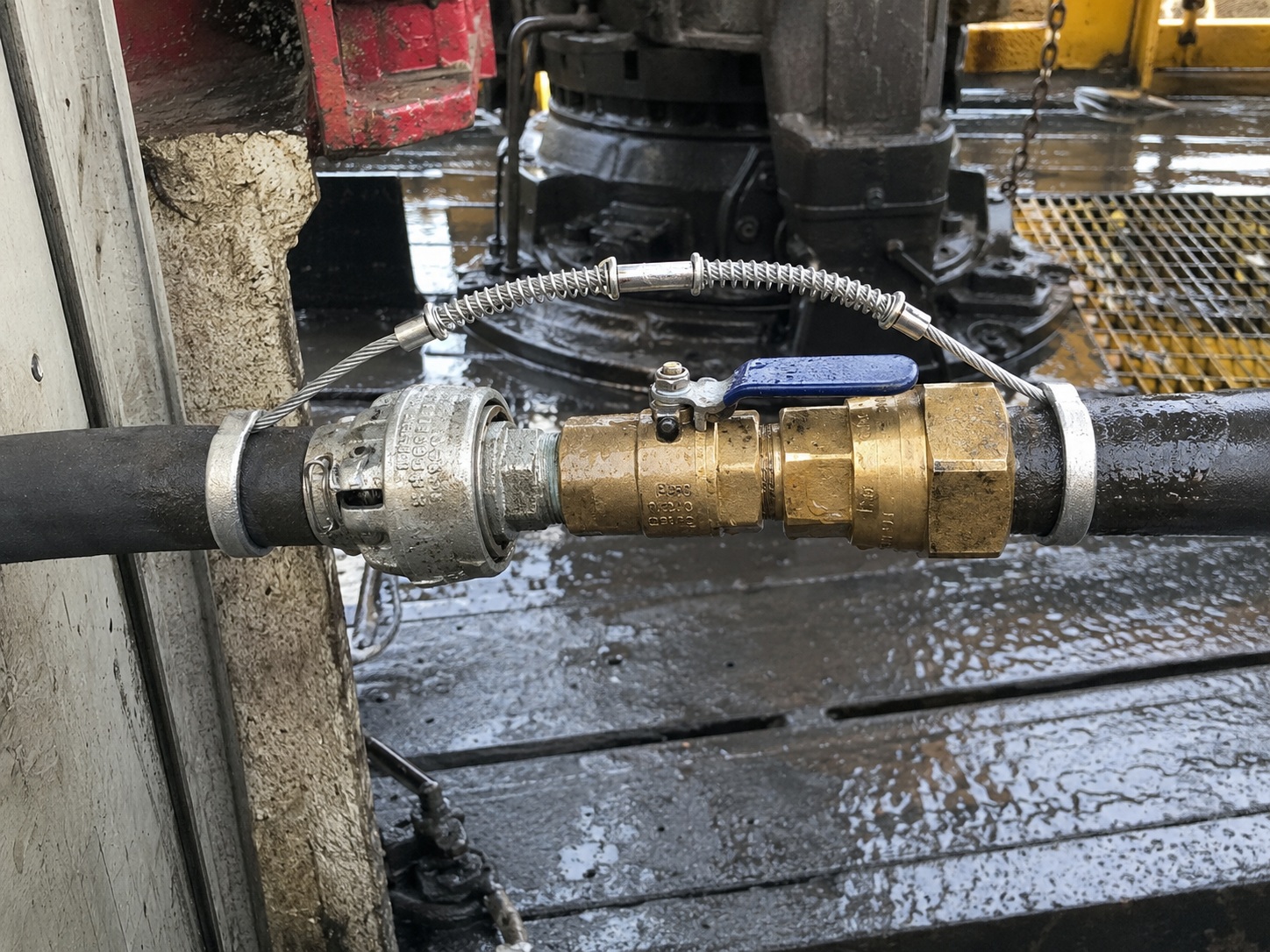

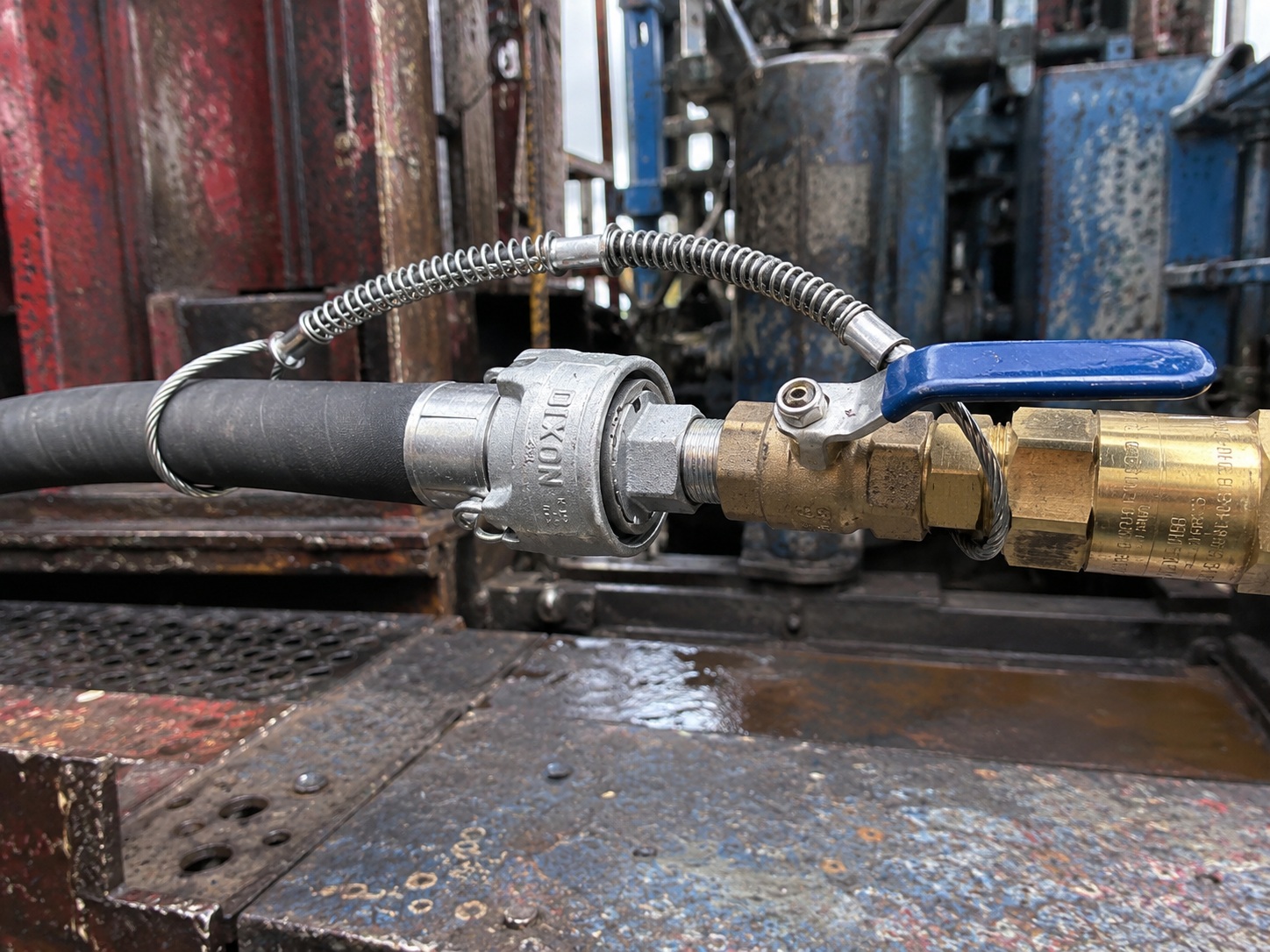

Used for drilling hose, mud hose, oilfield service hose and high pressure hose connection restraint.

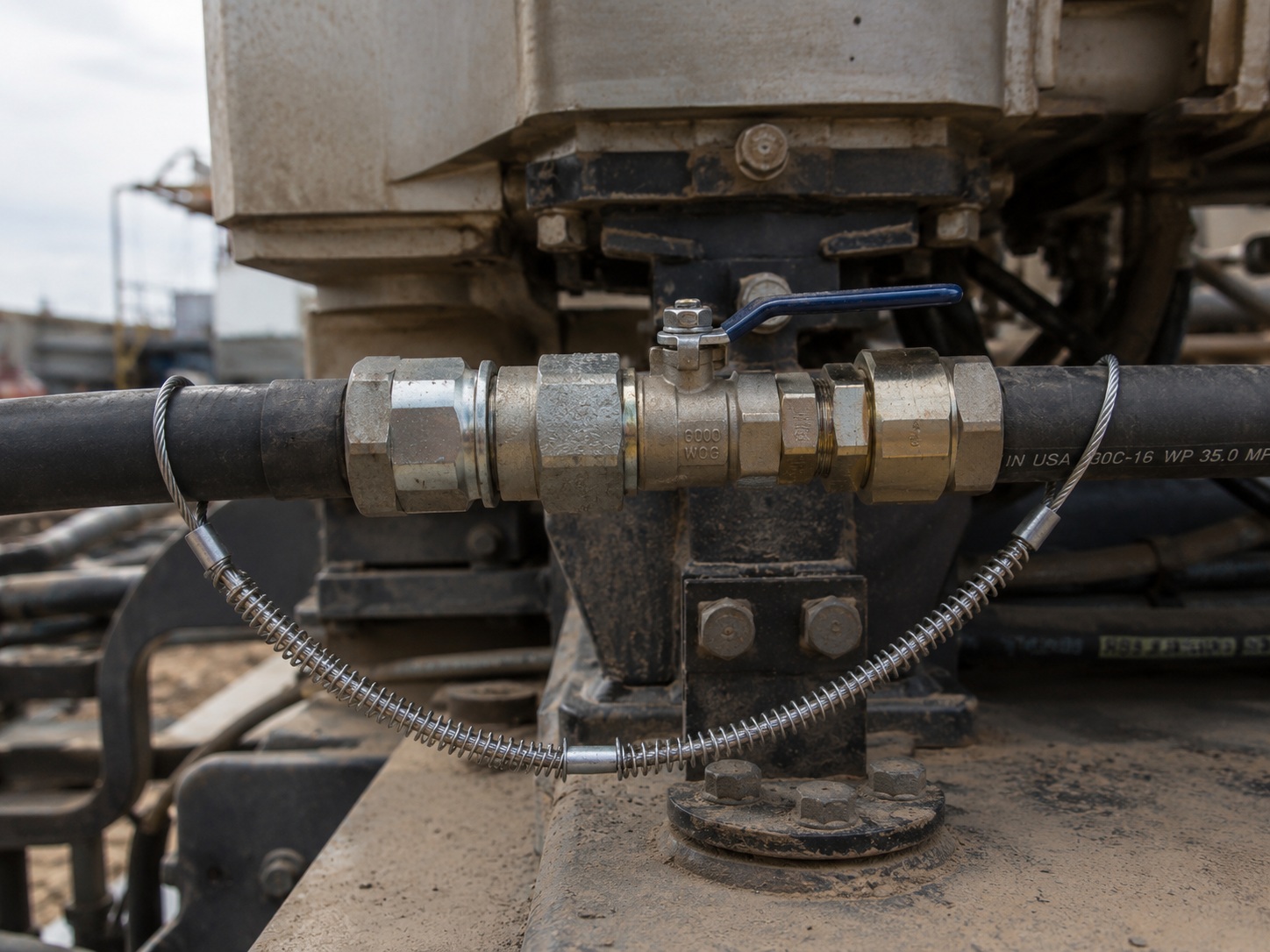

Suitable for hydraulic power units, hydraulic tools, pump systems and oilfield maintenance equipment.

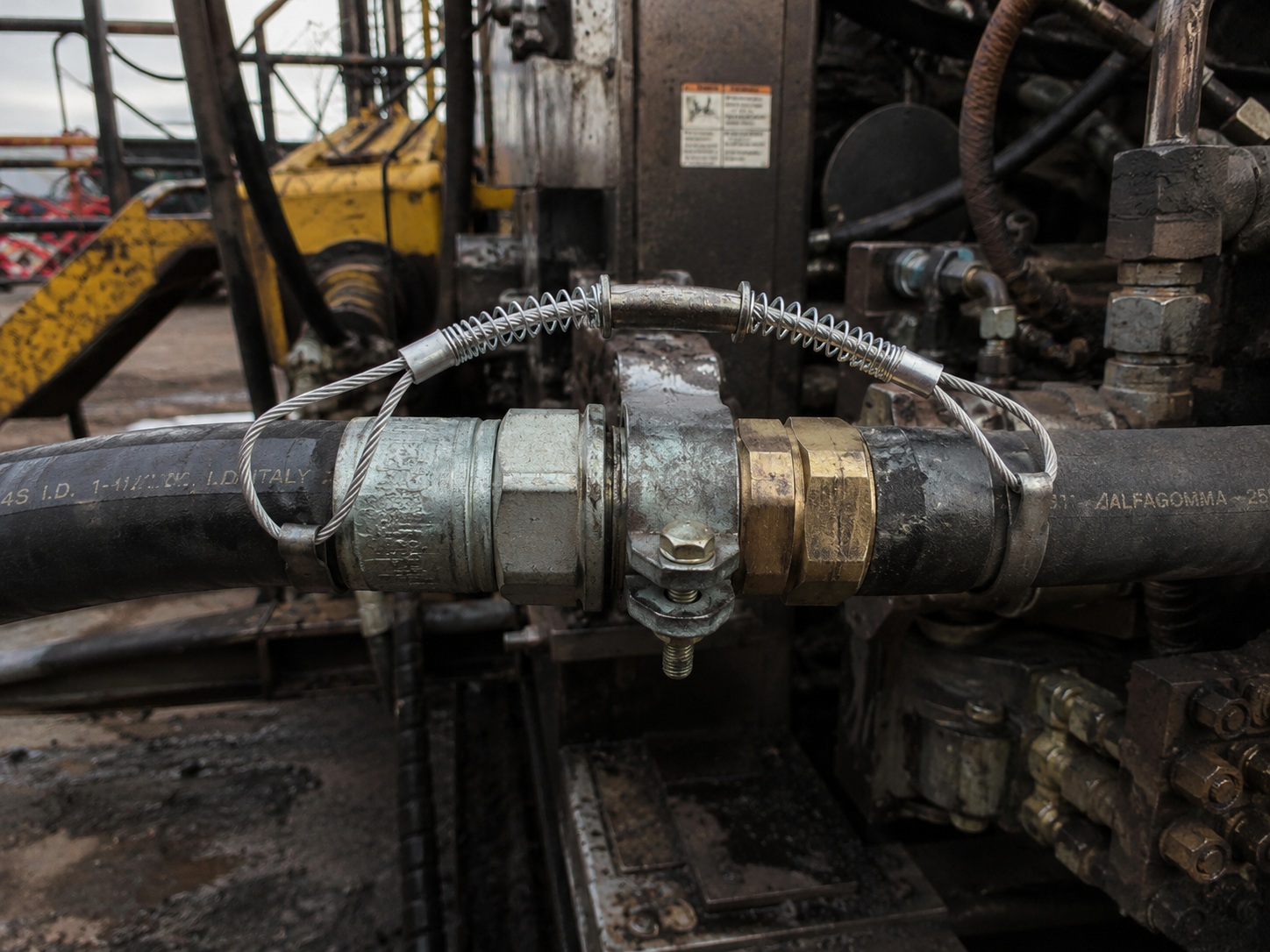

Applied to pump trucks, service equipment, drilling rigs, workover equipment and heavy-duty hose systems.

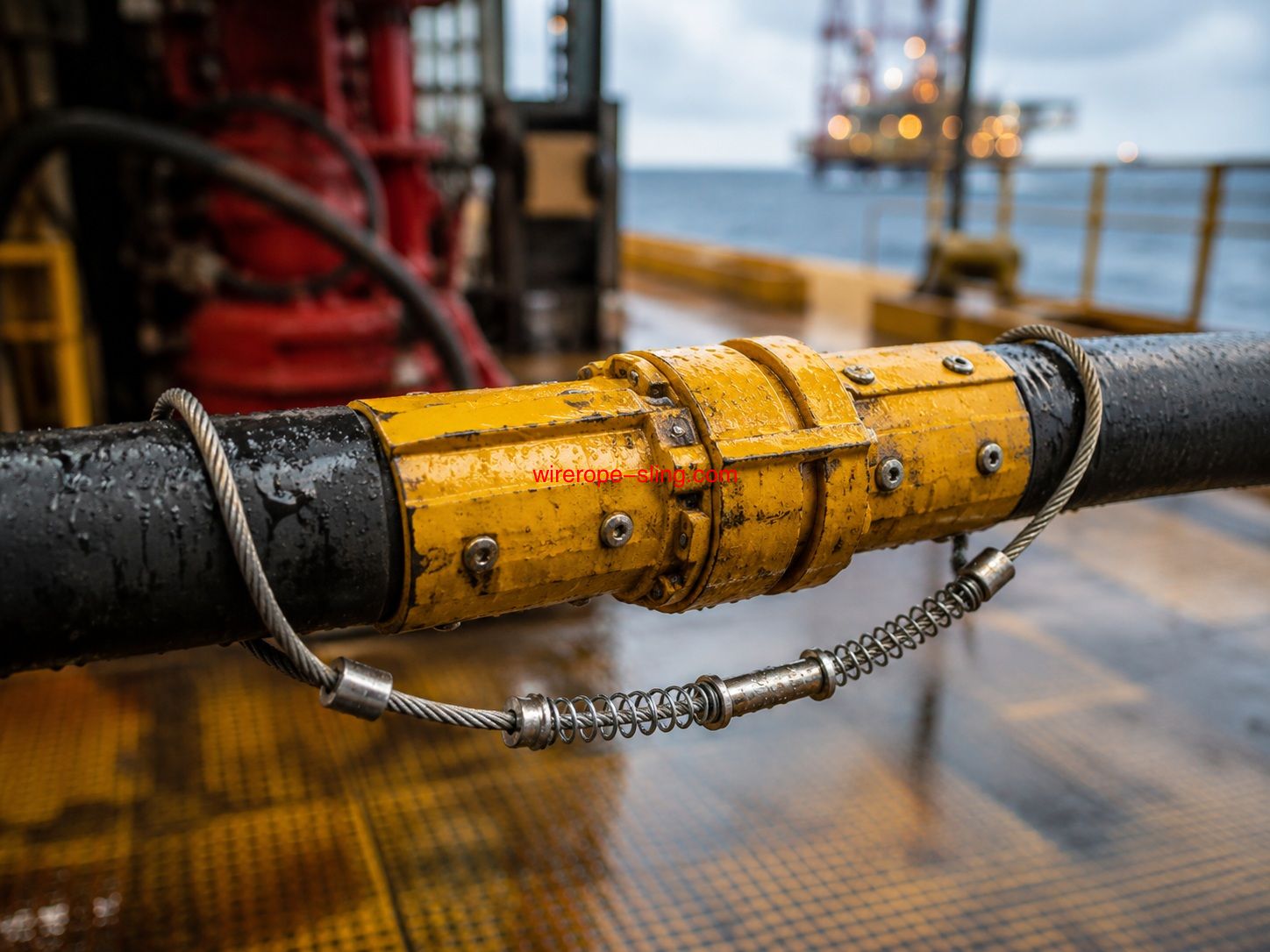

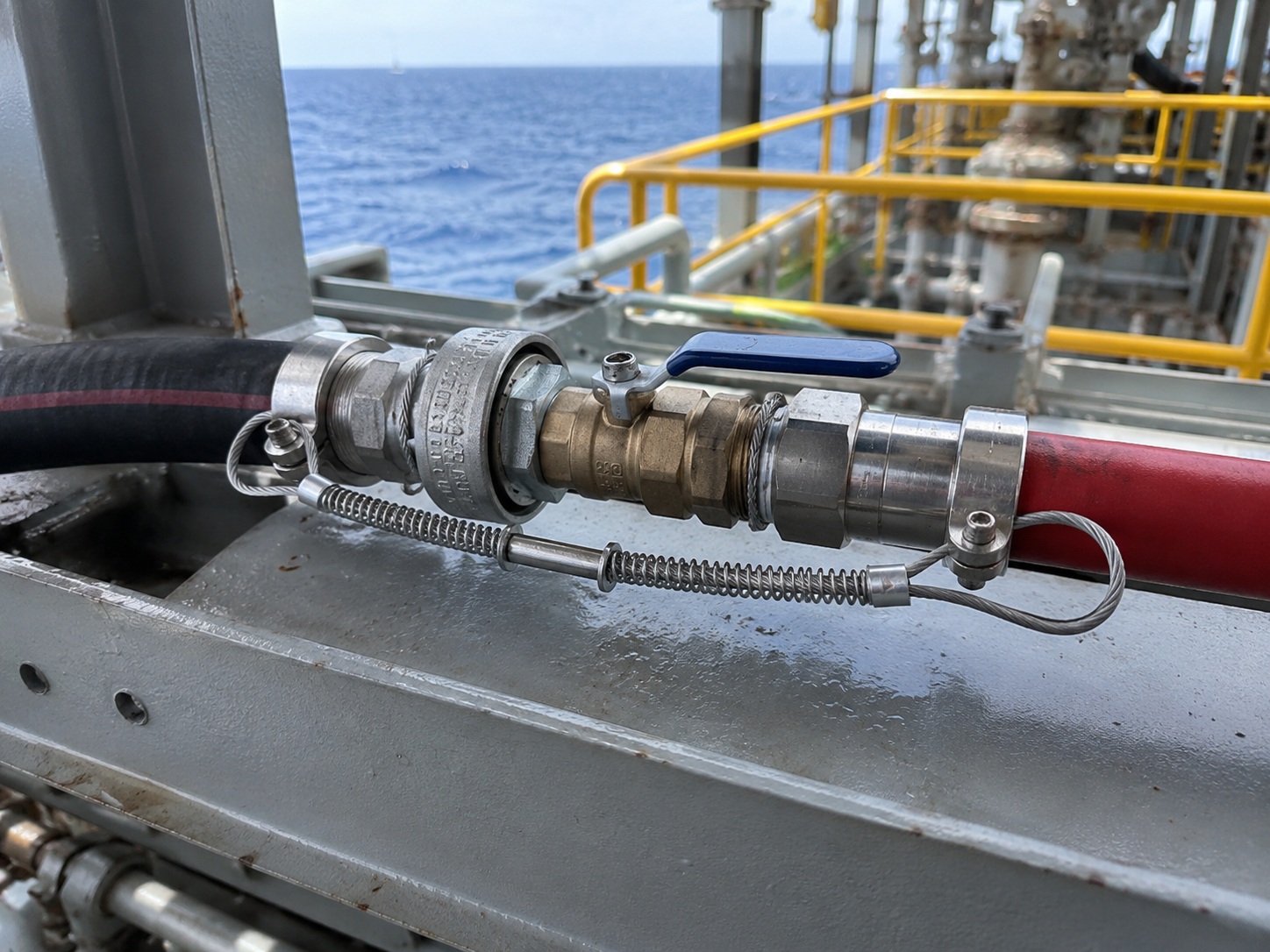

Stainless steel hose safety cables are available for offshore platforms, marine equipment and humid environments.
We can manufacture oilfield hose safety cable assemblies according to customer drawings, samples or technical requirements. The following parameters can be customized for different hose systems:
| Custom Diameter | Wire rope diameter can be selected according to hose size and application severity. |
| Custom Length | Overall length can be made according to connection distance and installation position. |
| Custom End Fitting | Soft eye, thimble eye, bolt plate, shackle, hook or special terminal available. |
| Custom Protection | Spring coil, PVC coating, nylon sleeve or other surface protection available. |
| Custom Packaging | Bulk packing, carton packing, barcode label, private label and OEM packaging available. |
The production process includes wire rope cutting, loop forming, sleeve pressing, end fitting assembly, surface inspection and dimensional checking. For customized orders, sample confirmation can be arranged before mass production.

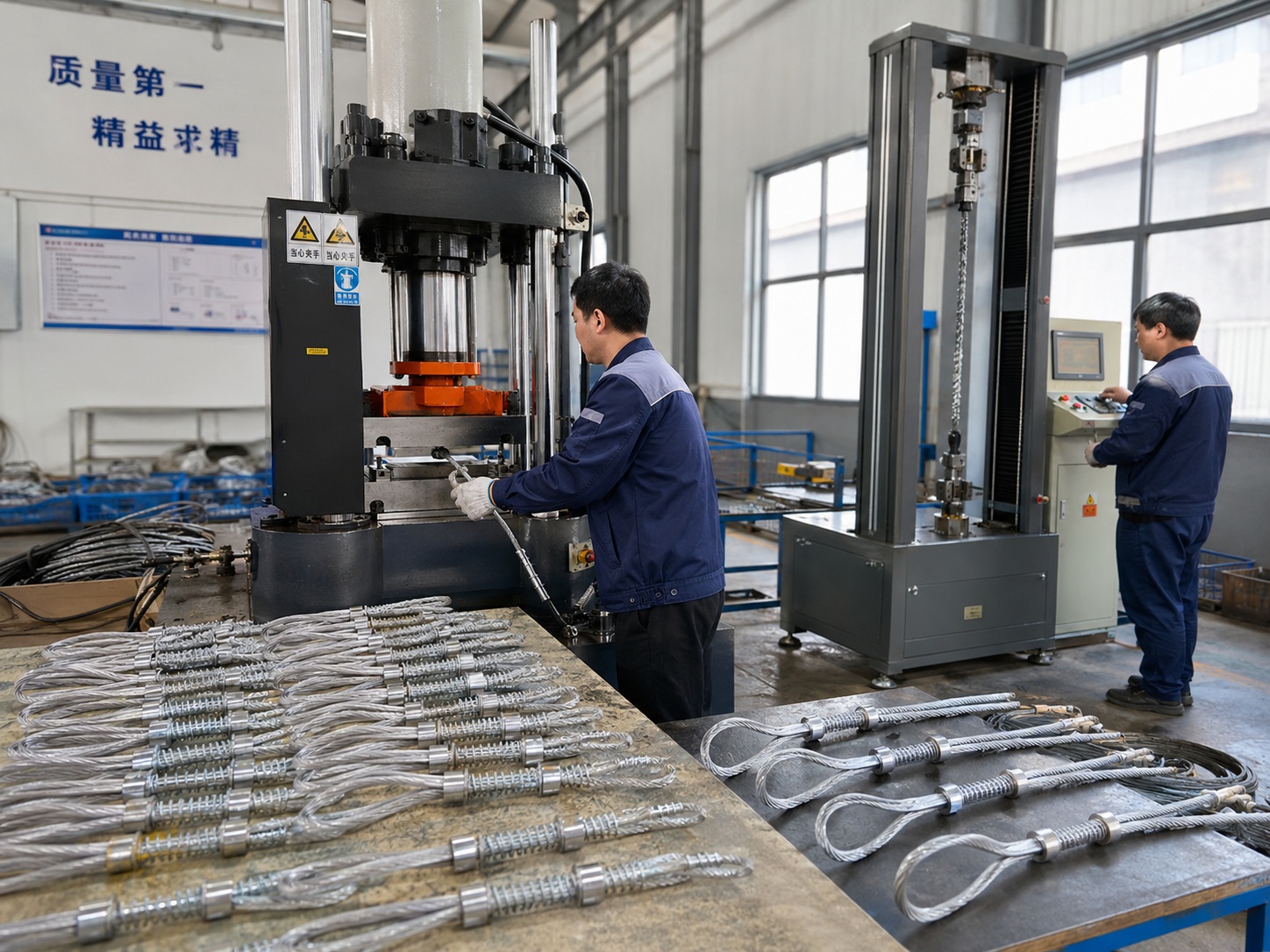

Wire rope assembly production with hydraulic swaging press and optional pull testing machine.
| Inspection Item | Inspection Content |
|---|---|
| Dimension Check | Overall length, loop size, wire rope diameter and sleeve position |
| Appearance Check | Wire rope surface, coating condition, burrs, deformation and sleeve finish |
| Swaging Check | Sleeve pressing position, crimping consistency and loop forming quality |
| Assembly Check | End fitting alignment, thimble position and terminal installation |
| Optional Test | Pull test or tensile performance test according to customer requirement |
For accurate quotation and specification recommendation, please provide the following information:
Hose outside diameter and coupling size
Connection distance or required overall length
Preferred wire rope diameter and construction
Required material: galvanized steel, stainless steel 304, stainless steel 316 or coated wire rope
End type: soft eye, thimble eye, bolt plate, shackle or custom terminal
Working environment: oilfield, drilling site, offshore platform, marine, outdoor or corrosive environment
Order quantity, packaging requirement and sample requirement
Drawing, sample photo or technical specification if available
Send us your hose size, cable length, material requirement and end fitting design. We can provide customized wire rope hose safety cable solutions for oilfield and industrial hose systems.
