Product Details:
|
|
| Product Name: | Grommet Wire Rope Sling |
|---|---|
| Model: | 40mm / 27T Vertical WLL / MBL ≥137T |
| Construction: | 6x36 IWRC 1960 Grade Endless Grommet Sling |
| Material: | High Tensile Galvanized Steel Wire Rope |
| Safety Factor: | 5 |
| Application: | Crane Lifting, Offshore, Shipyard, Steel Structure and Equipment Handling |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Piece |
| Price Terms: | EXW, FOB, CIF, DDP Available |
| Payment Terms: | T/T, L/C, PayPal or Negotiable |
| Delivery Time: | 7–15 Working Days after Order Confirmation |
| Packing Method: | Wooden Case, Steel Pallet or Customized Export Packing |
| Shipping Method: | Sea Freight, Air Freight, Express or Multimodal Transport |
|
Detail Information |
|||
| Brand Name | LKS | Product Type | Endless Grommet Wire Rope Sling |
|---|---|---|---|
| Finished Grommet Diameter | 40mm | Vertical Working Load Limit | 27T |
| Minimum Breaking Load | ≥137T | Safety Factor | 5 |
| Rope Construction | 6x36 IWRC | Wire Rope Grade | 1960 MPa |
| High Light: |
40mm grommet sling,grommet wire rope sling |
||
Product Description

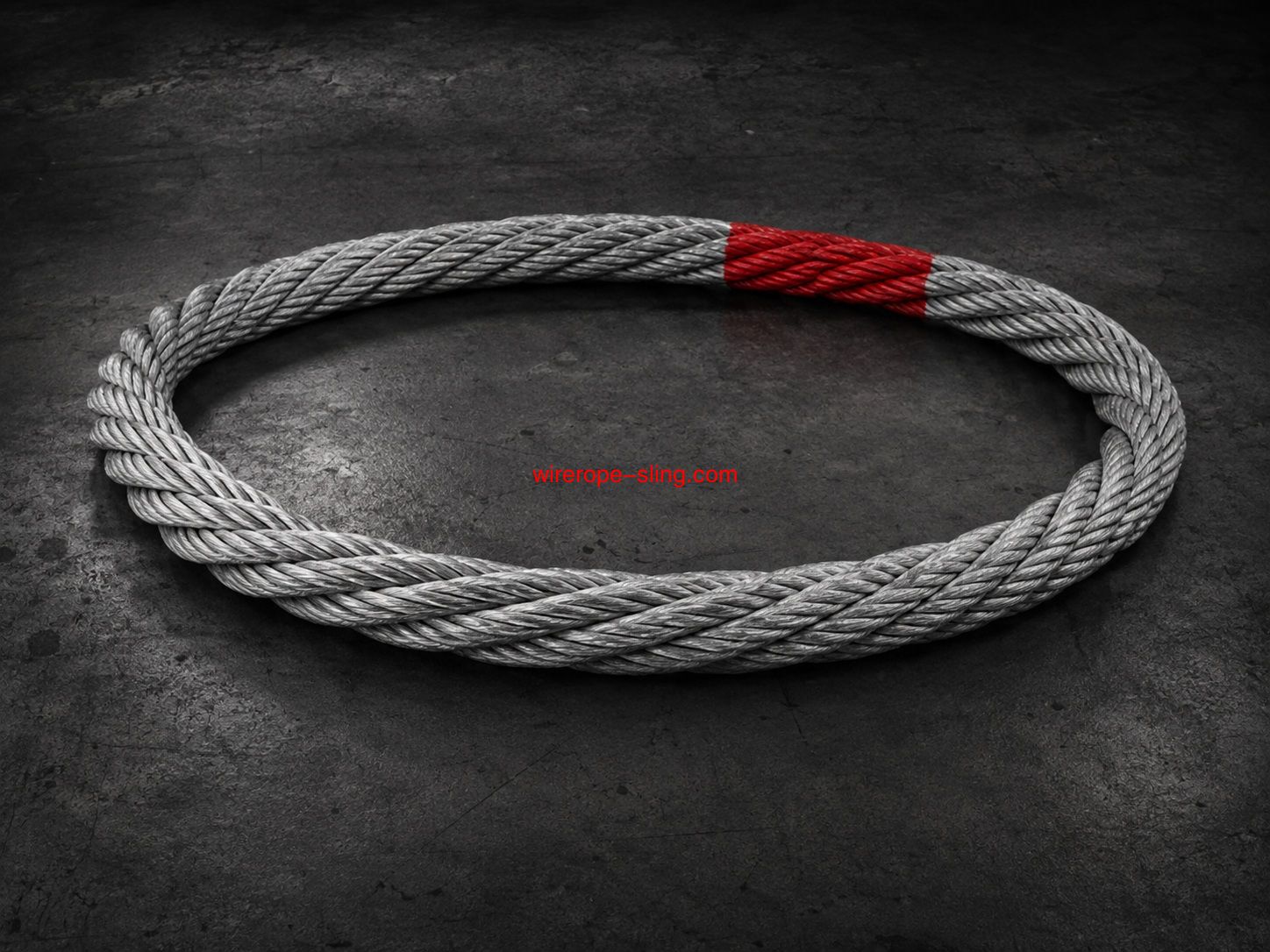

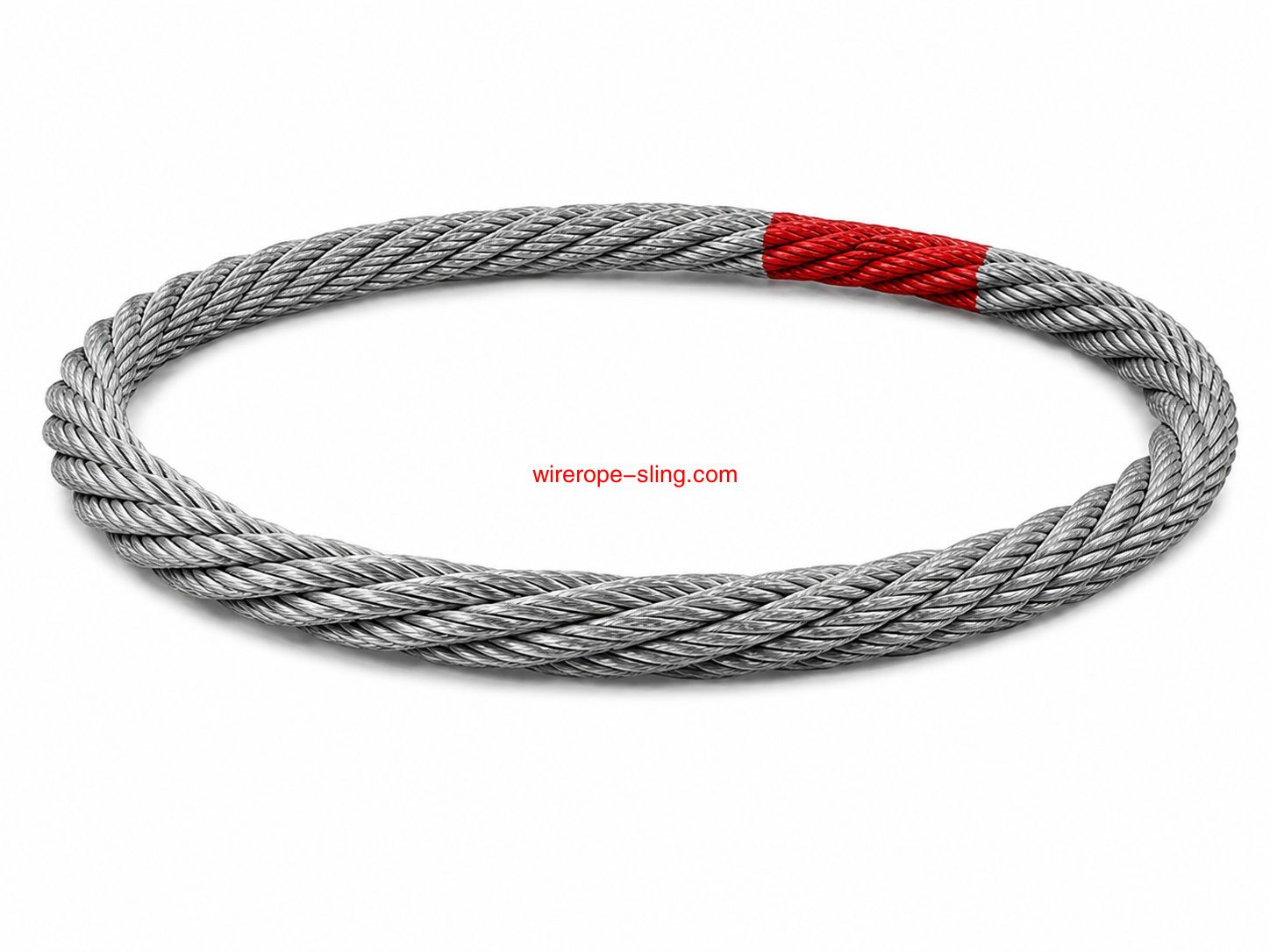

6x36 IWRC 1960 Grade Galvanized Endless Lifting Sling for Heavy Industry
Built for crane lifting, offshore handling, shipyard construction, steel structure movement and heavy equipment installation where strength, safety and traceability are critical.
40mm Finished Grommet Diameter | 27T Vertical WLL | ≥137T Minimum Breaking Load | 5:1 Safety Factor |
The LKS 40mm grommet wire rope sling is a high-strength endless lifting sling manufactured from 6x36 IWRC 1960 grade galvanized steel wire rope. This model is designed with a 27T vertical working load limit, minimum breaking load ≥137T, and a 5:1 safety factor for demanding industrial lifting applications.
Unlike ordinary single-leg lifting assemblies, a grommet wire rope sling forms a continuous endless structure. This helps improve load distribution, reduce localized stress concentration and provide excellent flexibility during heavy lifting operations. It is widely used in crane lifting, offshore engineering, shipbuilding, steel fabrication, mining, construction and machinery installation.
Designed for professional buyers who require:
verified breaking load, clear WLL marking, metal tag traceability, custom effective length, export packing, and inspection documentation for international heavy lifting projects.
The following specification is prepared for the LKS 40mm grommet wire rope sling using 6x36 IWRC 1960 grade galvanized steel wire rope. Final certified values should be confirmed by actual production drawing, inspection report and lifting configuration.
| Parameter | Specification |
|---|---|
| Product Name | Grommet Wire Rope Sling |
| Brand | LKS |
| Sling Type | Endless Grommet Wire Rope Sling |
| Finished Grommet Body Diameter | 40mm |
| Unit Rope Construction | 6x36 IWRC |
| Wire Rope Grade | 1960 MPa |
| Surface Treatment | Galvanized |
| Minimum Breaking Load | ≥137T |
| Vertical Working Load Limit | 27T |
| Safety Factor | 5:1 |
| Effective Working Length | Customized according to lifting requirement |
| Reference Standard | EN 13414-3 / ASME B30.9 Reference Manufacturing Practice |
| Identification | Metal tag with WLL, size, serial number and traceability information available |
| Inspection Document | Material certificate, inspection report, load test report and third-party inspection available on request |
| Application | Crane lifting, offshore lifting, shipyard, steel structure handling, equipment installation |
Safety Note: WLL and MBL values must be used together with the certified lifting method, sling angle, D/d ratio, load contact surface and inspection status. Never exceed the certified working load limit during lifting operations.
The 27T vertical WLL is based on a 5:1 safety factor from the minimum breaking load. Different lifting methods may require different working load ratings and reduction factors.
| Lifting Method | Reference Factor | Reference WLL | Remark |
|---|---|---|---|
| Vertical Lift | 1.0 | 27T | Recommended main rating for product page title. |
| Choker Lift | Approx. 0.8 | Approx. 21.6T | Subject to choke angle and certified chart. |
| Basket Lift | Approx. 2.0 | Approx. 54T | Subject to sling angle and load contact condition. |
Crane LiftingFor lifting heavy machinery, fabricated modules, steel beams and large industrial components. | Offshore ProjectsSuitable for marine and offshore environments requiring galvanized surface and reliable lifting strength. | Shipyard HandlingUsed for ship blocks, steel structures and heavy components in shipbuilding operations. |
Steel FabricationIdeal for steel frames, plates, beams and fabricated structural assemblies. | Equipment InstallationSupports industrial machinery relocation, positioning, installation and maintenance lifting. | Mining & EnergySuitable for demanding industrial sites requiring durable and traceable lifting gear. |
LKS supports strict inspection and documentation for export lifting products. Each sling can be supplied with product marking, metal tag, inspection records and third-party inspection according to order requirements.
| Inspection Item | Availability | Purpose |
|---|---|---|
| Visual Inspection | Available | Checks rope surface, splice condition, sleeve and finished appearance. |
| Dimension Check | Available | Confirms body diameter, effective length and finished sling size. |
| Proof Load Test | Available on Request | Verifies lifting performance before shipment. |
| Material Certificate | Available | Supports wire rope grade and material traceability. |
| Third-party Inspection | SGS / BV / DNV / CCS Available | Meets project or buyer inspection requirements. |
| Custom WLL & MBL Different working load limits and breaking load requirements can be designed by project demand. | Custom Length Effective working length can be produced according to lifting height and site layout. |
| Protective Sleeve Wear protection can be added for sharp edge contact or frequent lifting conditions. | Metal Tag WLL, MBL, size, serial number and traceability information can be marked. |
| Surface Finish Galvanized or ungalvanized steel wire rope options are available. | Export Packing Wooden case, steel pallet or customized packing for sea and air shipment. |
Q1: What is the WLL of this 40mm grommet wire rope sling?
A: This model is designed with a 27T vertical working load limit based on a 5:1 safety factor. Final WLL should follow the certified lifting chart and actual inspection document.
Q2: What is the minimum breaking load?
A: The minimum breaking load is specified as ≥137T for this 40mm grommet sling using 6x36 IWRC 1960 grade wire rope.
Q3: Can LKS customize the sling length?
A: Yes. LKS can customize effective working length, finished circumference, metal tag, protective sleeve, surface finish and export packing.
Q4: What documents can be supplied?
A: Material certificate, inspection report, proof load test report and third-party inspection documents can be supplied according to order requirements.
Q5: What information should I send for quotation?
A: Please send your required WLL, MBL, sling length, lifting method, quantity, certificate requirement and destination port.
Send us your required WLL, MBL, sling length, lifting method, quantity and destination port. LKS will provide a technical recommendation and quotation for your heavy lifting project.
