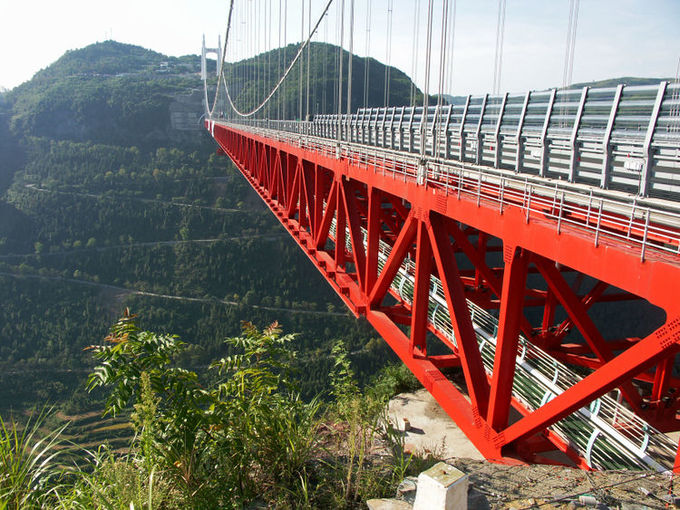

Hunan Aizhai suspension bridge

November 03, 2016

Hunan Aizhai suspension bridge

Located in Aizhai Town, Jishou City, Xiangxi Prefecture, Hunan Province, Aizhai super suspension bridge is about 20 kilometers away from Jishou City. It is one of the eight expressways planned by the state -- the key project of Jishou Chadong Expressway in Hunan section of Changsha Chongqing passage. The project is a double-layer highway and sightseeing channel bridge, and a four lane highway super large bridge. The bridge type scheme is a single span suspension bridge with steel truss stiffening beam, with a total length of 1073.65m. The main span of the suspension bridge is 1176m, which creates four world firsts, greatly improves the traffic situation of Hunan and Chongqing, and is of great significance for the connection of the two provinces and even the central and western regions





Some recommand applications of our wire rope

Product Parameter


Application Name Rope construction Remarks
Subvertical Hoist Triangle-strand wire rope 6VX37S 6VX37 6VX34 6VX30 6VX43 6VX21
Linear contact wire rope 6X19S 6X19W 6X25Fi 6X29Fi 6X26WS 6X31WS
Multi-layer strand wire rope 6X36WS 6X41WS Suitable for vertical shaft of the wire rope canal
Digging subvertical hoist（use for well building） Multi-layer strand wire rope and shaped strand wire rope 18X7 17X7 35WX7 24WX7 34X7 36X7 4VX39S 4VX48S
Balance rope for subvertical hoist Steel wire rope 6X37S　6X36WS　4VX39S　4VX48S Only for regular lay
Multi-layer strand wire rope 18X7　17X7　35WX7　24WX7　34X7　36X7 Only for regular lay
Incline shaft hoist(winch) Triangle-strand wire rope 6VX18 6VX19
Steel wire rope 6X7
Hoister for blast furnace Triangle-strand wire rope 6VX37S 6VX37 6VX30 6VX34 6VX43
Linear contact wire rope 6X19S 6X25Fi 6X29Fi 6X26WS 6X31WS 6X36WS 6X41WS
Vertical shaft tunnel and cableway Triangle-strand wire rope 6VX18 6VX19
Multi-layer strand wire rope 18X7 17X17
Opened slope hoisting Triangle-strand wire rope 6VX37S 6VX37 6VX30 6VX34 6VX43
Linear contact wire rope 6X36WS 6X37S 6X41WS 6X49SWS 6X55SWS
Oil drilling Linear contact wire rope 6X19S 6X19W 6X25Fi 6X29Fi 6X26WS 6X31WS6X36WS Steel core also is available
Belt conveyor, cableway and ground cable car Linear contact wire rope 6X19S 6X19W 6X25Fi 6X29Fi 6X26WS 6X31WS6X36WS 6X41WS 6X19W is not available for cableway
Excavator(hoisting) Linear contact wire rope 6X19S+IWR 6X19W+IWR 6X25Fi+IWR6X29Fi+IWR 6X26WS+IWR6X31WS+IWR 6X36WS+IWR 6X55SWS+IWR6X49SWS+IWR 35WX7 24WX7
Triangle-strand wire rope 6VX37S 6VX37 6VX30 6VX34 6VX43
Crane Large casting crane Linear contact wire rope 6X19S+IWR 6X19W+IWR 6X25Fi+IWR 6X36WS+IWR6X41WS+IWR
Port handling hydraulic engineering and tower crane Multi-layer strand wire rope 18X19S 18X19W 34X7 36X7 35WX7 24WX7
Four-strand fan-shaped wire rope 4VX39S 4VX48S
Frequent hoisting and other important application Linear contact wire rope 6X19S 6X19W 6X25Fi 6X29Fi 6X26WS 6X31WS 6X36WS6X37S 6X41WS 6X49SWS 6X55SWS 8X19S 8X19W 8X25Fi8X26WS 8X31WS 8X36WS 8X41WS 8X49SWS 8X55SWS
Four-strand fan-shaped wire rope 4VX39S 4VX48S
Moving machine for hot steel ( platform for pushing steel used in steel works) Linear contact wire rope 6X19S+IWR 6X19W+IWR 6X25Fi+IWR 6X29Fi+IWR
6X31WS+IWR 6X37S+IWR 6X36WS+IWR
Shipping handling Linear contact wire rope 6X19W 6X25Fi 6X29Fi 6X31WS 6X36WS 6X37S Galvanized
Multi-layer strand wire rope 18X19S 18X19W 34X7 36X7 35WX7 24WX7
Four-strand fan-shaped wire rope 4VX39S 4VX48S
Tugboat, Cargo net Steel wire rope 6X31WS 6X36WS 6X37S Galvanized
Ship tension, mast hanging bridge Steel wire rope 6X7+IWS 6X19S+IWR Galvanized
Salvaging wrecked ship Steel wire rope 6X31WS 6X36WS 6X37S 6X41WS 6X49SWS 6X55SWS
8X19S 8X19W 8X31WS 8X36WS 8X41WS 8X49SWS
8X55SWS		 Galvanized
