Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | LKS |
Certification: | CE / ISO9001:2008 |
Model Number: | 7x7 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1mtrs |
Price: | USD5000/TON |
Packaging Details: | Seaworthy packing or as request |
Delivery Time: | 15 days after the order confirmation |
Payment Terms: | L/C, T/T |
Supply Ability: | 100tons monthly |
Detail Information |
|||
Wire Gauge: | 0.2-14MM | Standard: | AISI, ASTM, BS, DIN, GB, JIS |
---|---|---|---|
Steel Grade: | SAE1006,SAE1008,Q195,Q235 | Type: | Drawn Wire,Carbon Steel Wire |
Alloy Or Not: | Non-alloy | Service: | OEM/ODM |
Special Use: | Free Cutting Steel | Packaging: | In Coil And Pallet |
High Light: |
coated stainless steel cable,stainless steel cable |
Product Description

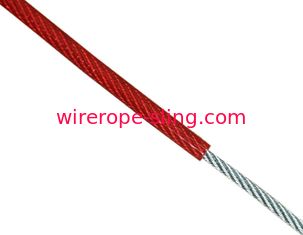

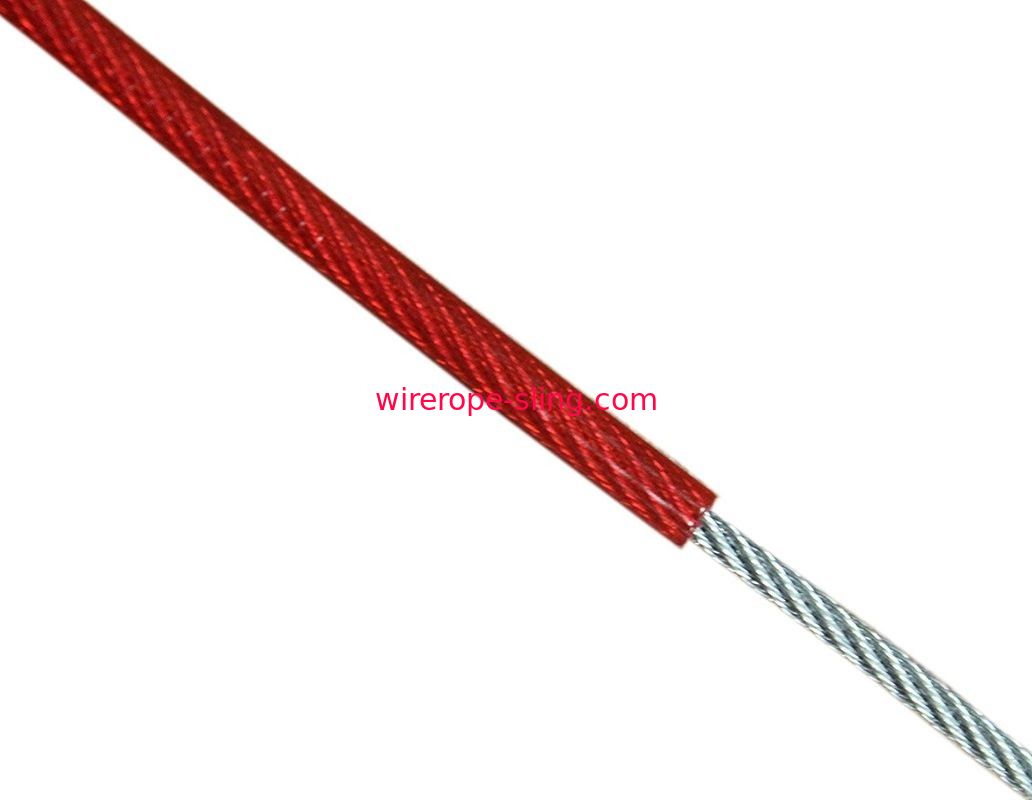

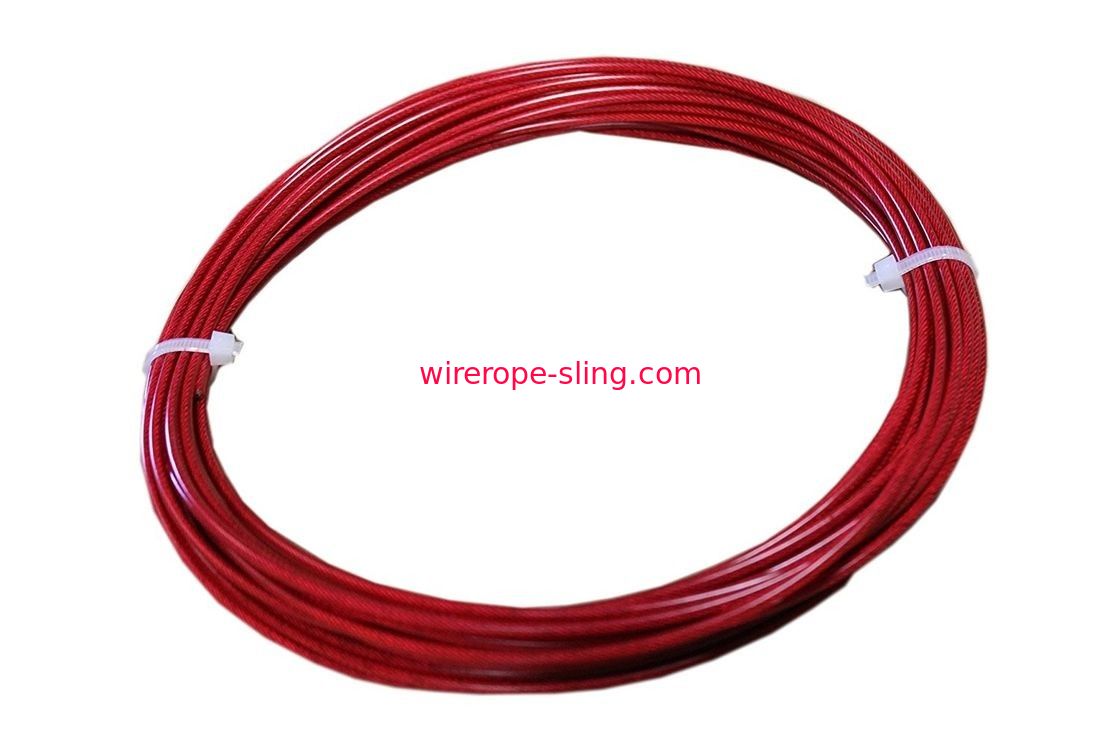

Red 7x7 Strand Core Stainless Wire Rope Vinyl Coated for bicycle fittings
Many people are more and more accepting various kinds of stainless steel wire ropes, which is perhaps the greatest feature of rust prevention and corrosion protection. However, many of them will often overlook its particularity. The coated stainless steel wire rope has PVC, nylon, Teflon, PP, common plastic and so on. The lifting nylon and the Teflon are the hardest, but also the best corrosion protection, but after the glue will make the original soft wire rope hardened, so we should pay attention when choosing this wire rope.
PVC is a kind of soft wire rope packaging material, beautiful and generous, but not corrosion, easy to break, generally used in decoration, must not be used in the special industry and other industries.
1. Grade: SUS304,SUS316,304L, 316L
2. Construction: 1X7, 1X19,7X7,7X19,7X37,6X19+IWRC,6X19W+IWRC,6X7+FC,etc.
3. Diameter: 0.5-30mm
4. Standard: EN12385, JIS, RR-W-410F, GB, etc
5. Certification: ISO9001, Mill test certificate
6. Application: Aircraft Cable, Marine, Fishing, Railing system, etc.
Type AISI | C Max % | Mn Max % | P Max% | S Max% | Si Max% | Cr% | Ni% | Mo% |
201 | 0.15 | 5.50-7.50 | 0.06 | 0.03 | 1 | 16.000-18.00 | 0.5 | - |
202 | 0.15 | 7.50-10.00 | 0.06 | 0.03 | 1 | 17.00-19.00 | 3.-0-5.00 | - |
204CU | 0.08 | 6.5-8.5 | 0.06 | 0.03 | 2 | 16.0-17.0 | 1.5-3.0 | - |
302 | 0.15 | 2 | 0.045 | 0.03 | 1 | 17.00-19.00 | 8.00-10.00 | - |
302HQ/ | 0.03 | 2 | 0.045 | 0.02 | 1 | 17.00-19.00 | 9.00-10.00 | - |
304CU | ||||||||
304HC | 0.04 | 0.80-1.70 | 0.04 | 0.015 | 0.3-0.6 | 18-19 | 8.5-9.5 | - |
303 | 0.07 | 2 | 0.045 | 0.25 Min | 1 | 17-19 | 8.0-10.0 | 0.6 |
304 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.00-20.00 | 8.0-10.50 | - |
304L | 0.03 | 2 | 0.045 | 0.03 | 1 | 18.00-20.00 | 8.00-12.00 | - |
310 S | 0.055 | 1.5 | 0.04 | 0.005 | 0.7 | 25.0-28.0 | 19-22 | - |
314 | 0.25 | 2 | 0.045 | 0.03 | 1.50-3.00 | 23.00-26.00 | 19.00-22.00 | - |
316 | 0.06 | 2 | 0.045 | 0.03 | 1 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 |
316L | 0.03 | 2 | 0.045 | 0.03 | 1 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 |
316Ti | 0.08 | 2 | 0.045 | 0.03 | 0.75 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 |
347 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.00-19.00 | 9.00-13.00 | - |
321 | 0.06 | 2 | 0.045 | 0.01 | .40-.60 | 17-19.00 | 9.4-9.6 | - |
ER308 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17-19 | 9.5-13.0 | - |
ER308L | 0.025 | 1.50/2.00 | 0.025 | 0.02 | 0.5 | 19.0/21.0 | 9.5/11.0 | - |
ER309 | 0.08 | 1.50/2.50 | 0.02 | 0.015 | 0.5 | 23.0/25.0 | 20.0/14.0 | - |
ER309L | 0.025 | 1.50/2.50 | 0.02 | 0.015 | 0.5 | 23.0/25.0 | 12.0/14.0 | - |
ER316L | 0.02 | 1.50/2.00 | 0.02 | 0.02 | 0.5 | 18.0/20.0 | 12.00-14.00 | 2.00-3.00 |
430L | 0.03 | 1 | 0.04 | 0.03 | 1 | 16.00-18.00 | - | |
434 | 0.08 | 1 | 0.04 | 0.03 | 1 | 16.00-18.00 | - | 0.90-1.40 |
Bare Cable Diameter | Coated Cable Diameter | Galvanized Min. rated breaking strength |
Galvanized PVC weight per 1,000 ft. |
Stainless Steel Min. rated breaking strength |
Stainless Steel PVC weight per 1,000 ft. |
1/32" | 3/64” | 110lbs | 2.3lbs | 110lbs | 2.3lbs |
3/64" | 1/16” | 270lbs | 5.2lbs | 270lbs | 5.2lbs |
1/16" | 3/32” | 480lbs | 10.1lbs | 480lbs | 10.1lbs |
1/16" | 1/8” | 480lbs | 13.0lbs | 480lbs | 13.0lbs |
3/32" | 1/8” | 920lbs | 20.0lbs | 920lbs | 20.0lbs |
3/32" | 5/32” | 920lbs | 23.8lbs | 920lbs | 23.8lbs |
3/32" | 3/16” | 920lbs | 28.3lbs | 920lbs | 28.3lbs |
1/8" | 5/32” | 1700lbs | 34.2lbs | 1700lbs | 34.2lbs |
1/8" | 3/16" | 1700lbs | 38.8lbs | 1700lbs | 38.8lbs |
1/8" | 1/4” | 1700lbs | 50.4lbs | 1700lbs | 50.4lbs |
5/32" | 7/32” | 2600lbs | 56.1lbs | 2600lbs | 56.1lbs |
3/16" | 1/4" | 3700lbs | 78.1lbs | 3700lbs | 78.1lbs |
3/16" | 5/16” | 3700lbs | 93.1lbs | 3700lbs | 93.1lbs |
1/4" | 5/16" | 6100lbs | 128.9lbs | 6100lbs | 128.9lbs |
RR-W-410
