7x7 Stainless Steel Wire Rope Strand Core High Elasticity Corrosion Resistant

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO9001:2008
Model Number: 7x7
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD5000/TON
Packaging Details: Seaworthy packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Steel Grade:SAE1006,SAE1008,Q195,Q235Standard:AISI, ASTM, BS, DIN, GB, JIS
Wire Gauge:0.2-14MMType:Drawn Wire,Carbon Steel Wire
Alloy Or Not:Non-alloyService:OEM/ODM
Special Use:Free Cutting SteelPackaging:In Coil And Pallet
High Light:

coated stainless steel cable

,

stainless steel cable

Product Description

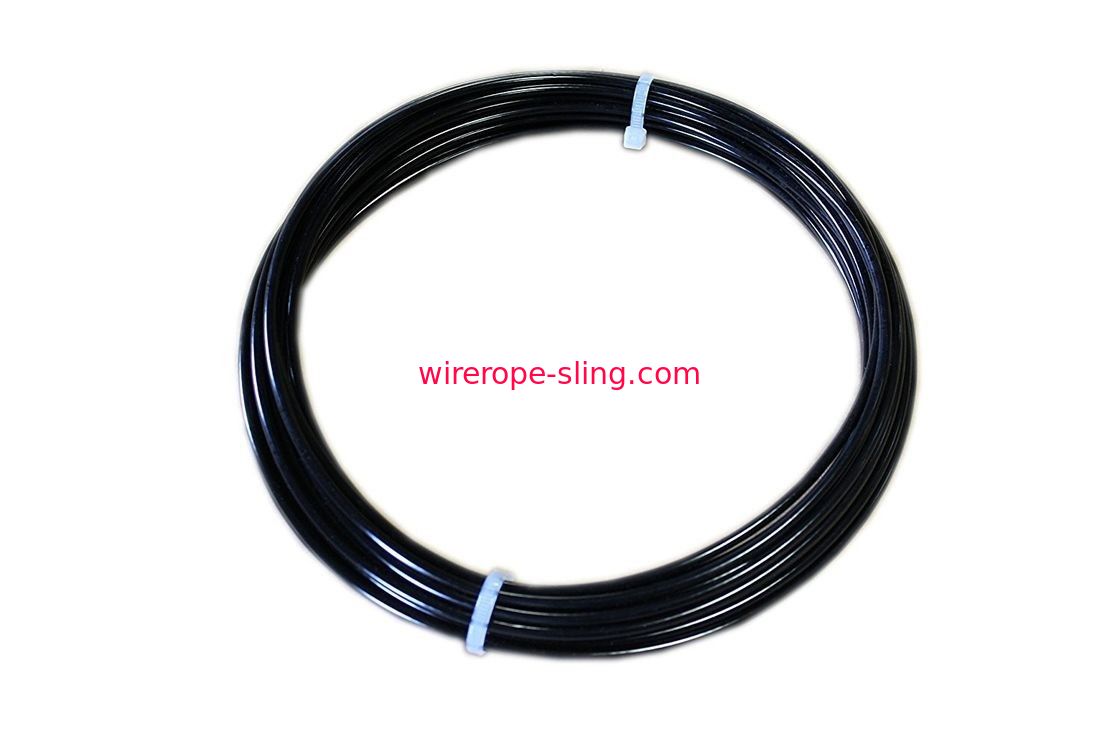

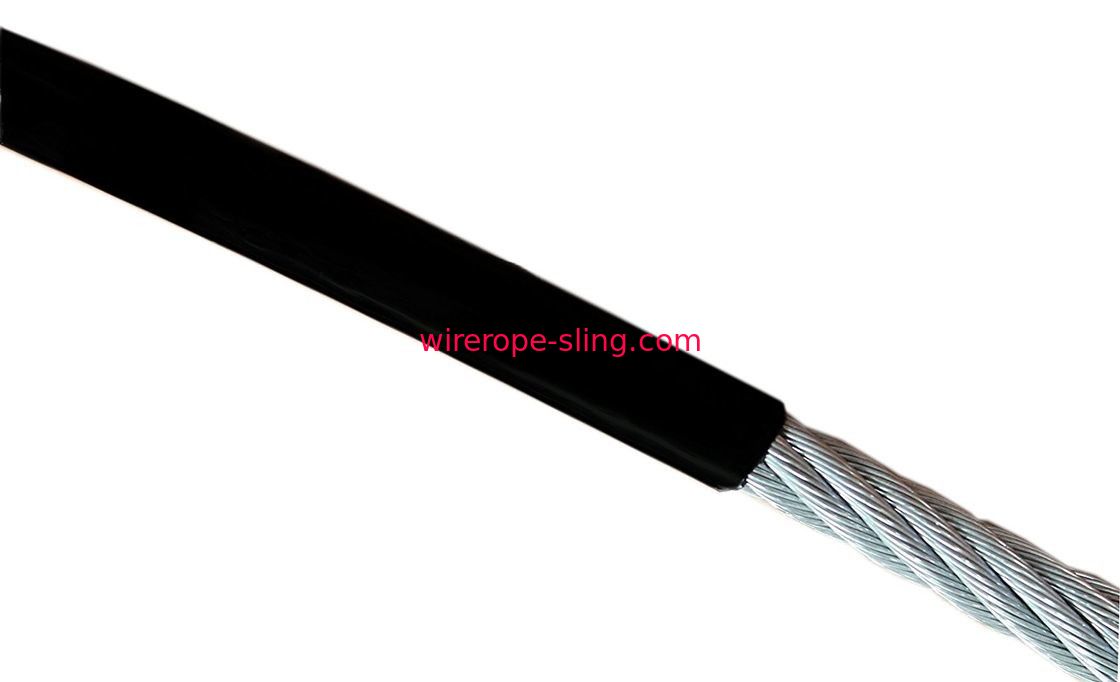

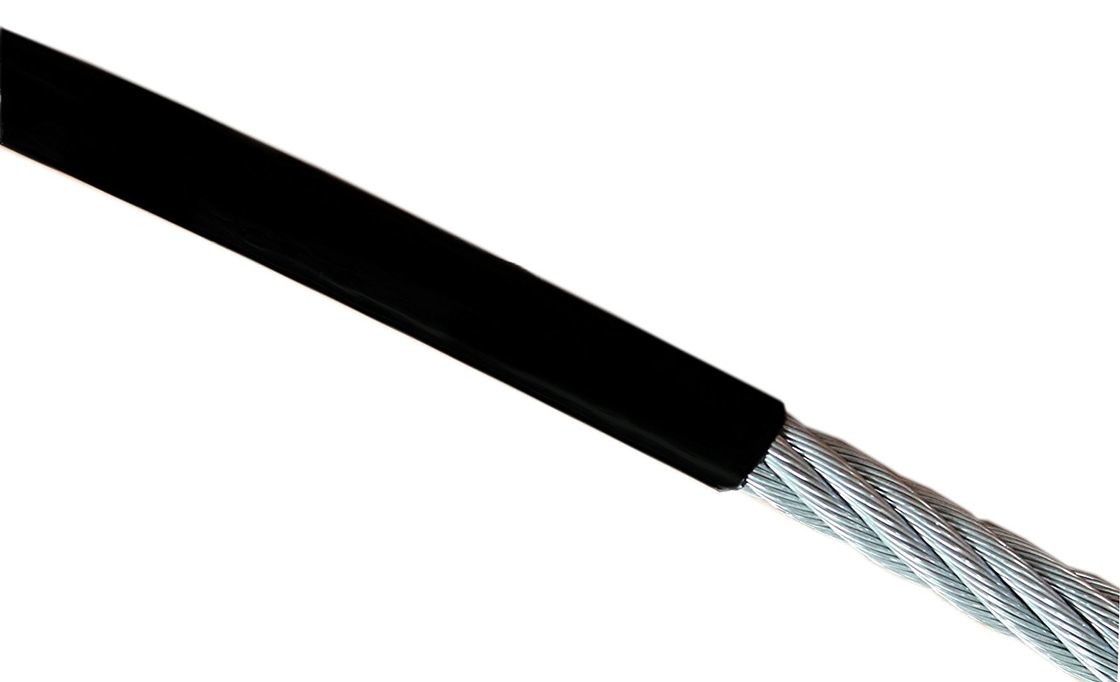

7x7 Strand Core 3 16 Stainless Wire Rope Black Vinyl Coated for lifting riggings



Stainless steel 18-8, vinyl-coated wire rope with 7x7 standard construction can be used over pulleys, rigging, winches, in exercise equipment, and garage door mechanics. This wire rope is black-colored for ease of recognition. Stainless steel 304, also called 18-8, is corrosion-resistant, resists scaling, and withstands high temperatures for a wide range of operation. Stainless steel is a common, versatile material used in a wide variety of applications, and in saline atmospheres. Vinyl, also called Polyvinyl Chloride (PVC), is corrosion-resistant, lightweight, and has high strength. It resists reactions with acids, gasoline, alcohol, and hydrocarbons. It is flexible, and is resistant to weather and ultra-violet (UV) rays. Vinyl coating is a hard, durable plastic that resists most chemicals, has excellent dimensional stability, and can be sterilized. It resists oil, absorbs low levels of moisture, and is non-conductive. 7x7 standard construction strand core has seven strands of wire rope with seven wires in each strand, and is formed helically around a strand core. 7x7 strand core is stronger but less flexible than 6x19 and 6x36 class constructions.



Characteristics of stainless steel wire :



~Excellent Straightness

~Uniform and beautiful surface condition

~Excellent coil-forming ability

~High elasticity and high fatigue resistance

~Strong corrosion resistance against exposure to the toughest atmosphere



Product Name Specification
Stainless steel tie wire (lashing wire) Diameter: 0.02mm-14mm
Length:standard length or as customers' request
Condition: soft wire, semi-soft wire, hard wire
Stainless steel spring wire Stainless steel
Standard: ASTM A 313, EN 10270-3, JIS G4314, BS 2056 & DIN 17224 -
Surface: Excellent surface finish (pickled) , Annealed.

Stainless Steel Barbed Wire(Razor Wire)



Grade:304, 304L, 316, 316L, 410, 430, etc
Size: according to your requirement
Surface: Excellent surface finish (pickled) , Annealed.

Stainless Steel Fine Wire



Size: 0.02-0.10mm
Fiber Length: 1mm-120mm
Specific Gravity: 7.98g/cm3

Stainless Steel Microwire



Size: 2-50um
Fiber Length: 1mm-120mm
Specific Gravity: 7.98g/cm3

Stainless Steel Expanded Wire



Standard Rhombic Shaped
Heavy Type (Tortoise-shaped)
Flattended/Special Type

Stainless Steel Fiber



Size: 2-50um
Fiber Length: 1mm-120mm
Specific Gravity: 7.98g/cm3



Applications of stainless steel single strand wires :



1). Tie wire, pins, lashing, forming wire, filters, gaskets, elevators, safety wire, shaped and flat wire,

2). Conveyors, jewelry, springs, brush welding, electrical, wire line, craft , bicycle fittings

3). Kitchen and sanitation tools, goods shelf, pet cages, gill racks, decorative handles and baskets

4). Food and medical machinery accessions and many more applications.



Specification



Bare Cable Diameter Coated Cable Diameter Galvanized
Min. rated breaking strength
Galvanized
PVC weight per
1,000 ft.
Stainless Steel
Min. rated breaking strength
Stainless Steel
PVC weight per
1,000 ft.
1/32" 3/64” 110lbs 2.3lbs 110lbs 2.3lbs
3/64" 1/16” 270lbs 5.2lbs 270lbs 5.2lbs
1/16" 3/32” 480lbs 10.1lbs 480lbs 10.1lbs
1/16" 1/8” 480lbs 13.0lbs 480lbs 13.0lbs
3/32" 1/8” 920lbs 20.0lbs 920lbs 20.0lbs
3/32" 5/32” 920lbs 23.8lbs 920lbs 23.8lbs
3/32" 3/16” 920lbs 28.3lbs 920lbs 28.3lbs
1/8" 5/32” 1700lbs 34.2lbs 1700lbs 34.2lbs
1/8" 3/16" 1700lbs 38.8lbs 1700lbs 38.8lbs
1/8" 1/4” 1700lbs 50.4lbs 1700lbs 50.4lbs
5/32" 7/32” 2600lbs 56.1lbs 2600lbs 56.1lbs
3/16" 1/4" 3700lbs 78.1lbs 3700lbs 78.1lbs
3/16" 5/16” 3700lbs 93.1lbs 3700lbs 93.1lbs
1/4" 5/16" 6100lbs 128.9lbs 6100lbs 128.9lbs

RR-W-410
