China Wire Rope Sling manufacturer

7x7 Strand Core Stainless Steel Wire Rope 302 304 BS Standard For Lifeline

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO9001:2008
Model Number: 7x7
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD5000/TON
Packaging Details: Seaworthy packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Wire Gauge:0.2-14MMStandard:AISI, ASTM, BS, DIN, GB, JIS
Steel Grade:SAE1006,SAE1008,Q195,Q235Type:Drawn Wire,Carbon Steel Wire
Alloy Or Not:Non-alloyService:OEM/ODM
Special Use:Free Cutting SteelPackaging:In Coil And Pallet
High Light:

coated stainless steel cable

,

stainless steel cable

Product Description

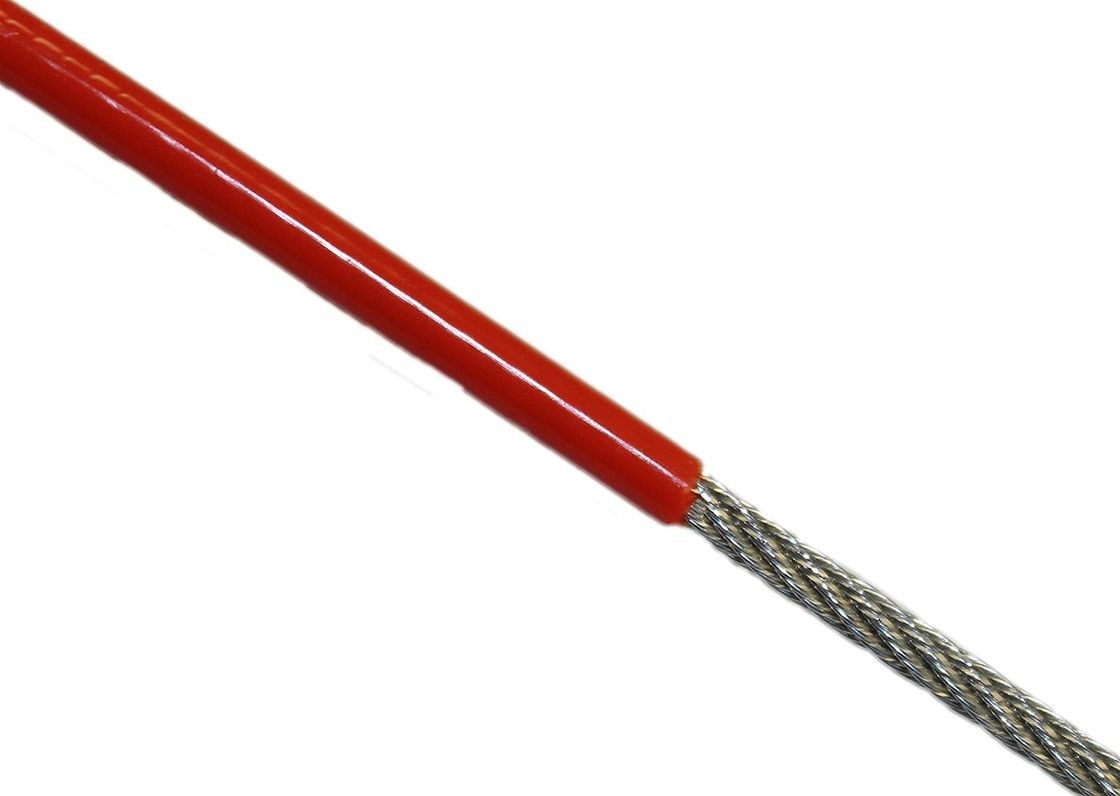

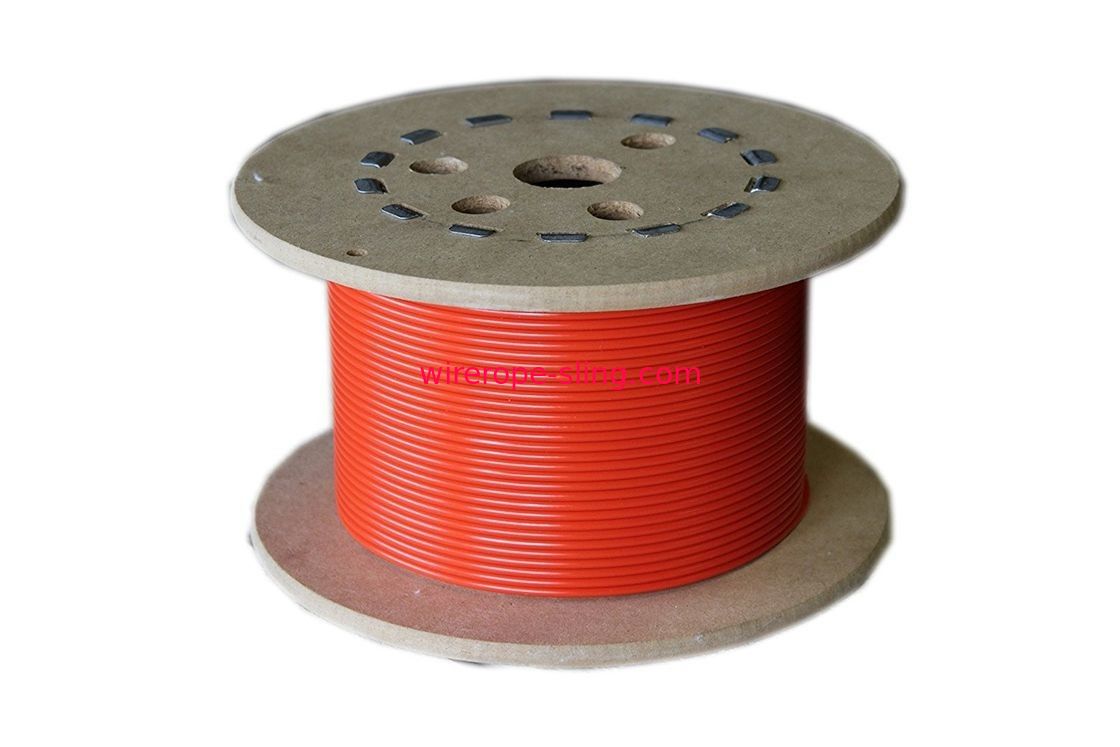

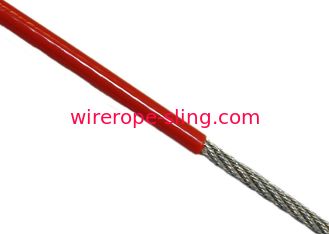

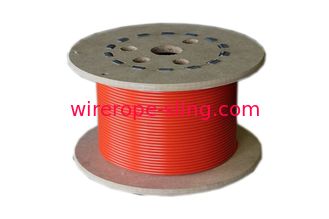

Orange Vinyl Coated Stainless Wire Rope 302/304 for lifeline , 7x7 Strand Core

Specifications of stainless steel wire :

1. Standard: AISI, ASTM, DIN, GB, JIS, SUS
2. Grade: 201,202,304,304L,316,316L,316Ti,310S,2080,430,317,347,410,Monel400,etc
3. Diameter: 0.02mm-14mm
4. Condition:soft wire, semi-soft wire, hard wire
5. Length: as customers' request
6. Surface: electrolysis bright, bright, matt.
7. Type:Hydrogen, Cold rolled, light

Vinyl Coated Cable



  • Great for outdoor applications (UV Resistant)
  • More cost effective than Nylon
  • Used in marine environments
  • Very flexible
  • Good general purpose coating
  • Available in a variety of hardnesses or durometers



Applications of stainless steel single strand wires :


1). Tie wire, pins, lashing, forming wire, filters, gaskets, elevators, safety wire, shaped and flat wire,
2). Conveyors, jewelry, springs, brush welding, electrical, wire line, craft , bicycle fittings
3). Kitchen and sanitation tools, goods shelf, pet cages, gill racks, decorative handles and baskets
4). Food and medical machinery accessions and many more applications.


Specification



Bare Cable DiameterCoated Cable DiameterGalvanized
Min. rated breaking strength
Galvanized
PVC weight per
1,000 ft.
Stainless Steel
Min. rated breaking strength
Stainless Steel
PVC weight per
1,000 ft.
1/32"3/64”110lbs2.3lbs110lbs2.3lbs
3/64"1/16”270lbs5.2lbs270lbs5.2lbs
1/16"3/32”480lbs10.1lbs480lbs10.1lbs
1/16"1/8”480lbs13.0lbs480lbs13.0lbs
3/32"1/8”920lbs20.0lbs920lbs20.0lbs
3/32"5/32”920lbs23.8lbs920lbs23.8lbs
3/32"3/16”920lbs28.3lbs920lbs28.3lbs
1/8"5/32”1700lbs34.2lbs1700lbs34.2lbs
1/8"3/16"1700lbs38.8lbs1700lbs38.8lbs
1/8"1/4”1700lbs50.4lbs1700lbs50.4lbs
5/32"7/32”2600lbs56.1lbs2600lbs56.1lbs
3/16"1/4"3700lbs78.1lbs3700lbs78.1lbs
3/16"5/16”3700lbs93.1lbs3700lbs93.1lbs
1/4"5/16"6100lbs128.9lbs6100lbs128.9lbs

RR-W-410


Packing&shipping

7x7 Strand Core Stainless Steel Wire Rope 302 304 BS Standard For Lifeline 0
