China Wire Rope Sling manufacturer

Non Rotating Luffing Wire Rope OEM / ODM Service Withstands High Temperatures

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO9001:2008
Model Number: 6x36 (14/7+7/7/1)
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD5000/TON
Packaging Details: Seaworthy packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Steel Grade:SAE1006,SAE1008,Q195,Q235Standard:AISI, ASTM, BS, DIN, GB, JIS
Wire Gauge:0.2-14MMType:Drawn Wire,Carbon Steel Wire
Alloy Or Not:Non-alloyService:OEM/ODM
Special Use:Free Cutting SteelPackaging:In Coil And Pallet
High Light:

coated stainless steel cable

,

stainless steel cable

Product Description

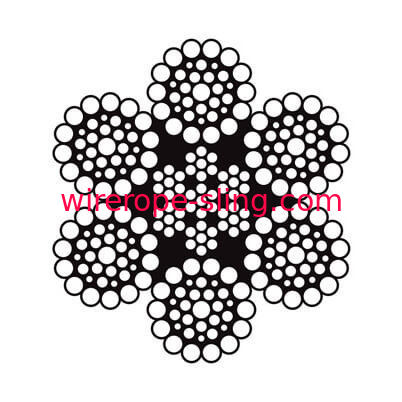

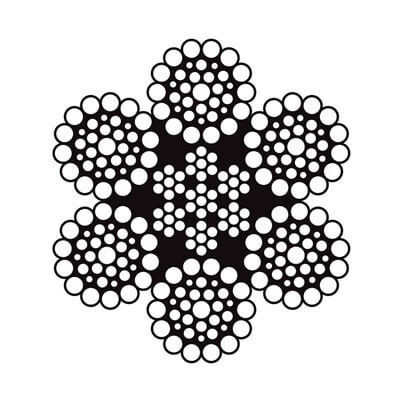

6x36 (14/7+7/7/1) - IWRC Stainless Steel Wire Rope Marine Grade Luffing ropes



Stainless steel or galvanized steel strand, wire rope or cable, is a uniform helical arrangement of wires concentrically stranded together for a variety of operating conditions. These constructions have different properties which are designed for specific applications.







The STRAND constructions have larger wires, increased abrasion resistance, and less flexibility. In small sizes, they are useful as fishing lines and leaders, light guying and lanyards; in larger sizes, as guy strand, standard rigging on boats and other applications where flexibility of the cable is not essential.

The CABLE constructions have more wires and are consequently more flexible with less abrasion resistance. This type of construction has applications in automotive, appliances, boating, instrumentation, aviation, agriculture, hobbies, medicine, recreation, etc.



Product description

6x36 is the most flexible of our stainless steel wire ropes. Available in much larger diameters, 6x36 stainless steel wire ropes are often used for larger diameter stainless steel slings as well as for general engineering applications. The wire rope has an equal lay construction (warrington seale) and achieves a superior breaking load to the 6x19 construction range. 6x36 construction has been designed to give a flexible rope with a good fatigue life. 6x36 wire rope is available with either FC (fibre core) or IWRC (independent wire rope core) and is used for a wide range of applications, including:

  • Applications
  • Marine crane rope applications
  • Luffing ropes
  • Lifeboat falls
  • Davit ropes
  • Large diameter stainless steel wire rope slings
  • Marine/Saltwater environment
  • Sewage treatment works



Breaking Loads
Nominal Diameter Approximate Mass Minimum breaking loads - 1570 Mpa
[mm] [kg/m] [kN] [Kg]
8 0.28 35.8 3,651
9 0.35 45.3 4,620
10 0.43 55.9 5,701
11 0.539 67.6 6,895
12 0.619 80.5 8,211
14 0.843 109.5 11,169
16 1.1 143.1 14,596
18 1.39 181 18,462
20 1.72 224 22,848
22 2.16 271 27,642
24 2.48 322 32,844
26 2.76 378 38,515
28 3.37 438 44,676
30 3.87 503 51,306
32 4.41 572 58,344



Loading

Wire Rope Load Definitions and Explanations

MBL - Minimum Break Load = The stress which, when steadily applied to a structural member, is just sufficient to break or rupture it. Also known as ultimate load.

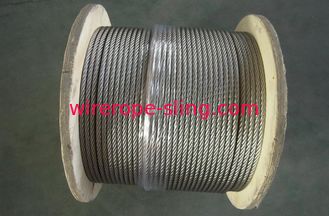

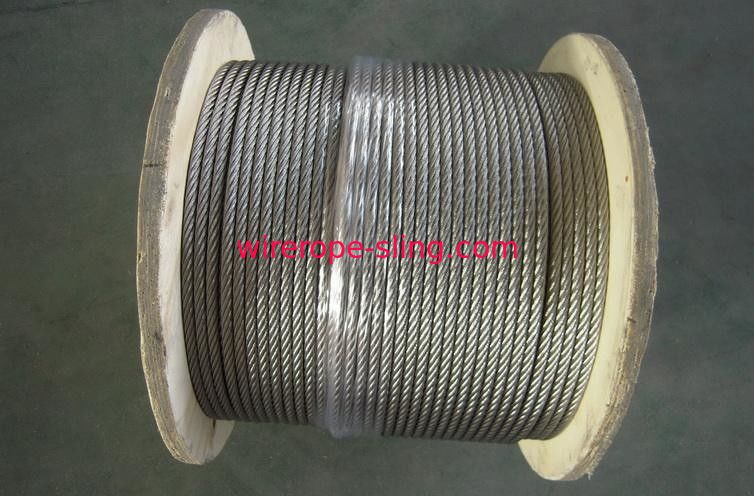

Non Rotating Luffing Wire Rope OEM / ODM Service Withstands High Temperatures 0

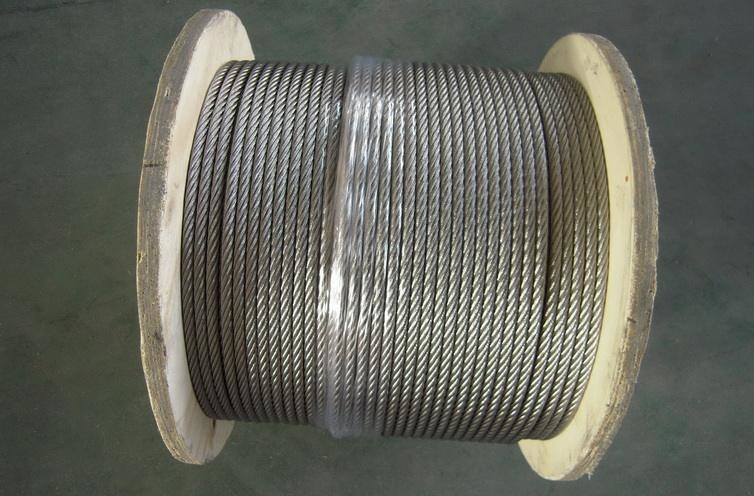

Non Rotating Luffing Wire Rope OEM / ODM Service Withstands High Temperatures 1
