Non - Alloy Stranded Steel Cable , Stainless Steel Rope Military Lubricated

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO9001:2008
Model Number: 19x7
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD5000/TON
Packaging Details: Seaworthy packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Packaging:In Coil And PalletSpecial Use:Free Cutting Steel
Wire Gauge:0.2-14MMType:Drawn Wire,Carbon Steel Wire
Alloy Or Not:Non-alloyService:OEM/ODM
Standard:AISI, ASTM, BS, DIN, GB, JISSteel Grade:SAE1006,SAE1008,Q195,Q235
High Light:

coated stainless steel cable

,

stainless steel cable

Product Description

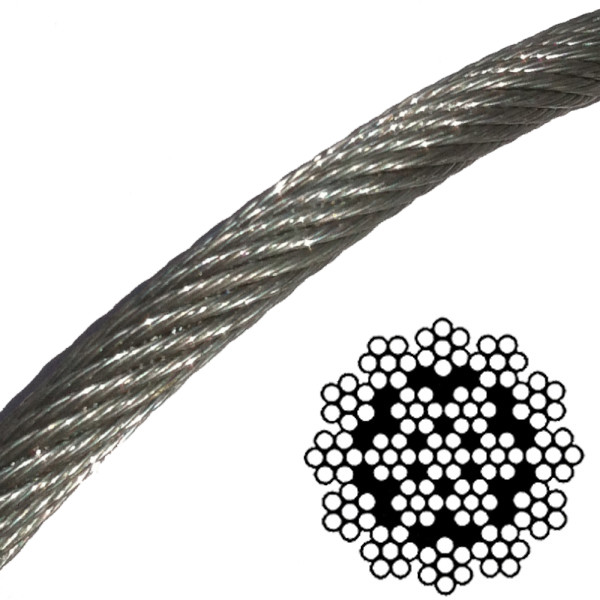

Military Lubricated Stainless Steel Wire Rope 19x7 Strand Core Davit ropes







19X7 AISI316 stainless steel wire rope is a non-rotating construction used where low rotation is required. Popular applications include davit and crane rope applications. Available in diameters from 1.5mm through to 16mm.



Lubricating oil on the stainless steel wire can effectively reduce the wear and corrosion protection, which has a positive effect on the prolongation of the service life of the stainless steel wire rope. However, many customers often encounter problems in how to choose lubricating oil. Improper lubricant will undoubtedly cause waste of cost. For this reason, Tianli listed some requirements for the selection of lubricating oil for stainless steel wire rope.
Copyright by:www.tlgss.com
1. It can be adhered to the stainless steel wire rope and will not be erased easily. It will not affect the lubrication effect when the temperature changes. This adhesive property also plays a certain role in preventing slipping, especially plays an important role in improving the adhesion friction of stainless steel wire ropes.

2, good flow and penetration ability, can quickly penetrate into the twisted cord and lining core to lubricate and rust, and prevent bacteria from growing on stainless steel wire rope.

3. Higher oil film strength can withstand extremely high pressure between contact wires under extremely heavy loads.

4, high cohesion, can reduce the dripping of lubricating oil, and avoid centrifugal loss during exercise.

5, do not contain corrosive components to cause rust. The main function of stainless steel wire rope lubricants is to prevent rust.

6, self recovery ability, stainless steel wire rope constantly bending deformation, resulting in its surface oil film is also constantly expanded or squeezed. This requires that the oil film is softer and has higher wettability so that it will not break. Lubricating oil at low temperature (below -23 C) must not be hardened or cracked.

7. It can resist water washing or emulsification. It helps to reduce the loss of lubricating oil and prevent corrosion under water wet condition.

The above is the specific requirements of Tianli for the selection of stainless steel wire rope lubricant, and I hope it will help you. It is necessary to pay special attention to the high chemical corrosion resistance of the stainless steel wire rope used in oil field drilling equipment in the selection of lubricating oil, while the lubricating oil of the stainless steel wire rope of the ship has a high requirement for the anti rust ability.

  • Applications
  • Marine crane rope applications
  • Marine/Saltwater environment
  • Sewage treatment works
  • Wire rope slings
  • Davit ropes





Non - Alloy Stranded Steel Cable , Stainless Steel Rope Military Lubricated 0



Product features



  • Type 302/304 stainless steel for corrosion resistance, formability, and good strength at extreme temperatures

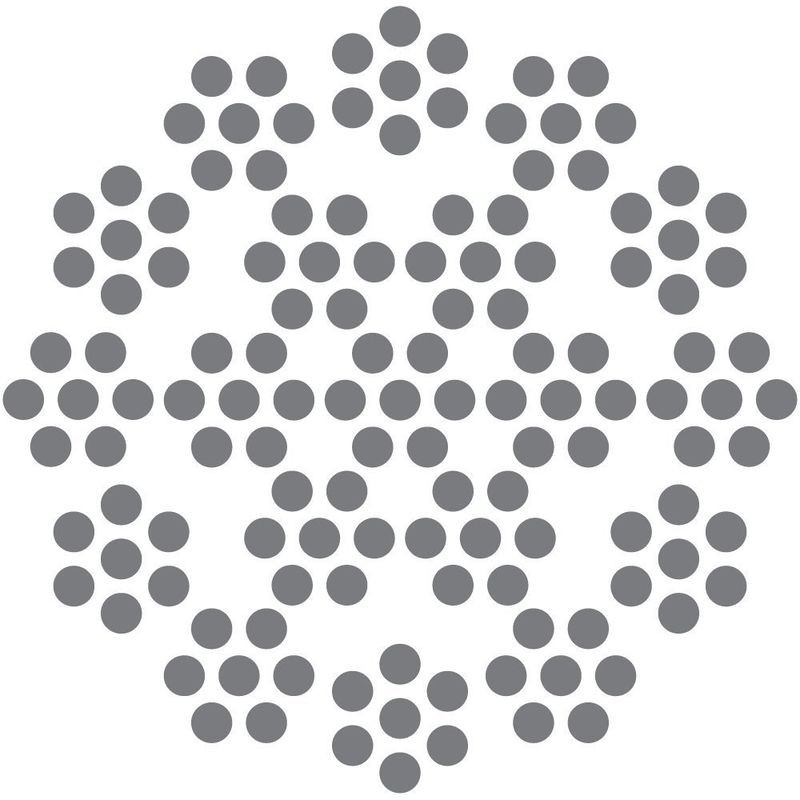

  • 19 strands of wire rope with three to 14 wires in each strand, of which no more than nine are outside wires
  • 19 x 7 is rotation resistant for ease of operation
  • This wire rope can be used with crawler and truck cranes for single-line hoisting operation, for winch and whip line applications, and for crane auxiliary hoisting in offshore operations



Spefications



Breaking Loads
Nominal Diameter Approximate Mass Minimum breaking loads - 1570 Mpa
[mm] [kg/m] [kN] [Kg]
6 0.144 18.5 1,887
8 0.256 33 3,366
9 0.324 41.7 4,253
10 0.4 51.5 5,253
11 0.502 62.3 6,354
12 0.576 74.2 7,568
13 0.676 87.1 8,884
14 0.796 101 10,302
16 1.04 132 13,464
18 1.32 167 17,034
19 1.44 186 18,972
20 1.62 206 21,012
22 2.04 249 25,398

Non - Alloy Stranded Steel Cable , Stainless Steel Rope Military Lubricated 1
