China Wire Rope Sling manufacturer

Trailer Safety Coated Steel Wire Rope Long Service Life Strong Breaking Force

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO 9001 : 2008
Model Number: 7x7PVC
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1580/TONS

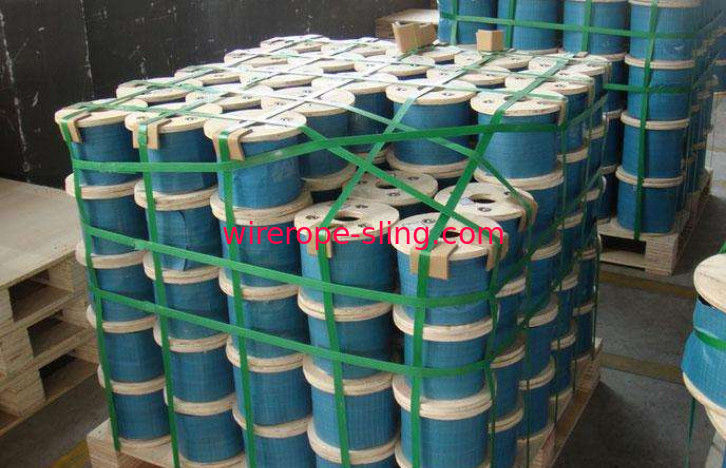

Packaging Details: Wooden Reel
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Material:StainlessSteel Grade:A2-70/A4-80
Length:,500m/reel,1000m/reel Or As RequestVinyl Coated:Yes
Colour:As RequestStandard:AISI, ASTM, DIN, GB, JIS
Wire Gauge:0.9mm-50mmHS Code:7312100000
High Light:

vinyl coated wire rope

,

nylon coated wire rope

Product Description

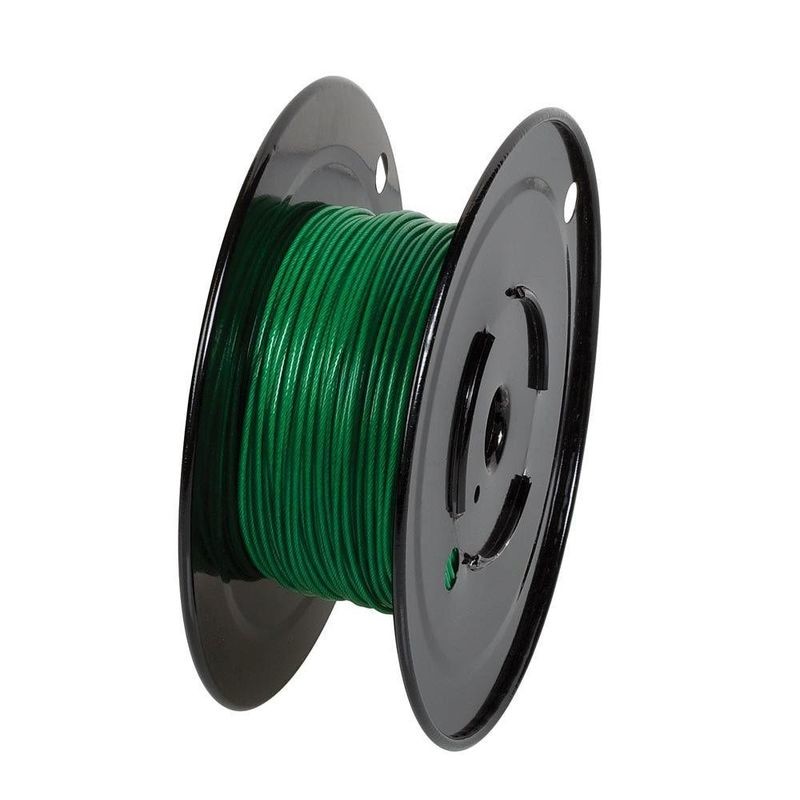

7x19 Vinyl Coated Steel Cable Stainless for Trailer safety , Colour As Request



LKS supplies an ultra-high quality 3.2mm Black 316 marine grade Stainless Steel Wire Rope PVC produced by a single manufacturer with over 40 years of experience. 7 x 19 strand stainless steel wire rope PVC is a very flexible, multi-purpose wire rope suitable for most applications including shade structures, shade umbrellas and sail, marine and architectural rigging. 7 x 19 Wire Rope PVC is ideal for use with hand Swage Sleeves and Thimbles.







LKS stocks a range of wire rope PVC that comes in variety of sizes from 2.0mm – 6.0mm and are constructed and supplied in 7 x 7 and 7 x 19. PVC Wire Rope can be purchased by the metre or in 305 metre rolls.



Common applications:

  • Security cables
  • Trailer safety cables
  • Mining tethers
  • Dog leads
  • Sailboat lifeline cables
  • Perimeter cables
  • Hanging bird feeders
  • Safety cables - fall protection cables (some with safety orange vinyl coating)
  • Misc lanyards

Basic Information:

  • PVC/Vinyl is better for outdoor applications with direct sunlight
  • PVC/Vinyl is more cost effective than Nylon
  • PVC/Vinyl is for general multi-purpose use
  • PVC (polyvinyl chloride) synonymous with vinyl

*Custom color matching available*



Bare Cable Diameter Coated Cable Diameter Galvanized
Min. rated breaking strength
Galvanized
PVC weight per
1,000 ft.
Stainless Steel
Min. rated breaking strength
Stainless Steel
PVC weight per
1,000 ft.
3/64' 1/16”     270lbs 5.2lbs
1/16" 3/32” 480lbs 10.1lbs 480lbs 10.2lbs
1/16" 1/8” 480lbs 13.0lbs 480lbs 13.0lbs
3/32' 1/8” 1000lbs 20.0lbs 920lbs 20.0lbs
3/32" 5/32” 1000lbs 23.8lbs 920lbs 23.8lbs
3/32" 3/16” 1000lbs 28.3lbs 920lbs 28.3lbs
1/8" 5/32” 2000lbs 34.7lbs 1760lbs 34.7lbs
1/8" 3/16” 2000lbs 39.3lbs 1760lbs 39.3lbs
5/32" 7/32” 2800lbs 58.1lbs 2400lbs 58.1lbs
3/16' 1/4” 4200lbs 81.1lbs 3700lbs 81.1lbs
3/16" 5/16” 4200lbs 96.1lbs 3700lbs 96.1lbs
7/32" 9/32” 5600lbs 105.4lbs 5000lbs 105.4lbs
1/4" 5/16” 7000lbs 132.9lbs 6400lbs 132.9lbs
1/4" 7/16" 7000lbs 172.8lbs 6400lbs 172.8lbs
5/16" 3/8” 9800lbs 203.7lbs 9000lbs 203.7lbs
5/16" 7/16" 9800lbs 225.3 9000lbs 225.3lbs
3/8" 7/16” 14400lbs 282.6lbs 12000lbs 282.6lbs
3/8" 1/2” 14400lbs 307.5lbs 12000lbs 307.5lbs

RR-W-410



FAQ





Q:What is the material of your products?
A:The material is steel wire, it can be galvanized, ungalvanized, stainless steel etc.


Q:What is the material of plastic coating?
A:The material is PVC,PU,PE and Nylon etc.


Q:What structure of your products?
A:1*7,1*19,7*7,7*37,6*3*3,7*3*3,7*3*7 etc.


Q:What dia of your products?
A:1mm-30mm for ur choose.


Q:Are you a factory or tradingcompany?
A:We are a factory,founded in 1976.


Q:Where is your factory located?How can l visit there?
A:our fctory is located in NO.1238,YIXIAN ROAD,Shanghai,China


Q:How can i get some samples?
A:once you confirm the construction or size, we will check. If there is some stock about your goods, if no,we can producting it with in10-15days.


Q:How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality controiling from the very beginning to the very end.Trailer Safety Coated Steel Wire Rope Long Service Life Strong Breaking Force 0
