Zinc Plated Nylon Coated Wire Rope AISI Standard Steel For Mining Cableway

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO 9001 : 2008
Model Number: 7x7PVC
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1580/TONS
Packaging Details: Wooden Reel
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Material:SteelWire Gauge:0.9mm-50mm
Length:500m/reel,1000m/reel Or As RequestVinyl Coated:Yes
Colour:As RequestStandard:AISI, ASTM, DIN, GB, JIS
Steel Grade:A2-70/A4-80HS Code:7312100000
High Light:

vinyl coated wire rope

,

nylon coated wire rope

Product Description



7x7 Nylon Coated Steel Wire Rope Galvanized Fencing Hoisting Mining Cableway



Technical Information:



Most common two constructions for nylon coating are 7x7, 7x19 and upon special request we can supply 1x7, 1x19, 6x19 Class and 6x37 Class. Typical nylon coated diameters are 3/64 thru 5/8. The outside diameter is laser micrometer inspected during extrusion. Our extrusion line is equipped with a black ink printer capable of printing onto the nylon coating. Our nylon extrusion tooling is cleaned on a regular basis to improve the coating quality.



Common applications:

  • Conveyor

  • Fitness equipment

  • Mechanical control

  • Misc lanyards and tethers

  • Brake Cables

Basic Information:

  • Nylon is a harder coating than PVC/Vinyl

  • Nylon has a higher temperature rating than PVC/Vinyl

  • Nylon is used in cycling over pulleys and sheaves

  • Nylon is used in repetitive actuation applications

  • Nylon is used in rough applications where rubbing and sharp edges can come in contact with the coated cable

Product Description

1. Structure: 1*7; 1*19, 7*7, 7*19, etc
2. Material: carbon steel
3. Diameter: 0.15mm-100mm
4. Standard: AISI, ASTM, DIN, En, Jb, JIS
5. Certification: ISO, SGS
6. T/S: 1470 MPA; 1570MPA
7. Application: Fencing/hoisting/mining/cableway/fitness equipment
8. Package: Safety export wooden /plastic reel / As the requirement of customer
9. Delivery time: Within 7-20days after the order confirmation

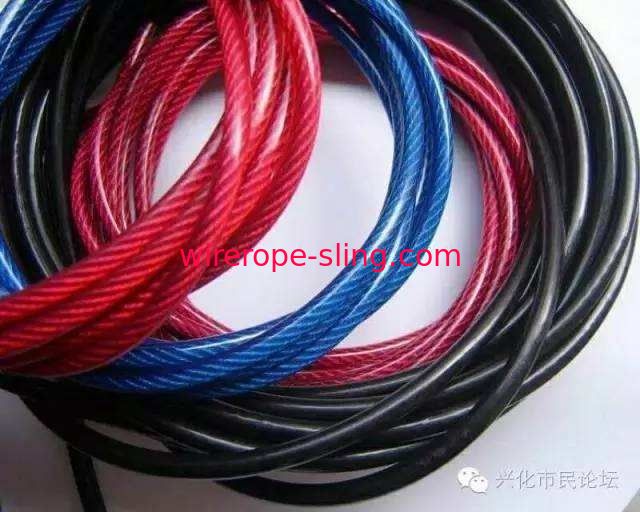

Product Image



Zinc Plated Nylon Coated Wire Rope AISI Standard Steel For Mining Cableway 0

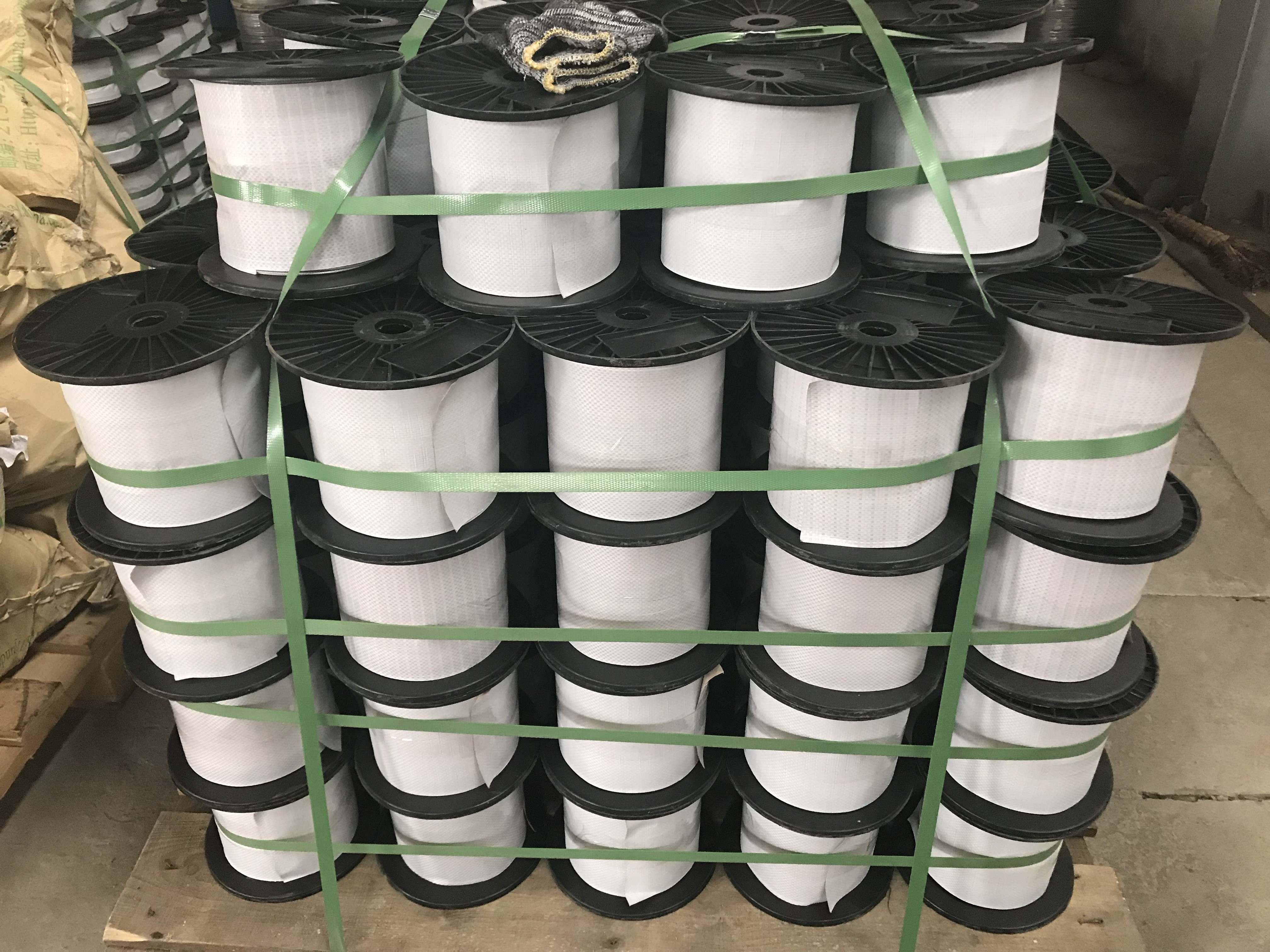

Packaging


Packing: Export Package.
Inner packing:
Wooden reel and craft paper.
Outer packing:
Wooden pallet or according to your request.



Zinc Plated Nylon Coated Wire Rope AISI Standard Steel For Mining Cableway 1



*Custom color matching available*



Bare Cable Diameter Coated Cable Diameter Galvanized
Min. rated breaking strength
Galvanized
Nylon weight per
1,000 ft.
Stainless Steel
Min. rated breaking strength
Stainless Steel
Nylon weight per
1,000 ft.
1/32" 3/64” 110lbs 2.3lbs 110lbs 2.3lbs
3/64" 1/16” 270lbs 5.2lbs 270lbs 5.2lbs
1/16" 3/32” 480lbs 10.1lbs 480lbs 10.1lbs
1/16" 1/8” 480lbs 13.0lbs 480lbs 13.0lbs
3/32" 1/8” 920lbs 20.0lbs 920lbs 20.0lbs
3/32" 5/32” 920lbs 23.8lbs 920lbs 23.8lbs
3/32" 3/16” 920lbs 28.3lbs 920lbs 28.3lbs
1/8" 5/32” 1700lbs 34.2lbs 1700lbs 34.2lbs
1/8" 3/16" 1700lbs 38.8lbs 1700lbs 38.8lbs
1/8" 1/4” 1700lbs 50.4lbs 1700lbs 50.4lbs
5/32" 7/32” 2600lbs 56.1lbs 2600lbs 56.1lbs
3/16" 1/4" 3700lbs 78.1lbs 3700lbs 78.1lbs
3/16" 5/16” 3700lbs 93.1lbs 3700lbs 93.1lbs
1/4" 5/16" 6100lbs 128.9lbs 6100lbs 128.9lbs



RR-W-410
