China Wire Rope Sling manufacturer

Durable Galvanized Cable Wire Clean Steel Brightness Long Operating Life

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO 9001 : 2008
Model Number: 7x19GAC
Payment & Shipping Terms:
Minimum Order Quantity: 1MTRS
Price: USD1600/TON
Packaging Details: Plastic Reels
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100TONS monthly

Detail Information

Material:SteelFinish:Galvanized
Construction:7 X 19Standard:ASTM, BS, DIN, GB, JIS
Diameter:1/4"Length:500 Ft
Alloy Or Not:Non-alloySteel Grade:Carbon Steel
High Light:

aircraft wire cable

,

aircraft wire rope

Product Description

 1400Lb - WLL Drawn galvanized Aircraft Cable 1/4" x 50' 7x19GAC



1/4" Galvanized Aircraft Cable

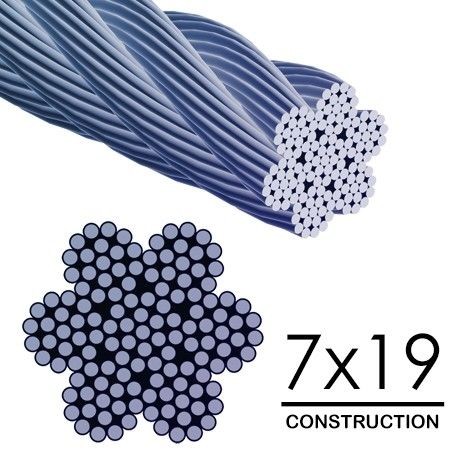

  • Extra Flexible 7 x 19 Construction
  • Commercial Grade
  • Min. Breaking Strength: 7,000 lbs
  • Not suitable for Aircraft Controls
  • 500 ft/reel
  • Weight 111 lbs/mf

Durable Galvanized Cable Wire Clean Steel Brightness Long Operating Life 0

Durable Galvanized Cable Wire Clean Steel Brightness Long Operating Life 1

Durable Galvanized Cable Wire Clean Steel Brightness Long Operating Life 2

Durable Galvanized Cable Wire Clean Steel Brightness Long Operating Life 3

Durable Galvanized Cable Wire Clean Steel Brightness Long Operating Life 4





7x19 Galvanized aircraft cable is preferred when strength and high flexibility are needed. The construction includes 7 strands with 19 wires per strand in galvanized steel, creating a strong steel cable that is both flexible and resistant to corrosion. This small diameter wire rope is not intended for aircraft use, but designed for industrial, agricultural and marine applications.



Meets the Performance requirements of Applicable Federal Specification RR-W-410.

Independent Lab tested and verified.



Safety Notice



Although Westech Rigging Supply strives to manufacture and sell the highest quality rigging and safety gear, use of the gear is dangerous if not used correctly by competent trained professionals. Westech Rigging Supply disclaims any liability resulting from the misuse of its rigging and safety gear. Please take a moment to more thoroughly review our disclaimer.

Westech Rigging Supply rigging and safety gear is only intended to be used by competent trained professionals. Misuse of the rigging and safety gear can result in serious injury up to and including loss of life. As such, Westech Rigging Supply disclaims liability for any misuse or incorrect product selection by our customers.

Rigging and safety gear purchased from Westech Rigging Supply should be used in strict accordance with all industry and OSHA standards. At no time should rigging or safety gear be used beyond its certified load ratings (aka Working Load Limits). Normal wear and tear should be expected with use of rigging and safety gear; therefore, all gear should be thoroughly inspected before each and every use. Worn or unsafe rigging and safety gear should never be used.



Technical Date



7x19 Aircraft & Utility Cable
Rope
Dia.
(in)
Approx.
Wt/100 ft
(lb)
Minimum Breaking Force
(lb)
Galvanized Stainless
1/16 .75 480 480
3/32 1.7 1,000 920
1/8 2.9 2,000 1,760
5/32 4.5 2,800 2,400
3/16 6.5 4,200 3,700
7/32 8.6 5,600 5,000
1/4 11.0 7,000 6,400
9/32 13.9 8,000 7,800
5/16 17.3 9,800 9,000
3/8 24.3 14,400 12,000
