Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | CE / ISO 9001 |

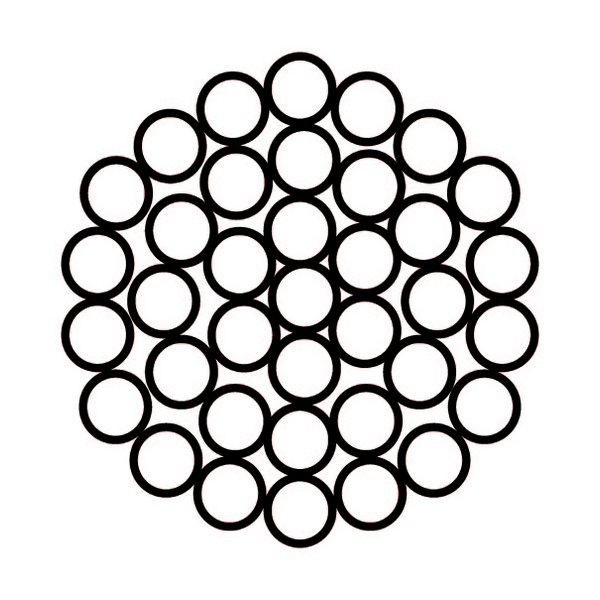

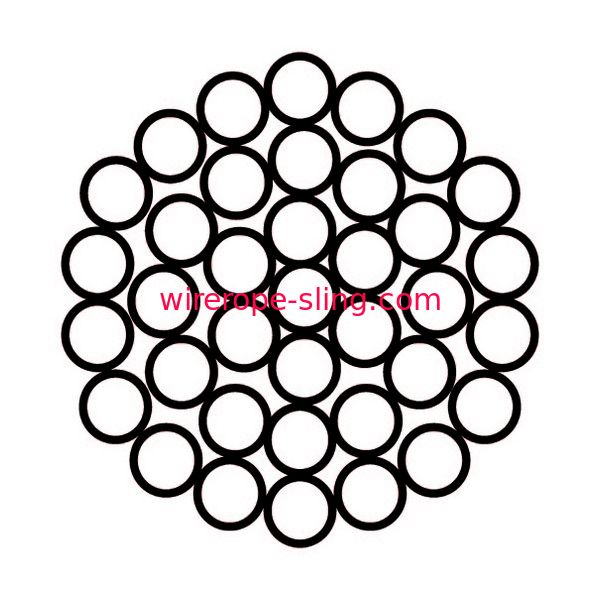

| Model Number: | 1x37 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 10000mtrs |
| Price: | USD3000/TON |
| Packaging Details: | Plastic Reels |
| Delivery Time: | 15 days after the order confirmation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50tons monthly |
|
Detail Information |
|||
| Tensile Strength: | 1960MPA | Lay: | Sz Right Regular Lay |
|---|---|---|---|
| MOQ: | 10000 Meters If No Stock | Application: | Control Cable |
| Material: | Steel | Zinc Coating: | Over 15g/m2 |
| HS Code: | 7312100000 | Diameter: | 0.8mm To 6.0mm |
| High Light: |
pto control cable,push pull control cable |
||
Product Description

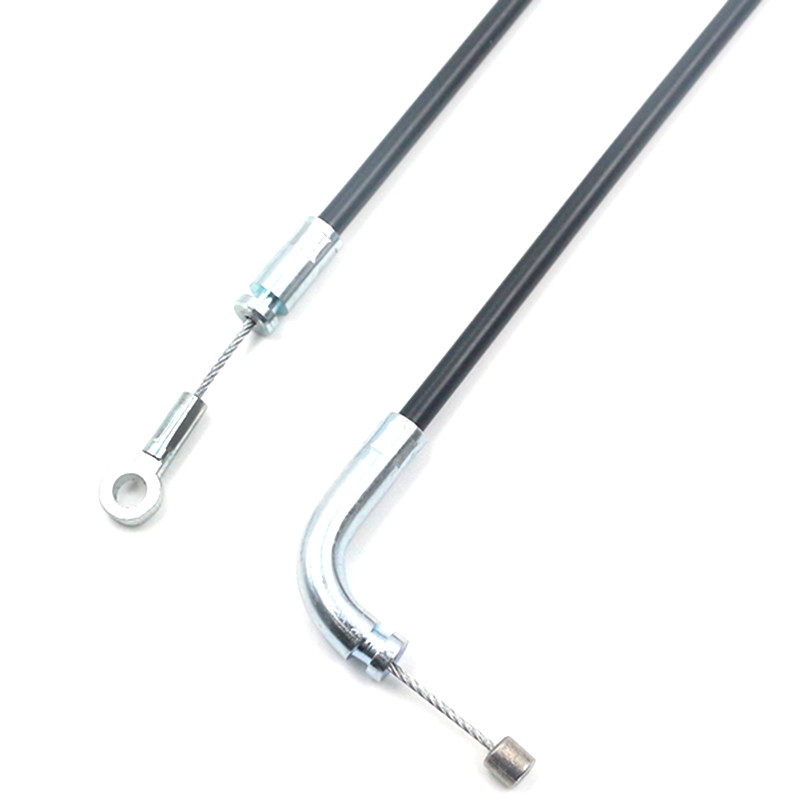

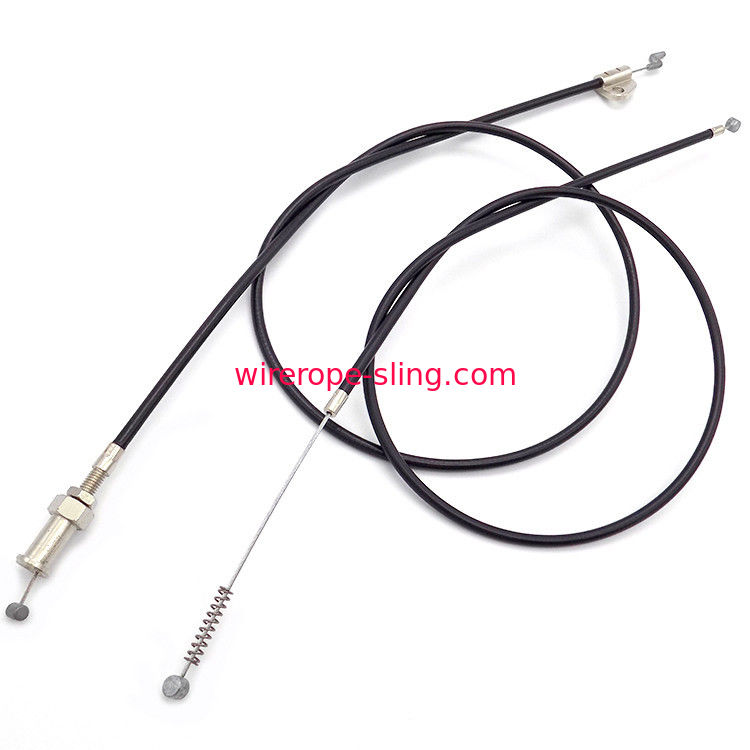

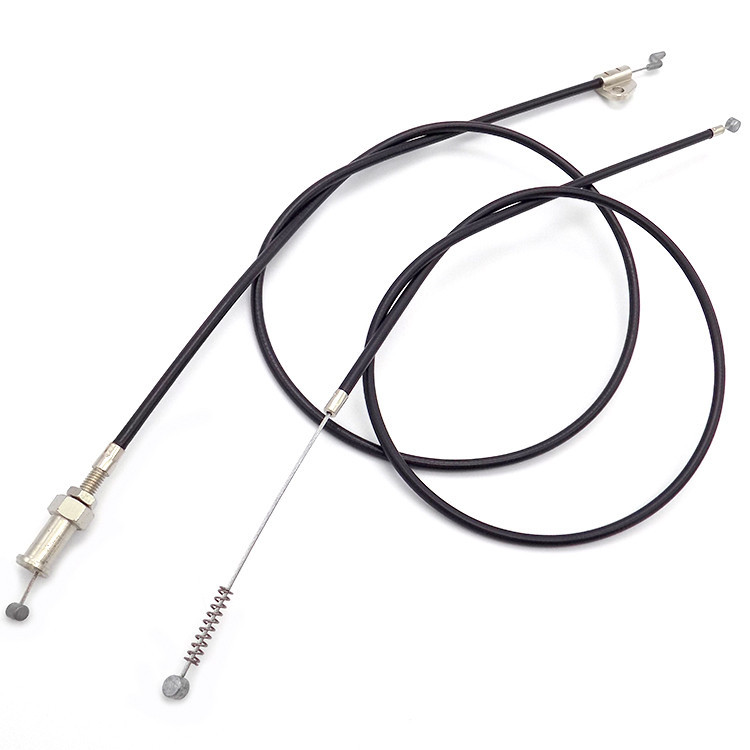

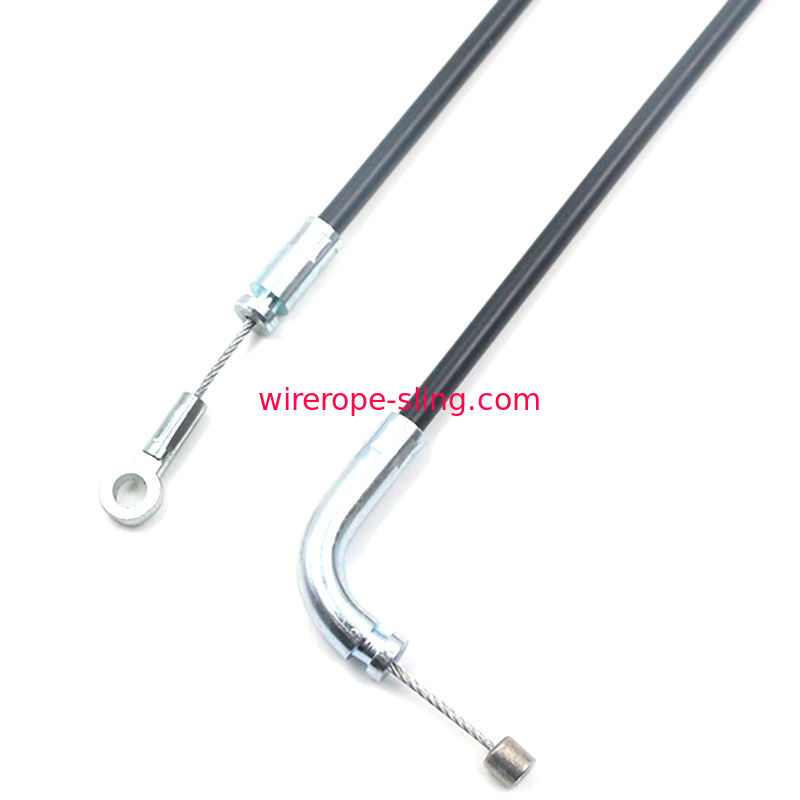

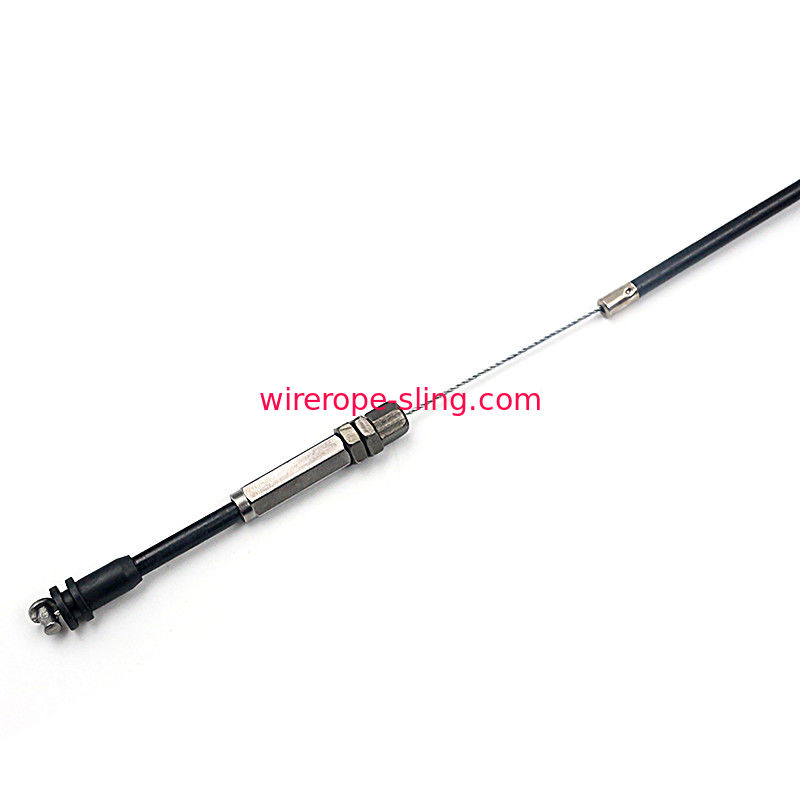

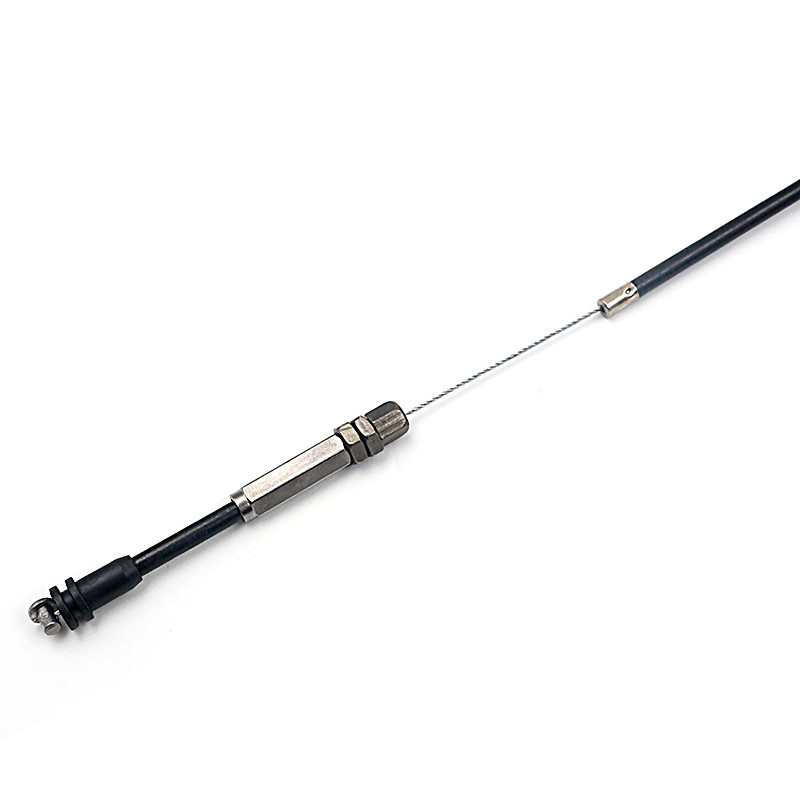

1x37 control cable for Auto push pull control cable for baby carriag
Compression in push-pull cables creates motion in one direction while tension pulls it in the opposing direction. This type of control cable is used in hydraulic, pneumatic, and electrical control systems.
With pull-pull cables, tension applies motion in one direction only. Spring actuation is responsible for returning the cable to its starting point. Pull-pull controls are employed when transmission forces require tension.
Either type of control cable must be strong, durable, and able to bend multiple times in many different directions without breaking.
Control cables are specialized wire ropes designed for the positive and precise transmission of mechanical motion. Incorporated into equipment and machinery, these cables are responsible for connecting moving parts and controlling the interaction of those parts.
Technical Table of Wire Rope
| Diameter (mm) | Min. Breaking load (Kg) | Approx. Weight (Kg/100m) | ||
| Galvanized | SUS 316 | SUS 304 | ||
| 2.5 | 580 | 440 | 555 | 30.50 |
| 3.0 | 830 | 640 | 800 | 43.90 |
| 3.5 | 1130 | 870 | 1090 | 59.90 |
| 4.0 | 1480 | 1140 | 1420 | 78.20 |
| 4.8 | 2130 | 1640 | 2050 | 11.30 |
| 5.0 | 2300 | 1670 | 2110 | 12.20 |
| 6.0 | 3330 | 2400 | 3000 | 17.60 |
high quality Manufacturer supply motorcycle Auto parts Auto push pull control cable for baby carriage
| 1.Diameter | 0.3-11mm | Custom-made available |
| 2.construction | 1*7,7*7,7*19,etc | |
| 3.material | stainless steel or galvanized steel | |
| 4.MOQ | 500pcs | |
| 5.construction of outer casing | liner+coiled shell+jacket | |
| 6.kits incude | steel wire ,out casing ,end accessories | |
| 7.coating
|
as requirement | |
| 8.end parts of fittings | a large selection of end fittings,including eye bolts,links,springs,hooks,thimble,clips,stops,ball ,ball shanks ,sleeve ,stamped eye,handles,etc | |
| 9.Lead time | 7days if there were enough material in stock | |
| 10.sample | Free sample available if all of dimensions same as our existing one ,if not ,contact me ,to get a cost efficient solution. | |
| application | ||
| specification |
Refer to the drawing as below: All of specification custom-made available. the tighter tolerance ,the higher the cost of the cost.
|
|
how to choose wire rope control cable:1stain1.1.1.
1.stainless steel :
providing good corrosion resistance and strength comparable to galvanized carbon steel grades.
2.galvanized steel:
Zinc coated carbon steel offers some corrosion resistance. It remains ductile over long periods of working. Usually higher break strengths than stainless steels.
| Diameter | construction | weight(100m) | Minimum Breaking load(N) |
| 1.0mm | 1*19 | 0.495 | 950(95kg) |
| 7*7 | 0.393 | 650 (65kg) | |
| 1.2mm | 1*19 | 0.713 | 1440(144kg) |
| 7*7 | 0.566 | 950(95kg) | |
| 1.5mm | 1*19 | 1.114 | 2200(220kg) |
| 7*7 | 0.884 | 1500(150kg) | |
| 1.8mm | 1*19 | 1.604 | 3200(320kg) |
| 7*7 | 1.273 | 2100(210kg) | |
| 2.0mm | 1*19 | 1.98 | 3900(390kg) |
| 7*7 | 1.527 | 2650(265kg) | |
| 2.4mm | 1*19 | 2.851 | 5650(565kg) |
| 7*7 | 2.264 | 3800(380)kg | |
| 2.5mm | 1*19 | 3.094 | 6100(610kg) |
| 7*7 | 2.381 | 4100(410kg) | |
| 3.2mm | 7*7 | 4.024 | 6850(685kg) |
| 7*19 | 3.901 | 6800(680kg) | |
| 3.8mm | 7*19 | 5.675 | 9650(965kg) |
| 7*7 | 5.502 | 9600(960kg) | |
| 4.0mm | 7*19 | 6.609 | 12500(1250kg) |
| 4.2mm | 7*7 | 6.933 | 13000(1300kg) |
| 4.5mm | 7*7 | 7.958 | 13500(1350kg) |
| 4.8mm | 7*19 | 8.778 | 15300(1530kg) |
| 6.0mm | 7*19 | 8.716 | 23900(2390kg) |
