All - Grip Wire Rope Extension IWRC For Winch Line Thimbled Eye On One End

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO 9001 : 2008
Model Number: LKSWL
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: USD5-15 per set
Packaging Details: Wooden Case or asrequest
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability:

Detail Information

Dia.:As Request Or Standard FormStandard:AISI, ASTM, BS, DIN, GB, JIS
Wire Gauge:0.3-11mmHolder Form:Hook
Package Quantity:1Alloy Or Not:Non-alloy
Steel Grade:Stainless Or GalvanziedHS Code:73121000
High Light:

synthetic winch rope

,

winch line extension

Product Description

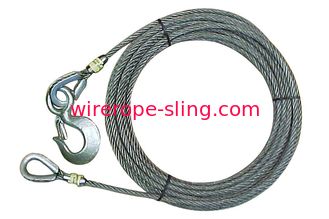

All-Grip Wire Rope Extension Rope Winch Line 1/2" x 50' Thimbled eye on one end





Description



Need to lengthen your winch line? This wire rope extension supplied by All-Grip gives you the extra 50' you need. With a thimble eye on one end and a hook on the other, this cable extension helps get that extra length when you need it. Made from 1/2" steel core cable.







Features



  • IWRC steel core cable
  • Thimbled eye on one end
  • Hook with safety latch on other end
  • Weight: 29 lbs.
  • 1/2" W x 50' L



We have different Wire Rope Winch Line Extensions for your options,here is our technical table as belows;





Wire Rope Size Construction Length (ft) Breaking Strength (lbs) Weight (lbs)
5/16" 6x19 Class 50 10,540 10.63
5/16" 6x19 Class 75 10,540 15.13
5/16" 6x19 Class 100 10,540 19.63
5/16" 6x19 Class 125 10,540 24.13
5/16" 6x19 Class 150 10,540 28.63

3/8" 6x19 Class 50 15,100 15.2
3/8" 6x19 Class 75 15,100 21.7
3/8" 6x19 Class 100 15,100 28.2
3/8" 6x19 Class 125 15,100 34.7
3/8" 6x19 Class 150 15,100 41.2

7/16" 6x19 Class 50 20,400 21.25
7/16" 6x19 Class 75 20,400 30
7/16" 6x19 Class 100 20,400 38.75
7/16" 6x19 Class 125 20,400 47.5
7/16" 6x19 Class 150 20,400 56.25

1/2" 6x19 Class 50 26,600 27.31
1/2" 6x19 Class 75 26,600 38.81
1/2" 6x19 Class 100 26,600 50.31
1/2" 6x19 Class 125 26,600 61.81
1/2" 6x19 Class 150 26,600 73.31
1/2" 6x19 Class 175 26,600 84.81
1/2" 6x19 Class 200 26,600 96.31

9/16" 6x19 Class 50 33,600 36.61
9/16" 6x19 Class 75 33,600 51.36
9/16" 6x19 Class 100 33,600 66.11
9/16" 6x19 Class 125 33,600 80.86
9/16" 6x19 Class 150 33,600 95.61
9/16" 6x19 Class 175 33,600 110.36
9/16" 6x19 Class 200 33,600 125.11

5/8" 6x19 Class 50 41,200 43.68
5/8" 6x19 Class 75 41,200 61.68
5/8" 6x19 Class 100 41,200 79.68
5/8" 6x19 Class 125 41,200 97.68
5/8" 6x19 Class 150 41,200 115.68
5/8" 6x19 Class 175 41,200 133.68
5/8" 6x19 Class 200 41,200 151.68
5/8" 6x19 Class 225 41,200 169.68
5/8" 6x19 Class 250 41,200 187.68

3/4" 6x19 Class 50 58,800 66.5
3/4" 6x19 Class 75 58,800 92.5
3/4" 6x19 Class 100 58,800 118.5
3/4" 6x19 Class 125 58,800 144.5
3/4" 6x19 Class 150 58,800 170.5
3/4" 6x19 Class 175 58,800 196.5
3/4" 6x19 Class 200 58,800 222.5
3/4" 6x19 Class 225 58,800 248.5
3/4" 6x19 Class 250 58,800 274.5
3/4" 6x19 Class 275 58,800 300.5
3/4" 6x19 Class 300 58,800 326.5


Rope Winch Lines

WINCH LINES OF ALL SIZES AND TYPES, BUILT TO ORDER!

We are a full line rigging shop, which means we carry wire rope and premium synthetic ropes in bulk. We also carry all of the fittings, and we have the right equipment to make professional winch lines on demand. Look at the table below to understand the four types of winch lines offered on this page. If you don't see what you're looking for, just give us a call, and we will happily provide you with a custom quote.

Material Hook Type Description
Steel Cable Standard Hook This is the most common type of winch line because it is most affordable. Non-swiveling hook, made from alloy steel, safety latch included.
Steel Cable Swivel Hook The overall function is similar to a standard hook, only this hook swivels which makes for easier connections, hook positioning and less binding.
Steel Cable Self-Closing Swivel Hook Also known as a "safety hook", this hook features a heavy-duty latch that opens outward, and closes immediately once a load is applied. This hooks also swivels, and generally is more durable than other hooks.
Steel Cable Extension w/ Hook An extension is a quick and easy way to get extra length / reach. Just connect the hook on your existing winch line to the thimbled eye of the extension, and you're off and running.
Ultrex Synthetic Optional Hook Made from Yale Cordage's premium Ultrex rope, these winch lines are incredibly lightweight, yet stronger than steel cable of the same size. Equipped with a durable Blue Line Thimble, and available with an optional, removable sling hook with safety latch.
