Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | CE/ ISO9001:2008 |
| Model Number: | LKS-JJ-RS |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | USD5-25 per set |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 days after the order confirmation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000 Sets monthly |
|
Detail Information |
|||
| Usage: | Rigging Hardware,marine Hardware | Surface: | Polish |
|---|---|---|---|
| Design: | OEM Services Provided | Name: | Wire Rope Terminal |
| Type: | European Type, US Open | Material: | Stainless Steel |
| Color: | Silver | HS Code: | 7326901900 |
| High Light: |
stainless rigging hardware,boat rigging hardware |
||
Product Description

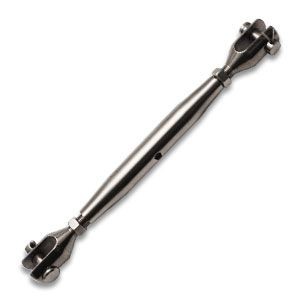

Stainless Jaw & Jaw Rigging Screw - MT Form Marine Rigging Hardware AISI316 Steel
LKS supply a wide range of stainless steel rigging screws in a variety of sizes and styles.

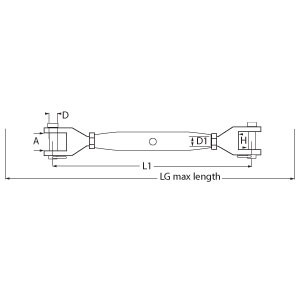

| Product Specifications | ||||||
|---|---|---|---|---|---|---|
| Part Code | D1 | L1 mm |
LG mm |
A mm |
D mm |
H mm |
|
SSRFF0004M
|
M4
|
115
|
175
|
5.5
|
4
|
8
|
|
SSRFF0005M
|
M5
|
135
|
195
|
6.5
|
5
|
10
|
|
SSRFF0006M
|
M6
|
160
|
230
|
7.5
|
6
|
10
|
|
SSRFF0008M
|
M8
|
180
|
255
|
11
|
8
|
11
|
|
SSRFF0010M
|
M10
|
210
|
300
|
12
|
9
|
14
|
|
SSRFF0012M
|
M12
|
270
|
380
|
14
|
12
|
20
|
|
SSRFF0014M
|
M14
|
295
|
415
|
15
|
12
|
22
|
|
SSRFF0016M
|
M16
|
340
|
480
|
17
|
16
|
26
|
Polished Finish AISI 316 Marine Grade A4 Stainless Steel Closed Body Rigging Screws with a Jaw and Jaw or Fork and Fork
Also Known as Barrel Strainers, Tensioners, Turnbuckles, Fork and Fork Rigging Screws, Bottle Screws or Adjusters
Simply take out the Clevis Pin from The Rigging Screw Fork by removing the Split Ring
4mm 5mm 6mm 8mm 10mm 12mm 16mm and 20mm Diameters available. Drawing sizes may vary slightly
We have many different Stainless Steel Rigging Screw for your applications,please contact our sales team to get more information.
AISI 316 Marine Grade Stainless Steel Machined Jaw/Jaw Rigging Screw. Metric Thread
AISI 316 Marine Grade Stainless Steel Machined Jaw/Swage Stud Rigging Screw. Metric Thread
AISI 316 Marine Grade Stainless Steel Welded Jaw/Jaw Stud Rigging Screw. Metric Thread
AISI 316 Marine Grade Stainless Steel Welded Jaw/Swage Stud Rigging Screw. Metric Thread
AISI 316 Marine Grade Stainless Steel Welded Eye/Eye Rigging Screw. Metric Thread
AISI 316 Marine Grade Stainless Steel Swage Stud/Swage Stud Rigging Screw. Metric Thread
AISI 316 Marine Grade Stainless Steel Fork/Swage Stud Rigging Screw. Threaded Bronze Inserts ensure adjustment without seizing or galling. UNF Thread. Certified. Manufactured in China.
AISI 316 Marine Grade Stainless Steel Self Assembly Rigging Screw. Threaded Bronze Inserts ensure adjustment without seizing or galling. Supplied with Fork and Self Fit, reusable stud. UNF Thread. Certified. Manufactured in China.
AISI 316 Marine Grade Stainless Steel Self Fork/Fork Rigging Screw. Threaded Bronze Inserts ensure adjustment without seizing or galling. Certified. Manufactured in China.
AISI 316 Marine Grade Stainless Steel Machined fork and Swage stud Rigging Screw. Manufactured from polished stainless steel seamless tube. UNF Thread. Certified. Manufactured in China.
AISI 316 Marine Grade Stainless Steel Machined fork and Sta-Lok Self Fit, (reusable stud) Rigging Screw. Manufactured from polished stainless steel seamless tube. UNF Thread. Certified. Manufactured in China.
AISI 316 Marine Grade Stainless Steel Machined Fork/Fork Screw. Manufactured from polished stainless steel seamless tube. UNF Thread. Certified. Manufactured in China.
AISI 316 Marine Grade Stainless Steel threaded Eye/Eye Rigging Screw. Manufactured from polished stainless steel seamless tube. Metric Thread. Manufactured in China.
