Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | CE/ ISO9001:2008 |
| Model Number: | LKS-SS-TK |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | USD5-25 per set |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 days after the order confirmation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000 Sets monthly |
|
Detail Information |
|||
| Material: | Stainless Steel | Color: | Silver |
|---|---|---|---|
| Design: | OEM Services Provided | Name: | Wire Rope Terminal |
| Type: | European Type, US Open | Usage: | Rigging Hardware,marine Hardware |
| Surface: | Polish | HS Code: | 7326901900 |
| High Light: |
stainless rigging hardware,boat rigging hardware |
||
Product Description

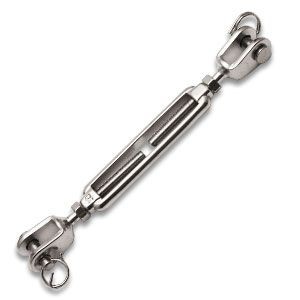

Stainless steel turnbuckles Marine Rigging Hardware for Yacht Rigging
LKS supply a wide range of stainless steel Turnbuckles in a variety of sizes and styles.

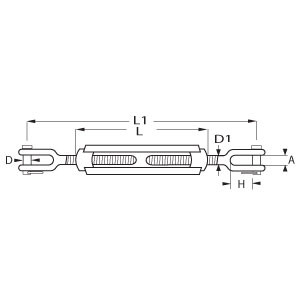

| Dimension | Size G | Wire | L1 | L2 | A |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) |
| M4*2 | 4 | 2 | 150 | 125 | 5.5 |
| M5*2 | 5 | 2 | 215 | 155 | 6.5 |
| M5*2.5 | 5 | 2.5 | 215 | 155 | 6.5 |
| M6*3 | 6 | 3 | 245 | 175 | 7.5 |
| M6*3.2 | 6 | 3.2 | 245 | 175 | 7.5 |
| M6*4 | 6 | 4 | 255 | 185 | 7.5 |
| M8*4 | 8 | 4 | 275 | 200 | 11 |
| M8*5 | 8 | 5 | 280 | 205 | 11 |
| M10*5 | 10 | 5 | 320 | 230 | 12 |
| M10*6 | 10 | 6 | 335 | 245 | 12 |
| M12*6 | 12 | 6 | 400 | 285 | 14 |
| M12*8 | 12 | 8 | 420 | 305 | 14 |
| M14*7 | 14 | 7 | 435 | 315 | 15 |
| M16*8 | 16 | 8 | 500 | 360 | 17 |
| M16*10 | 16 | 10 | 510 | 370 | 17 |
| M20*10 | 20 | 10 | 560 | 410 | 20 |
| M20*12 | 20 | 12 | 580 | 430 | 23 |
| M22*14 | 22 | 14 | 715 | 545 | 30 |
| M24*16 | 24 | 16 | 855 | 625 | 30 |
| M27*19 | 27 | 19 | 970 | 735 | 34 |
| M30*22 | 30 | 22 | 1080 | 825 | 40 |
| M36*26 | 36 | 26 | 1200 | 930 | 44 |
We have many kinds of the stainless turnbuckle for your applications, please feel free to contact our sales team to get more information.
AISI 316 Marine Grade Stainless Steel Welded Jaw/Jaw Turnbuckle. Metric thread. Untested
Fork and Swage Stud Turnbuckle. Forged from high strength Bronze alloy, with a polished chromium finish. UNF Thread. Certified. Manufactured in the UK
Fork and Self Assembly Stud Turnbuckle. Forged from high strength Bronze alloy, with a polished chromium finish. UNF Thread. Certified. Manufactured in the UK
Fork and Fork Turnbuckle. Forged from high strength Bronze alloy, with a polished chromium finish. Supplied with Stainless Steel Fork each end. UNF Thread. Certified. Manufactured in the UK
AISI 316 Marine Grade Stainless Steel Welded Hook/Eye Strainer. Metric thread. Untested
AISI 316 Marine Grade Stainless Steel Welded Eye/Eye Strainer. Metric thread. Untested
