Highly Flexible Strand Stainless Steel Wire Rope Marine Grade 7 X 19

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: ISO9001
Model Number: 7X19SSWR
Payment & Shipping Terms:
Minimum Order Quantity: 1000mtrs
Price: US $3,000-6,000 / Tons
Packaging Details: Wrapped in plastic reel or wooden reel, then put on pallets or in wooden box.
Delivery Time: 15 working days
Payment Terms:
Supply Ability:

Detail Information

Standard:AISI, ASTM, DIN, EN, GB, JISGrade:200 Series, 300 Series
Wire Gauge:0.1mm-58 MmLength:500m;1000m;2000m;3000m
Application:Machine;Architecture;transportation...C Content (%):<0.08
Si Content (%):<1.0H.S.Code:7312100000
High Light:

coated stainless steel cable

,

stainless steel cable

Product Description

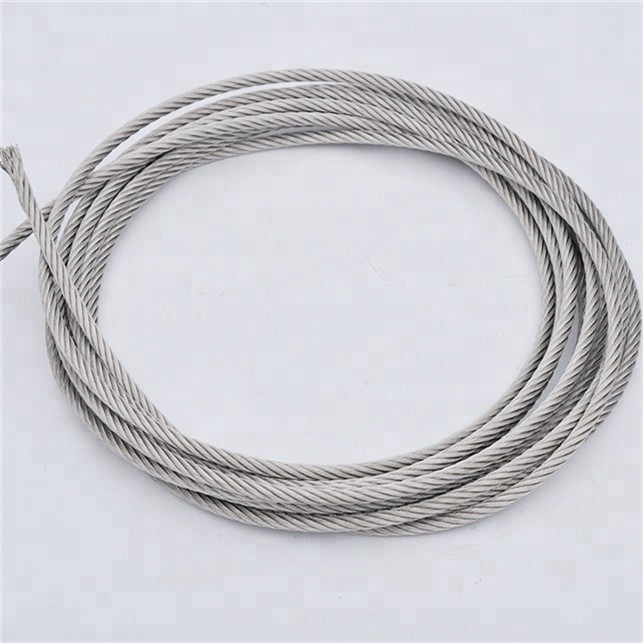

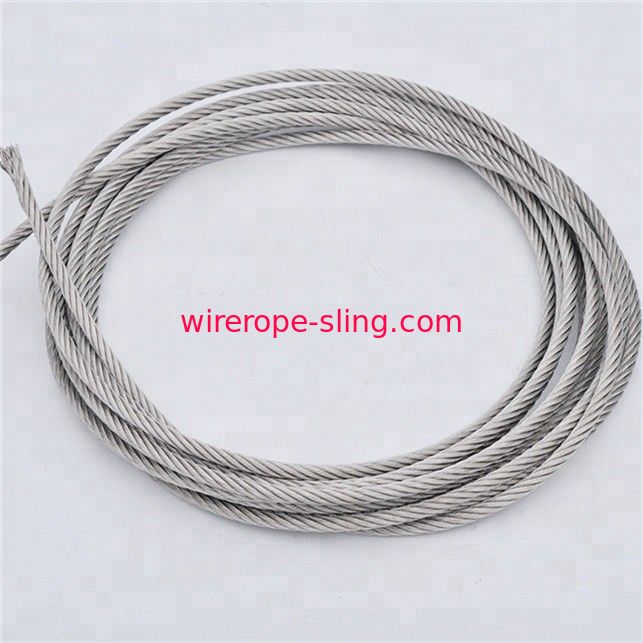

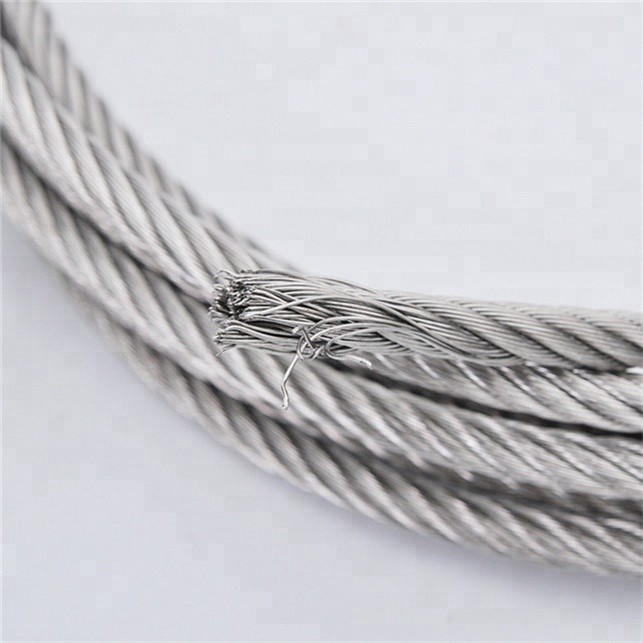

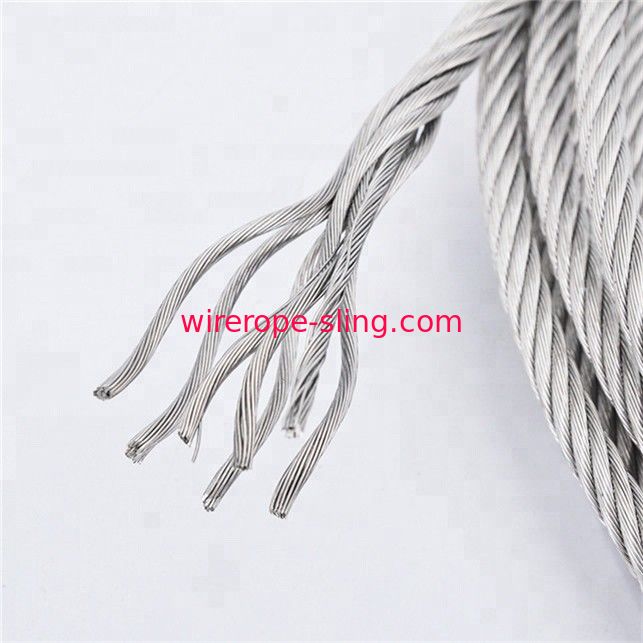

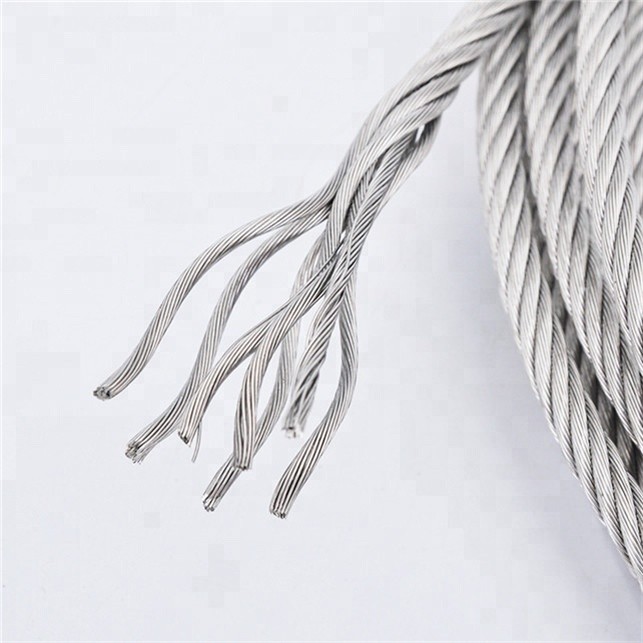

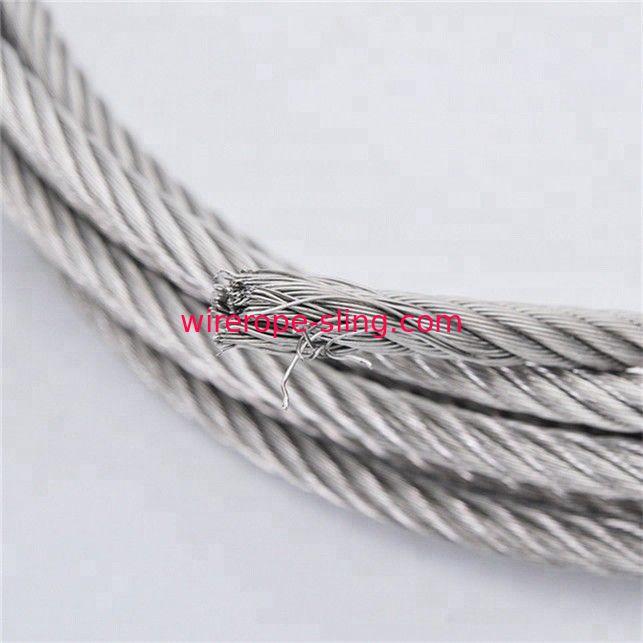

7x19 Strand Wire Rope in A4-AISI 316 Marine Grade Stainless Steel - Highly Flexible



Highest quality marine grade stainless steel cable from 2mm diameter to 16mm diameter.

Available to buy per meter or as 100m or 250m,500m,1000m reels



Highly Flexible Strand Stainless Steel Wire Rope Marine Grade 7 X 19 0

7x19 Stainless Steel Wire Rope - Per Metre

Options Diameter MBL MBL SWL Weight Length Code
(mm) (kN) (Kg) (Kg) (Kg/100m) (m)
2mm 7x19 - Per Metre 2 2.08 212 35 1.49 1 WR19-020
2.5mm 7x19 - Per Metre 2.5 3.26 332 55 2.33 1 WR19-025
3mm 7x19 - Per Metre 3 4.69 478 80 3.35 1 WR19-030
4mm 7x19 - Per Metre 4 8.34 850 141 5.95 1 WR19-040
5mm 7x19 - Per Metre 5 13 1330 221 9.3 1 WR19-050
6mm 7x19 - Per Metre 6 18.8 1920 320 13.4 1 WR19-060
8mm 7x19 - Per Metre 8 33.4 3410 568 23.8 1 WR19-080
10mm 7x19 - Per Metre 10 52.1 5310 885 37.2 1 WR19-100
12mm 7x19 - Per Metre 12 75.1 7660 1276 53.6 1 WR19-120
14mm 7x19 - Per Metre 14 102 10100 1683 72.9 1 WR19-140
16mm 7x19 - Per Metre 16 133 13600 2266 95.5 1 WR19-160



Please note the minimum length you can order is 1 meter, simply enter the length you need.

Key Features:

Highly Flexible Strand Stainless Steel Wire Rope Marine Grade 7 X 19 1 316-grade stainless steel.
Highly Flexible Strand Stainless Steel Wire Rope Marine Grade 7 X 19 2 Highly flexible.
Highly Flexible Strand Stainless Steel Wire Rope Marine Grade 7 X 19 3 Low strength.
Highly Flexible Strand Stainless Steel Wire Rope Marine Grade 7 X 19 4 Cut to length.
Highly Flexible Strand Stainless Steel Wire Rope Marine Grade 7 X 19 5 Product has quoted safe working load.




Characteristics

The 7x19 construction stainless steel wire rope is highly flexible. This also means it is not as strong as either 1x19 or 7x7.

7x19 wire rope is suitable for most running load applications & numerous applications such as security cables & winch cables.

All provided in 316 (Marine) grade stainless steel.

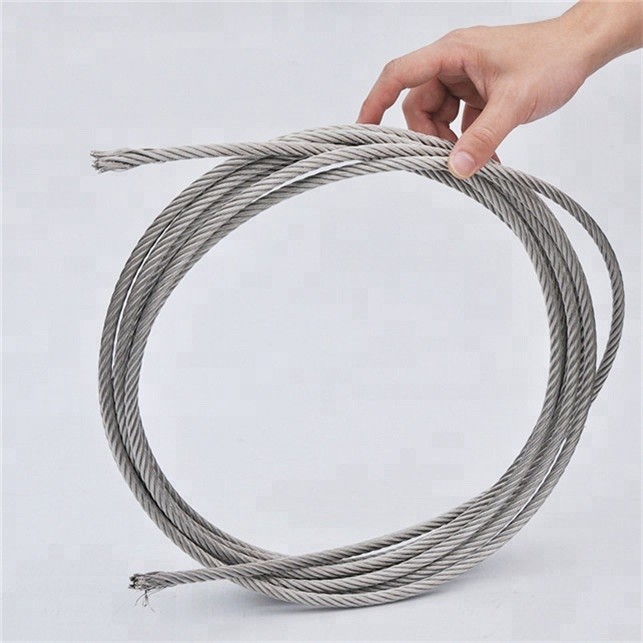

7x19 Stainless Steel Wire Rope - Demonstration of the characteristics of 7x19 stainless steel wire rope. Low strength and high flexibility.

Loading

Wire Rope Load Definitions and Explanations

MBL - Minimum Break Load = The stress which, when steadily applied to a structural member, is just sufficient to break or rupture it. Also known as an ultimate load.

SWL - Safe Working Load = Briefly defined, the "safe working load" of a line is the load that can be applied without causing any kind of damage to the wire rope. Note that the safe working load is considerably less than the breaking strength.

The SWL is calculated using a given safety factor, SF, which for LKS, is provided as 5:1

Factors of safety should always be applied when calculating maximum wire rope loading conditions. In cases of doubt, an engineer should be consulted to assess the loading and advise on suitable factors of safety to ensure that overloading cannot occur.


Technical Standards

Wire rope and strand are manufactured from high tensile, high-quality AISI 316 stainless steel grade 1.4401 in fully austenitic condition to give maximum corrosion resistance.

Wire rope dimensions and stainless steel tensile grades conform to BS MA 29 which stipulates tolerances on nominal diameter and minimum tensile strength for wire rope sizes and minimum breaking forces for strands and ropes.

Full certification of conformance is available, please call to request this.
