Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | LKS |
Certification: | CE / ISO9001:2008 |
Model Number: | 1x19 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1mtrs |
Price: | USD5000/TON |
Packaging Details: | Seaworthy packing or as request |
Delivery Time: | 15 days after the order confirmation |
Payment Terms: | L/C, T/T |
Supply Ability: | 100tons monthly |
Detail Information |
|||
Steel Grade: | 300 Series | Standard: | AISI, ASTM, BS, DIN, GB, JIS |
---|---|---|---|
Wire Gauge: | 0.6mm-10mm | Type: | Drawn Wire,Carbon Steel Wire |
Alloy Or Not: | Non-alloy | Special Use: | Cold Heading Steel |
Certificate: | ISO, SGS | Packaging: | In Coil And Pallet |
High Light: |
coated stainless steel cable,stainless steel cable |
Product Description

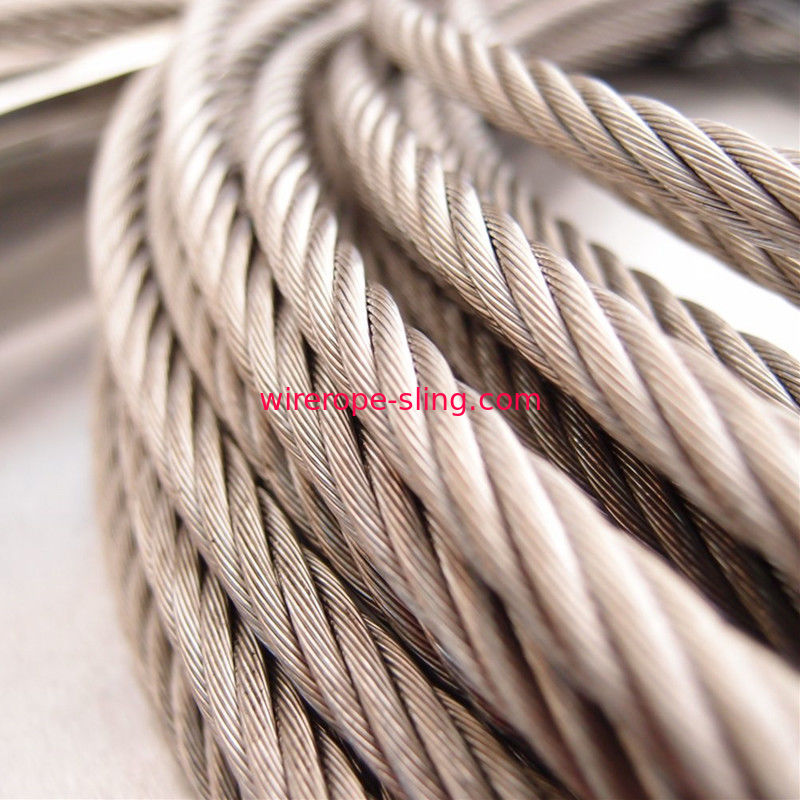

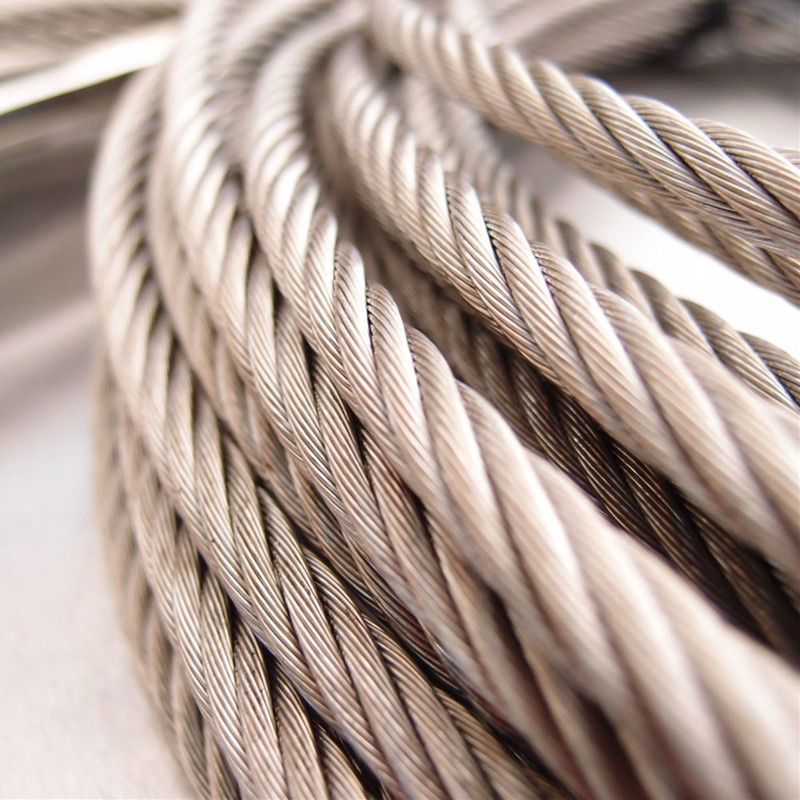

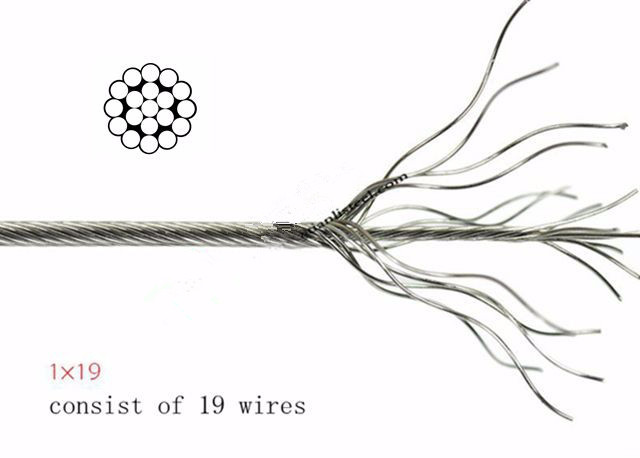

1x19 AISI316 stainless steel strand is a very popular stainless steel construction. Used heavily throughout the marine industry, 1x19’s excellent breaking load and low stretch characteristics along with its’ aesthetic appeal make it a favourite for marine, structural and balustrade applications as well as many others, examples of which are shown below:
supply ability:500 Ton/Tons per Month
Packaging Details
Export packaging, or according to customer requirements
Port
Shanghai
Lead Time :
Shipped in 30 days after payment
2018 Bestselling stainless steel 1x19 wire rope
Main Feature:
1. Material: Stainless steel.
2. Standard: DIN, GB, EN12385-4, AISI, BS, ASTM, JIS etc
3. T/S: 1470MPA, 1570MPA
4. Application: Crane, lifting, hoist, marine, etc.
5.Certification: ISO and SGS.
6.Diameter:1mm to 50mm
Main Product:
Stainless steel wire, stainless steel wire rope, PVC/Nylon/PE coated stainless steel wire rope.
Breaking Loads | |||
---|---|---|---|
Nominal Diameter | Approximate Mass | Minimum breaking loads - 1570 Mpa | |
[mm] | [kg/m] | [kN] | [Kg] |
2.0
|
0.019
|
3.14 | 320 |
2.5
|
0.030
|
4.90 | 499 |
3.0
|
0.043
|
7.06 | 719 |
4.0
|
0.078
|
12.6 | 1,284 |
5.0
|
0.122
|
19.6 | 1,998 |
6.0
|
0.176
|
28.2 | 2,875 |
7.0
|
0.239
|
34.8 | 3,548 |
8.0
|
0.312
|
45.5 | 4,639 |
9.0
|
0.395
|
57.6 | 5,873 |
10.0
|
0.488
|
71.1 | 7,250 |
11.0
|
0.591
|
86.0 | 8,769 |
12.0
|
0.703
|
102.0 | 10,401 |
14.0
|
0.957
|
139.0 | 14,174 |
16.0
|
1.250
|
182.0 | 18,558 |
19.0
|
1.760
|
212.0 | 21,617 |
22.0 | 2.360 | 285.00 | 29,061 |
26.0 | 3.300 | 398.00 | 40,584 |
