Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | LKS |
Certification: | CCS,ISO9001 |
Model Number: | QY160K-4V39 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1mtrs |
Price: | USD1800/tons |
Packaging Details: | Standard Seaworthy Packing or as request |
Delivery Time: | 15 days after the order confirmation |
Payment Terms: | L/C, T/T |
Supply Ability: | 100tons monthly |
Detail Information |
|||
Product Name: | Non-Rotating Wire Rope | Surface: | Galvanized/Ungalvanized |
---|---|---|---|
Length: | 500mtrs/1000mtrs/2000mtrs Available | Diameter: | 8mm-36mm |
Core: | FC/IWR | HS Code: | 73121000 |
Standard: | GB/DIN/BS/JIS/ASTM/RR-W-410/API/ISO | Packing: | Wooden Reel |
High Light: |
wire rope cable,steel rope cable |
Product Description

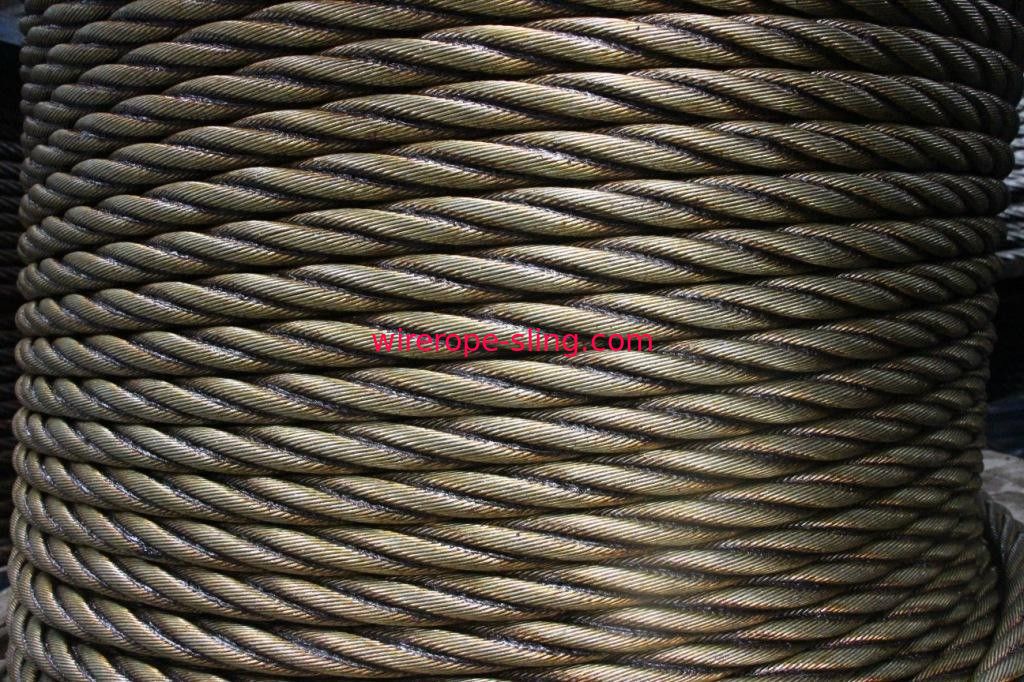

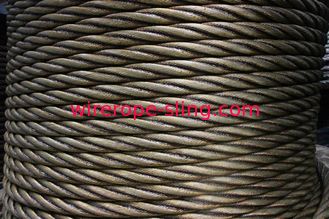

QY160K XZMG 160 Tons Steel Wire Rope / Ss Wire Rope For Automobile Crane 24MM
XZMP QY160K crane is the largest tonnage truck crane in the world. Its arm length and lifting capacity make a great breakthrough for the six-axle truck crane. The full-extended main arm length can reach 62m, and it can be equipped with 28m pairs of lifting arms. The maximum balance weight is 50t, and the span of outriggers is 7.8 x 8.0m. It can achieve the same 360-degree full rotation range.
Four-sector non-rotating wire rope, also known as four-strand rope, is one of the forms of non-rotating wire rope. 4v39s_4 strand rope_4 strand non-rotating wire rope
Implementation criteria: GB/T8918-2006
Model of Non-rotating Wire Rope for XZMP QY160k 160-ton Crane

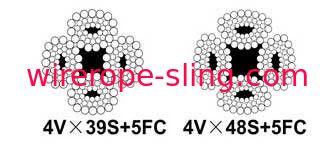

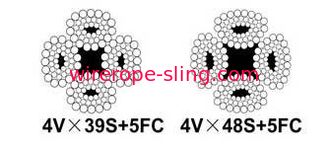

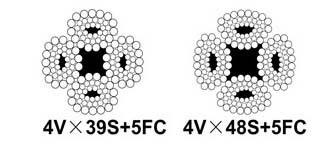

XZMP Crane Wire Rope | 4V*39S+5FC | 4V*48S+5FC | 35W*7 | 35W*K7 | 15*K7 |
Performance of wire rope | Slight non-rotation | Slight non-rotation | non-rotation | non-rotation | non-rotation |
Characteristics of strand/rope | 4strands,39 wires in each strands | 4strands,48 wires in each strands | 35strands,7 wires in each strands | ||
(Big Hook)Dia. of main hoisting wire rope | φ24mm | φ24mm | φ24mm | φ24mm | φ24mm |
(Big Hook)Length of main hoisting wire rope | 300mtrs | 300mtrs | 300mtrs | 300mtrs | 300mtrs |
(Small Hook)Dia. of Auxiliary hoisting wire rope | φ24mm | φ24mm | φ24mm | φ24mm | φ24mm |
(Small Hook)Length of Auxiliary hoisting wire rope | 200mtrs | 200mtrs | 200mtrs | 200mtrs | 200mtrs |
100mtrs weight | 235kg | 235kg | 265kg | 275kg | 275kg |
Specifications
Dia | Reference Weight | 1570 | 1670 | 1770 | 1870 | 1960 | 2160 |
mm | KG/100m | Minimum Breaking Load(KN) | |||||
8 | 26.2 | 36.2 | 38.5 | 40.8 | 43.1 | 45.2 | 49.8 |
10 | 41.0 | 56.5 | 60.1 | 63.7 | 67.3 | 70.6 | 77.8 |
12 | 59.0 | 81.4 | 86.6 | 91.8 | 96.9 | 102 | 112 |
14 | 80.4 | 111 | 118 | 125 | 132 | 138 | 152 |
16 | 105 | 145 | 154 | 163 | 172 | 181 | 199 |
18 | 133 | 183 | 195 | 206 | 218 | 229 | 252 |
20 | 164 | 226 | 240 | 255 | 269 | 282 | 311 |
22 | 198 | 274 | 291 | 308 | 326 | 342 | 376 |
24 | 236 | 326 | 346 | 367 | 388 | 406 | 448 |
26 | 277 | 382 | 406 | 431 | 455 | 477 | 526 |
28 | 321 | 443 | 471 | 500 | 528 | 553 | 610 |
30 | 369 | 509 | 541 | 573 | 606 | 635 | 610 |
32 | 420 | 579 | 616 | 652 | 689 | 723 | 700 |
34 | 474 | 653 | 695 | 737 | 778 | 816 | 796 |
36 | 531 | 732 | 779 | 826 | 872 | 914 | 899 |
